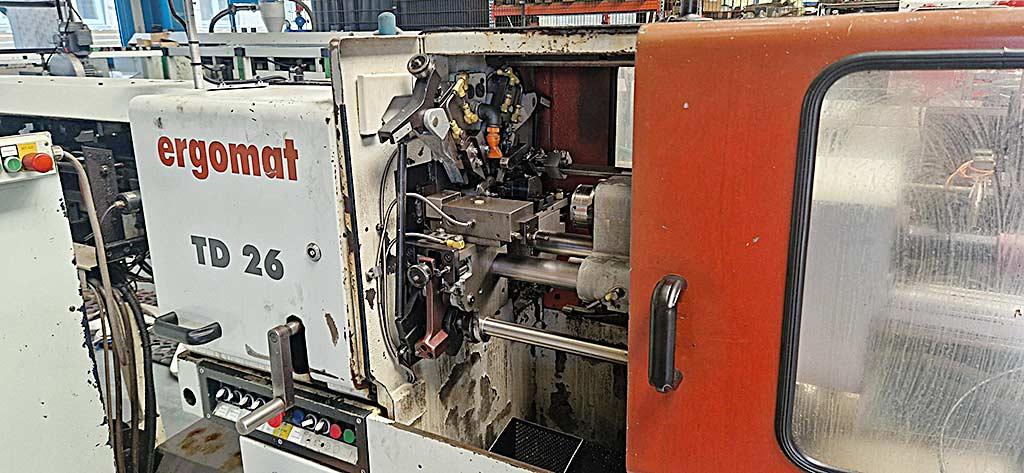

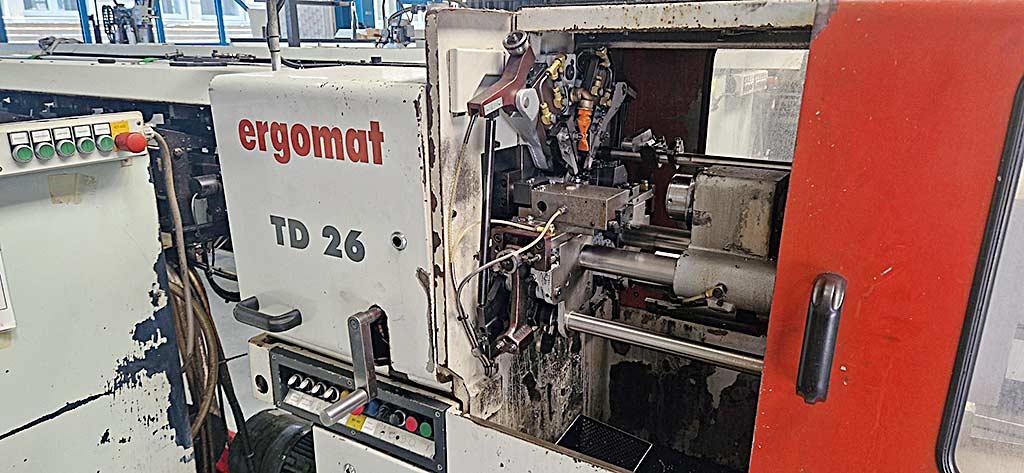

Lathe Ergomat TD 26
Specifications
Germany
Description

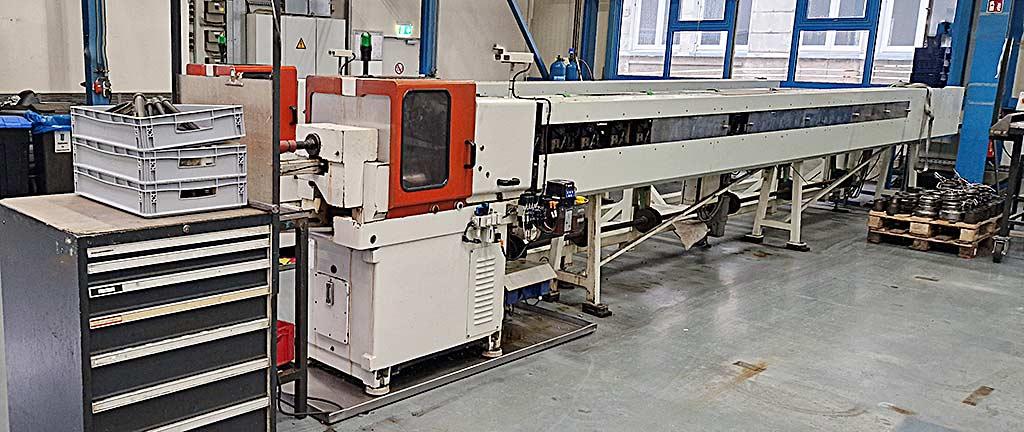

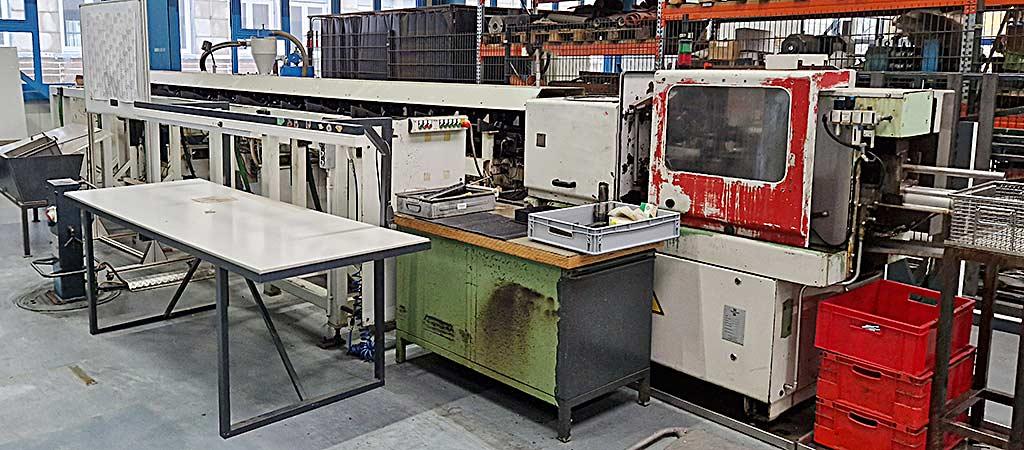

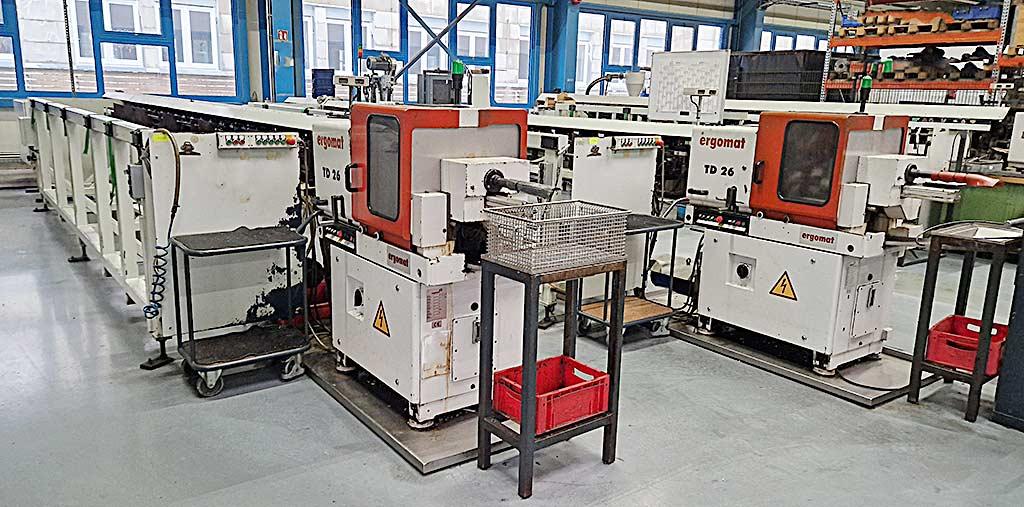

Two identical Ergomat lathes are available. Spindle capacity: max. tube material: 26mm, max. solid material: 26, max. hexagonal material: 22mm, max. square material: 18mm. Distance between collet and tailstock: 285mm, max. turning length: 70mm, production output per hour min./max.: 22/1882, main spindle power: 2.2kW, speed: 4750rpm, vertical/horizontal slide travel: 35mm/35mm. Dimensions X/Y/Z: approx. 1500mm/1400mm/600mm, weight: approx. 850kg. Documentation available. On-site inspection is possible.
Additional Details
