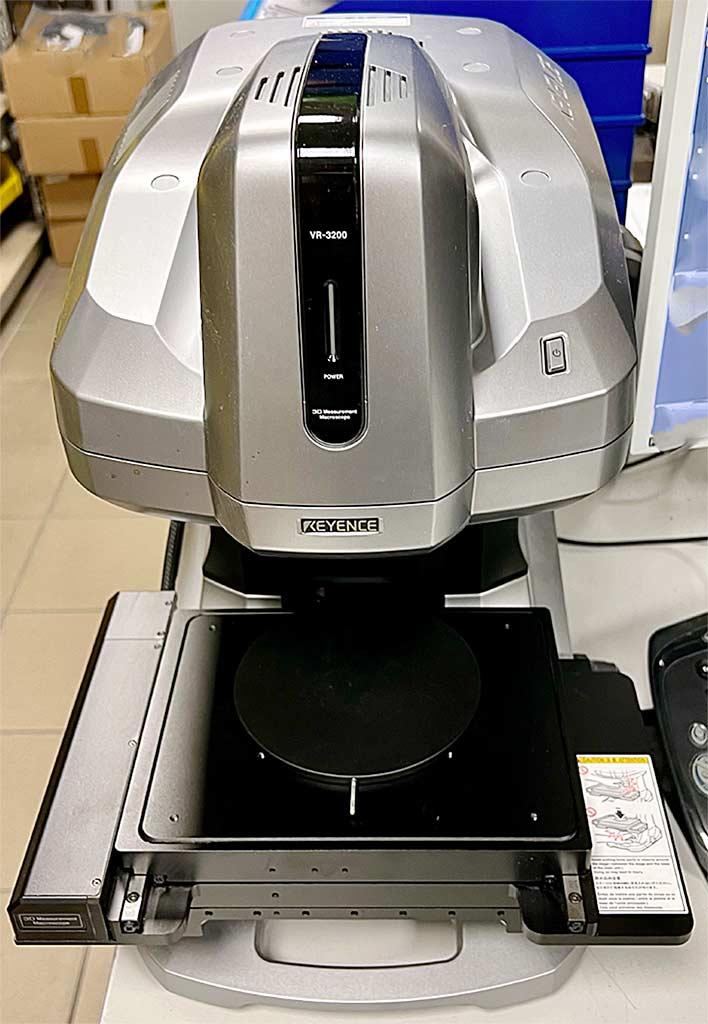

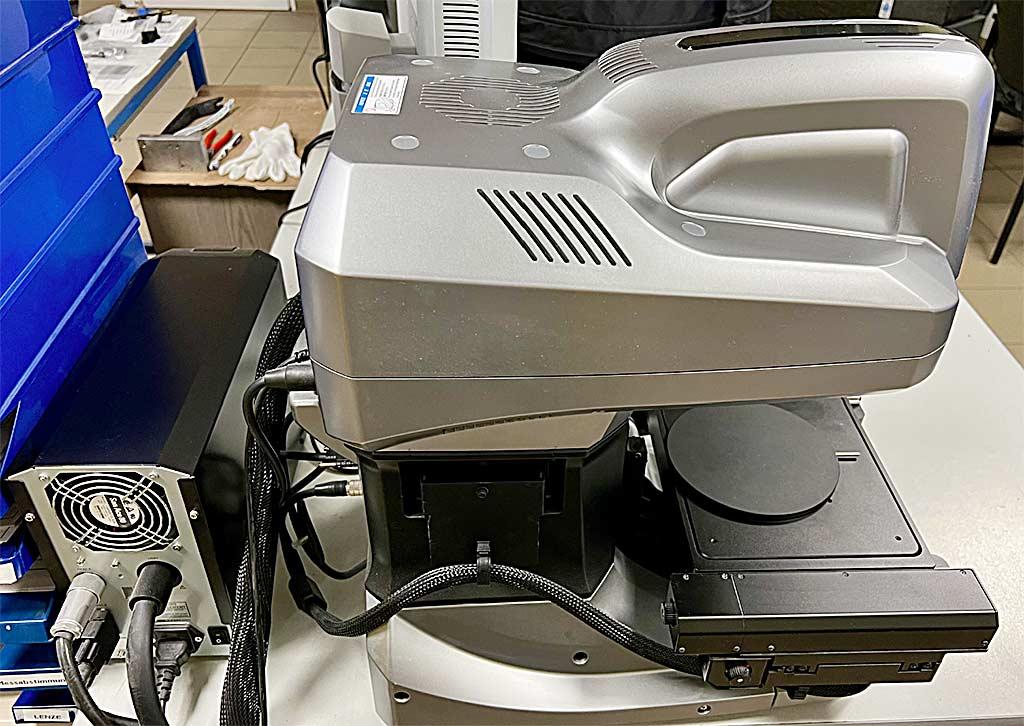

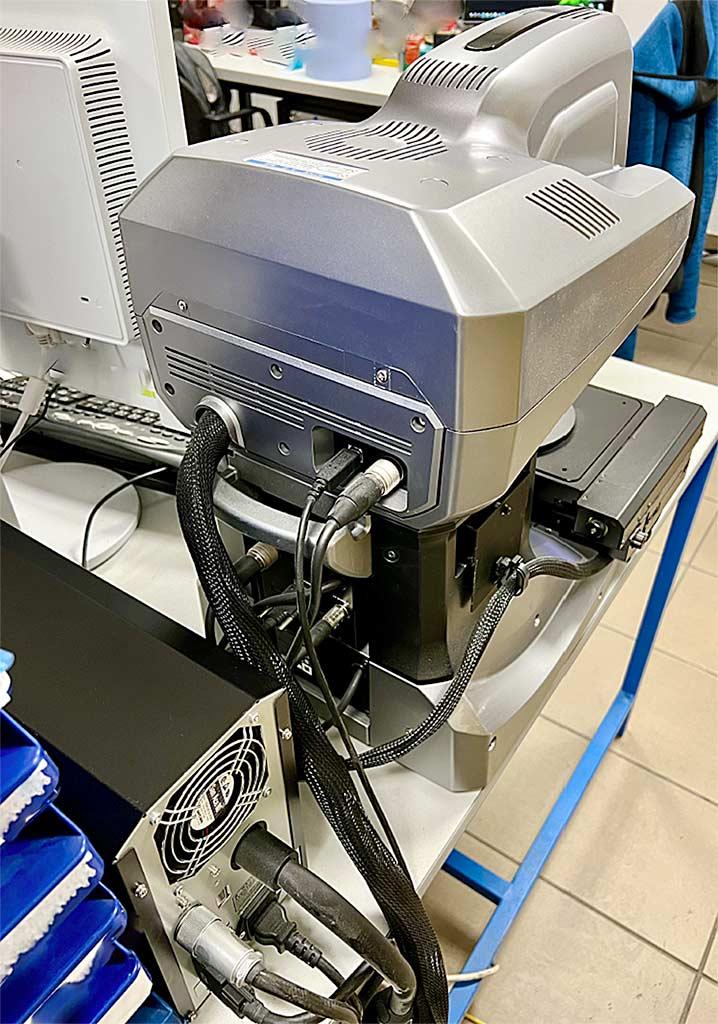

Wide-Field 3D Measuring System Keyence VR-3200
Specifications
Germany
Description
Magnification and measuring range (with 15-inch monitor): Macro mode Horizontal/Vertical: 12x: 24mm/18mm, 25x: 12mm/9mm, 38x: 8mm/6mm, 50x: 4.5mm/3.4mm. Micro mode horizontal/vertical: 40x: 7.6mm/5.7mm, 80x: 3.8mm/2.9mm, 120x: 2.5mm/1.9mm, 160x: 1.9mm/1.4mm. Zoom: 1x-4x, measurable height wide field mode/high magnification mode: 10mm/1mm, display resolution: 0.1µm. Repeat accuracy height/width measurement: 1µm/0.5µm, Measuring accuracy height/width measurement: 2µm/5µm. Stroke X/Y/Z: 184mm/88mm/90mm, rotation: +/-180°, inclination: +/-30°, working distance: 75mm. Documentation available.
