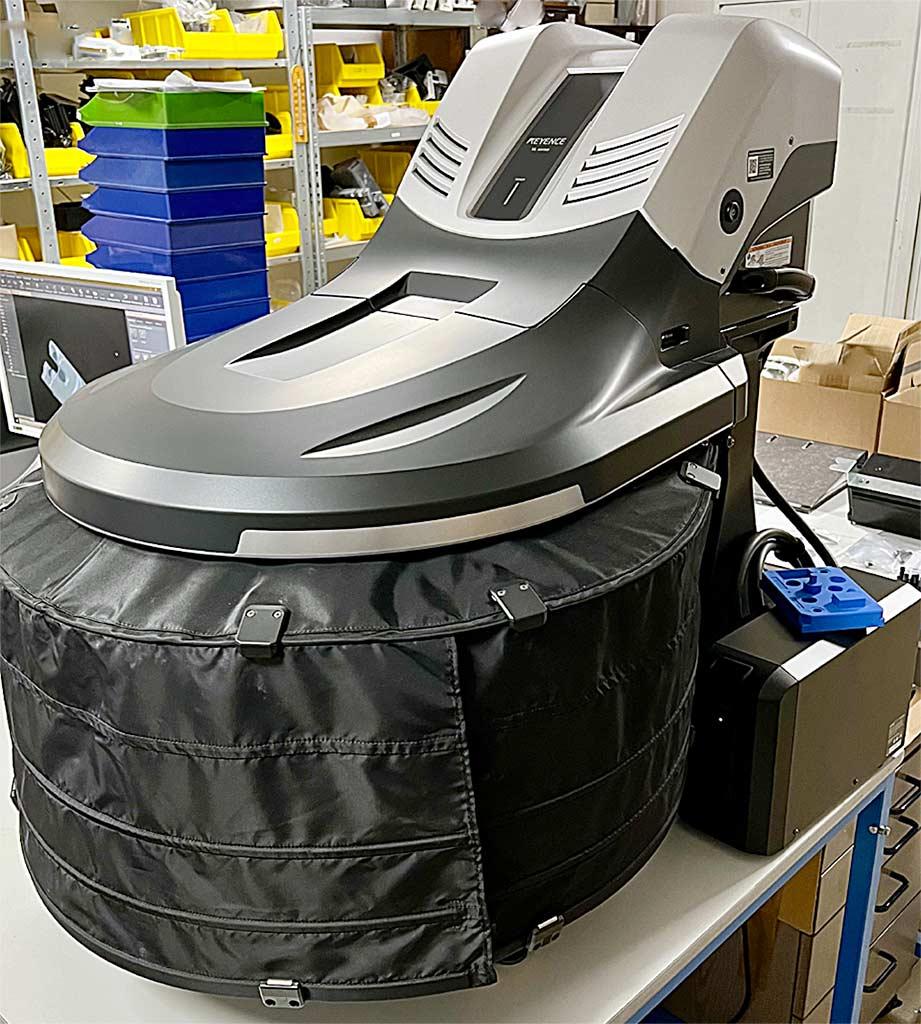

CNC Coordinate Measuring Machine Keyence VL
Specifications
Germany
Description

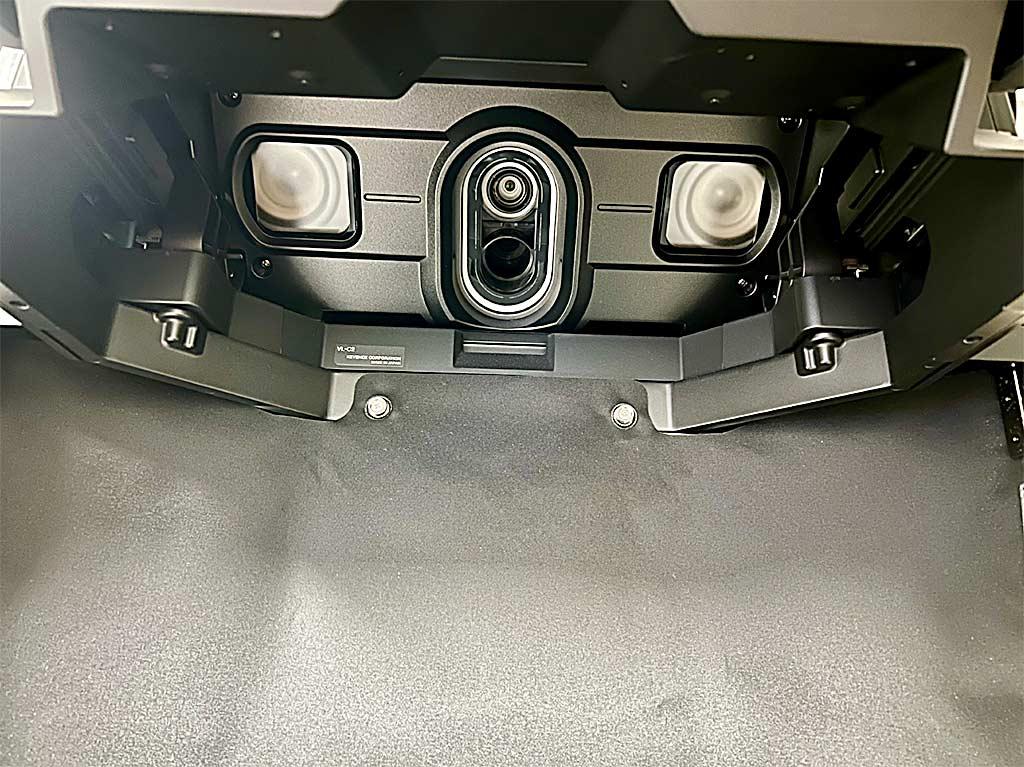

Optical transmitter system: Offset transmission type projector module, Optical receiver system: Offset dual optical module with low/high magnification, Illumination system: LEDs in 3 colors (RGB), Display light source: Blue LED. Repeat accuracy: +/-0.1μm, Measuring accuracy: +/-10μm, Measuring mode standard/fine: 4/16 million measuring points. Measuring range: low magnification diameter/height: 300mm/200mm, high magnification diameter/height: 70mm/50mm. Rotation range: 360°, stage movement X/Y: 280mm, inclination: 45°, max. weight of measuring piece: 20kg. Dimensions X/Y/Z: approx. 800mm/1000mm/900mm, weight: approx. 60kg. Documentation available.
