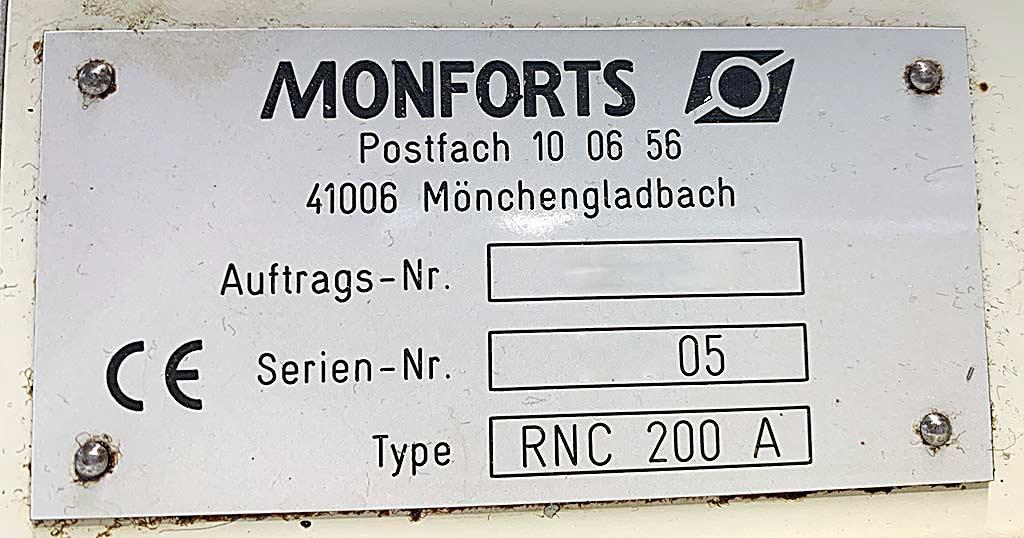

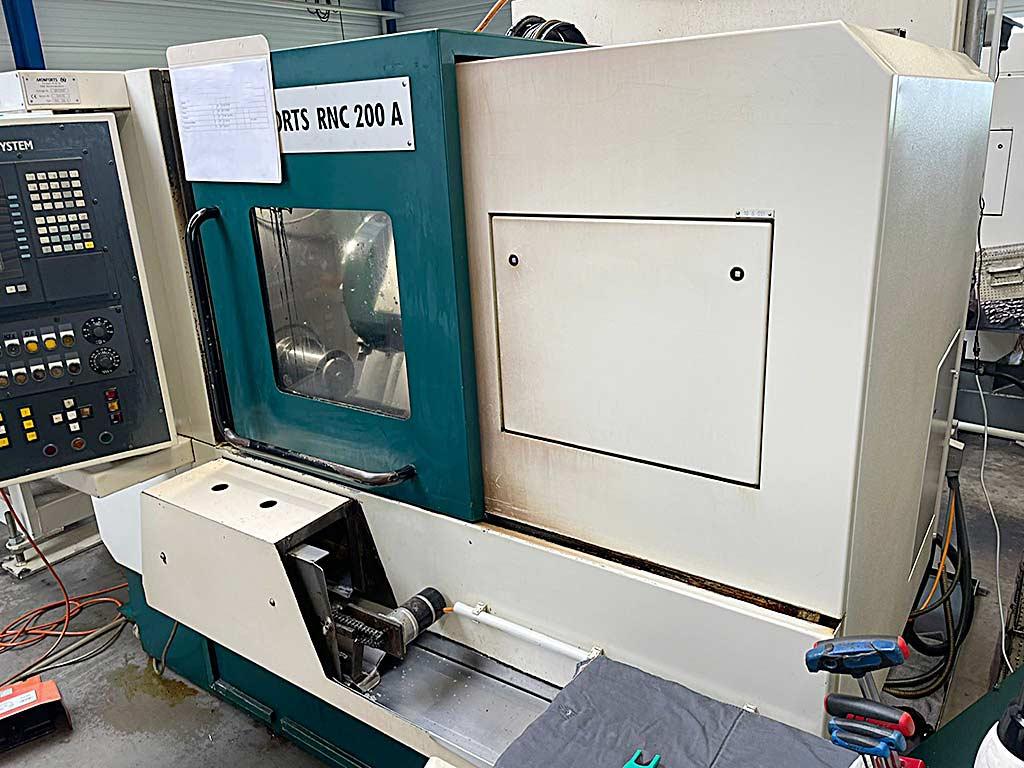

CNC Lathe Monforts RNC 200 A

Germany

Description

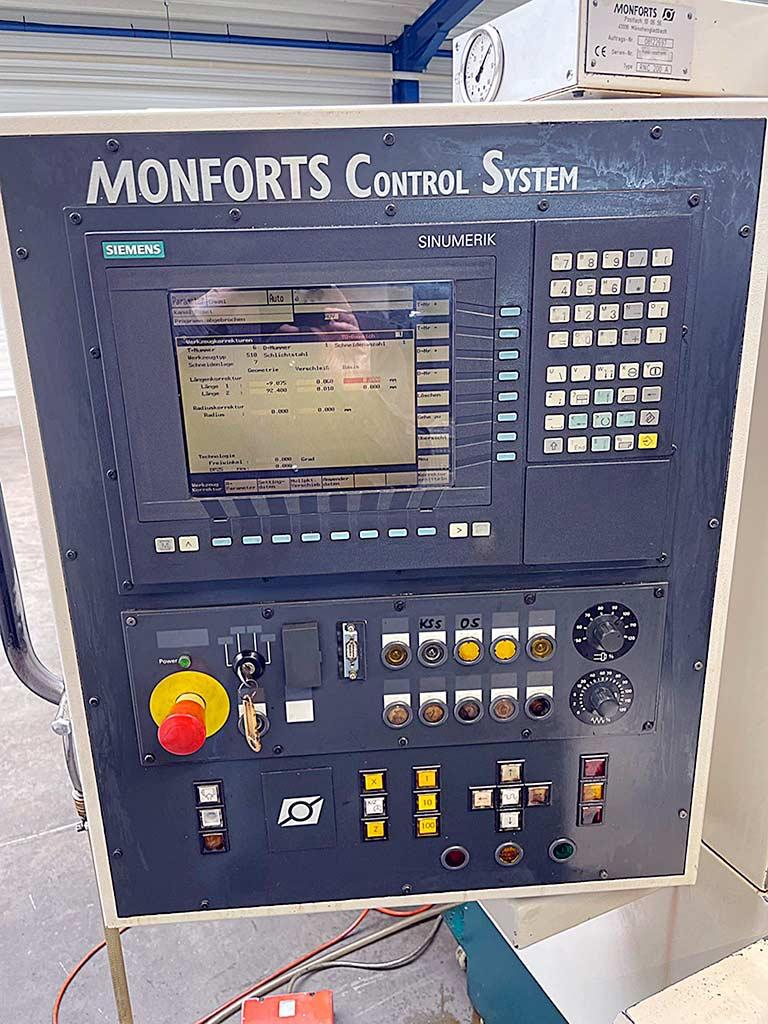

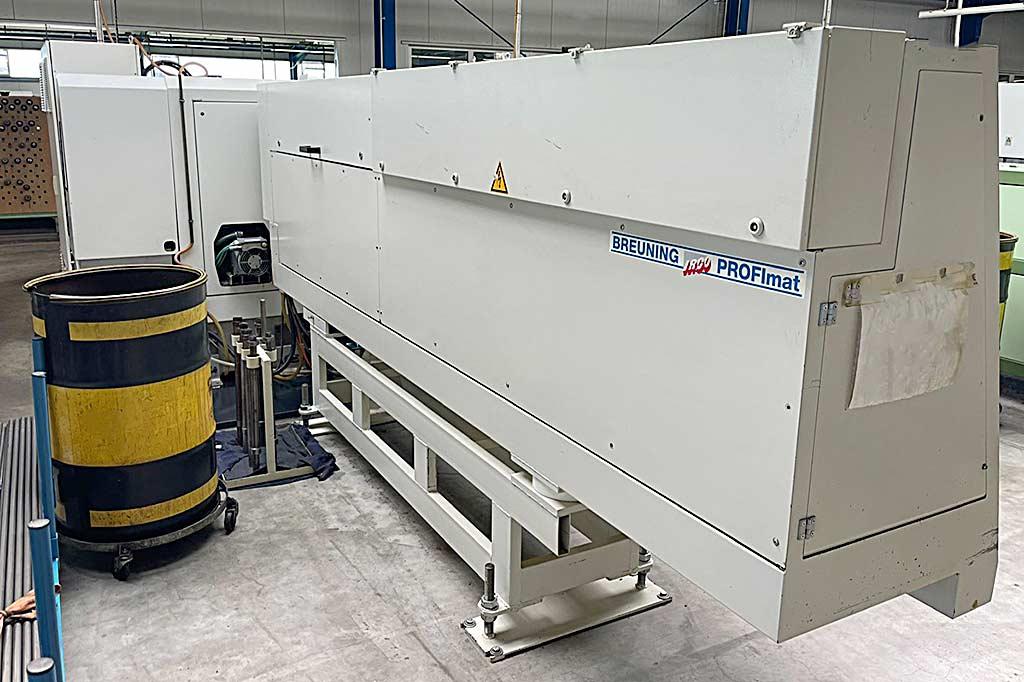

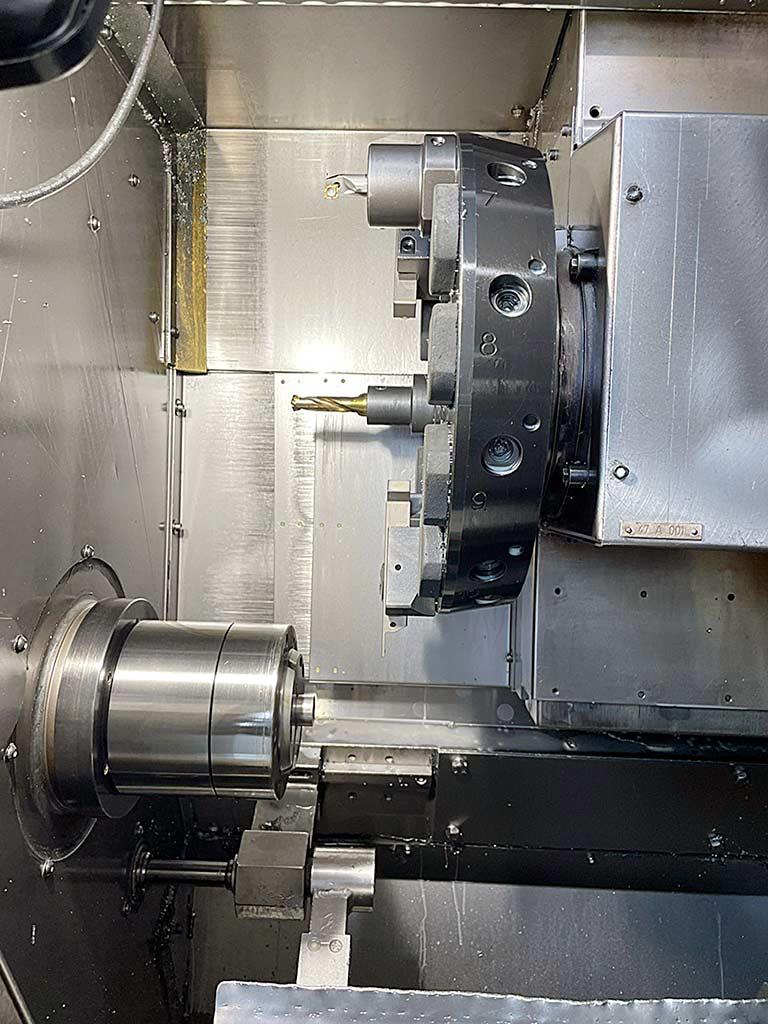

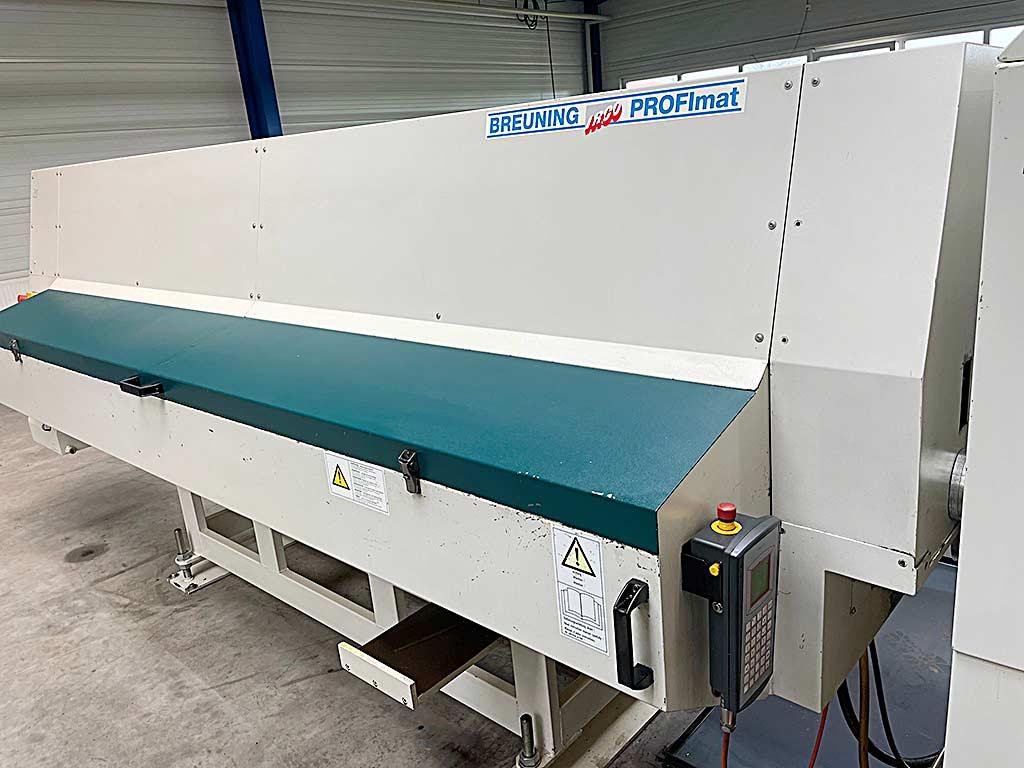

Max. swing diameter: 300mm, swing diameter over radial slide: 190mm, travel X/Z: 175mm/300mm, turning length: 250mm. Spindle flange diameter: 120mm, spindle diameter in front bearing: 80mm, material passage: 42mm. Speed: 6000rpm, feed force X/Z: 3.6kN, rapid traverse X/Z: 24m/min. Tool positions: 12, cylindrical shank diameter: 30mm, turning tool shank height: 20mm. Quill diameter: 70mm, automatic quill stroke: 90mm, max. quill force: 8.8kN. Dimensions X/Y/Z: approx. 2300mm/2400mm/1800mm, weight: approx. 3500kg, control: Siemens Sinumerik. Including bar loading machine Breuning IRCO PROFImat. Documentation available.

Additional Details
