Combined Heat and Power Plant Man/daimler Benz/krauter 12 Zylinder/8 Zylinder

Germany

Description

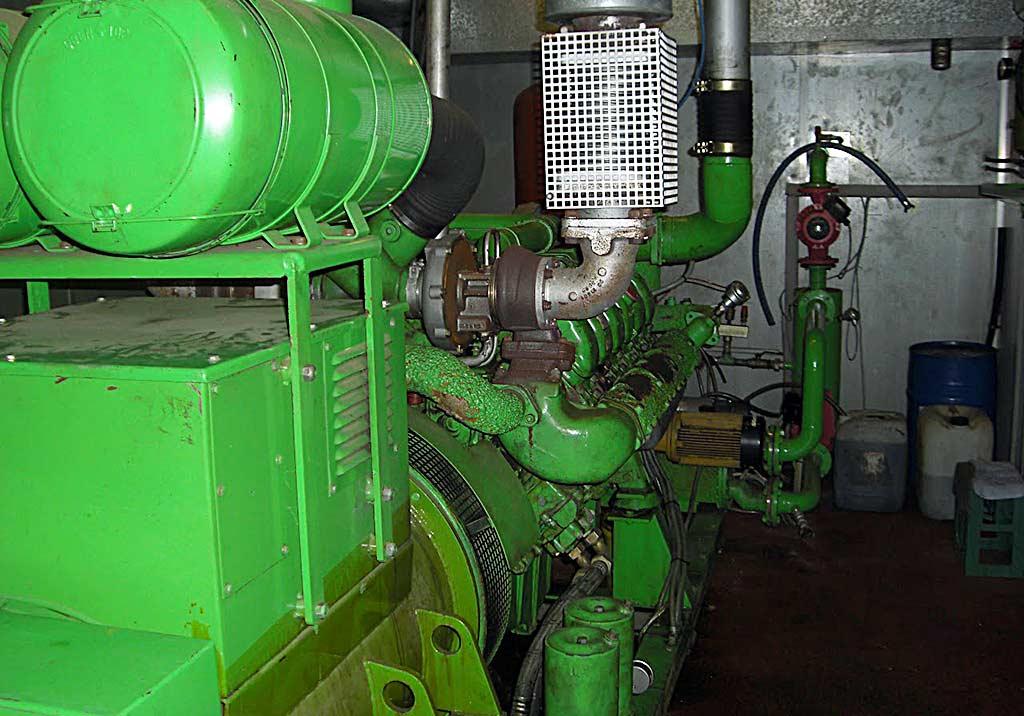

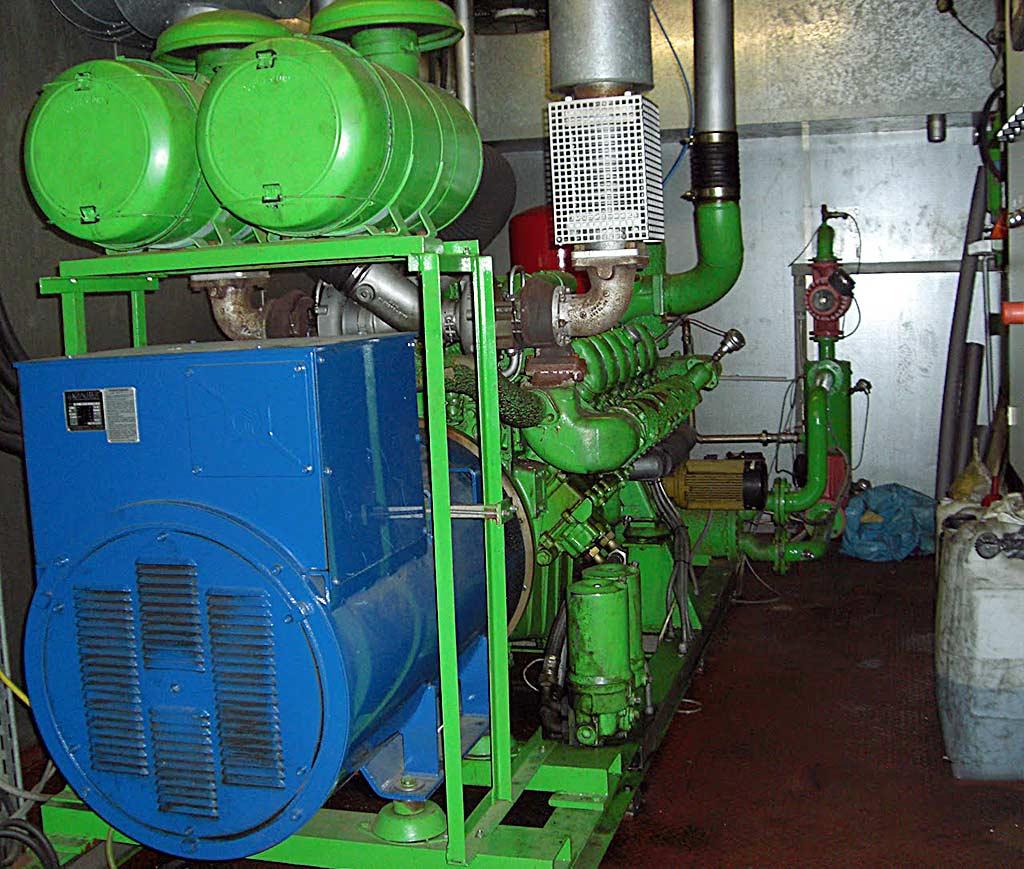

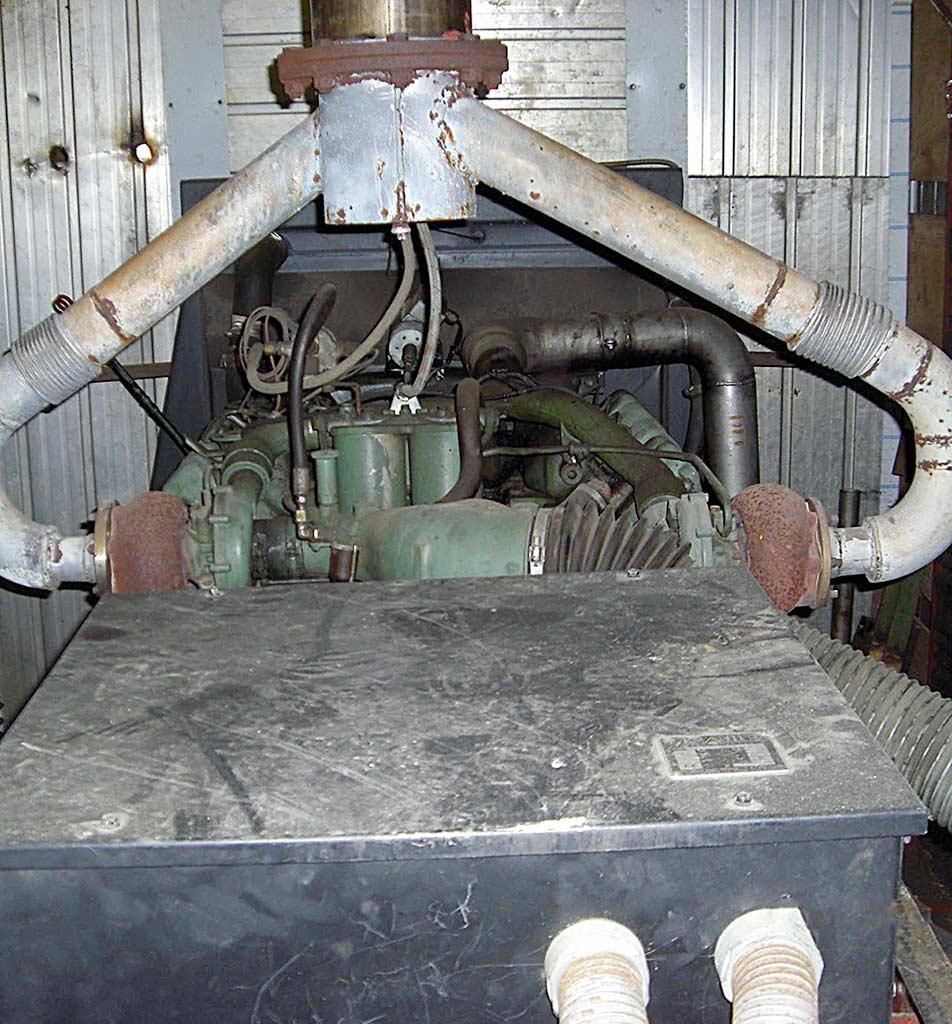

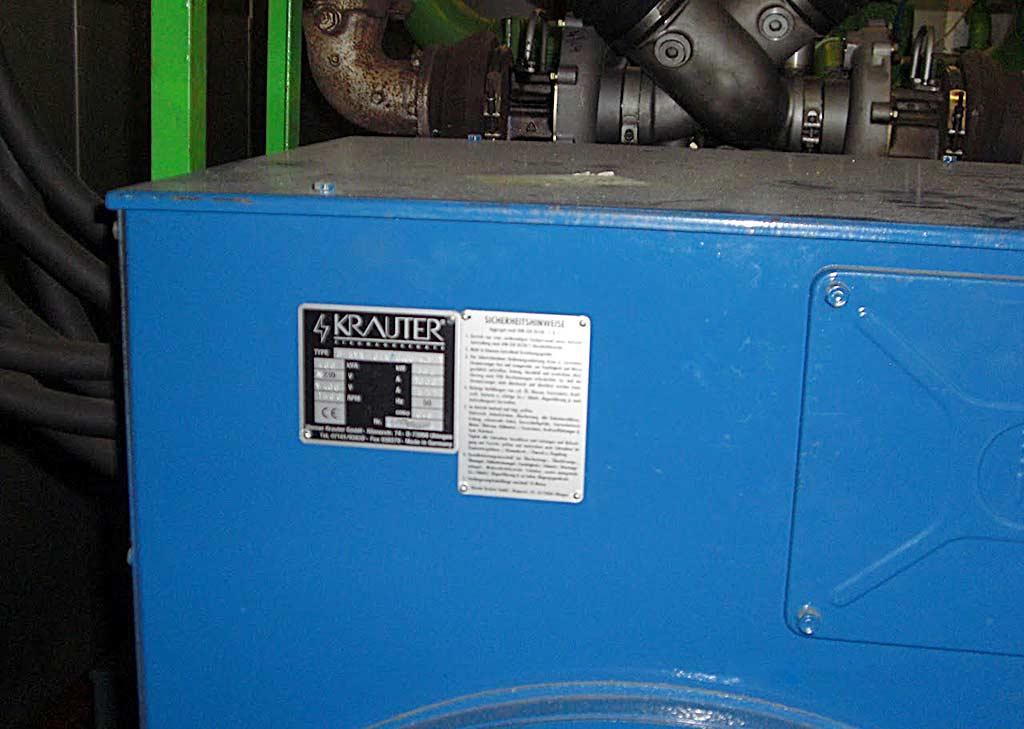

A combined heat and power unit (CHP), consisting of three diesel generators installed in containers, is available. 1) Engine: MAN 12-cylinder turbo, type: D 2842 LE 20, generator: Krauter, type: D-SYN-GEN, kVA: 400, kW: 360, A: 577, Hz: 50, speed: 1500 rpm. Including DELF synchronization, heating water outlet, table cooler, preheating and oil change device. 2) Engine: MAN 12-cylinder turbo, type: D 2842 LE 20, generator: Leroy-Somer, type: LSA K 475 L10, kVA: 375, kW: 300, A: 400, Hz: 50, speed: 1500 rpm. Including DELF synchronization, heating water outlet, table cooler, preheating and oil change device. 3) Engine: Daimler Benz 8-cylinder turbo, type: AGV 12, generator: Krauter, type: D-SYN-GEN, kVA: 350, kW: 230, A: 400, Hz: 50, speed: 1500 rpm. The combined heat and power unit has a total output of around 1100kVA. Including table cooler, V2A heat exchanger, containers and switch cabinets. All generators are installed in containers and are therefore easy to transport.
