Bottle Washing System Klinger/hager+elsässer Euro Class-D 20/1/73

Germany

Description

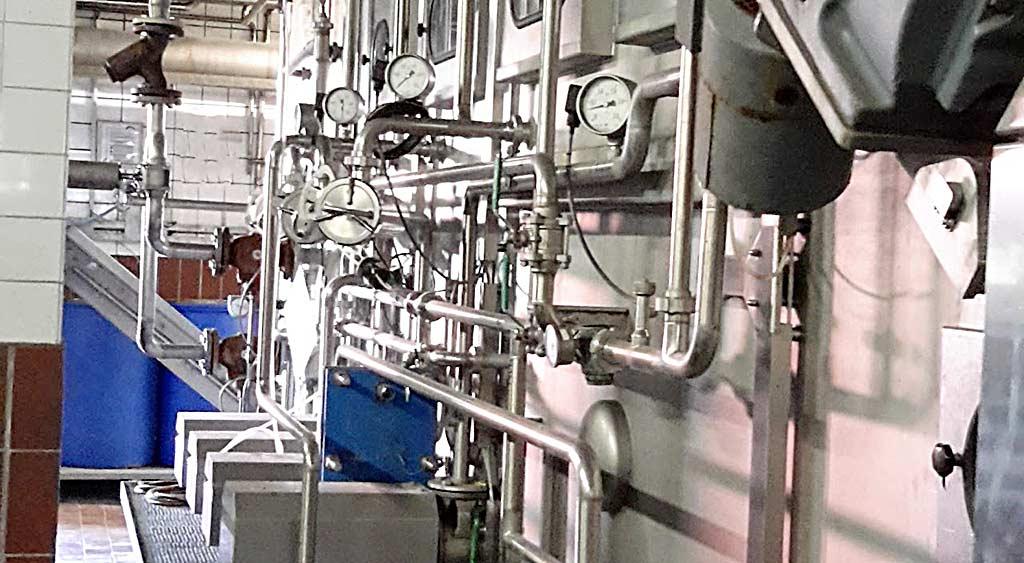

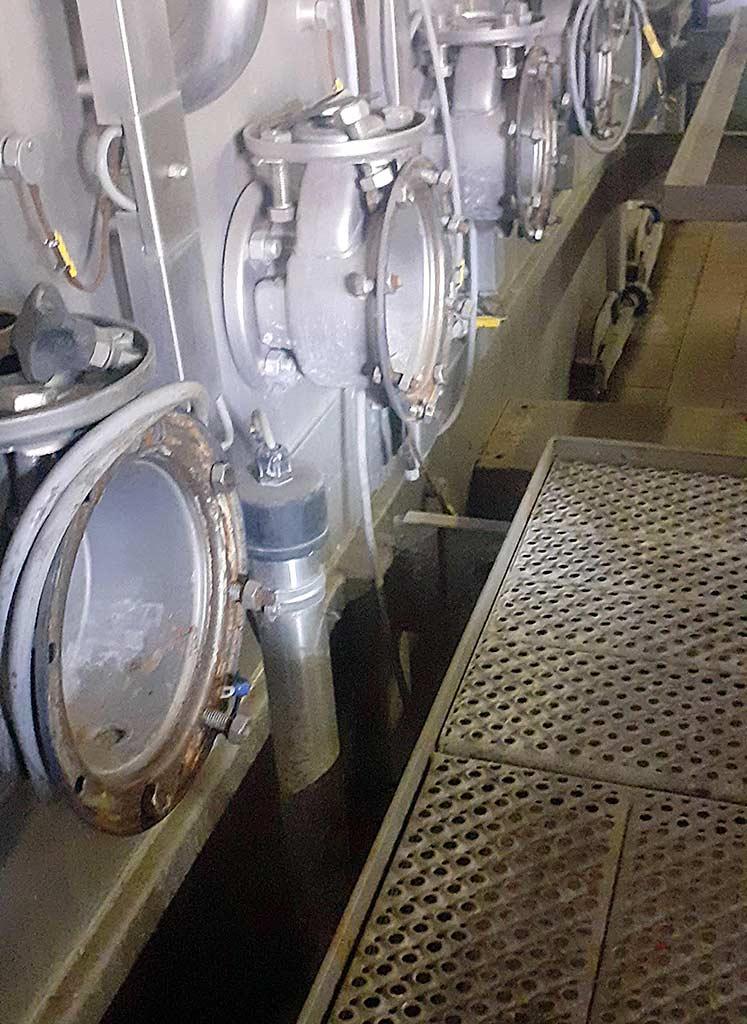

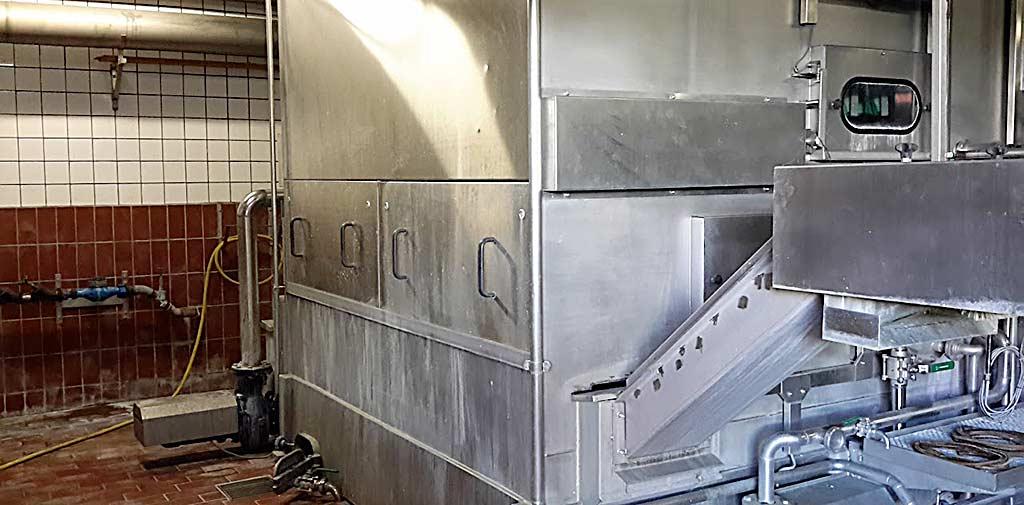

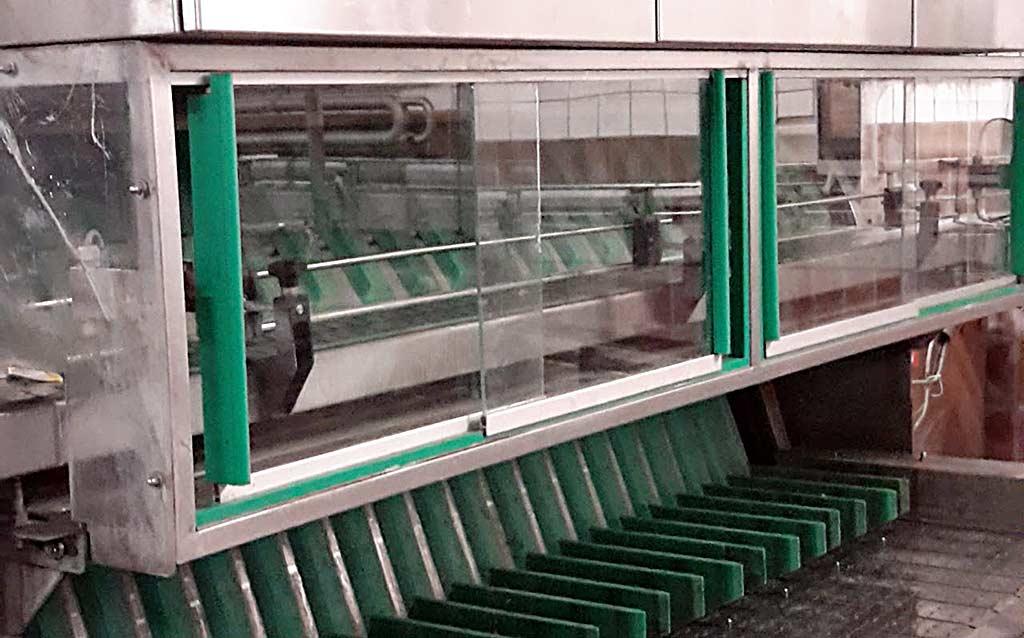

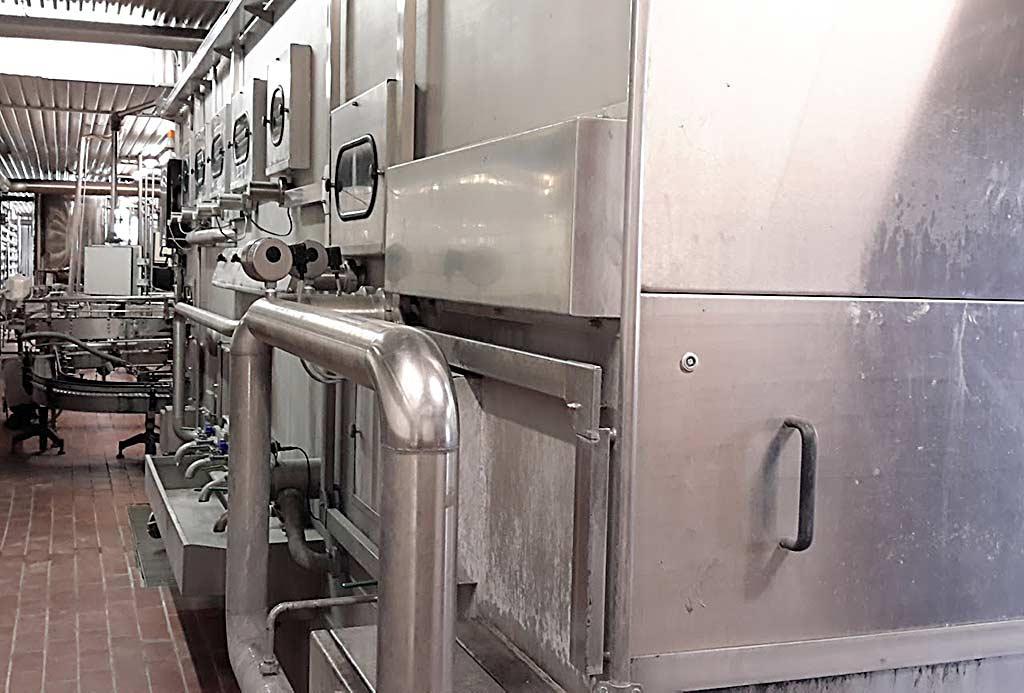

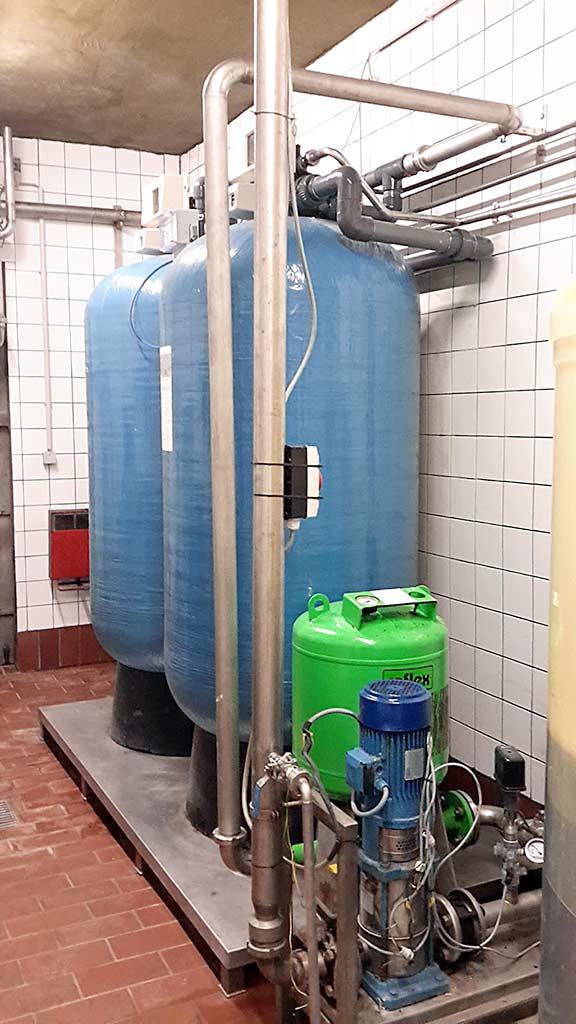

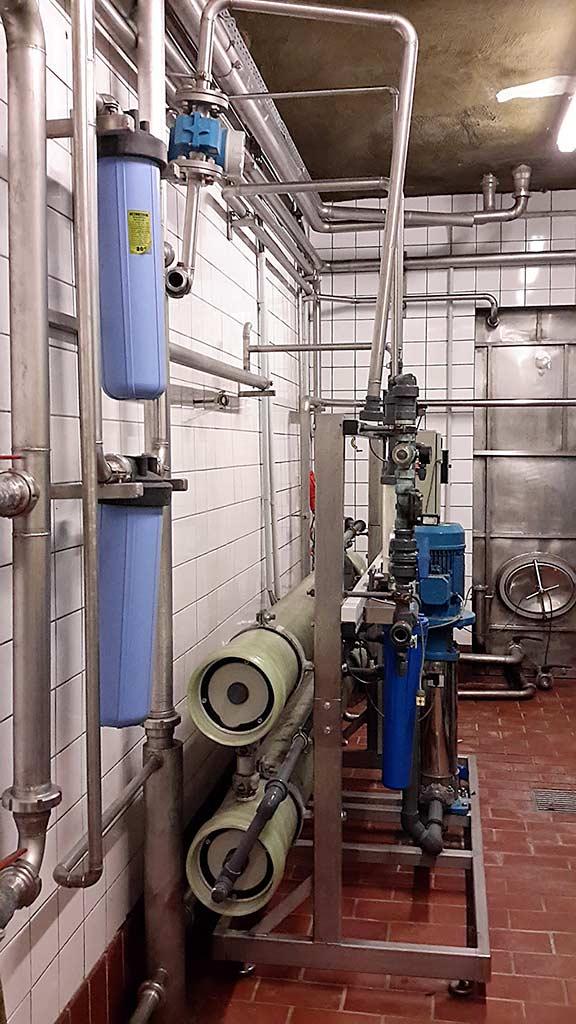

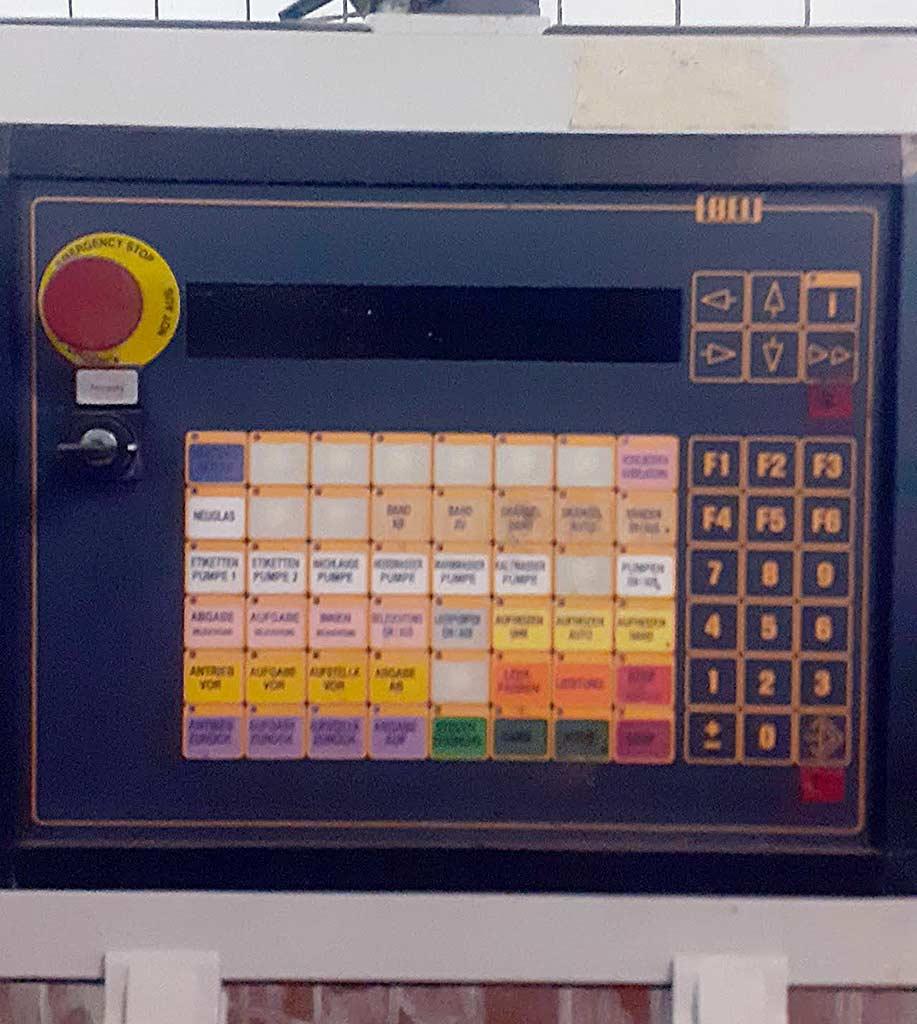

A complete bottle rinsing system with Klinger bottle rinsing machine, Hager + Elsässer drinking water treatment system and Ro reverse osmosis system is available. 1) Bottle washer Klinger Euro Class-D 20/1/73, year of construction: 2000, capacity: 9600 bottles/h, cycle time: 7.5s, cycle time: 12.63min, bottles per row: 20, number of rows: 107, max. bottles in the machine: 2020, water consumption: 3.8m³/h, tank volume soft caustic/post-caustic: 5600l/740l. Dimensions X/Y/Z: approx. 8000mm/3400mm/2800mm, weight: approx. 16000kg, control system: Siemens S7. 2) Drinking water treatment plant Hager +Elsässer consisting of cation and anion exchanger, capacity: 5m³/h. Including salt tank, pre-filter and UV sonde. 3) RO reverse osmosis system, full desalination capacity: 2.5m³/h. Documentation available. On-site inspection is possible.
