Thermoform System Variopress Basic 1000 S

Germany

Description

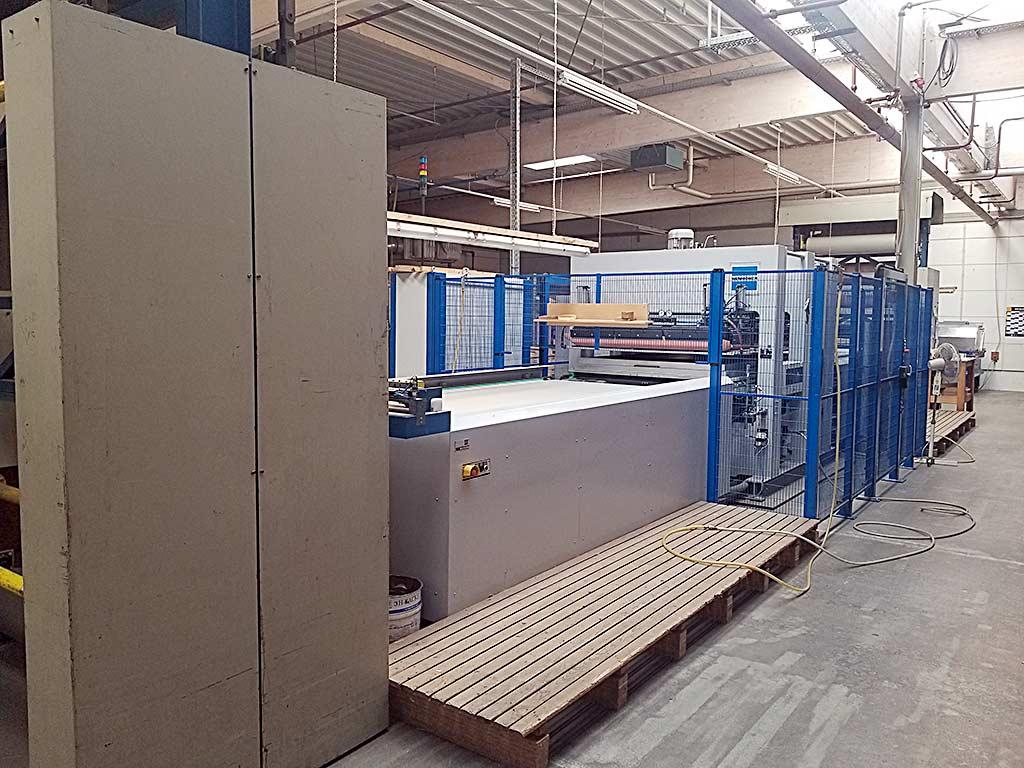

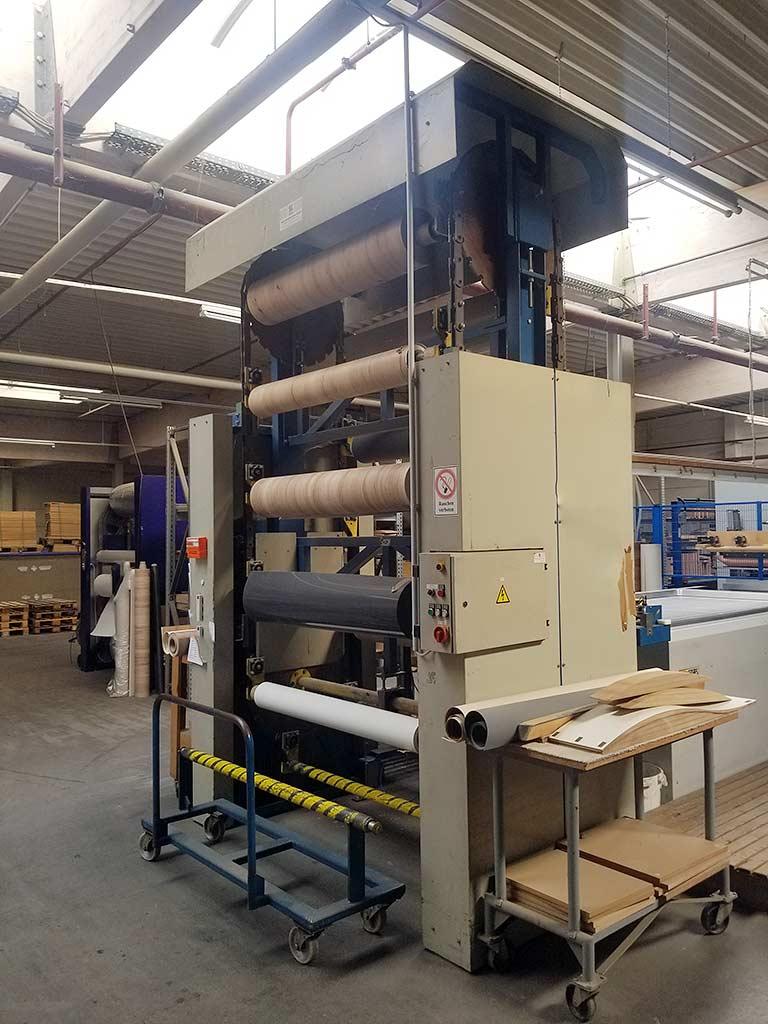

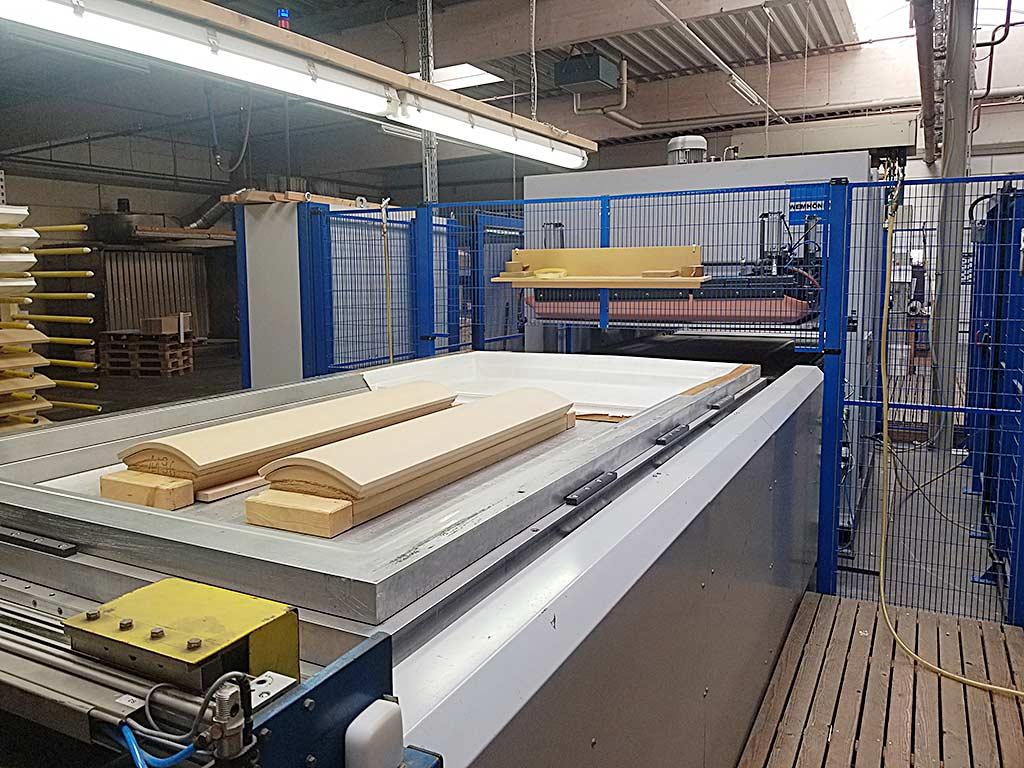

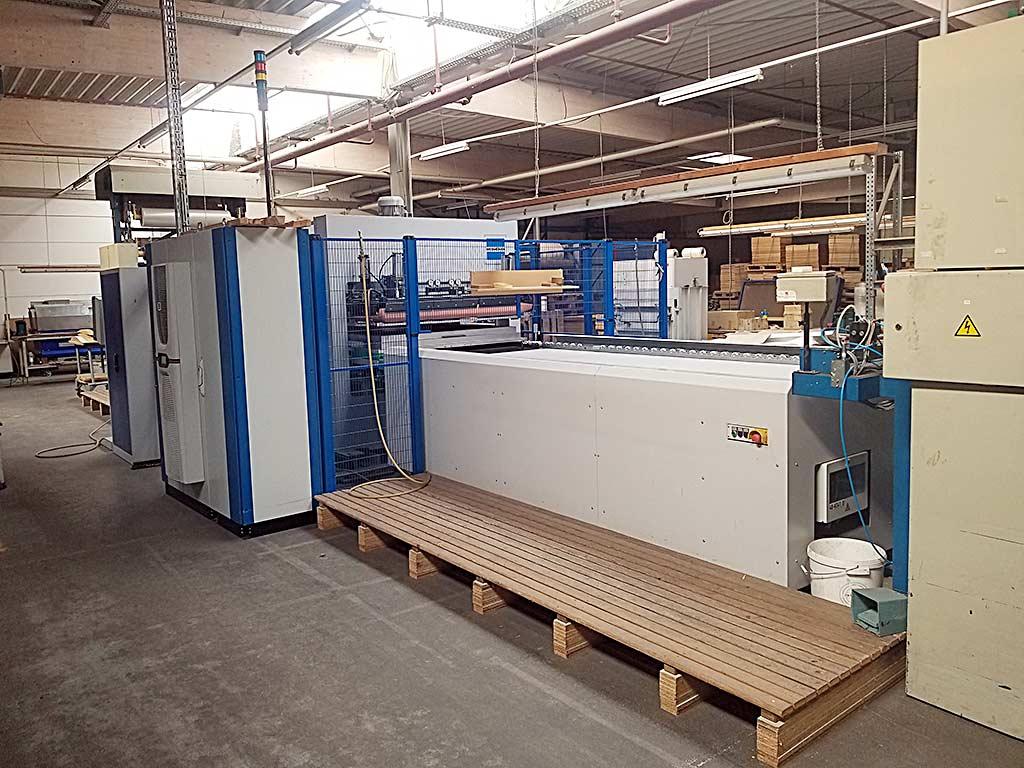

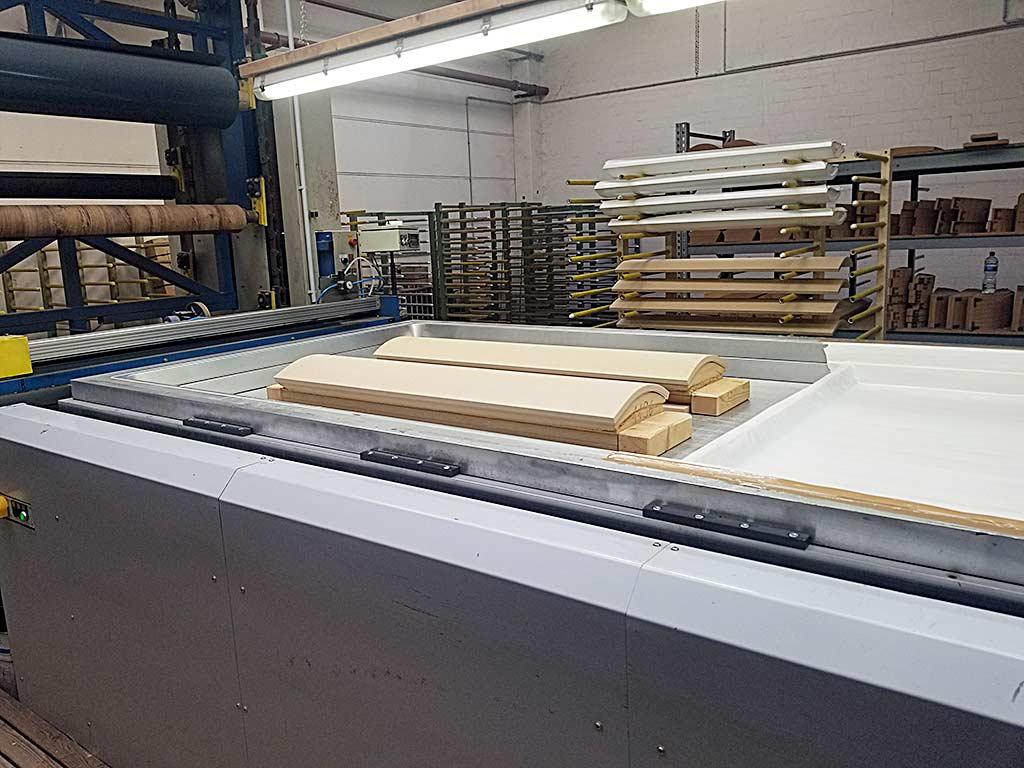

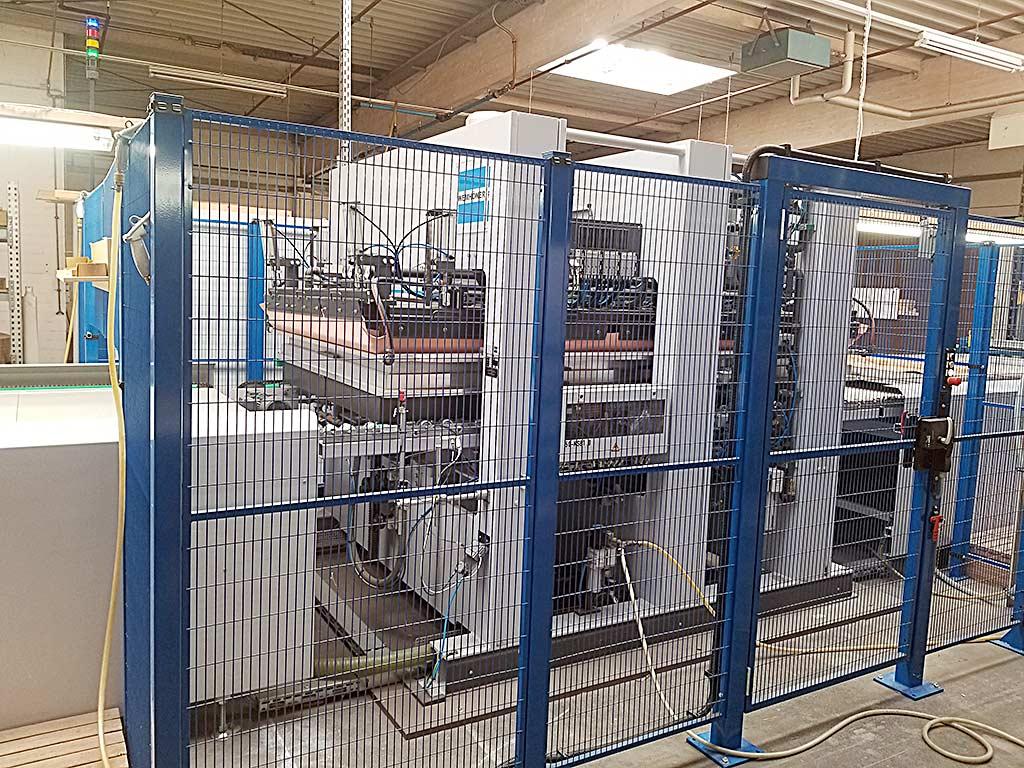

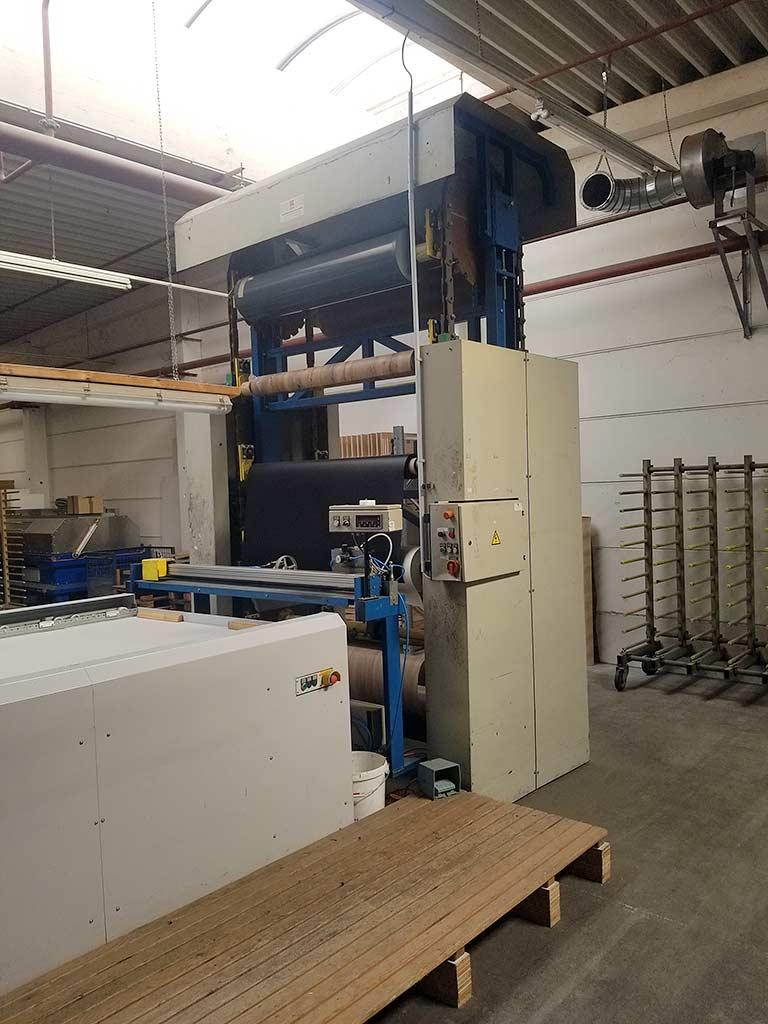

A complete thermoforming system with a Variopress hydraulic single-stage lower piston press is available. 1) Hydraulic Variopress Basic 1000 S single-daylight lower plunger press, year of manufacture: 2018, press format X/Y: 2850mm/1550mm, press force: 2400kN, chamber pressure: 6bar, hydraulic pressure: 320bar, max. operating temperature: 180°C, heating capacity: approx. 28kW. Cylinder: 6, plunger diameter: 125mm, plunger stroke: approx. 380mm, chamber height: 120mm, max. workpiece dimensions X/Y: approx. 2460mm/1180mm. Cycle process: Open-close-load-empty, cycle time: approx. 45s, cycle time with film: approx. 90s-150s, material: thermo film/roll goods, film width: approx. 1430mm, film thickness: 0.25mm-1mm. Total system dimensions X/Y/Z: approx. 9400mm/5500mm/3850mm, press weight: approx. 13500kg. Including loading and unloading system, cutting station, film roll magazine and safety devices. Documentation available. On-site inspection is possible.
