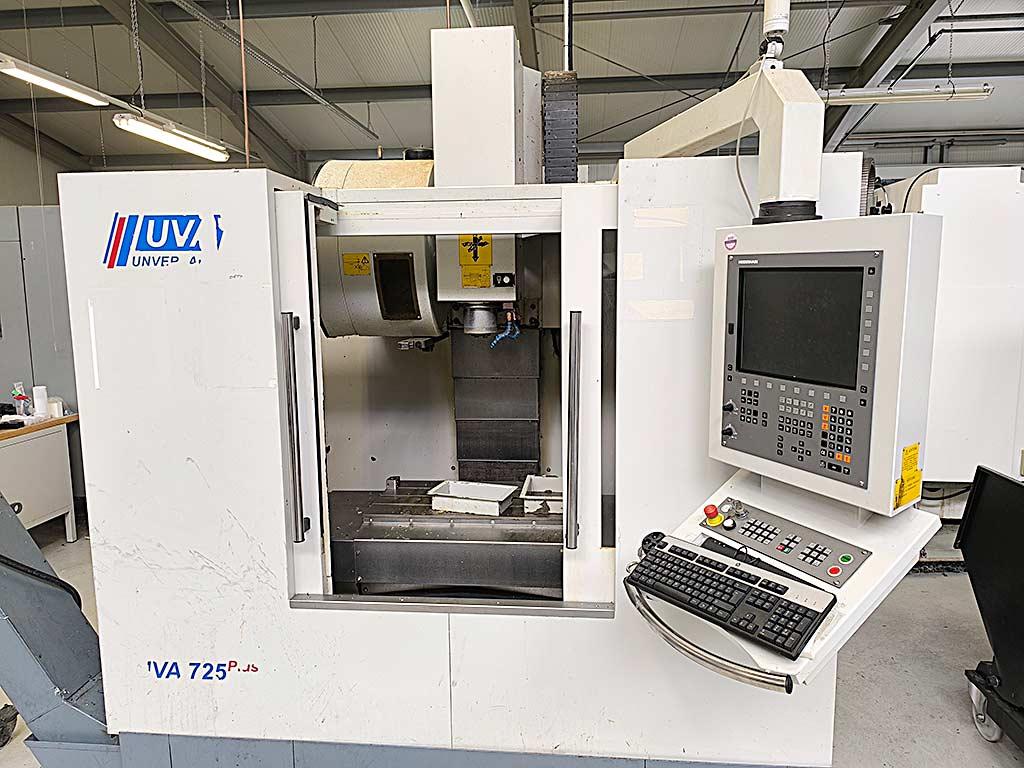

CNC Machining Center Hommel Unverzagt UVA 725 Plus

Germany

Description

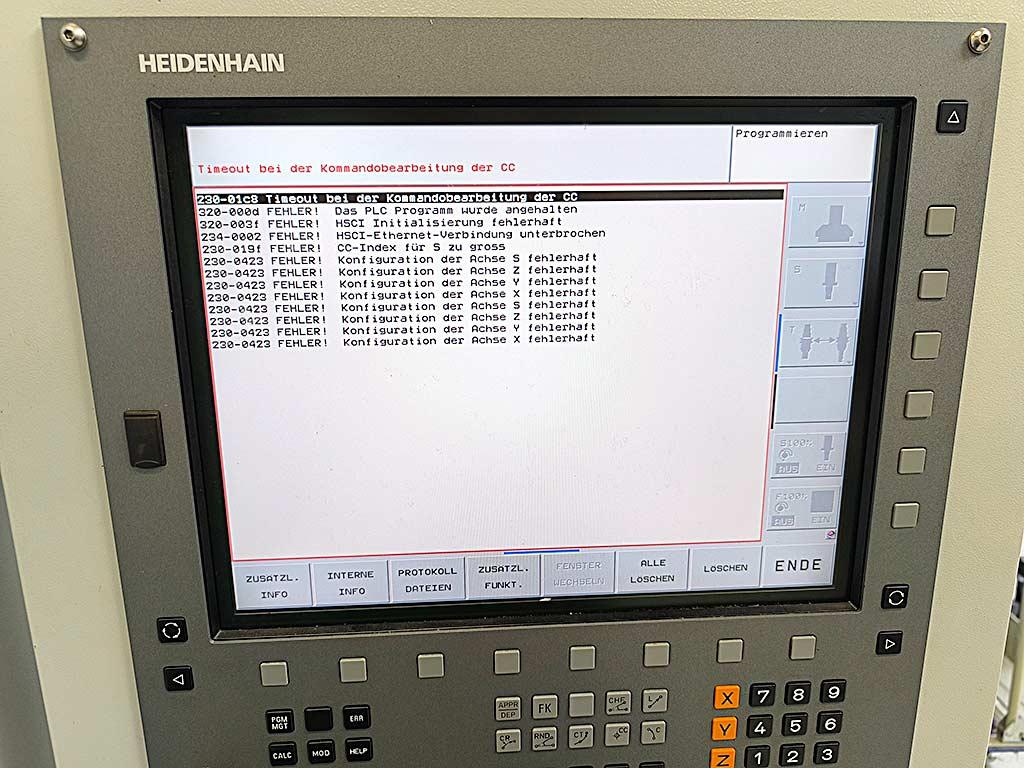

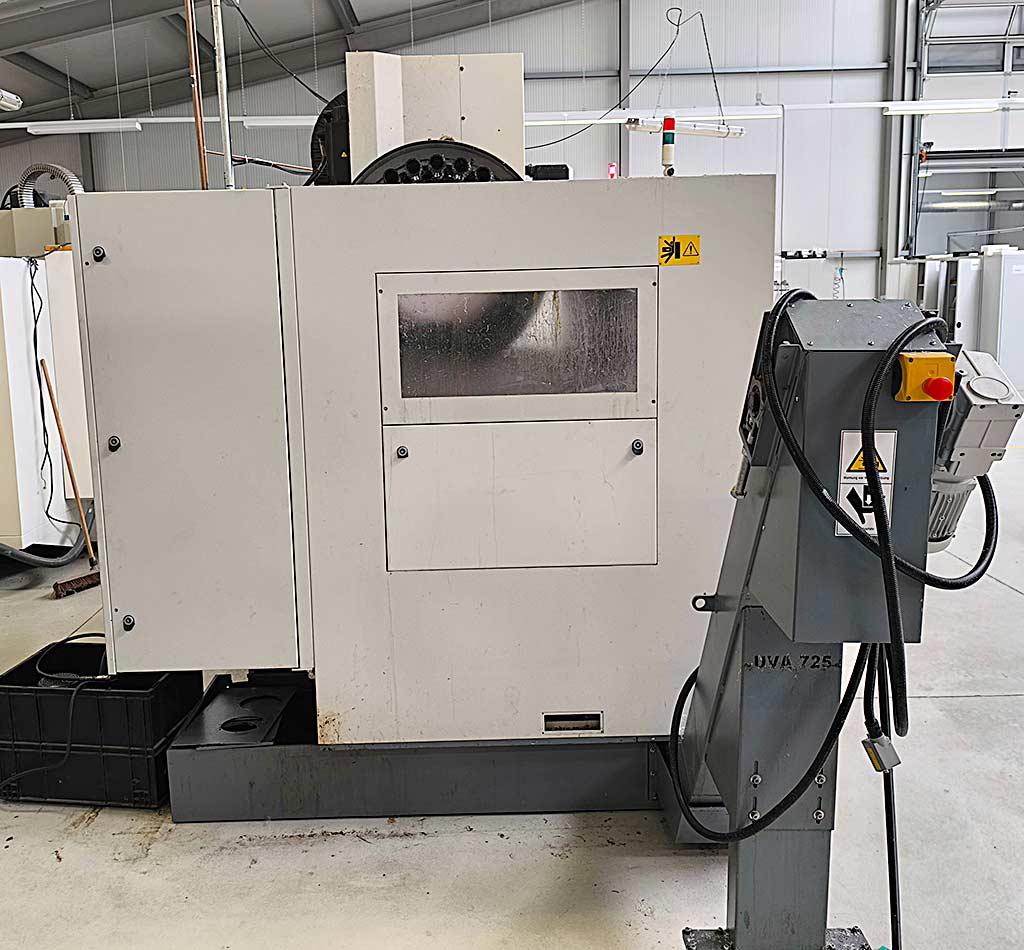

Travel X/Y/Z: 725mm/460mm/460mm, speed: 10000rpm, tool holder: SK40, tool magazine: 24 places, max. tool diameter/length: 100mm/300mm, max. tool weight: 7kg, tool change time: 2s, table dimensions X/Y: 760mm/420mm, max. table load: 400kg. Dimensions X/Y/Z: approx. 2200mm/2100mm/2300mm, weight: approx. 3600kg, control: Heidenhain TNC 620. Defects: Compact inverter with integrated controller and PLC, door switch, both work area lamps, X-axis ball screw and roller bearings. Including chip conveyor. Documentation available. On-site inspection is possible.
