CNC Vertical Machining Center Dmg Mori DMC 650 V

Germany

Description

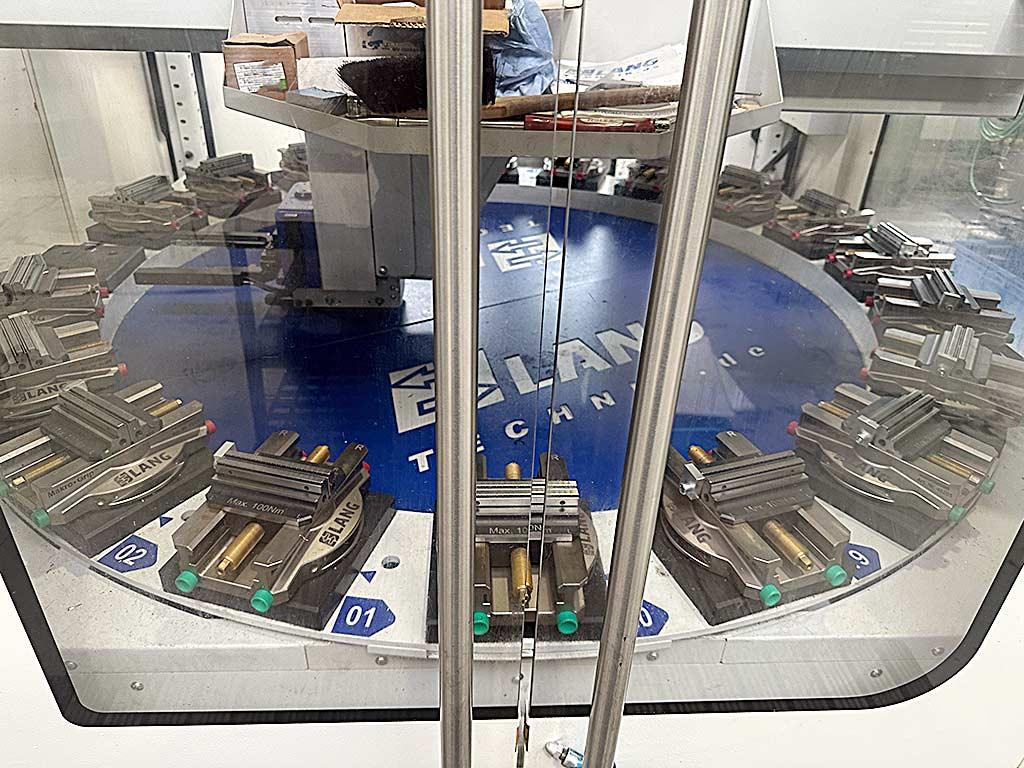

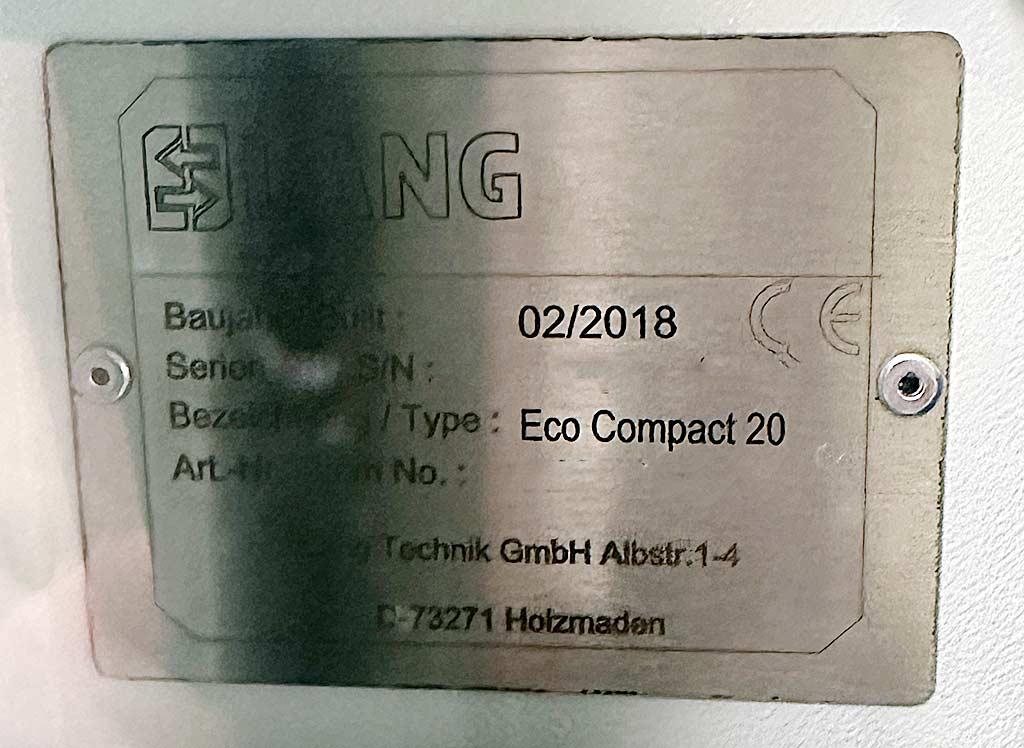

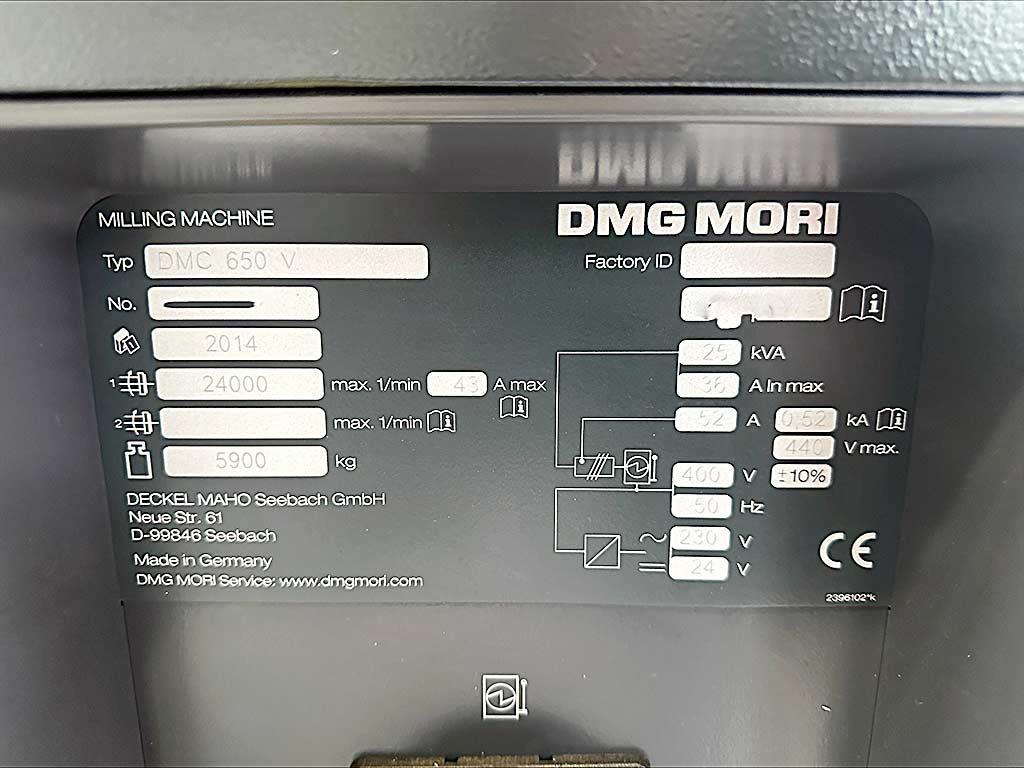

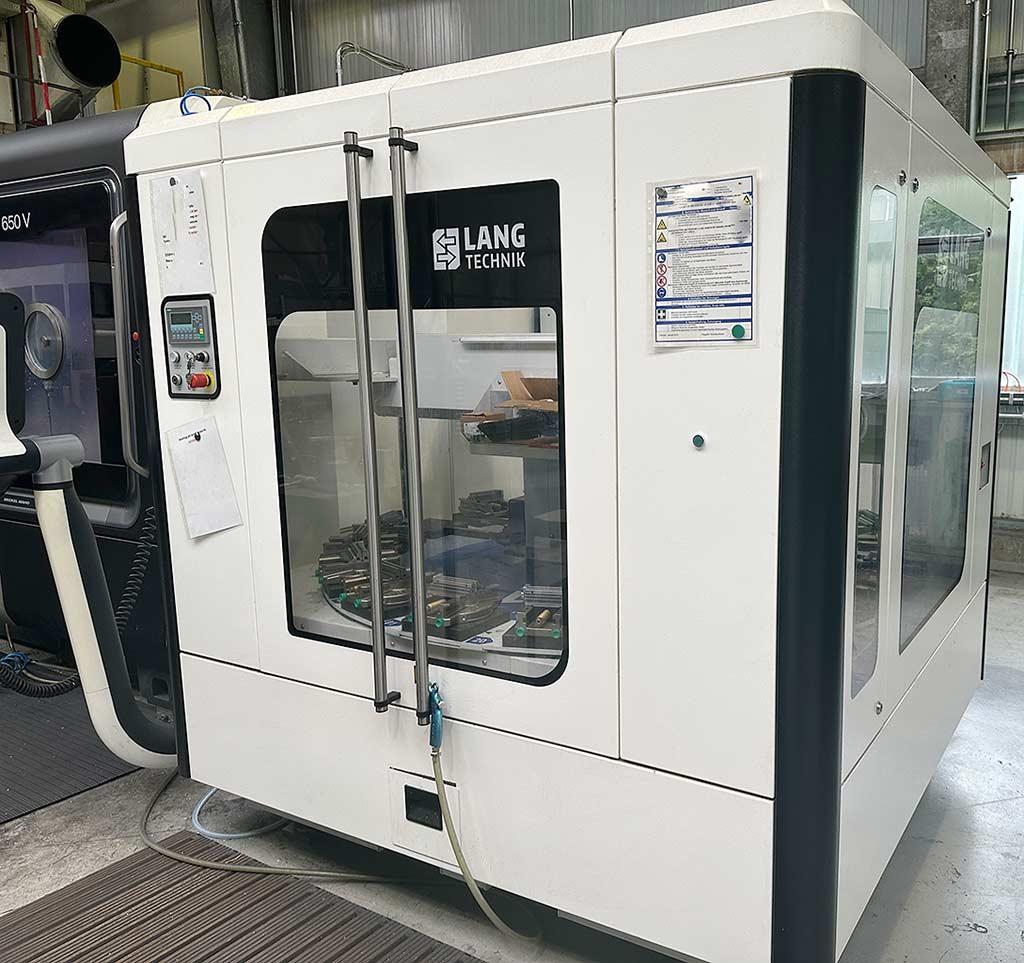

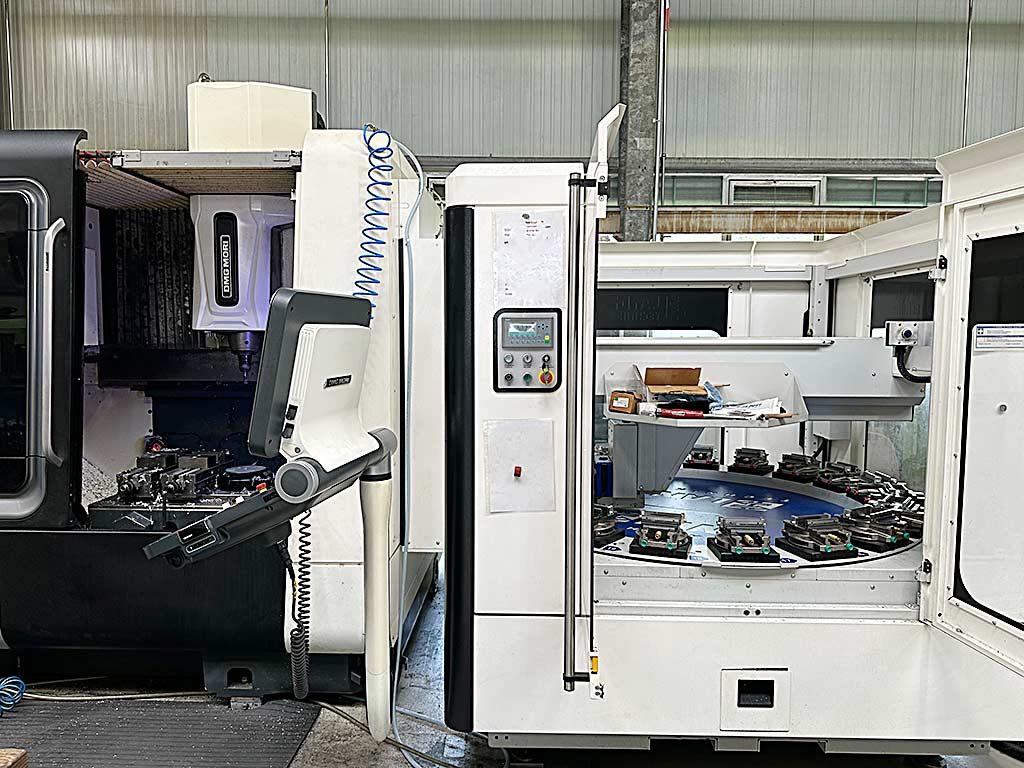

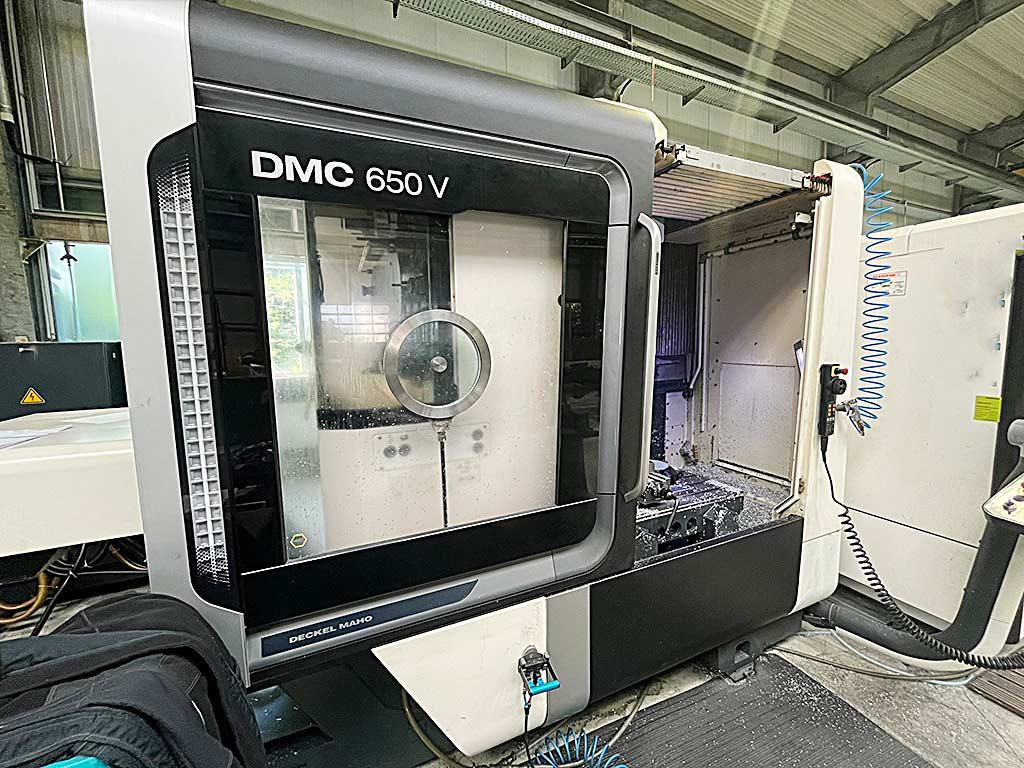

A DMG Mori CNC vertical machining center including pallet handling Lang is available. 1) DMG Mori, year of manufacture: 2014, travel X/Y/Z: 650mm/520mm/475mm, rapid traverse: 36m/min, speed: 14000rpm, spindle power: 24kW/16kW, tool holder: HSK-A63, tool positions: 30, table dimensions X/Y: 900mm/570mm, machine dimensions X/Y/Z: approx. 3900mm/3400mm/2600mm, weight: approx. 6250kg, control: Heidenhain TNC 640, operating hours: 28250h, spindle hours: 13116h. 2) Automation system for pallets Lang Eco Compact 20, year of manufacture: 2018, pallet capacity: 20, loading arm reach: 1200mm, footprint X/Y: 2000mm/2000mm. The turntable on the doors is defective. Documentation available. On-site inspection is possible.
