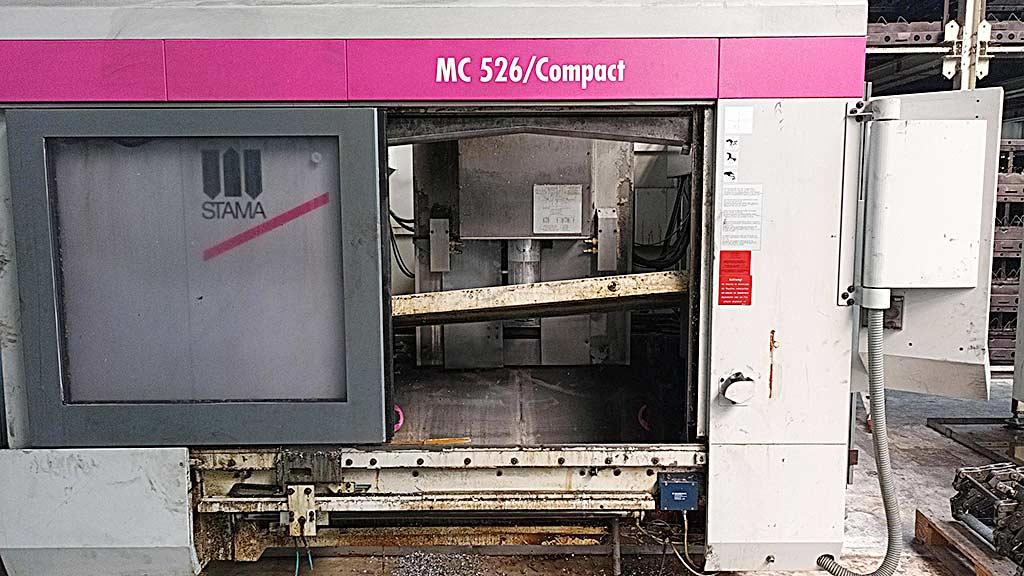

CNC 4 Axis Machining Centre Stama MC 526 Compact

Germany

Description

Travel X/Y/Z: 1000mm/400mm/360mm, speed: 12000rpm, feed X/Y/Z: 10000mm/min, rapid traverse X/Y/Z: 45m/min, feed force X/Y/Z: 4000N/4000N/8000N. Spindle bearing diameter: 65mm, max. tool diameter/length: 125mm/250mm, tool holder: HSK63, max. torque: 60Nm, max. milling capacity: 350cm³, max. drilling diameter: 32mm, max. thread diameter: M30. Dimensions X/Y/Z: approx. 3600mm/3800mm/3300mm, weight: approx. 6100kg, control: Fanuc 18i MB. Hydraulic unit included. Documentation available. An on-site inspection is possible.

Additional Details
