Waste Water Treatment Plant Agw Chargenbehandlung

Germany

Description

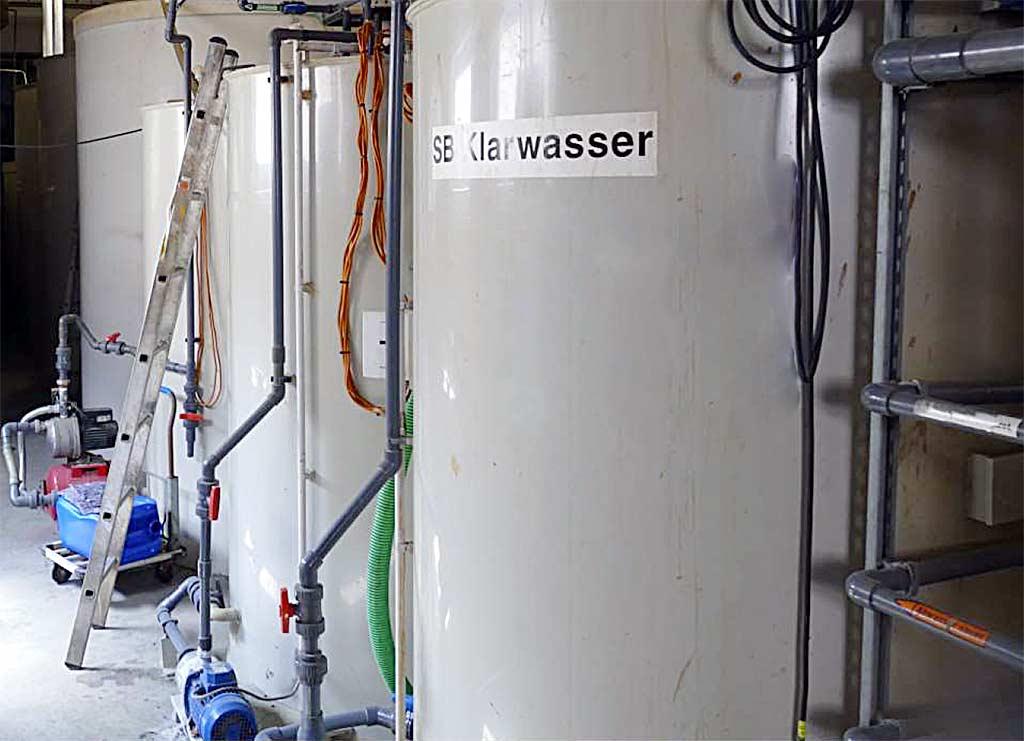

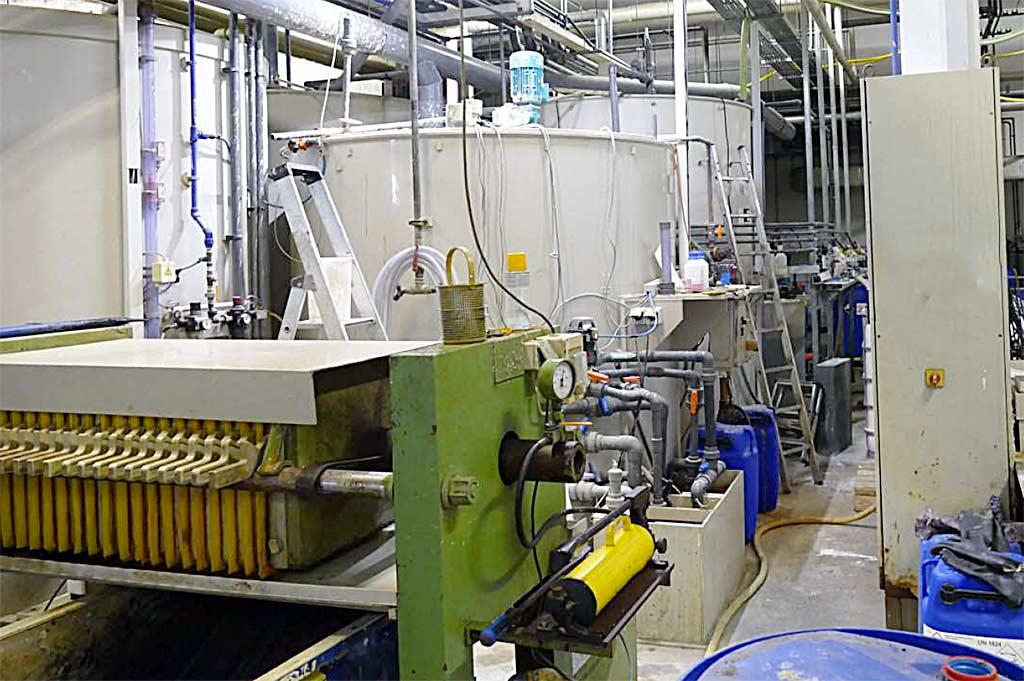

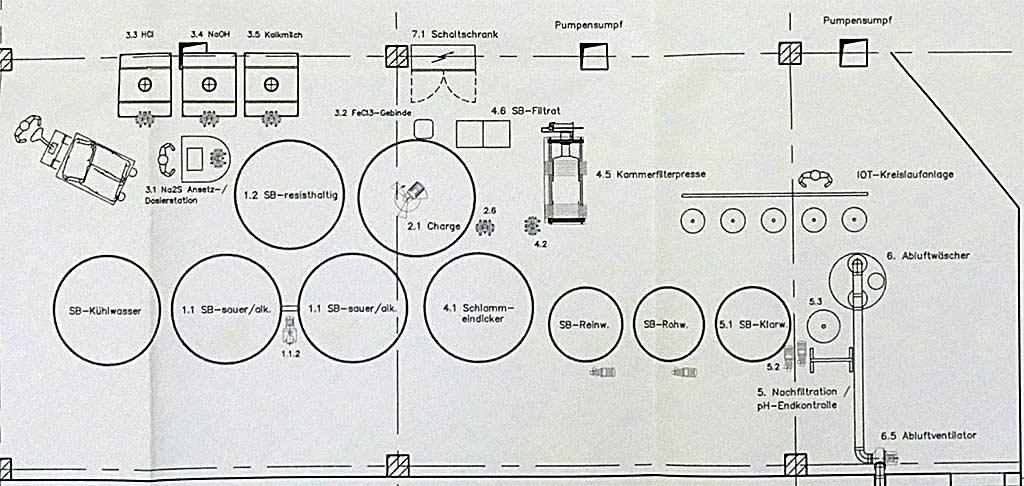

A wastewater treatment plant based on batch treatment from Antech Gütling (AGW), which was used in the printed circuit board industry (electronics), is available. It consists of a waste water collection station, a batch treatment, a chemical dosing station, a sludge treatment, a post-filtration/pH final control and an exhaust air scrubber. The system treats rinsing water, acidic and alkaline concentrates as well as waste water from the resist developer, resist stripper and solder resist developer areas. The system does not treat solvents, paints, hydraulic oils, used etchings (ammoniacal/acidic), waste water containing chlorite or EDTA-based chemical copper. Capacity: approx. 3m³/h. Documentation is available.
