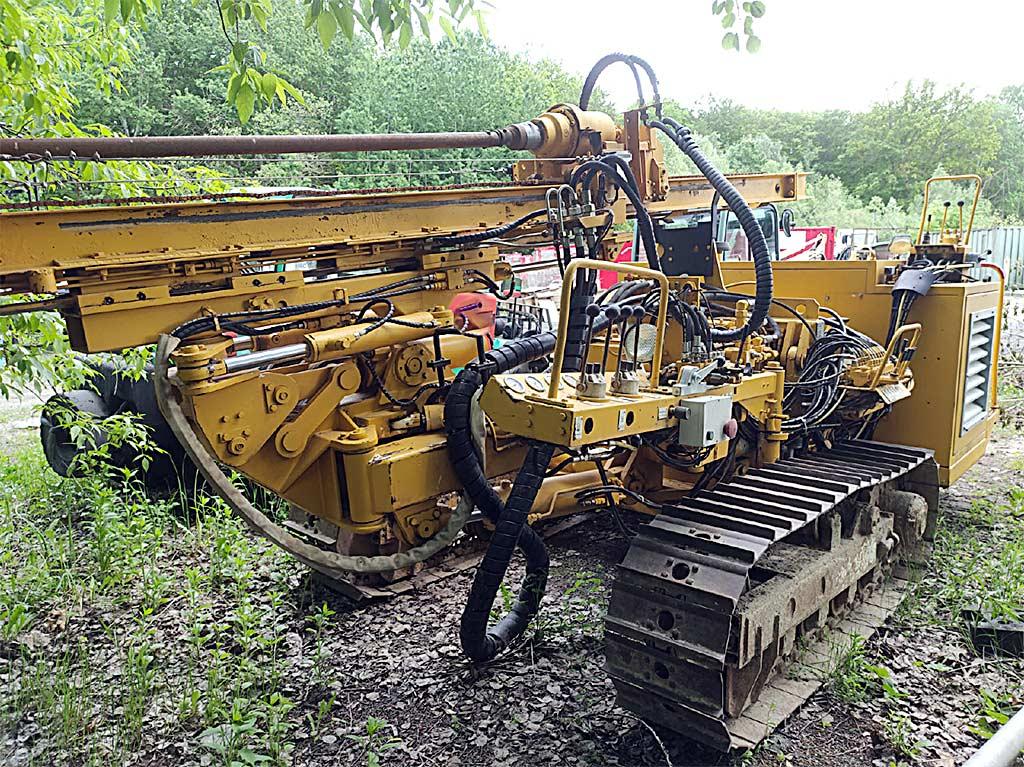

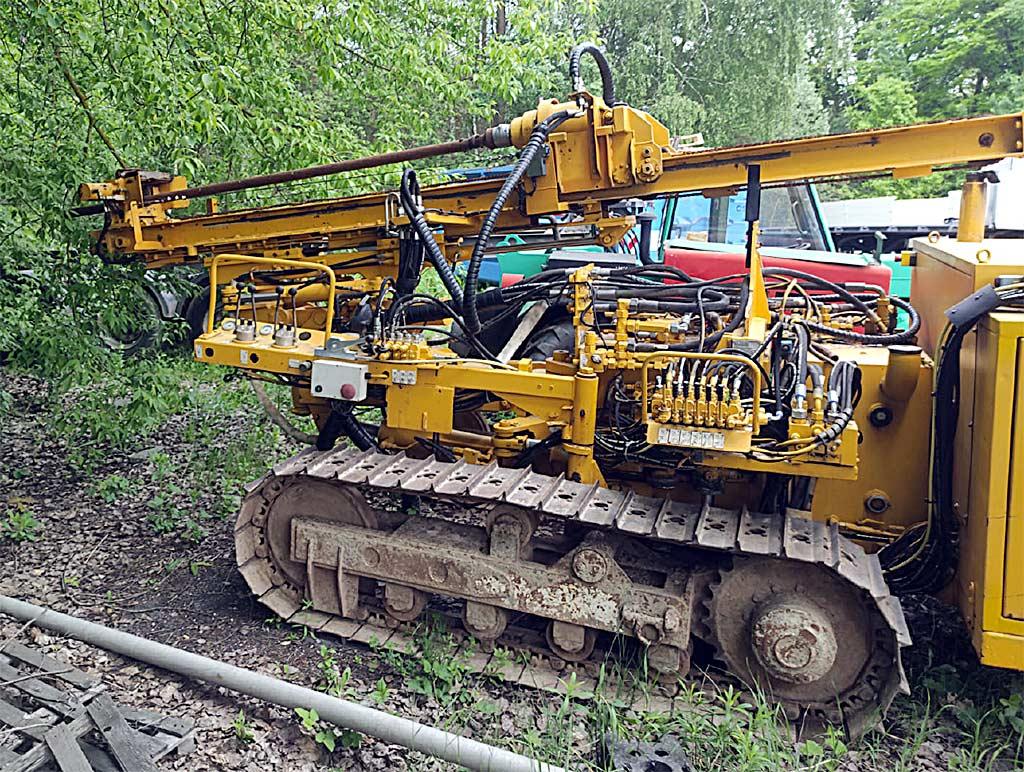

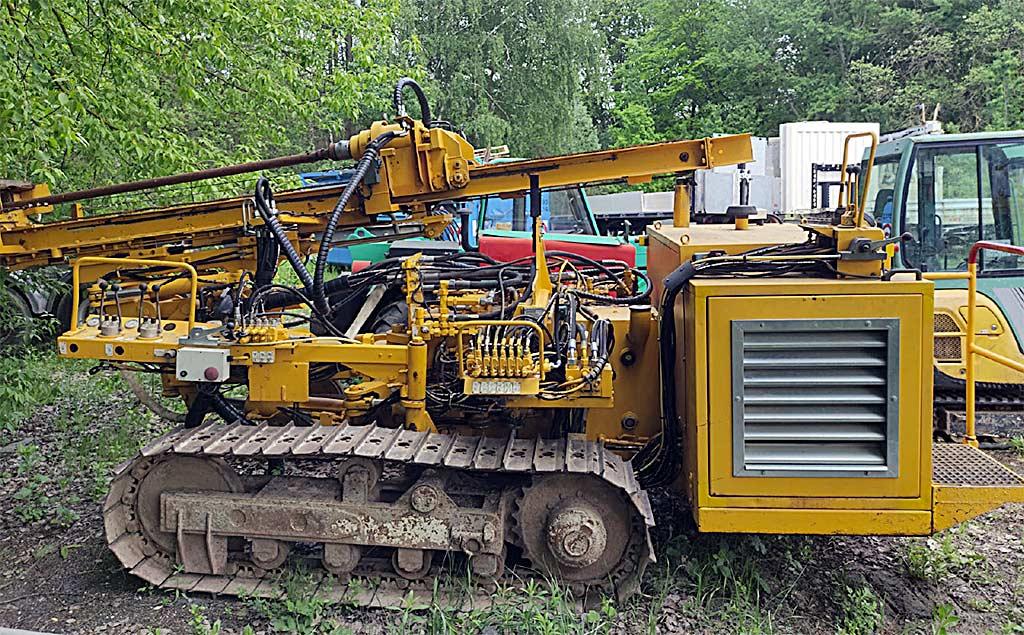

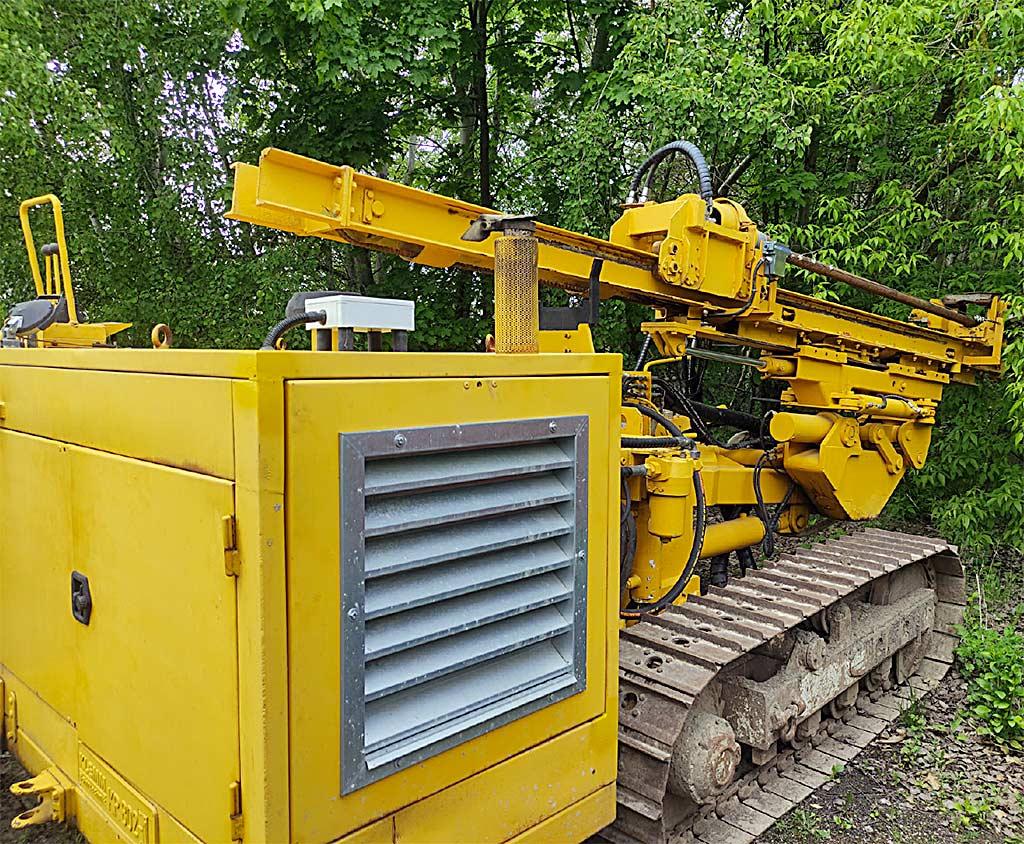

Hydraulic Crawler Drilling Rig Klemm KR 802

Germany

Description

Engine: CAT 3054 DI-T(EPA), power/speed: 78.5kW(107hp)/2300rpm, max. power: 80.5kW (110hp), diesel tank capacity: 160l. Hydraulic system: Hydraulic pumps: 1) circuit: 92l/min, 2) circuit: 73.6l/min, 3) circuit: 18.4l/min, 4) circuit: 8l/min, system pressure: 250bar, hydraulic tank capacity: 350l. Crawler chassis: type: B1, tractive force: 75kN, travel speed: 2.2km/h, specific ground pressure: 5.3N/cm², total width: 2200mm, length of crawler tracks: 1900mm, ground clearance: 390mm, oscillation possibility: +18°/-8°. Drilling equipment: permissible torque: 20kNm, total length: 5765mm, feed length: 4300mm, max. boom length: 4000mm, feed force: 40kN, retraction force: 60kN, feed speed: 9m/min, retraction speed: 9m/min, fast feed: 47m/min, fast retraction: 47m/min. Transport dimensions X/Y/Z: 6470mm/2200mm/2560mm, weight: 8500kg. Documentation available.
