Direct Heating Dhe

Germany

Description

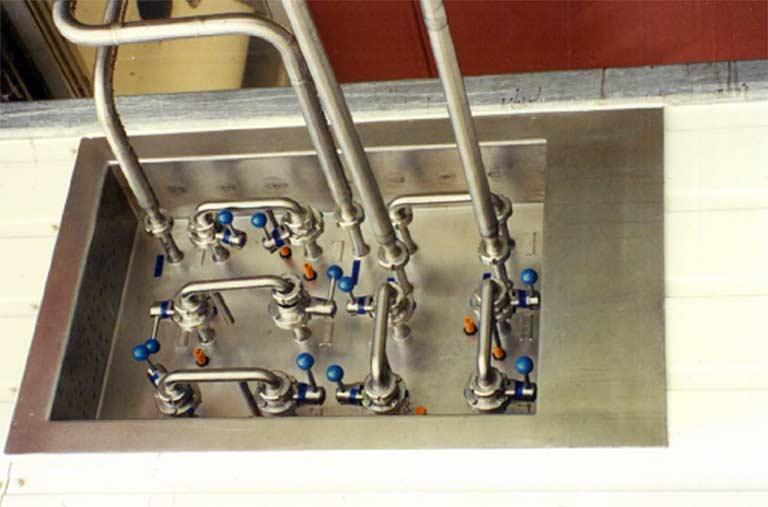

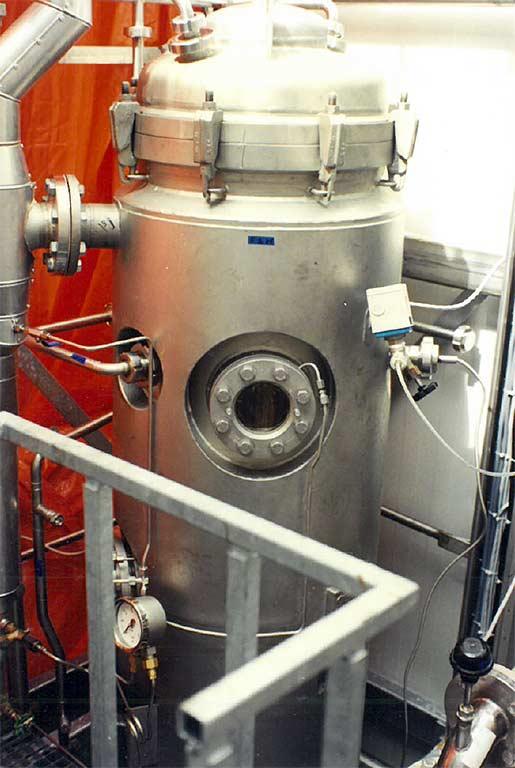

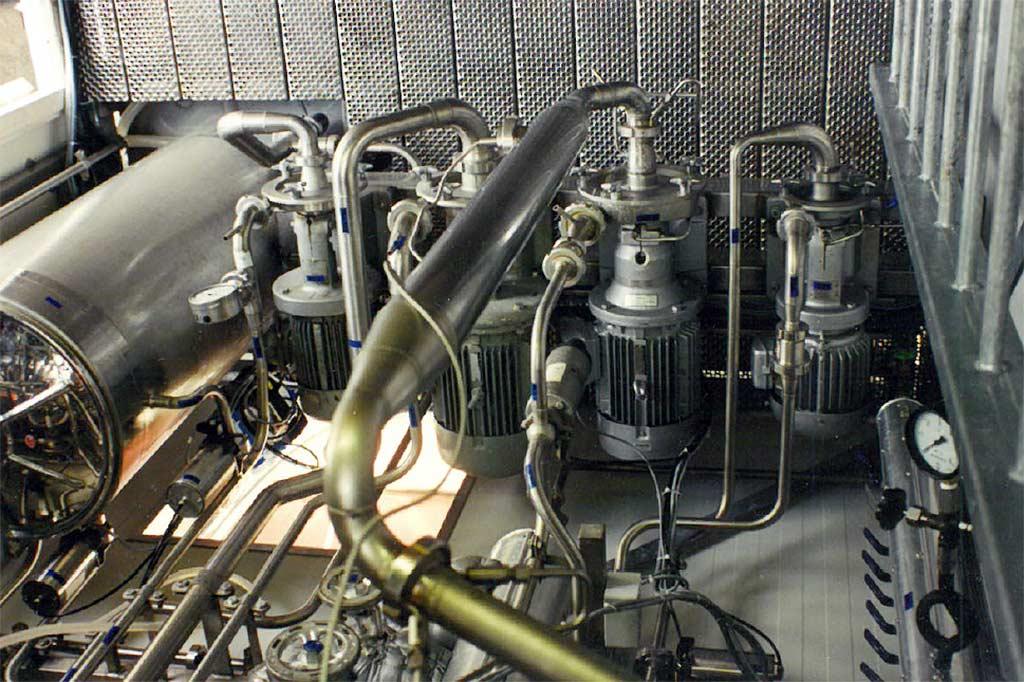

Throughput capacity: 600 litres/h, in the process the product (milk, cream, liquid egg, ice cream mix, etc.), which has been heated to 65° C in the counterflow, is heated to 130° C by steam injection in less than a second. The process heats the product (milk, cream, liquid egg, ice cream mix, etc.), which has been heated to 65° C in the counterflow, to 130° C in less than a second by steam injection and then cools it again in the shortest possible time by evacuation, further cooling is achieved by the inflowing product in the counterflow and ice water, includes feed tank, speed-controlled pumps, homogeniser, preheater, infusion tank, expansion tank, steam condenser, cleaning agent tank and other elements, on-site inspection is possible.

Additional Details
