Ultrafiltration Plant Alpma

Germany

Description

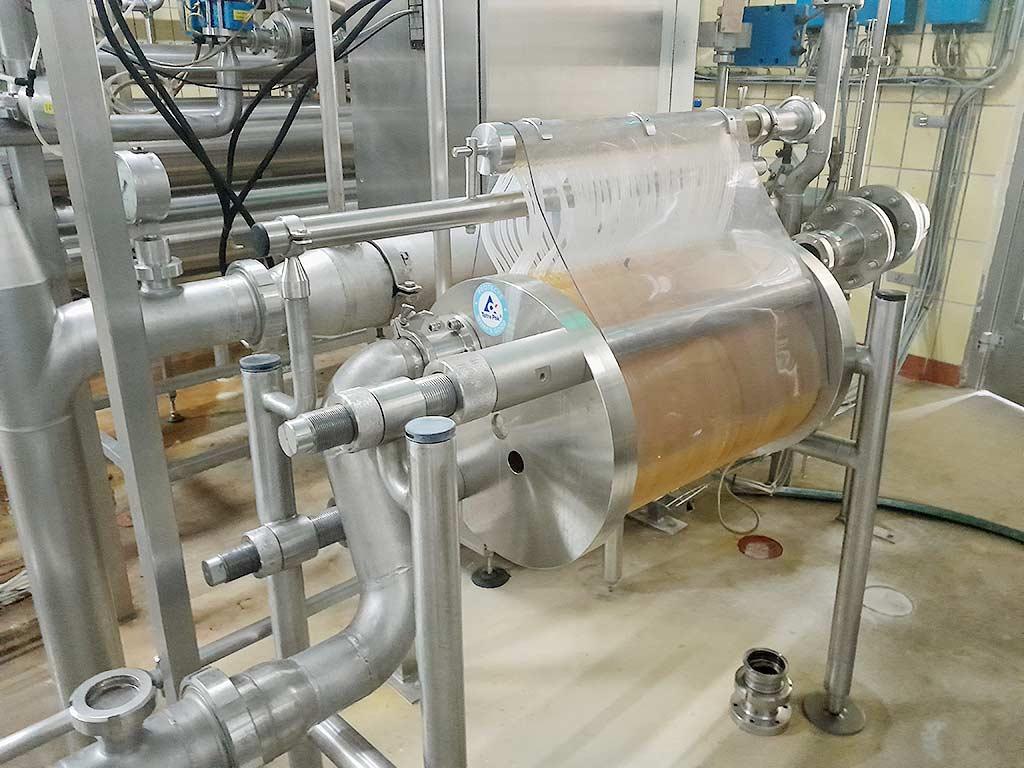

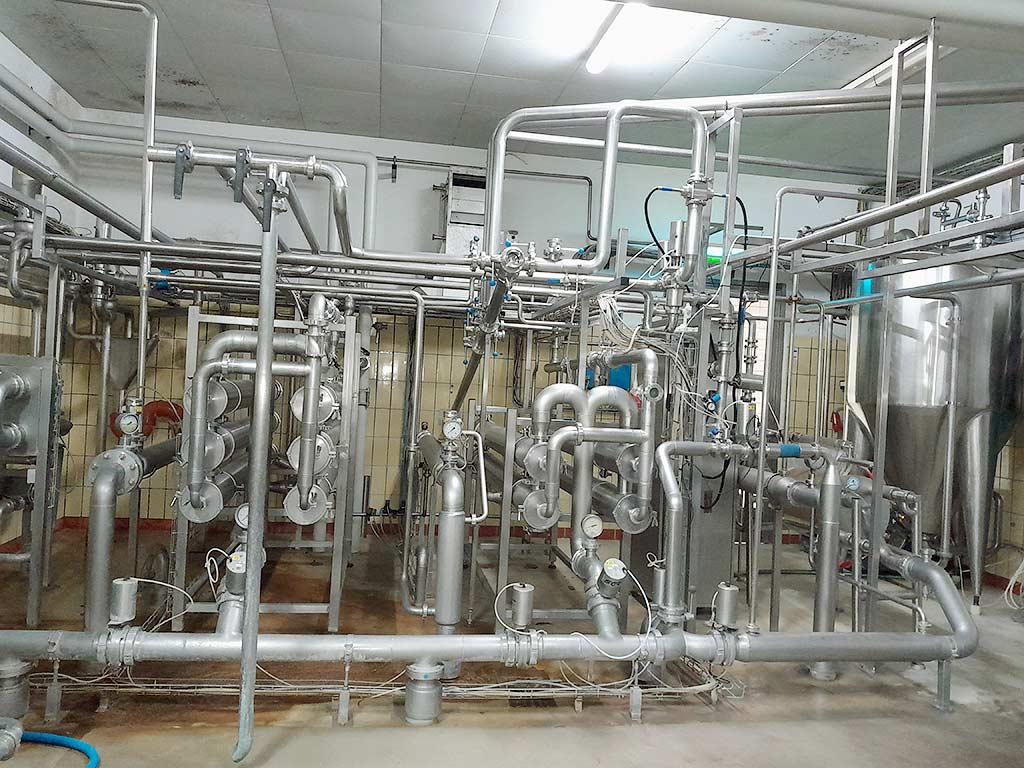

Was used for the production of double cream cheese, low-fat quark, as well as 20/40% quark and skyr, milk with 3.7% fat was also concentrated to 37% dry matter, throughput capacity: approx. 3500-5000 litres with a service life of 8 hours, includes (1) stage 1 with six 6 inch pressure pipes, each with two spiral wound modules, filter Mikrodyn Nadir DS-IP020-6338E1, filter area: 13.4m²/module, total filter area: 160.8m², flow rate centrifugal pump: 145m³/h, 3.5bar (2) Stage 2 with four pressure pipes in the same design as in stage 1, filter area: 107.2m², flow rate centrifugal pump: 160m³/h, 5bar (3) P&F module Tetra M37/9/2, filter area: 9m², flow rate positive displacement pump: 75m³/h, 6bar, an on-site inspection is possible.
