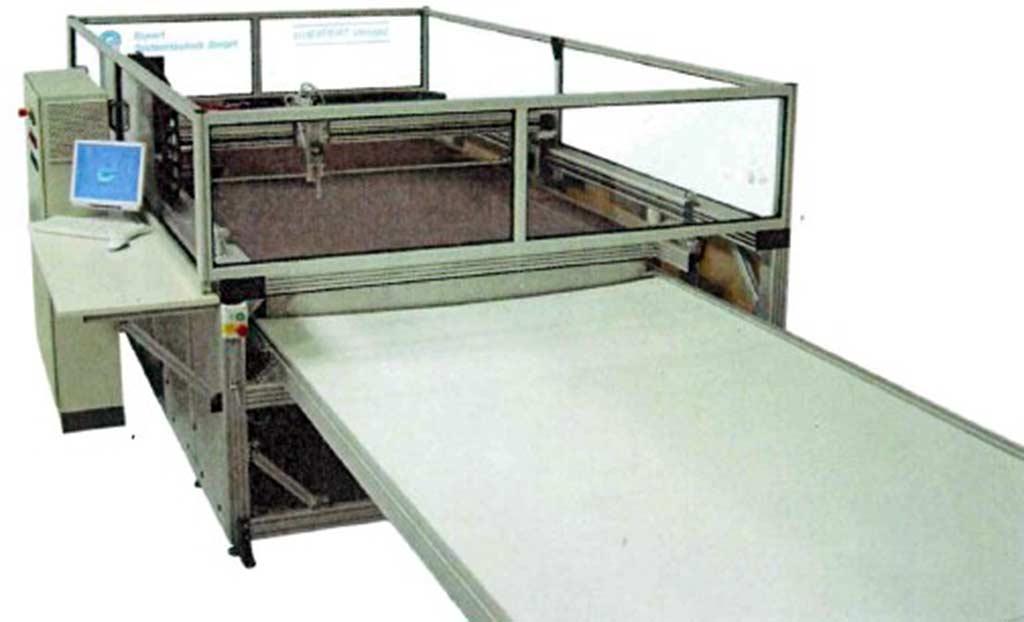

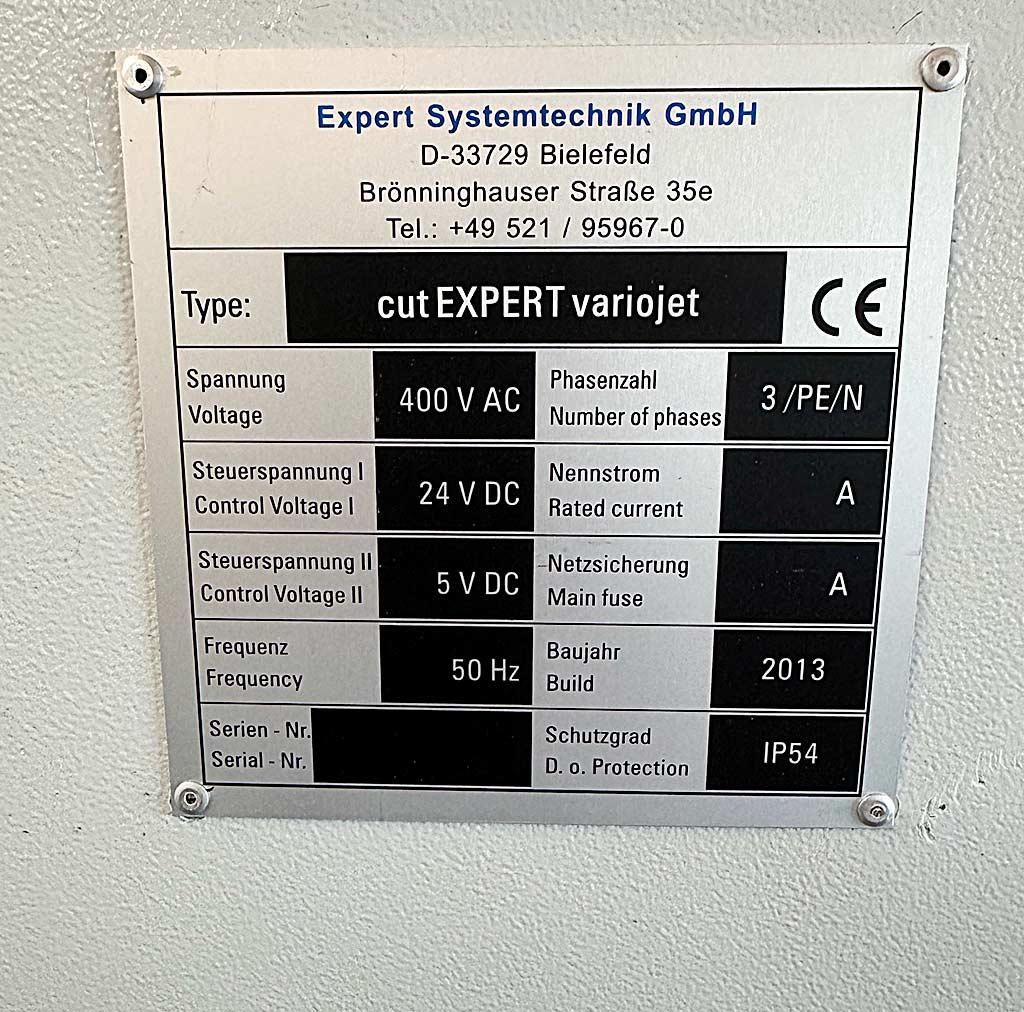

CNC Water Jet Cutting Machine Expert cutExpert variojet

Germany

Description

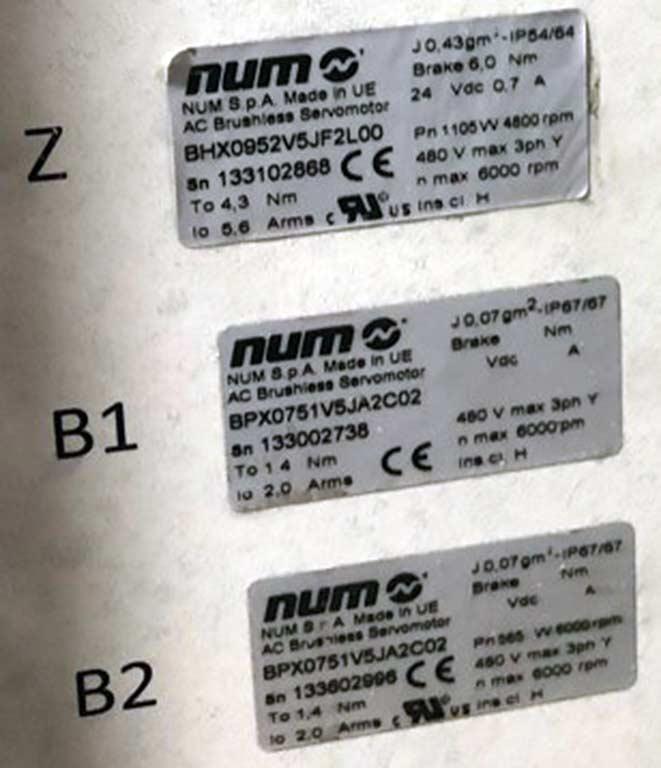

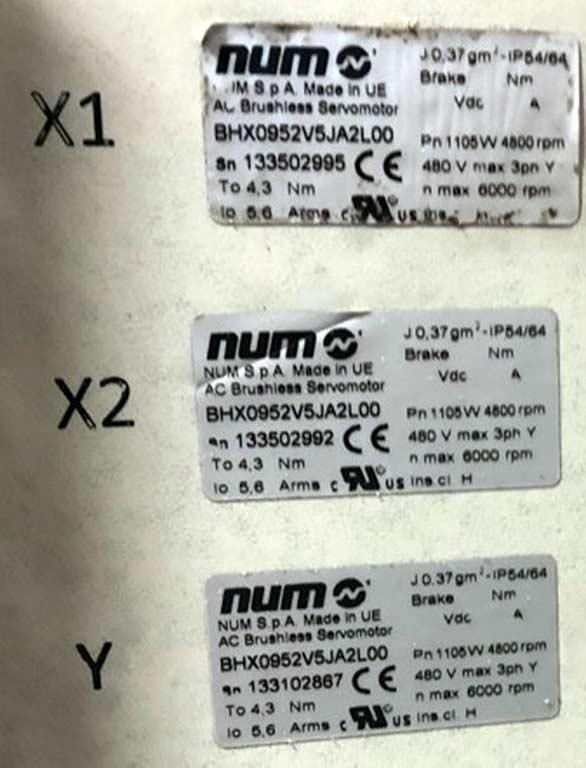

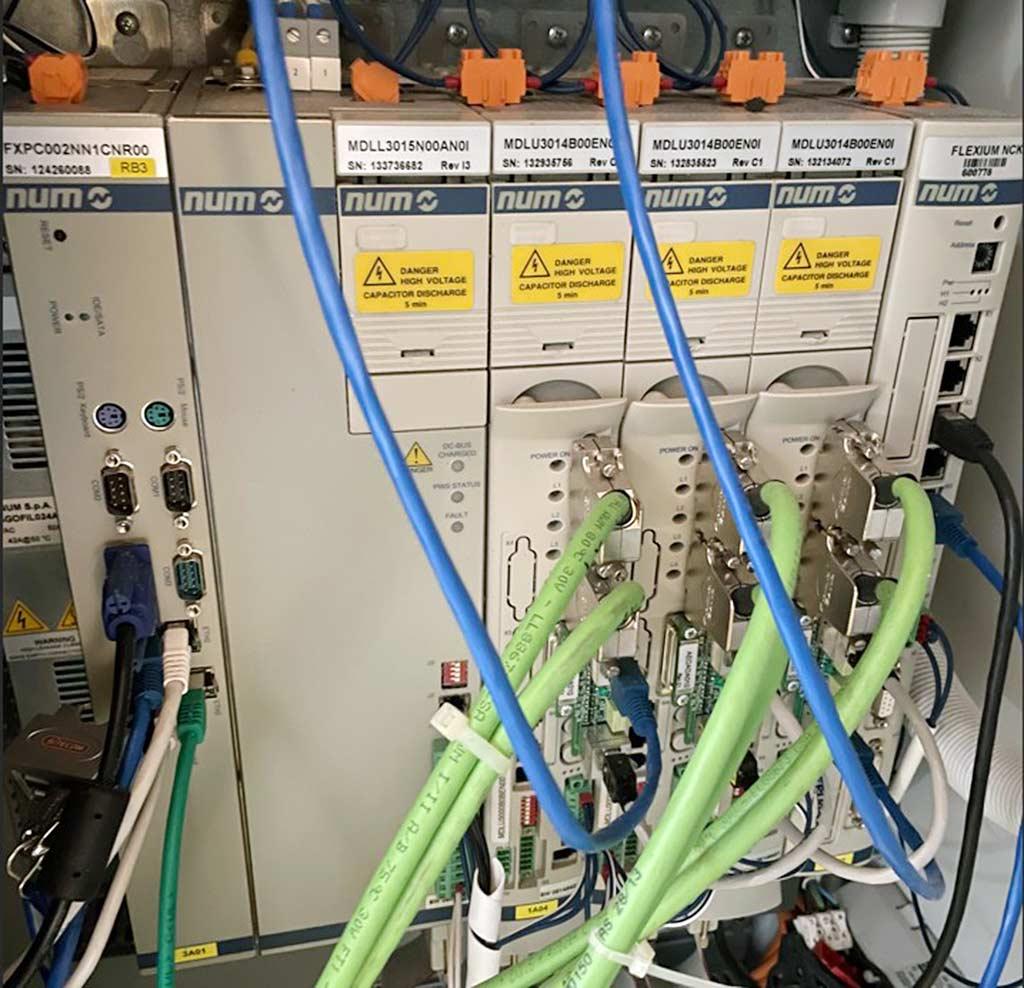

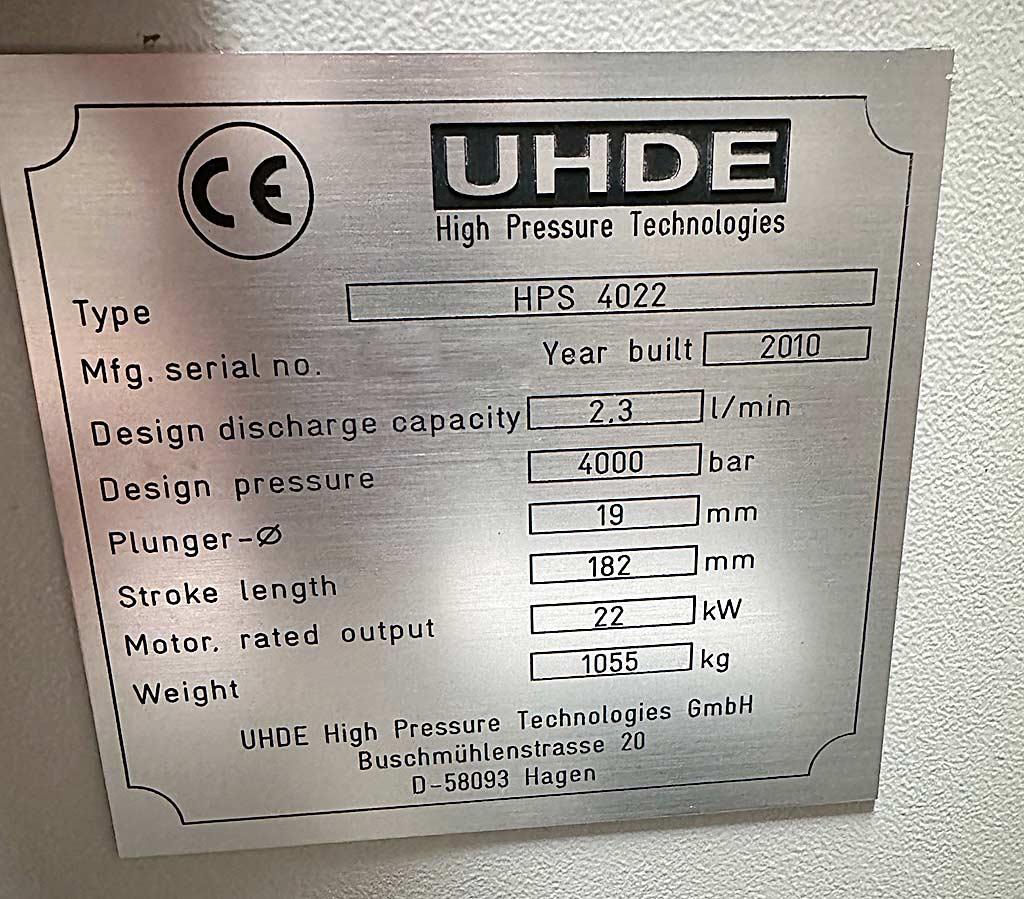

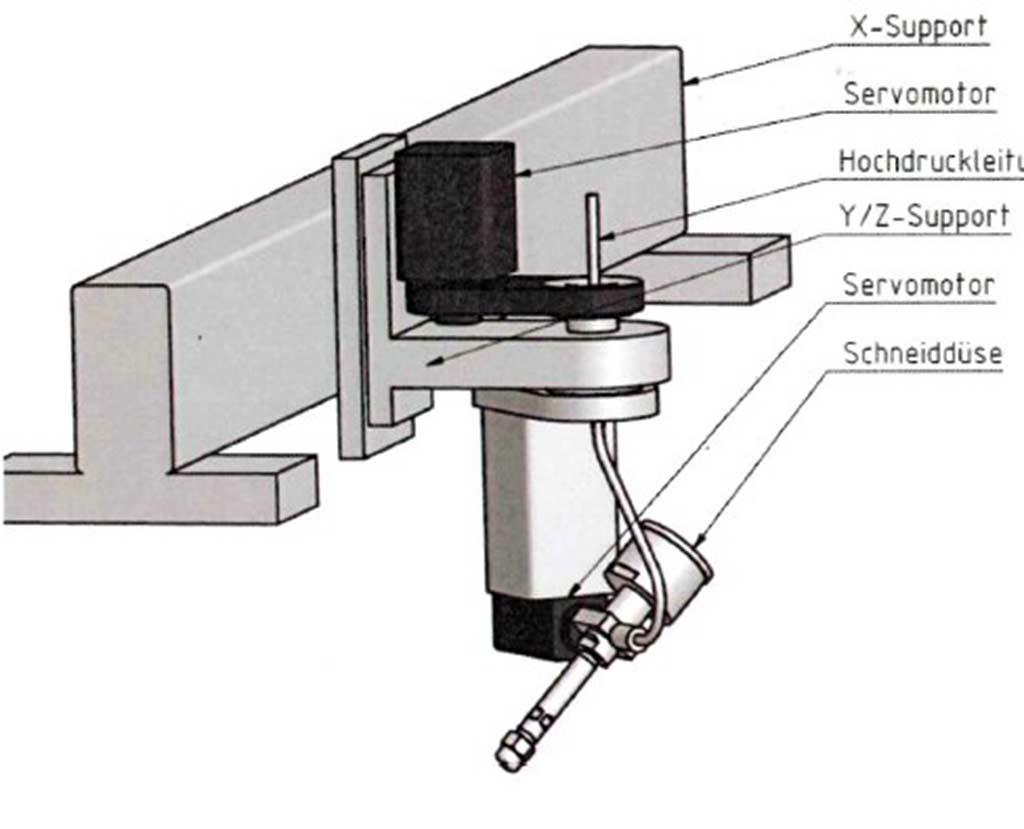

Max. Plate dimensions: 2400x2100mm, table dimensions: 4100x3600x1450mm, water jet nozzles: 0.12/0.15/0.17/0.20/0.25mm, with documentation, 3D cutting head, drives, software, tools, spare parts package, and high pressure pump UHDE HPS 4022, multifunctional CAM cutting system with high precision, without abrasives, 3D 5-axis cutting head for flat cutting of different materials up to 45° bevel, with cutting nozzle make Allfi III/V, electrical height adjustment of the nozzle up to 200mm, for different material heights, dynamic servo drives for 90m/min, acceleration up to 70 m/s², machine frame in truss construction made of aluminum, cutting bridge, stainless steel water collection tray with water drain, stainless steel honeycomb elements as cutting table support, PC-based NC control Expert-PC and TFT monitor, cutting table, housing and hold-down device, on-site inspection is possible.
