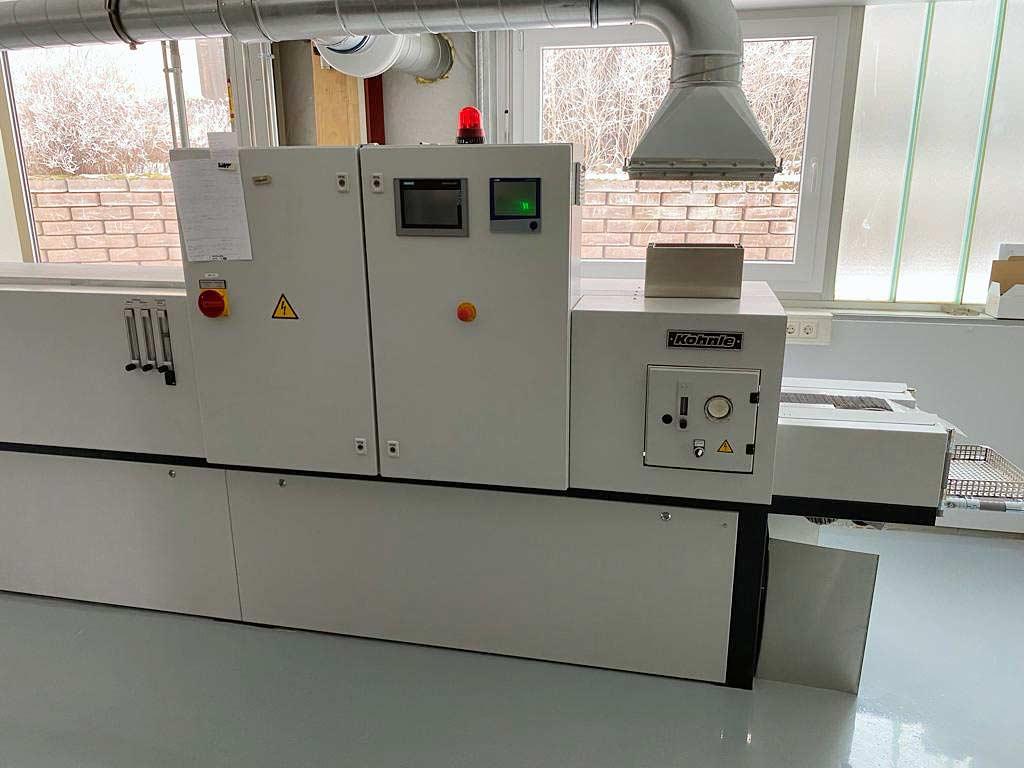

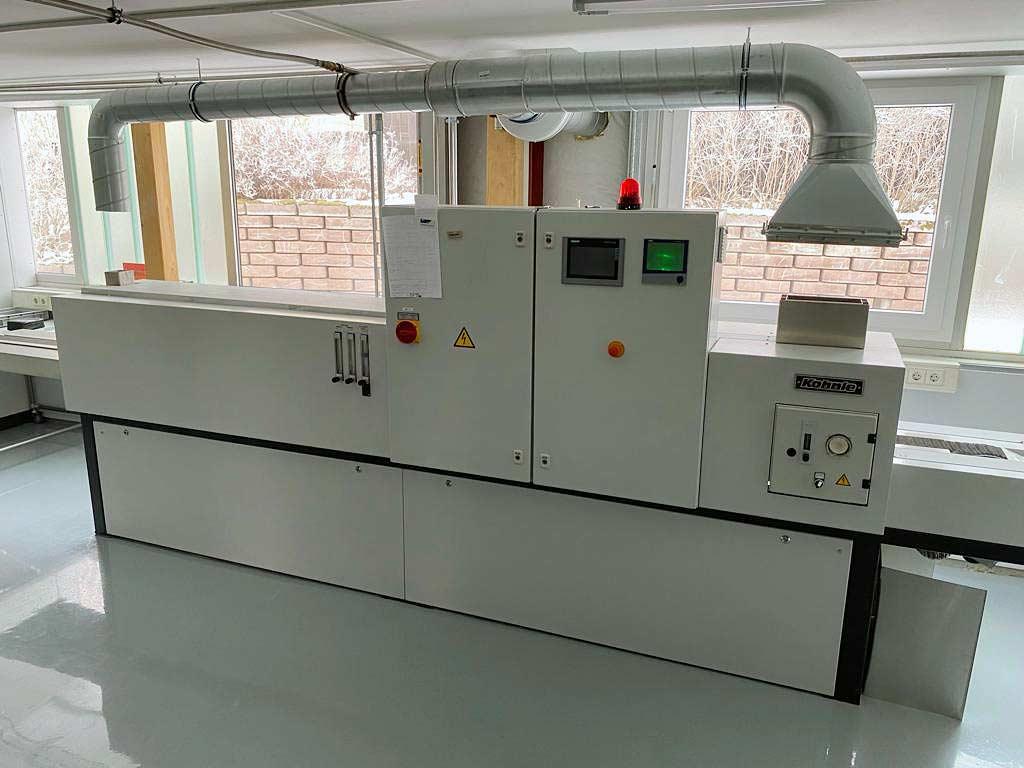

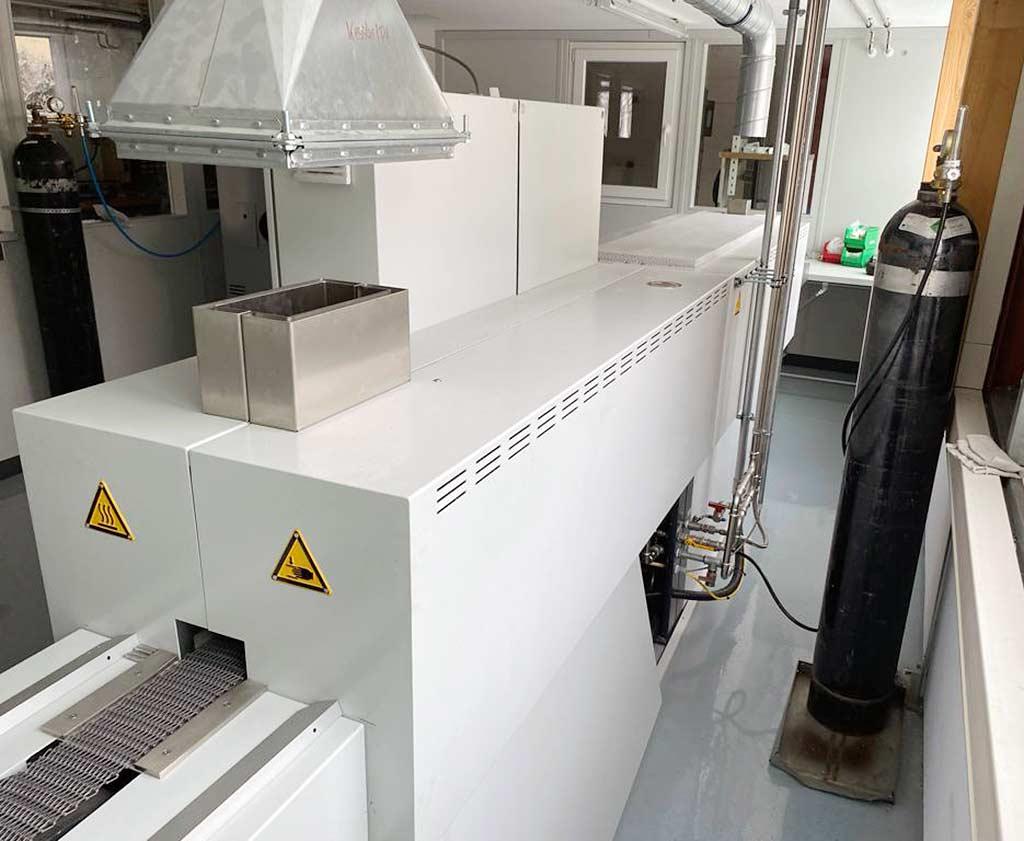

Conveyor Protective Gas Annealing Furnace Kohnle HTEconnect 1120-120/40-1000

Germany

Description

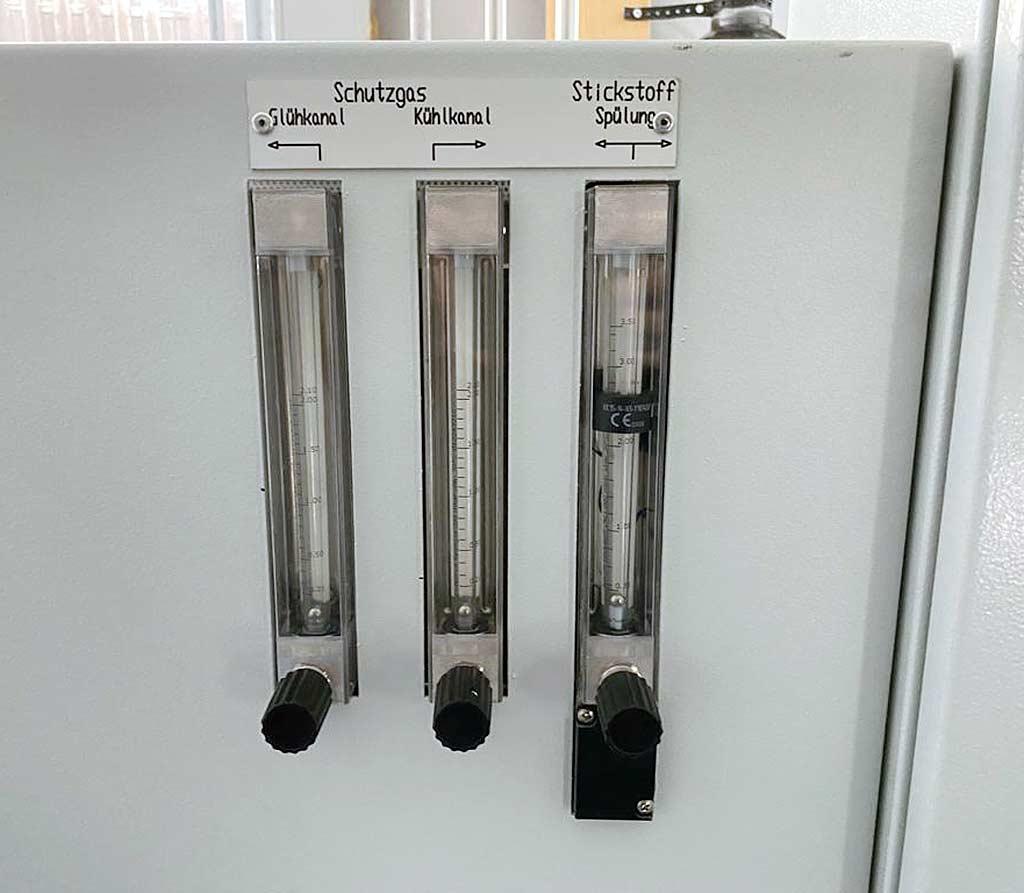

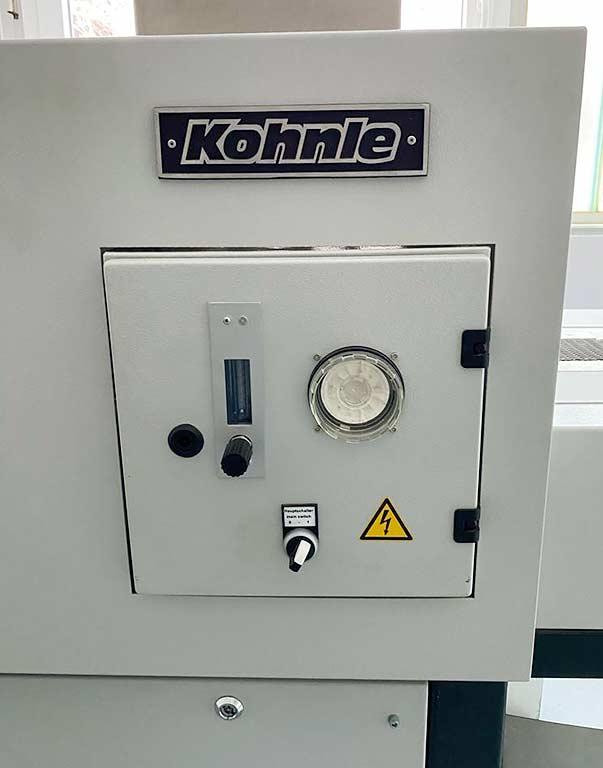

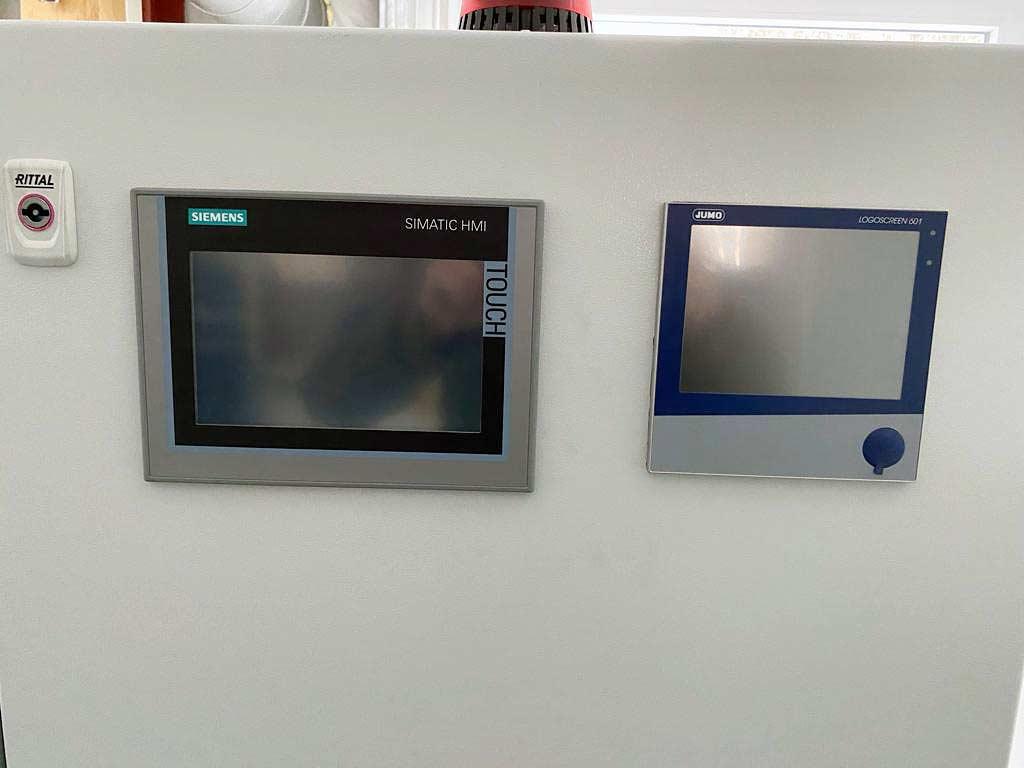

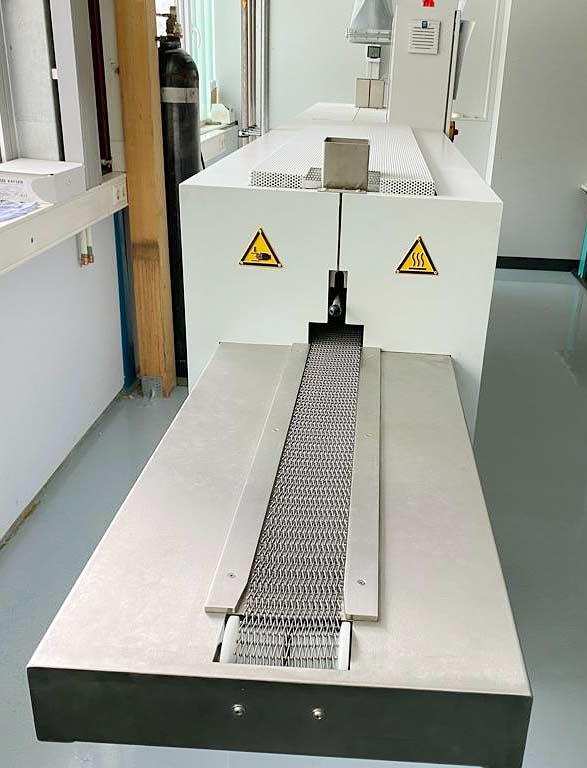

Max. Working temperature: 1120°, heated length: 1000mm, cooling length: 1850mm, channel height: 40mm, conveyor belt width: 110mm, throughput speed: 100-1000mm/min, splitting gas consumption: 1.5-2.5Nm³/h, touch panel: Siemens SIMATIC HMI, length: 5000mm, width: 650mm, height: 1350mm, with integrated ammonia splitter GSP 25 FA, integrated gassing panel, protective gas from ammonia splitter (on-site ammonia supply) + N2 purge gas as required, MSR system with Siemens PLC and touch HMI, atmosphere monitoring, process documentation, on-site inspection is possible.
