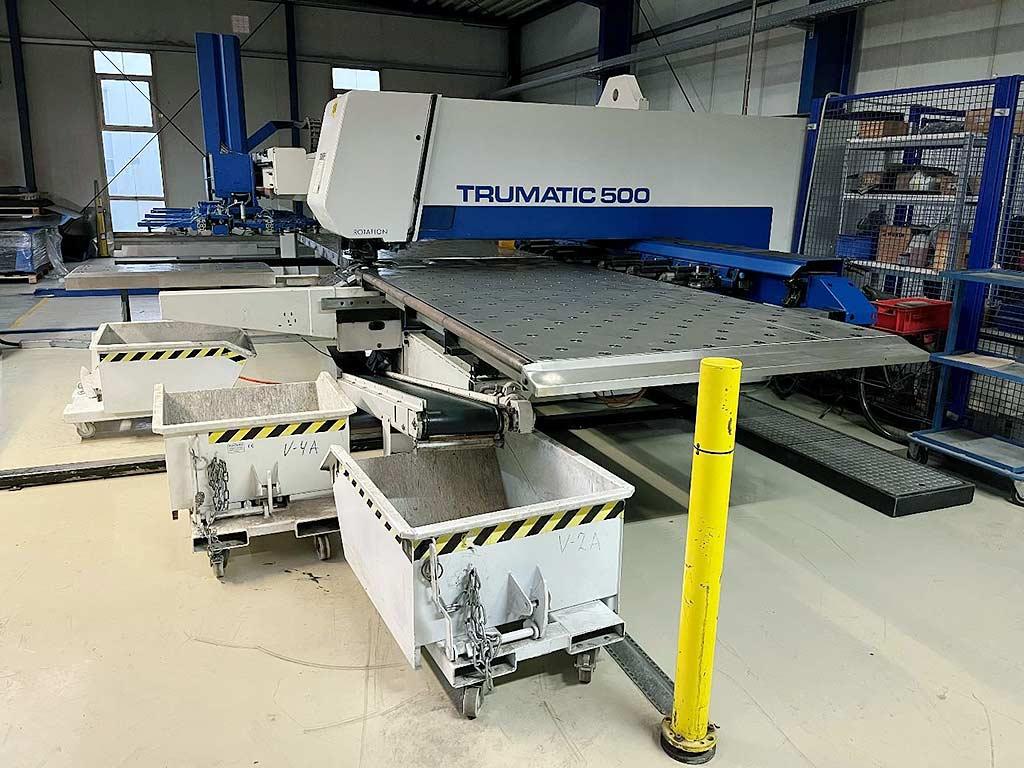

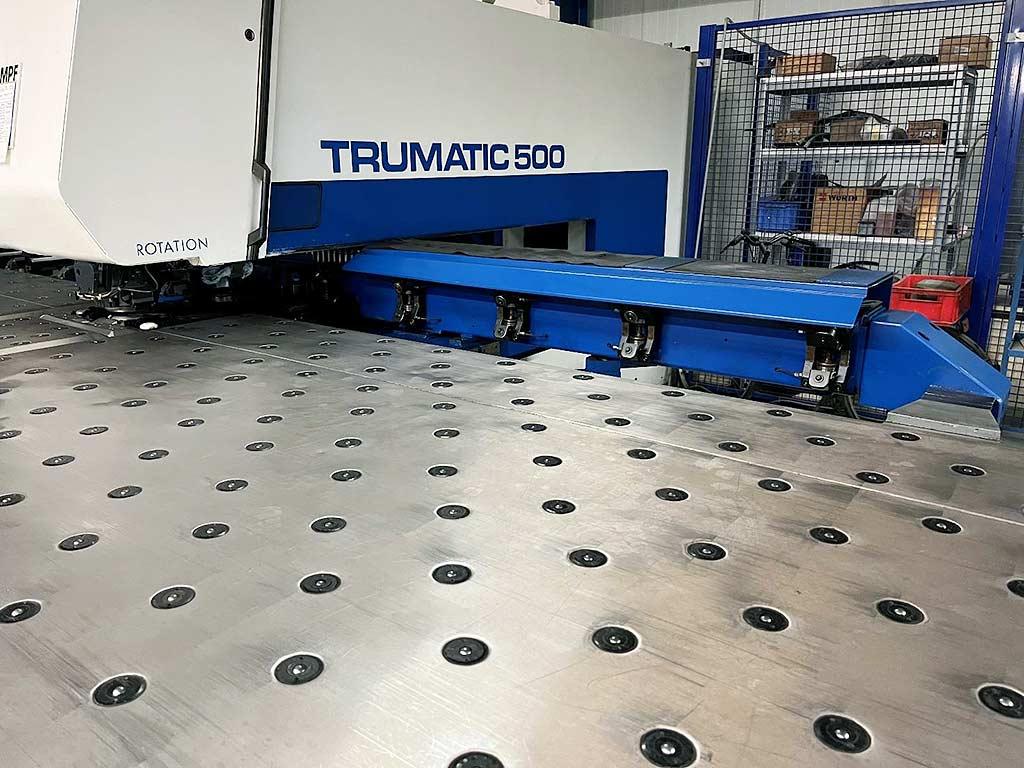

Punching Machine Trumpf TRUMATIC 500
Specifications
Germany
Description

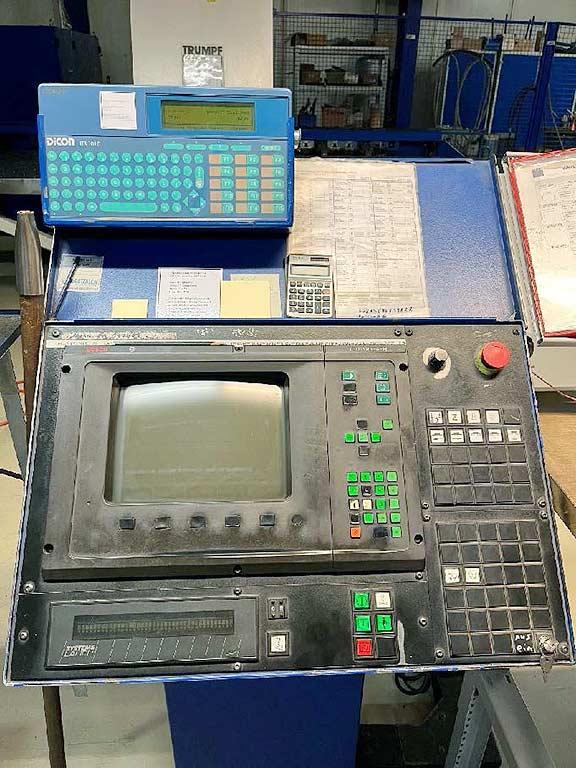

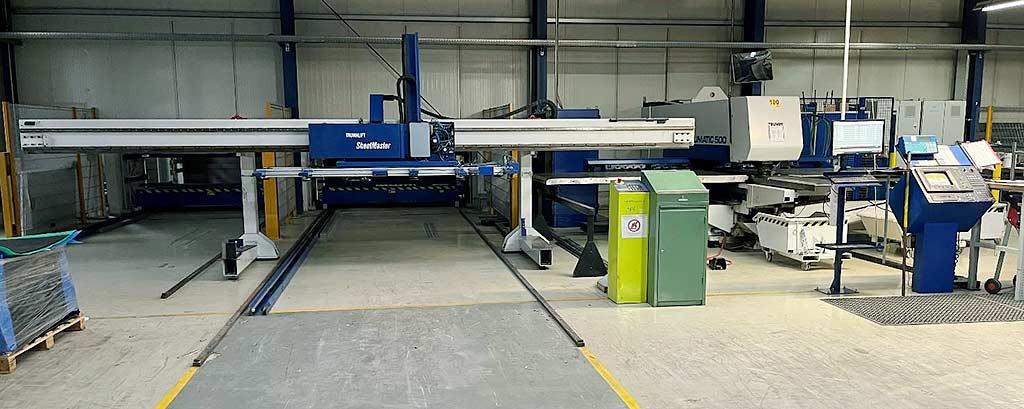

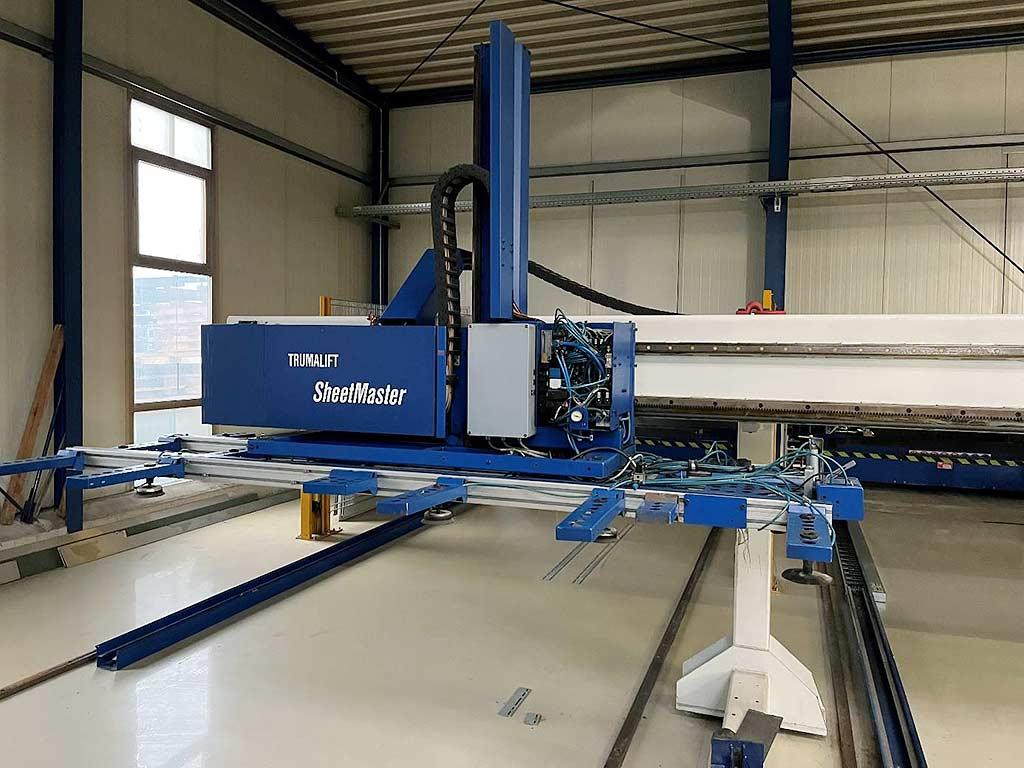

Working area: 3085x1650mm, max. punching force: 220kN, max. sheet thickness: 8mm, max. stroke rate: 750/min, max. workpiece weight: 230kg, max. punching diameter: 76mm, connected load: 19kVA, control: Bosch Trumagraph CC 20S, weight: 13.8t, operating hours: 84,400h, with storage interfaces for forward/backward storage, swing-back clamps, multitool control, air-suspended installation, chip conveyor with container, soft punch, thread forming and TrumaLift SheetMaster 1600 FMC, has been regularly serviced, on-site inspection is possible.
Additional Details
