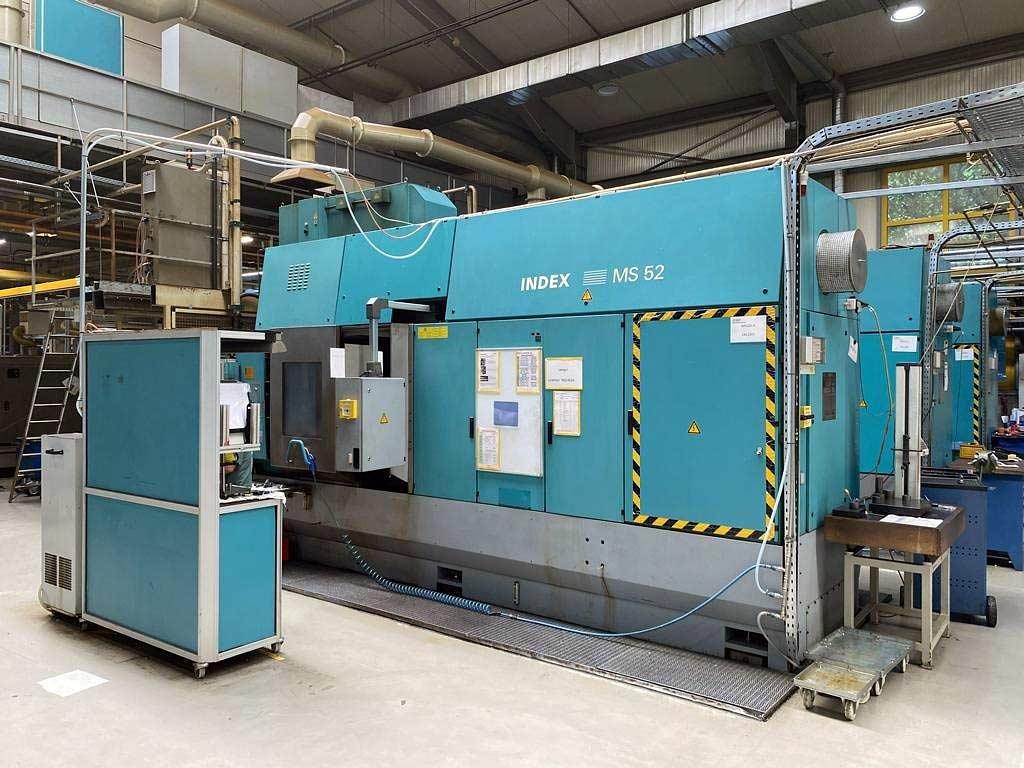

CNC Multi-Spindle Lathe Index-werke MS 52G

Germany

Description

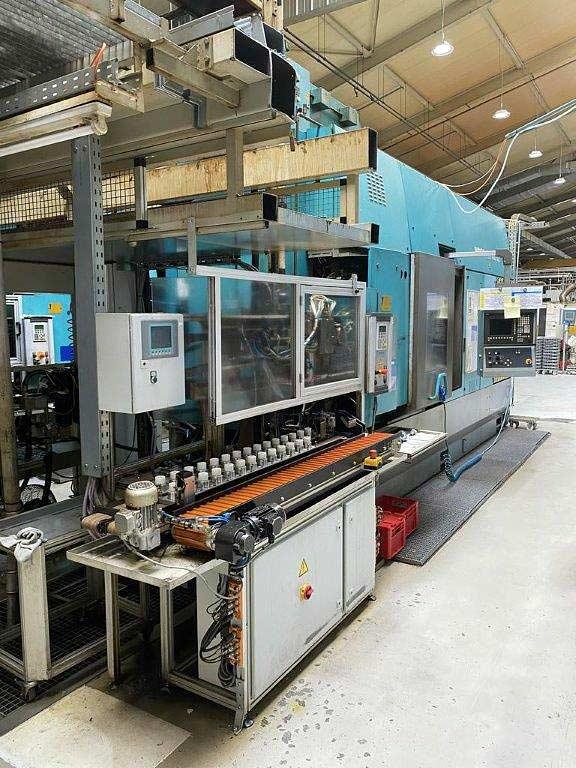

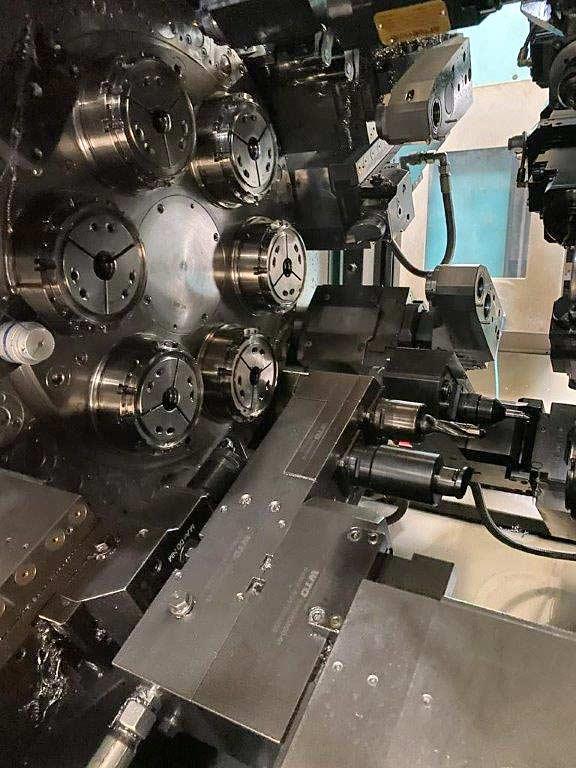

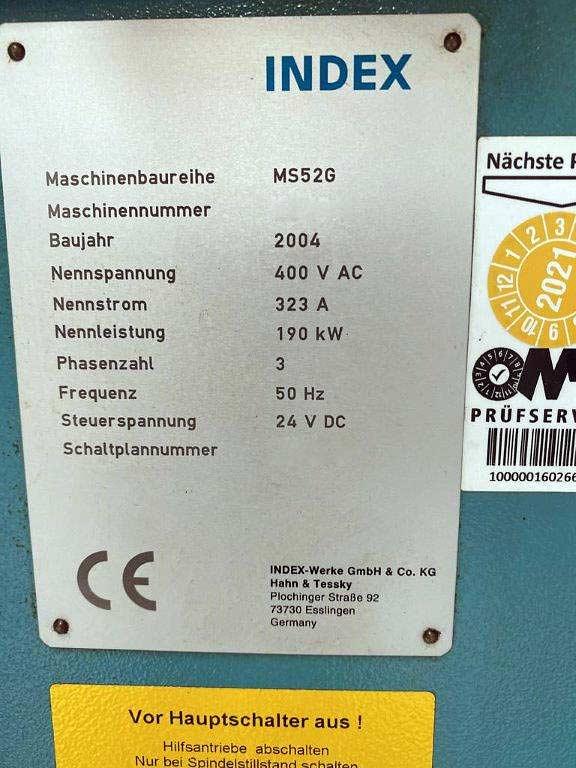

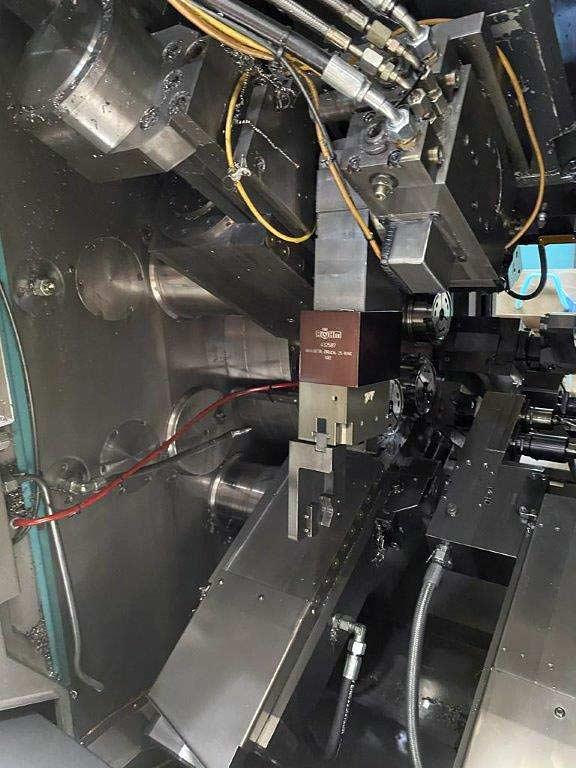

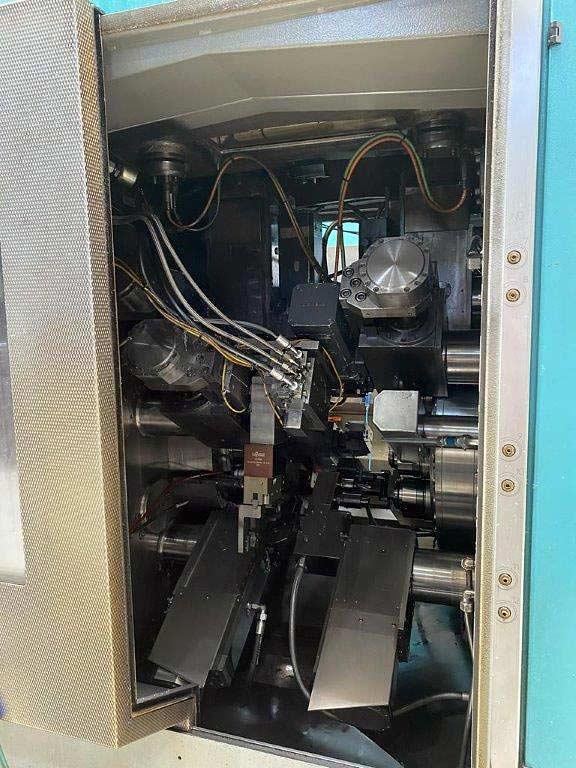

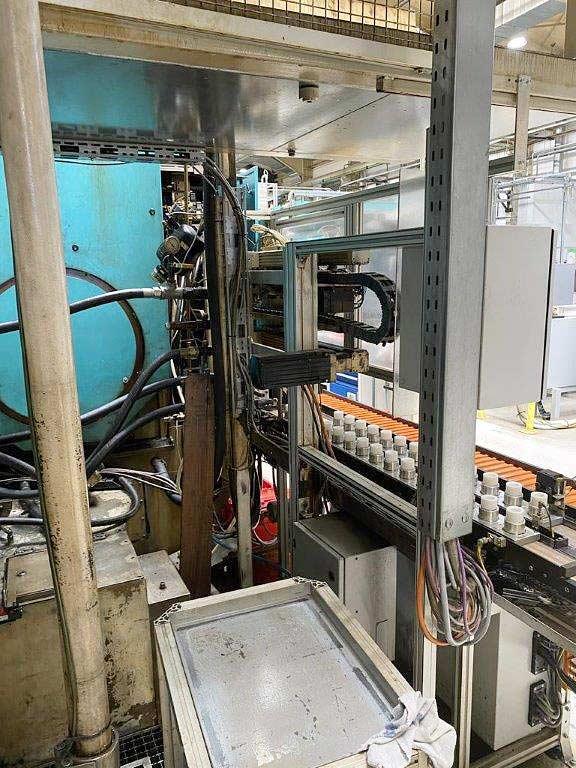

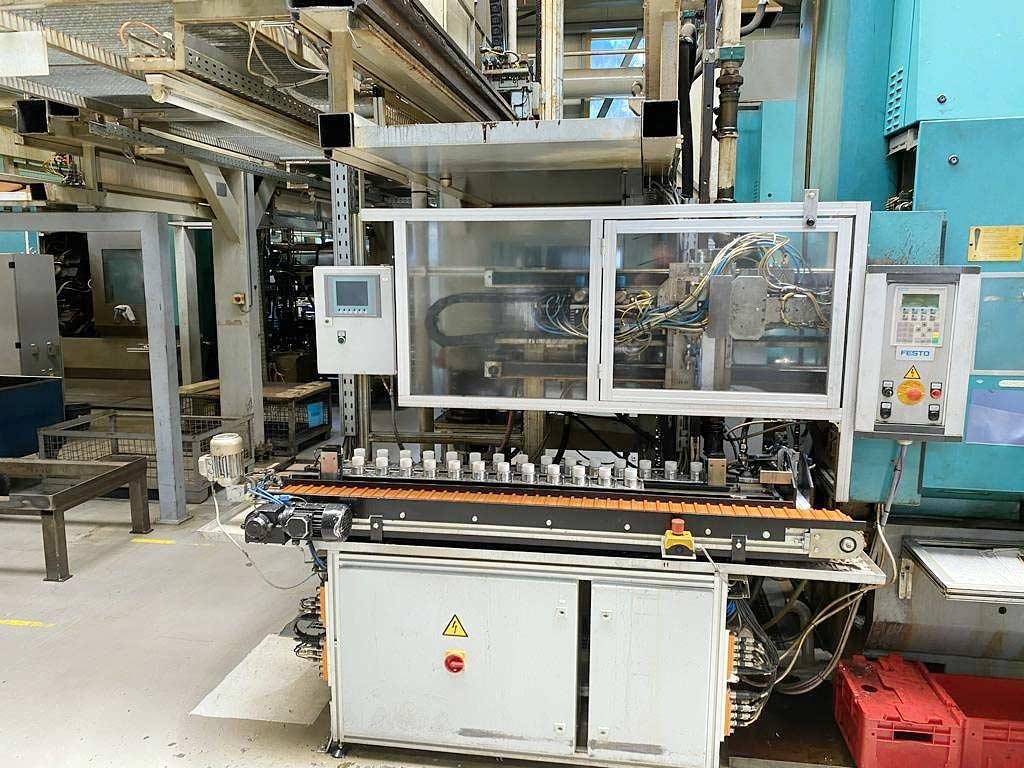

The system is equipped with six main spindles, six counter spindles and two control stations, x-travel: 300mm, y-travel: 500mm, connected load 190 kW, control: C200-4D Siemens 840D, operational/ spindle hours counter: 152.203/ 77.546h, with 12 clamping devices, 5 rigid tool holders single, three rigid tool holders multiple, 4 driven tool holders, extraction Büchel, coolant device, belt filter system, fire extinguishing system Kraft & Bauer FT704, handling Festo, operator panel Siemens Simatic OP 7, removal device, positioning gripper, set-down device and other accessories, was maintained regularly, an inspection is possible.
