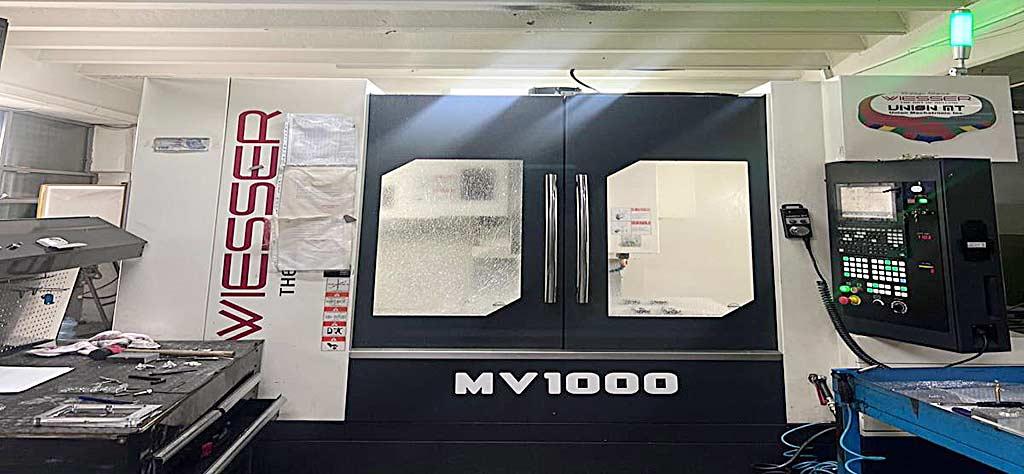

CNC Machining Center Wiesser MV 1000
Specifications
Germany
Description
Travel X/Y/Z: 1020mm/610mm/610mm, feed: 20m/min, rapid traverse X/Y/Z: 48m/48m/36m/min, positioning accuracy: +/-0.005mm, repeat accuracy: +/-0.003mm. Table dimensions X/Y: 1200mm/600mm, max. table load: 900kg, spindle-table distance min./max.: 100mm-710mm, spindle center-column distance: 628mm, spindle power: 25kW, spindle mount: BBT-40, speed: 12000rpm. Tool positions: 30, max. tool diameter: 75mm/150mm, max. tool length: 300mm, max. tool weight: 7kg. Machine dimensions X/Y/Z: approx. 2800mm/2550mm/2850mm, weight: approx. 7300kg. Documentation available. On-site inspection is possible.
Additional Details
