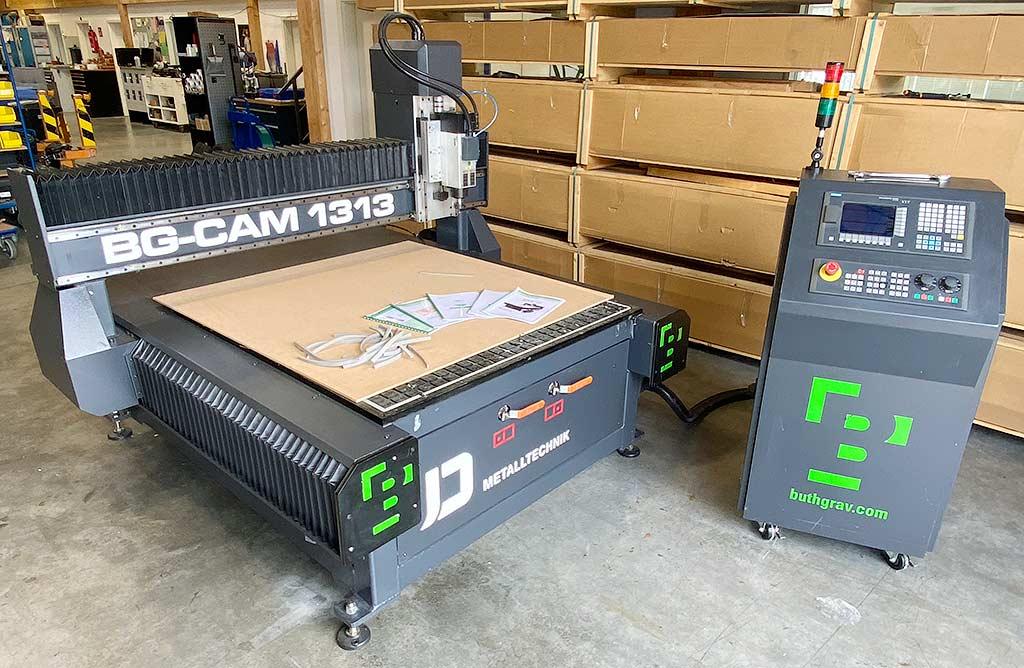

Portal Milling Machine Buth Graviersysteme BG-CAM 1313

Germany

Description

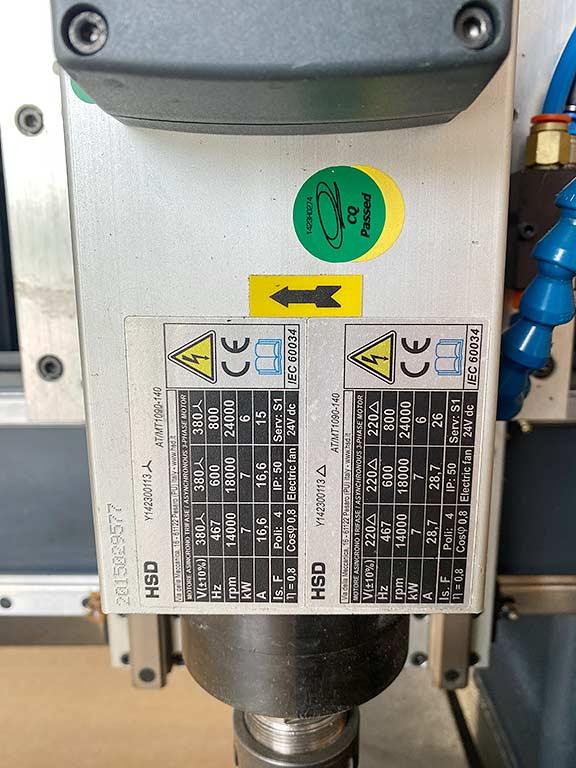

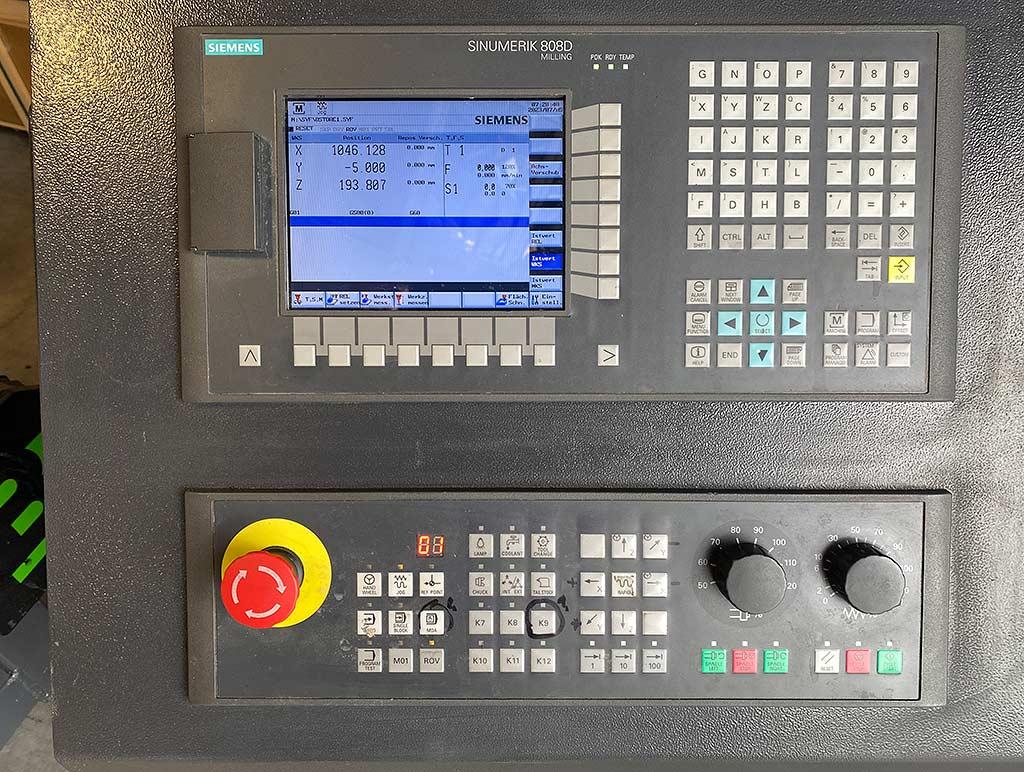

X-travel: 1250mm, y-travel: 1280mm, z-travel: 150mm, max. feed rate: 15m/min, repeat accuracy: 0.01mm, spindle rotational speed: 0-24,000/min, software: VCarve Pro, data formats: HPGL-3D / G-Code, spindle power: 6.5kW, controls: Siemens Sinumerik 808D Milling, weight: 1.2t, with collet spindle, Phenol vacuum high-pressure table, 850W servo motors Yaskawa, steel base, precision ball screws in all axes, x-axis with dual drive, linear guides, protective cover for all drive axes, suction foot for chip extraction, automatic spray cooling and material sensor.

Additional Details
