Press Brake Lvd PPBL-H 100-40/PPBL-H 165-40

Germany

Description

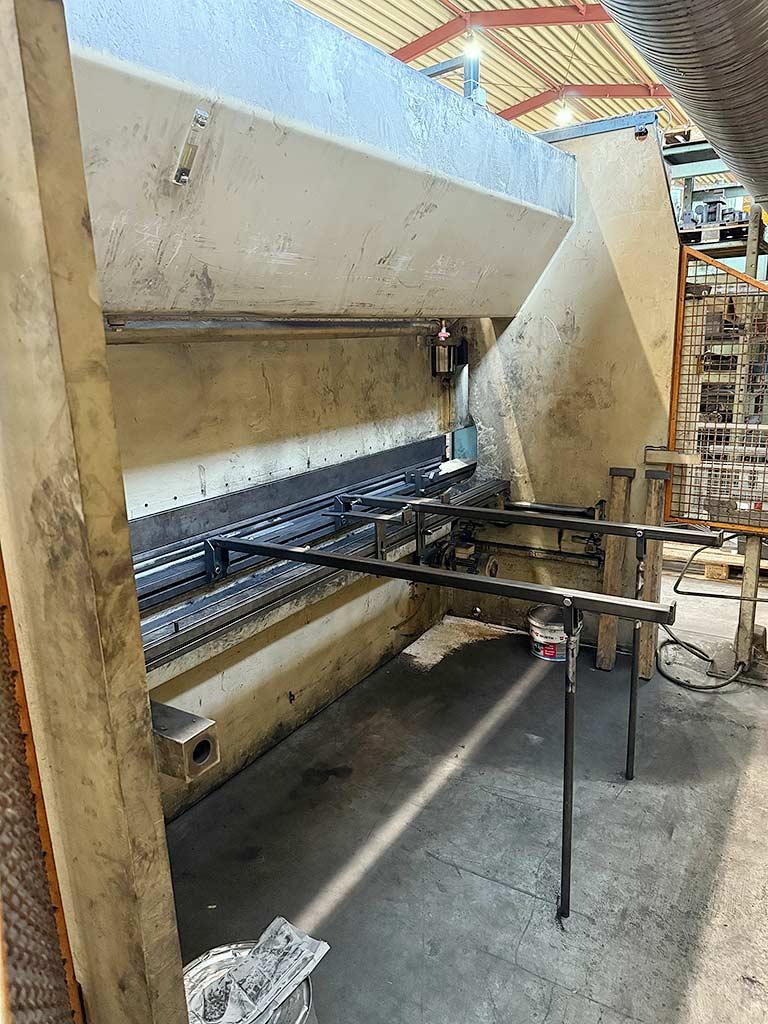

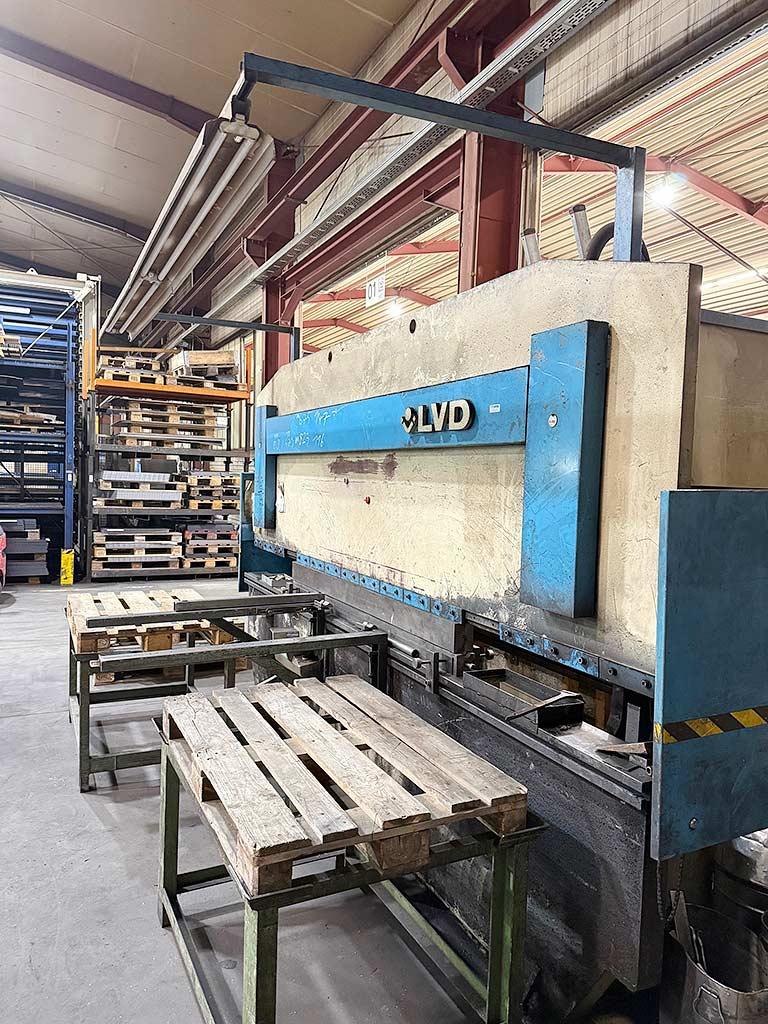

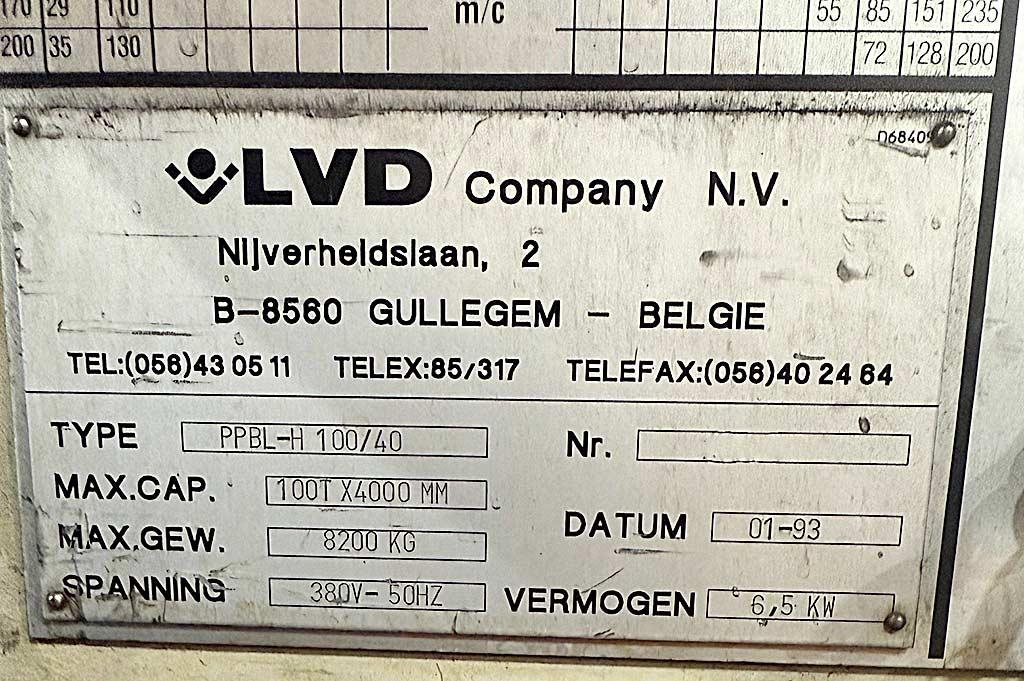

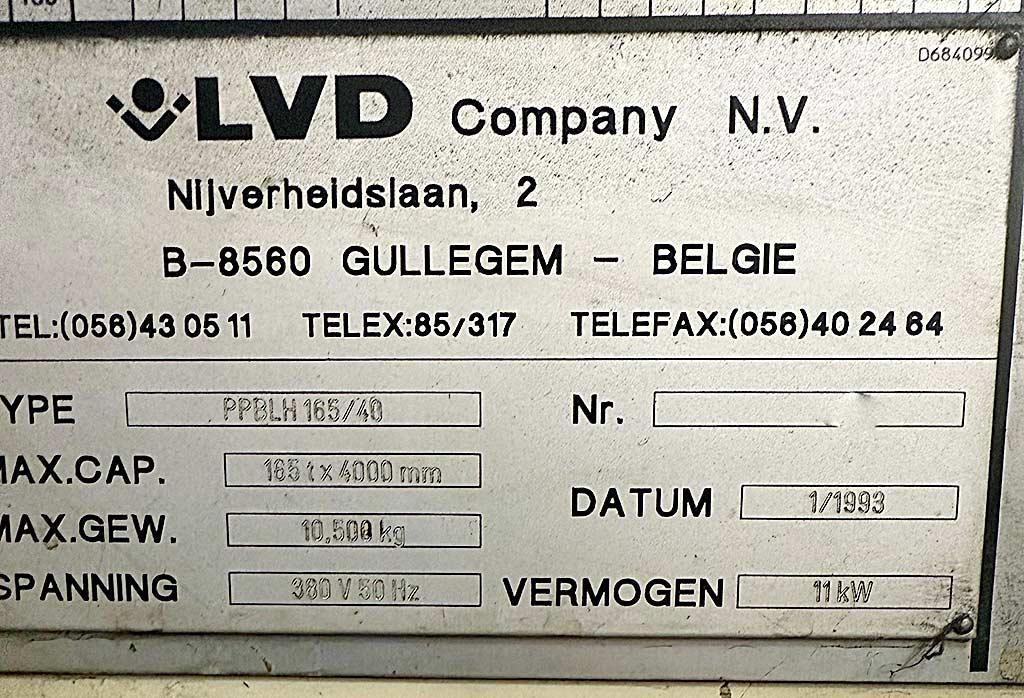

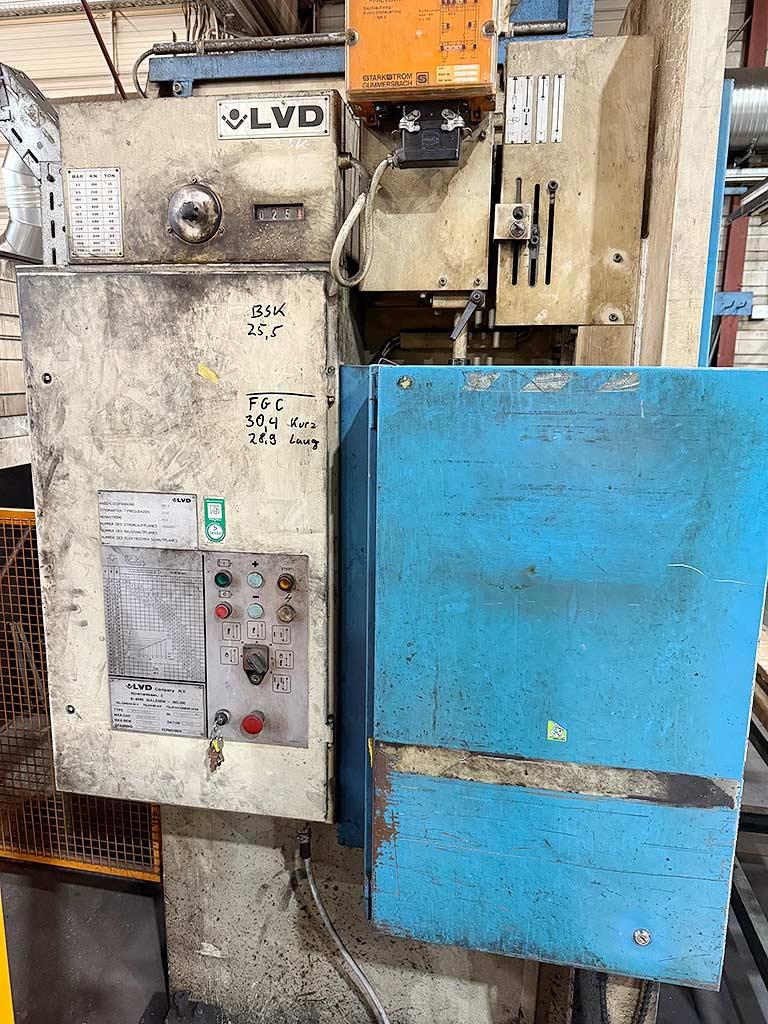

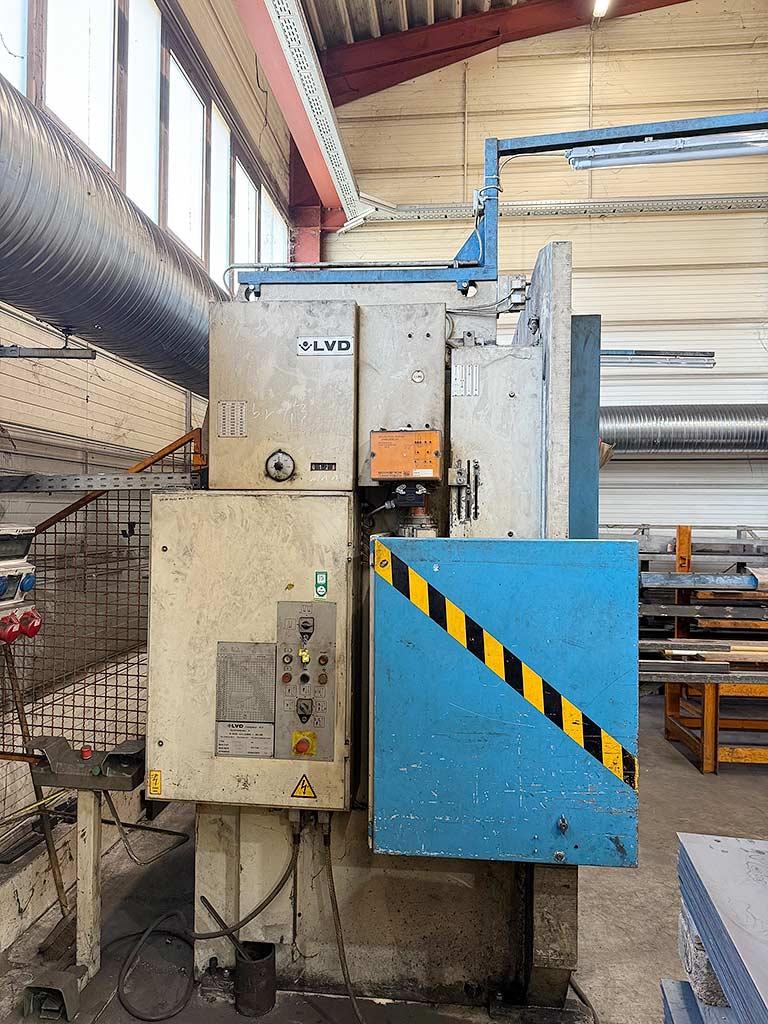

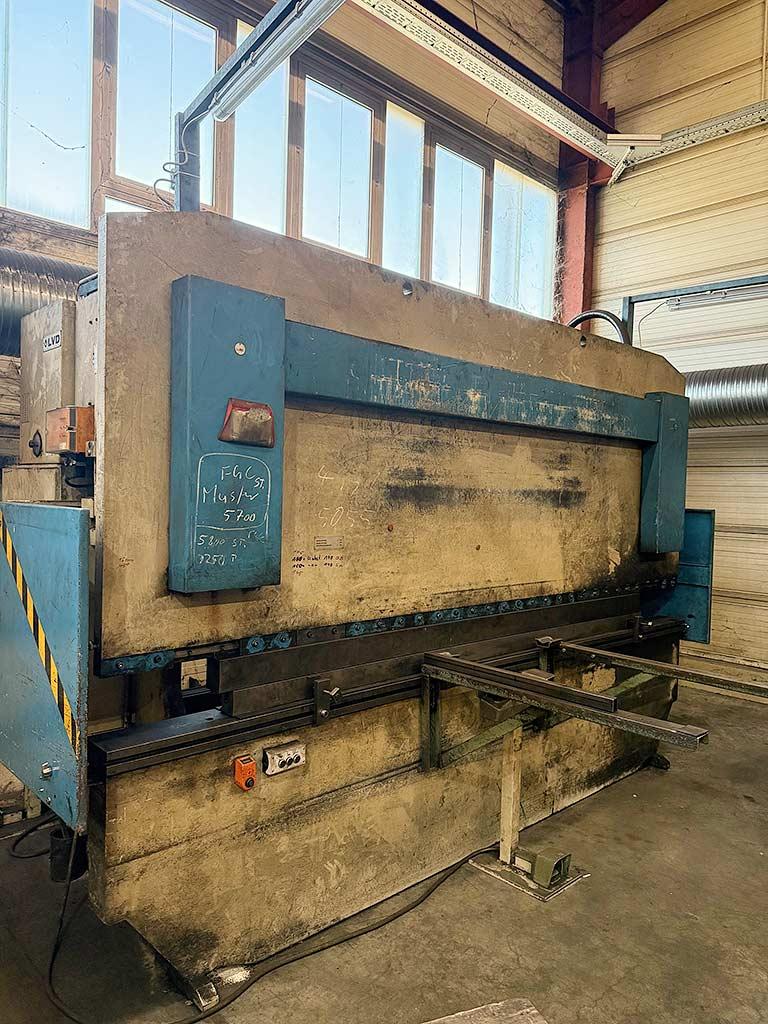

Two press brakes LVD are available. 1) Press brake LVD PPBL-H 100/40, year of manufacture: 1993, pressing force: 1000kN, working length: 4000mm, distance between uprights: 3150mm, ram stroke: 130mm, table-to-ram distance: 310mm, throat depth: 200mm, table width: 180mm, table-to-floor distance: 910mm, closing speed: 80mm/s, working speed: 8mm/s, return speed: 60mm/s, oil capacity: 120l, weight: approx. 8200kg. 2) Press brake LVD PPBL-H 165/40, year of manufacture: 1993, pressing force: 1650kN, working length: 4000mm, distance between uprights: 3150mm, ram stroke: 150mm, table-to-ram distance: 350mm, throat depth: 250mm, table width: 180mm, table-to-floor distance: 930mm, closing speed: 80mm/s, working speed: 7.5mm/s, return speed: 70mm/s, oil capacity: 150l, weight: approx. 10500kg. Documentation available. An on-site inspection is possible. Sale of individual units is possible.
