Dosing Machine Sonderhoff/henkel DM 402

Germany

Description

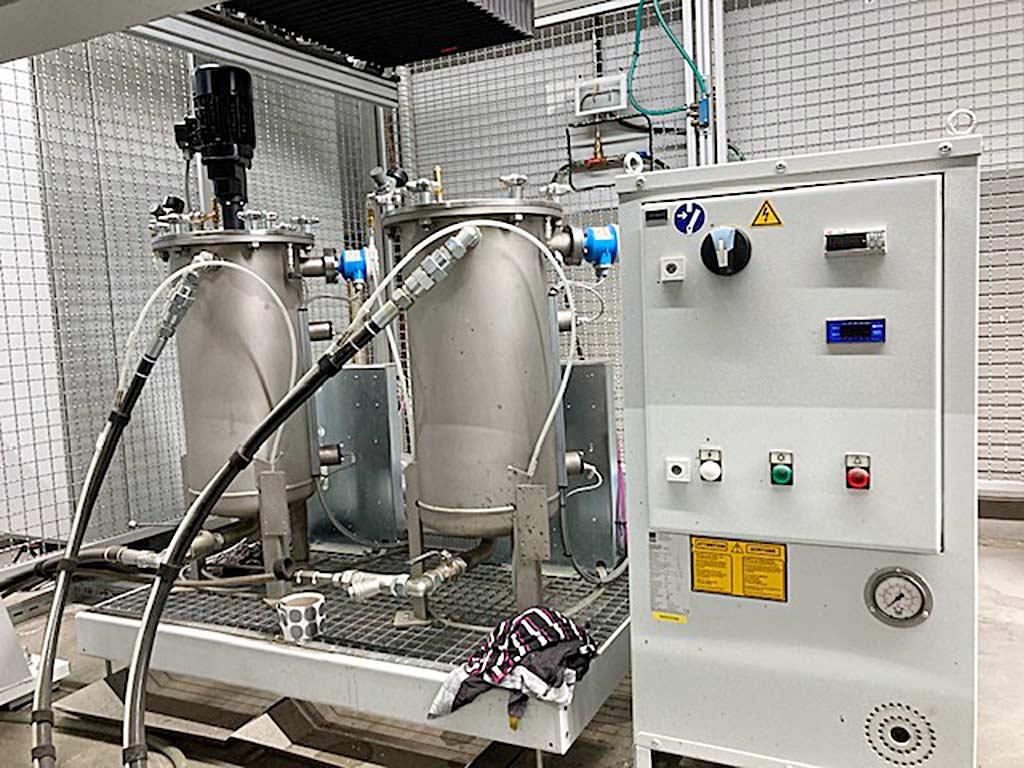

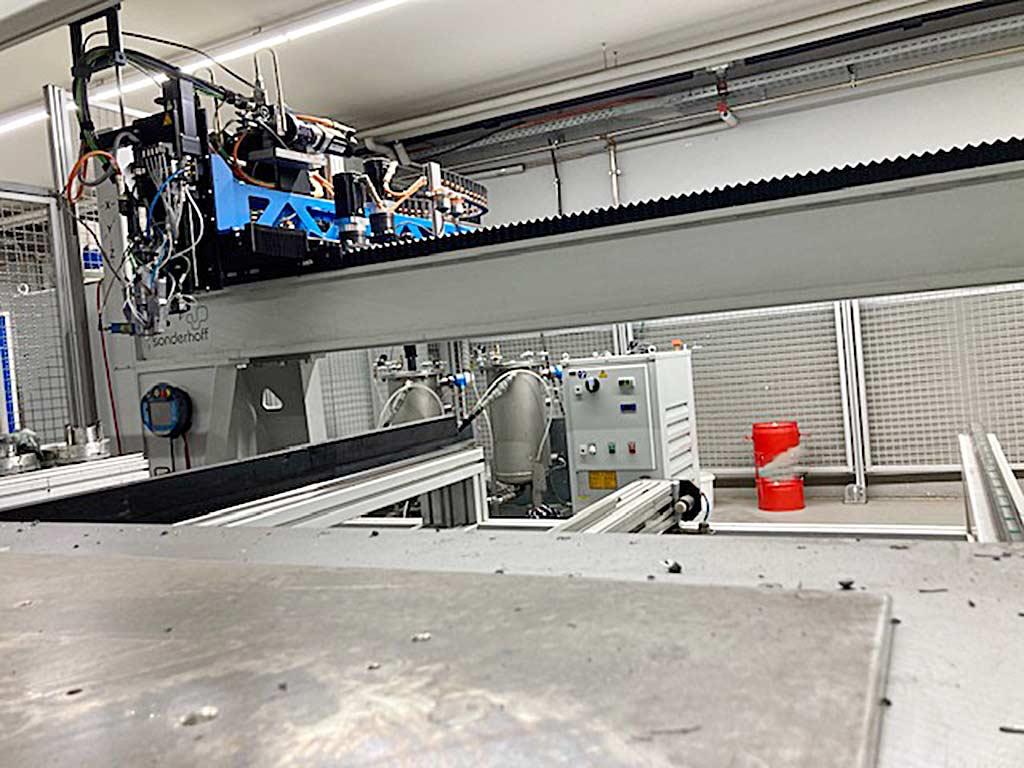

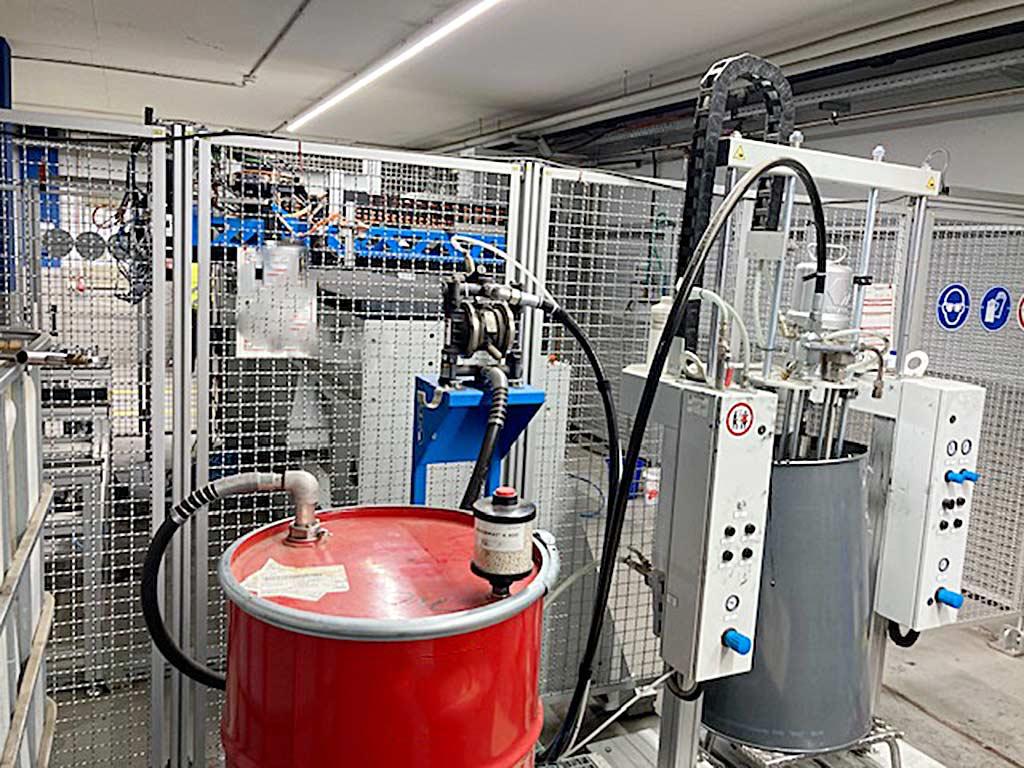

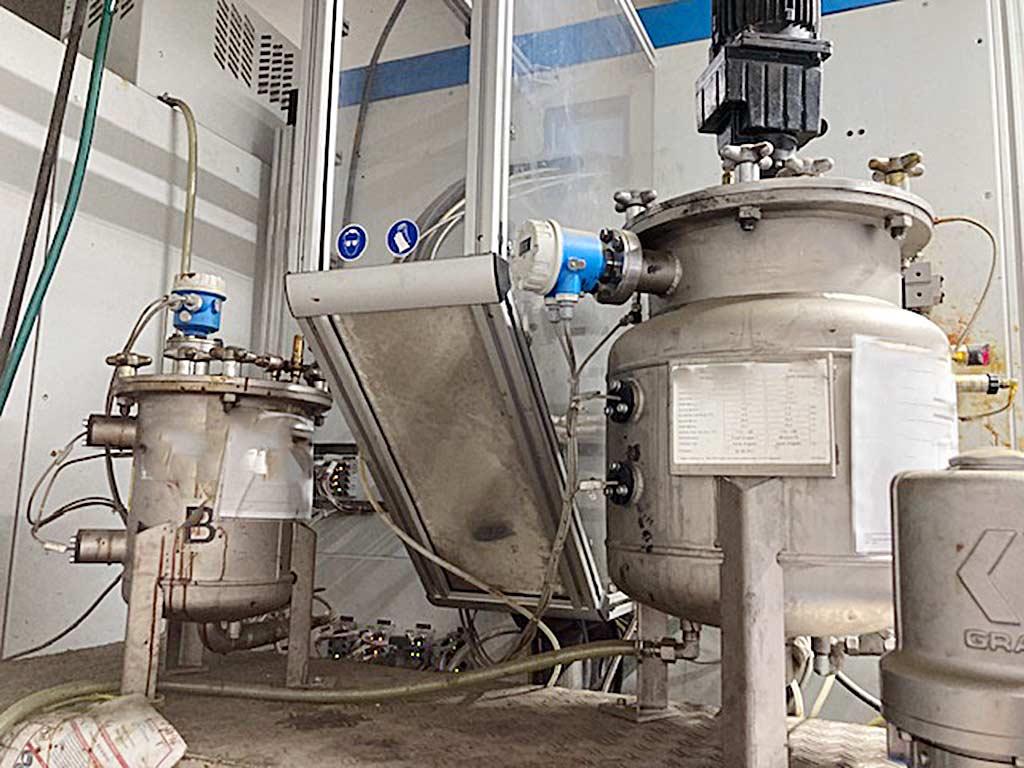

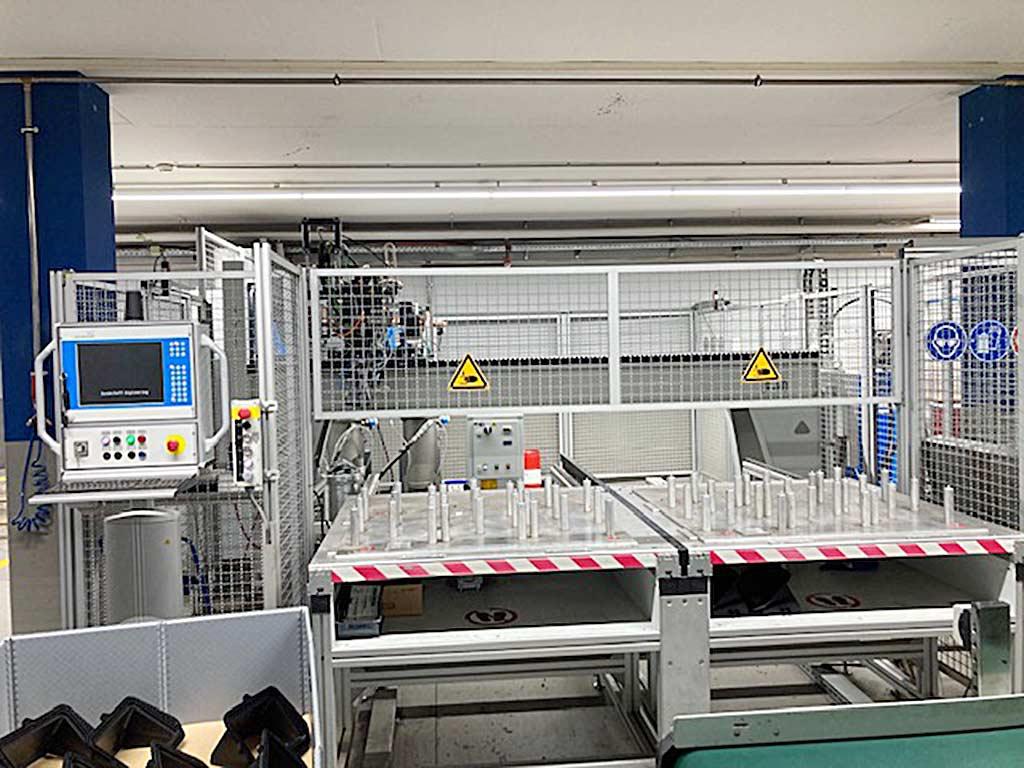

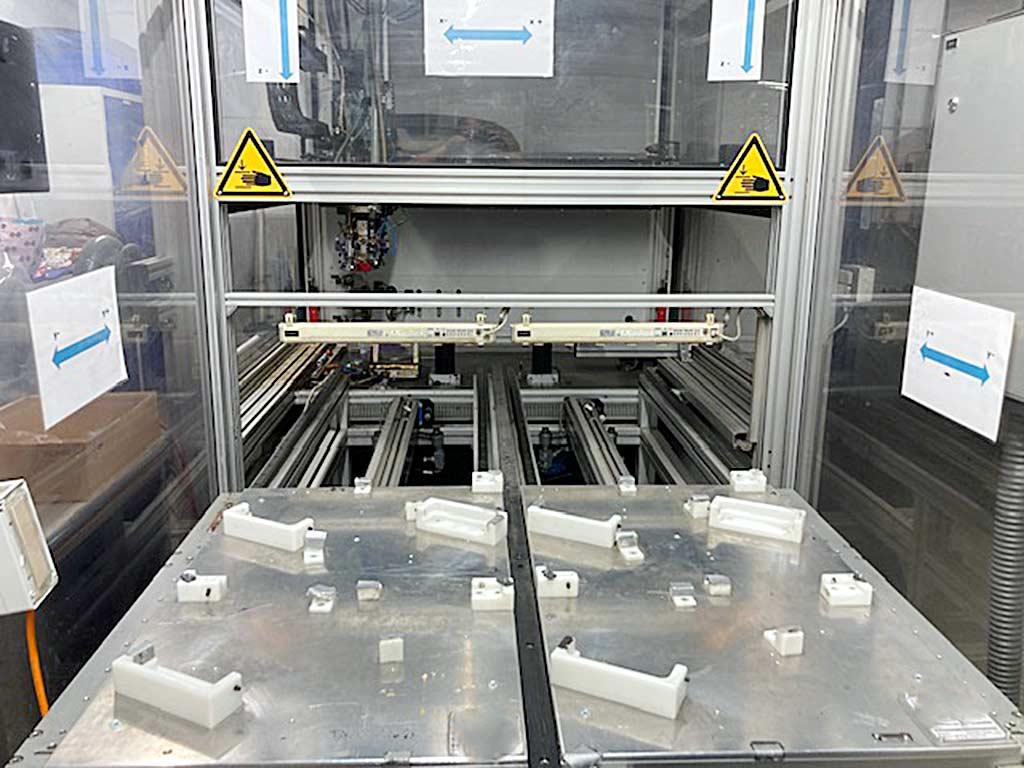

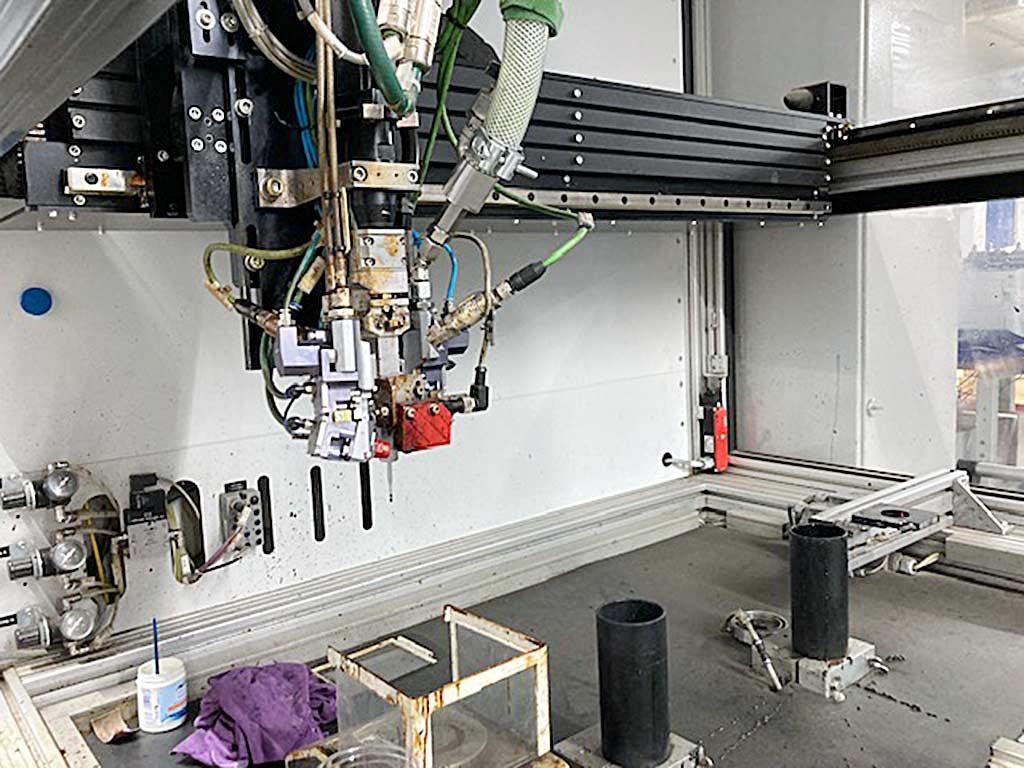

Two custom-made, yet reprogrammable and modifiable mixing and metering systems for 2-component polyurethane mixtures are available. 1) Gasketing and foaming system Sonderhoff DM 402, year of manufacture: 2011, mixing head: MK650, output rate: 0.08g–0.15g/s, material: 2K PU foam, robot travel X/Y/Z: 1000mm/800mm/250mm, max. application speed at R=6mm: 9m/min, max. travel speed: 20m/min, max. acceleration: 5m/s², table dimensions X/Y: 485mm/700mm. 2) Gasketing and foaming system Sonderhoff DM 402, year of manufacture: 2018, mixing head: MK125MP, output rate: 0.5g–2g/s, material: Fermapor, robot travel X/Y/Z: 2500mm/1250mm/300mm, max. application speed at R=5mm: 13m/min, max. travel speed: 58m/min, max. acceleration: 10m/s², table dimensions X/Y/Z: 2x 1200mm/1250mm. Both systems include peripheral devices and systems for monitoring and controlling temperature, consistency, mixing, refilling, and other processes. The systems can presumably be adapted to any mixing ratio – exclusively for polyurethane. Documentation available. An on-site inspection is possible.
