Injection Moulding Machine Husky H-PET230 AE RS95

Germany

Description

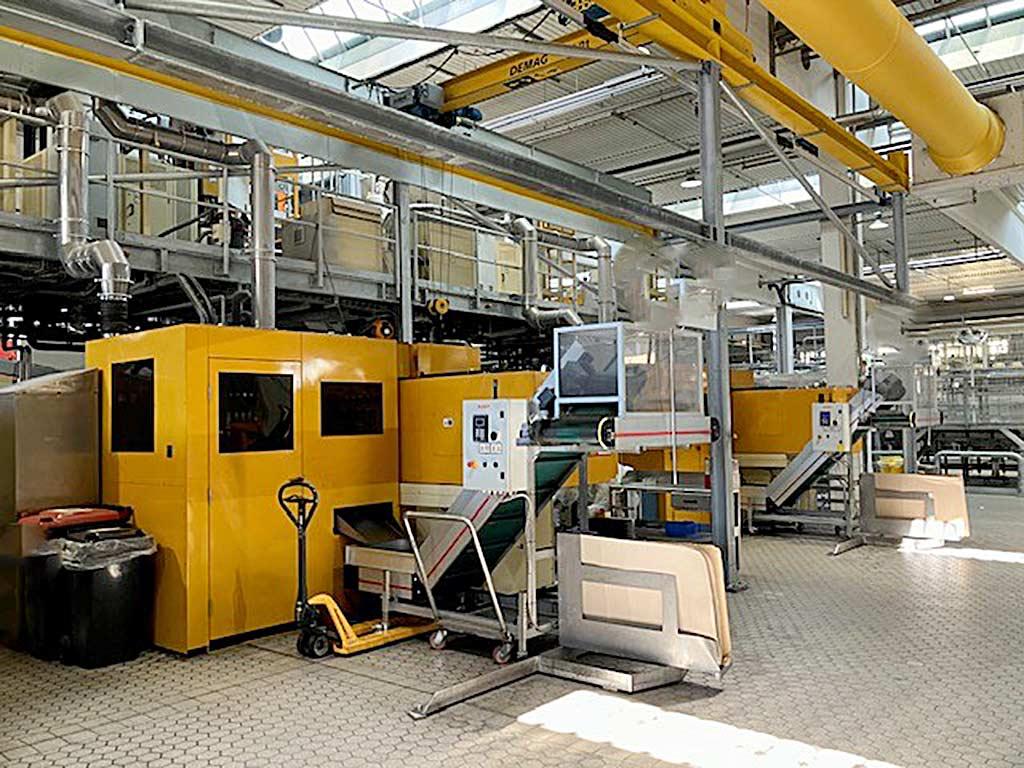

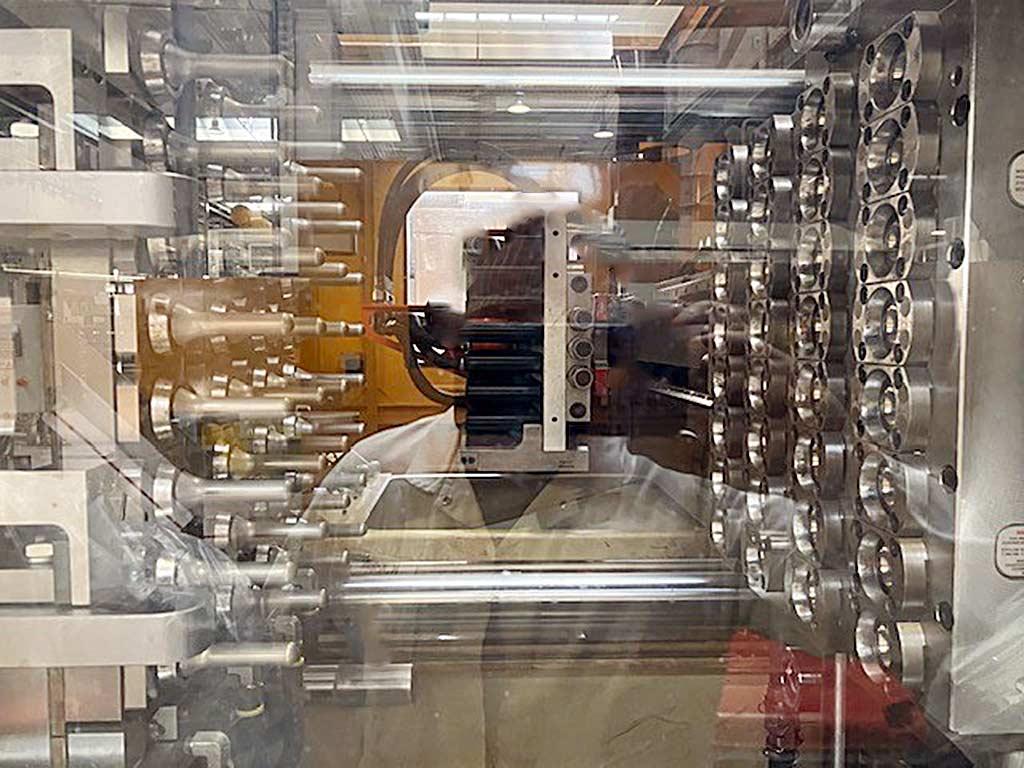

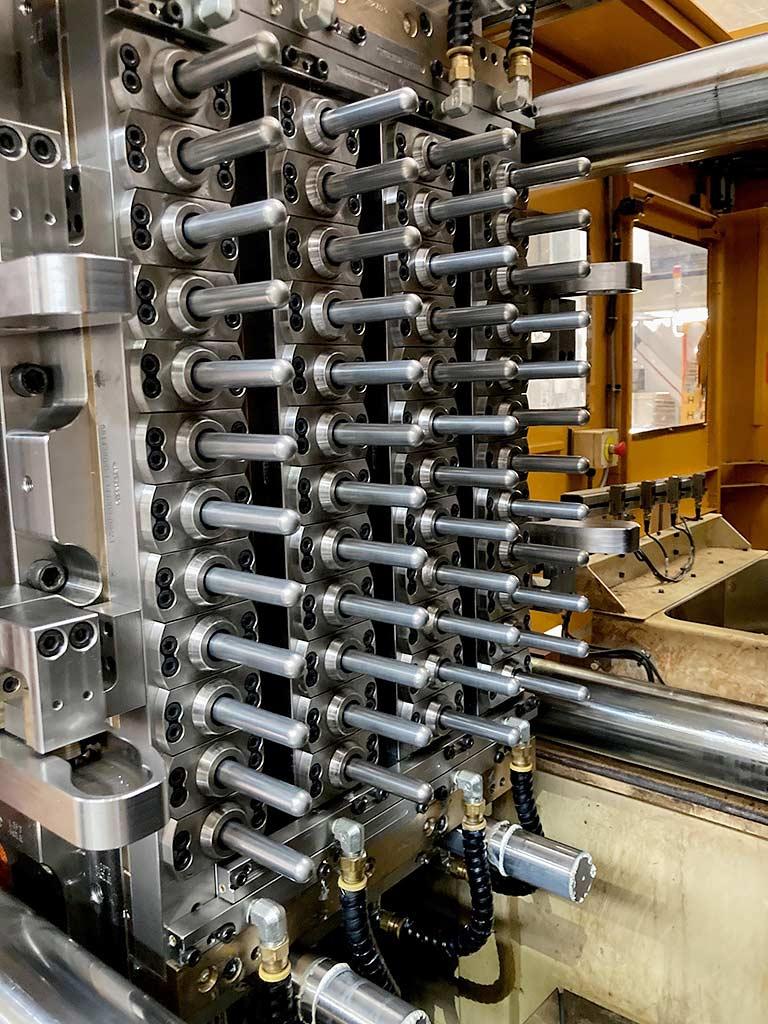

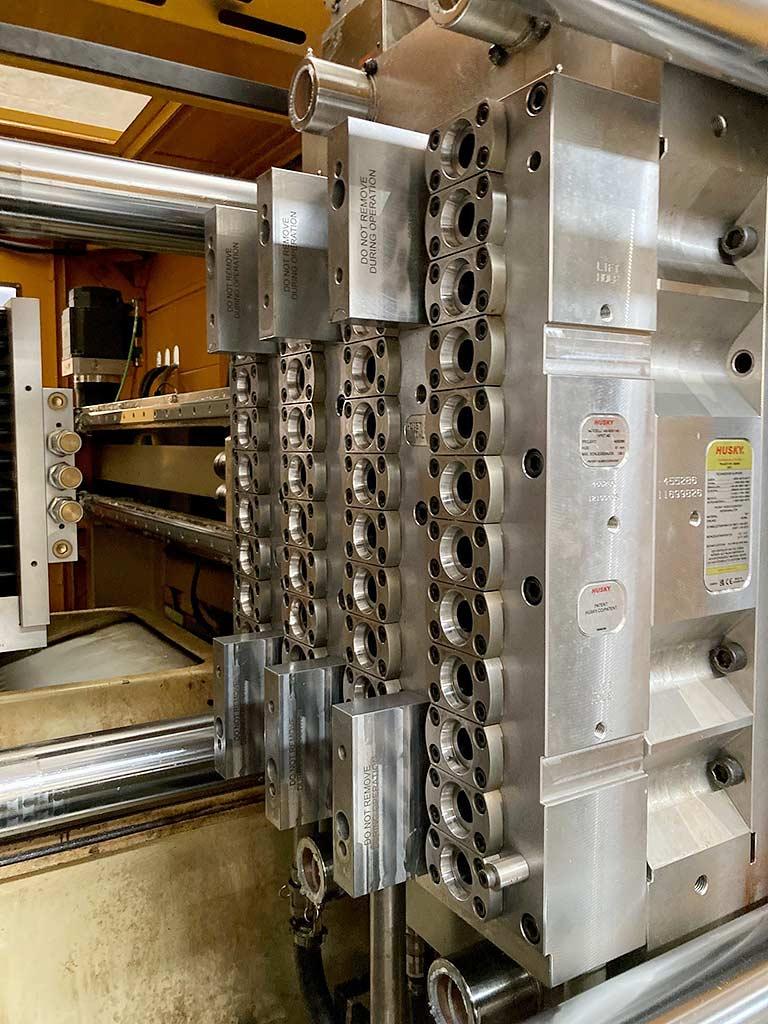

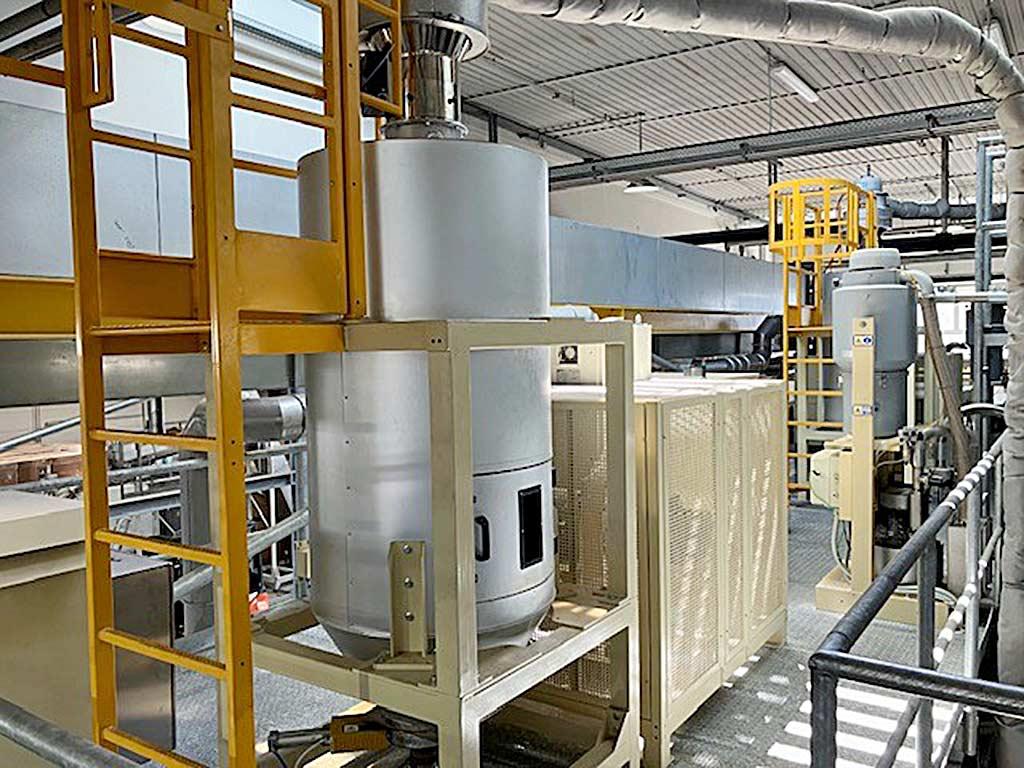

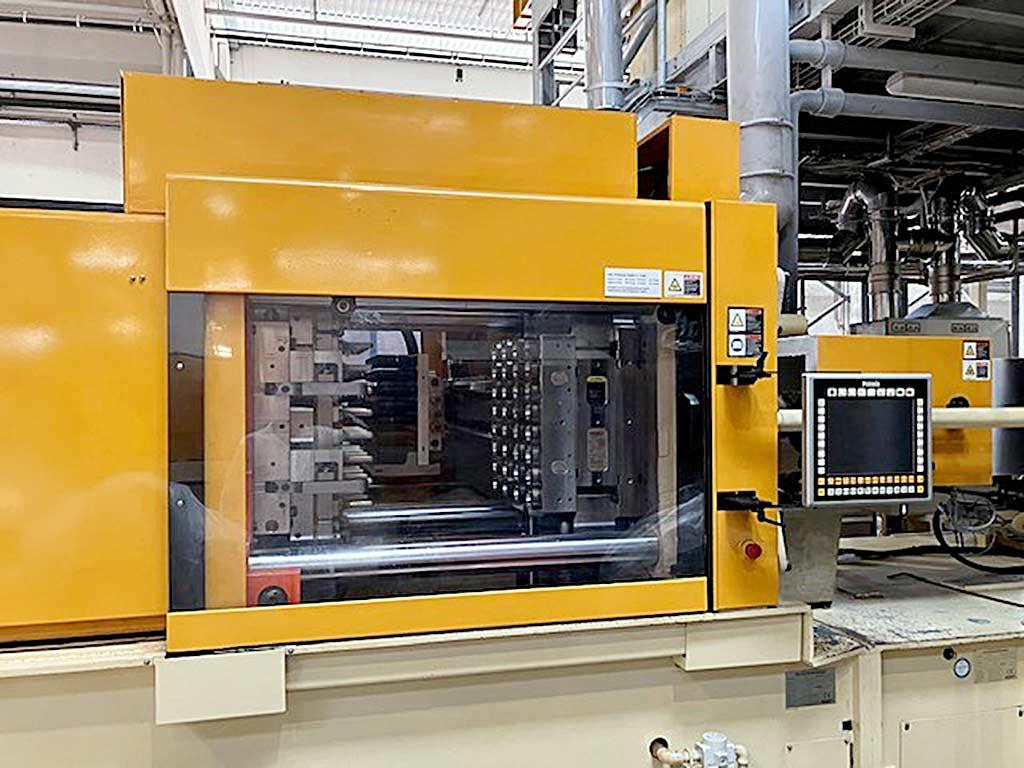

Two complete injection molding plants with two Husky injection molding machines, four complete moulds with all-metal separator, Motan gravimetric mixing system and crane system are available. 1) 2x Husky H-PET230 AE RS95, year of manufacture: 2015, max. shot weight: 2424g, max. PET throughput: 390kg/h. 2) 48-cavity H-PET mold, preform weight: 17.8g, length: 89.35mm, wall thickness: 3.06mm, base thickness: 2.30mm, cavities: 48, cycle time: 12.1s-12.7s. 3) 48-cavity H-PET mold, preform weight: 30.26g, length: 122.3mm, wall thickness: 3mm, base thickness: 2.3mm, cavities: 48, cycle time: 14.4s-15s. 4) 32-cavity H-PET mold, preform weight: 18g, length: 82.04mm, wall thickness: 2.7mm, base thickness: 2.2mm, cavities: 32, cycle time: 11s-11.7s. 5) 32-cavity H-PET mold, preform weight: 29g, length: 108.59mm, wall thickness: 3.16mm, base thickness: 2.42mm, cavities: 32, cycle time: 13.4s-14s. Total system dimensions X/Y/Z: approx. 24m/13m/5.5m. Including drying unit, mold dehumidification, paint mixing units and T-conveyor belt. Documentation available. On-site inspection is possible.

Additional Details
