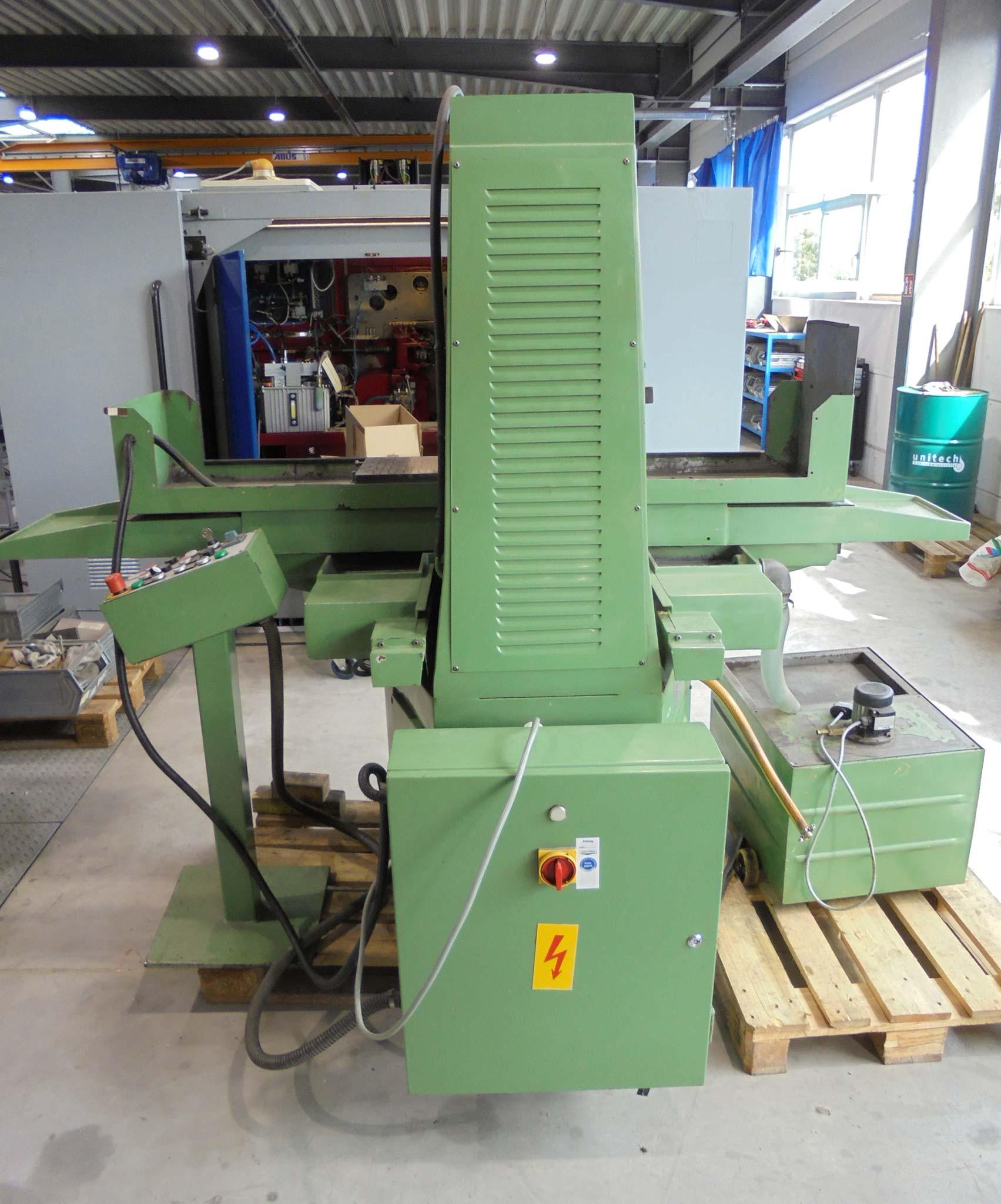

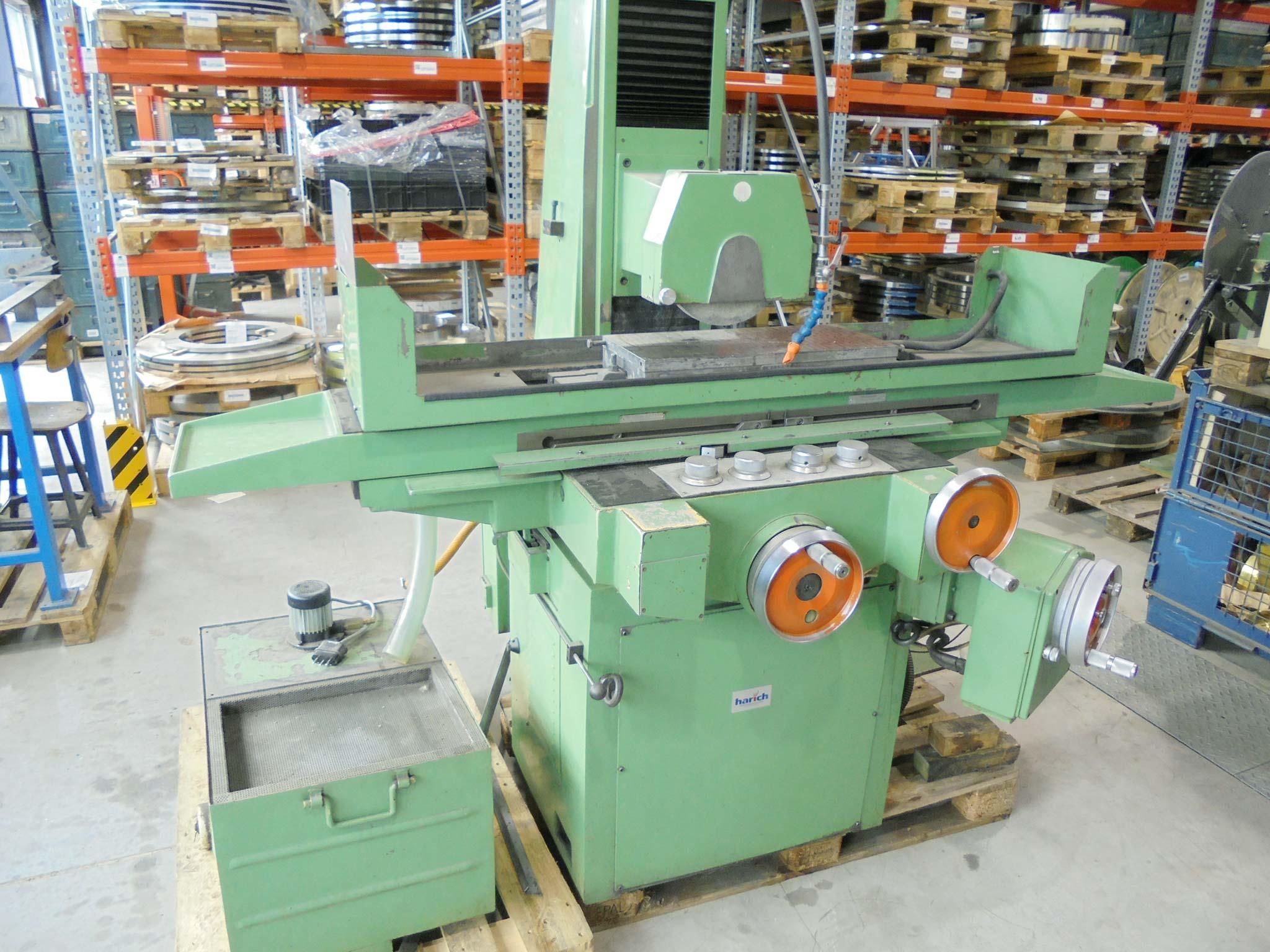

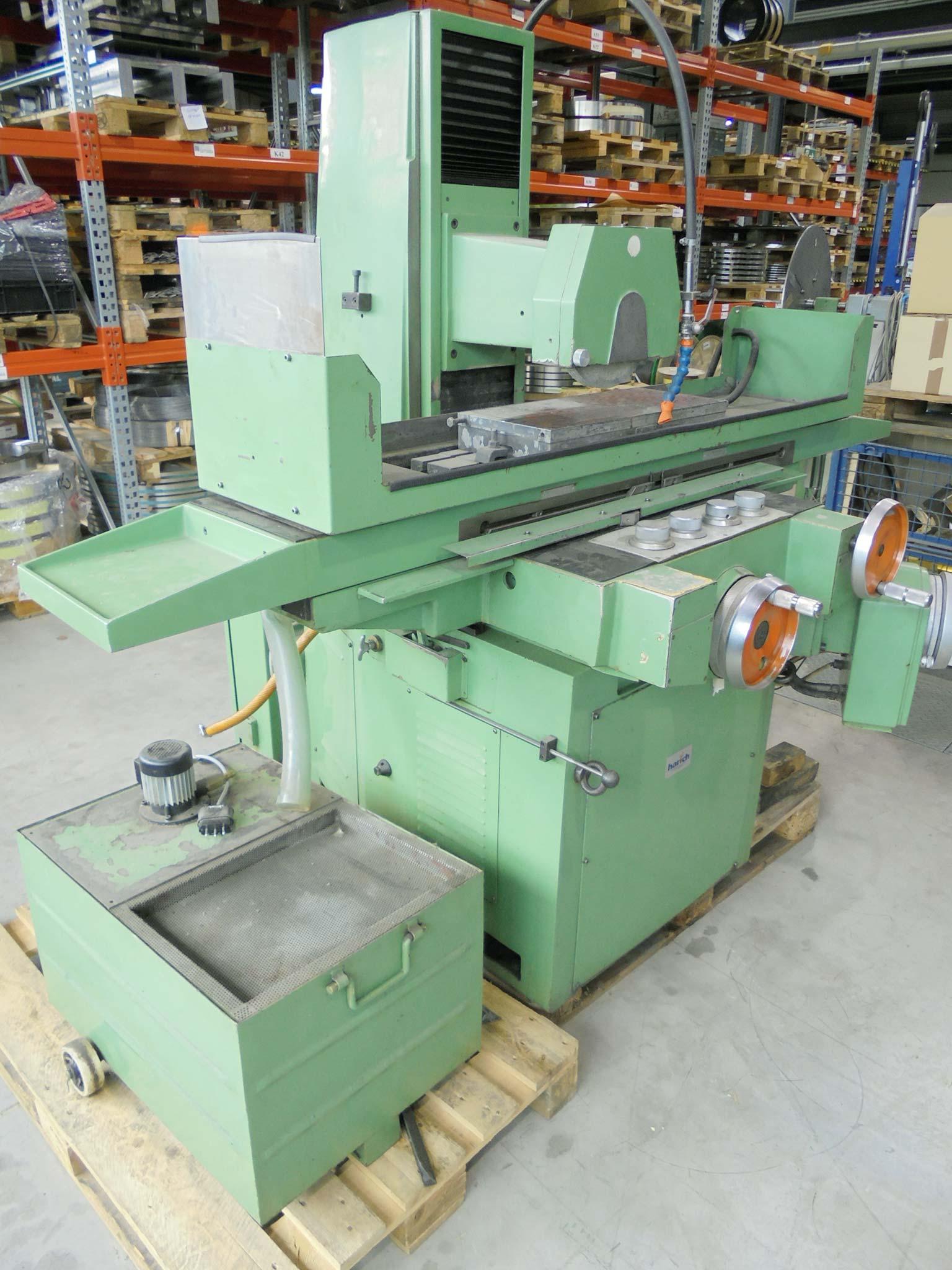

Surface Grinding Machine Majevica BRB 75.30.2KA

Germany

Description

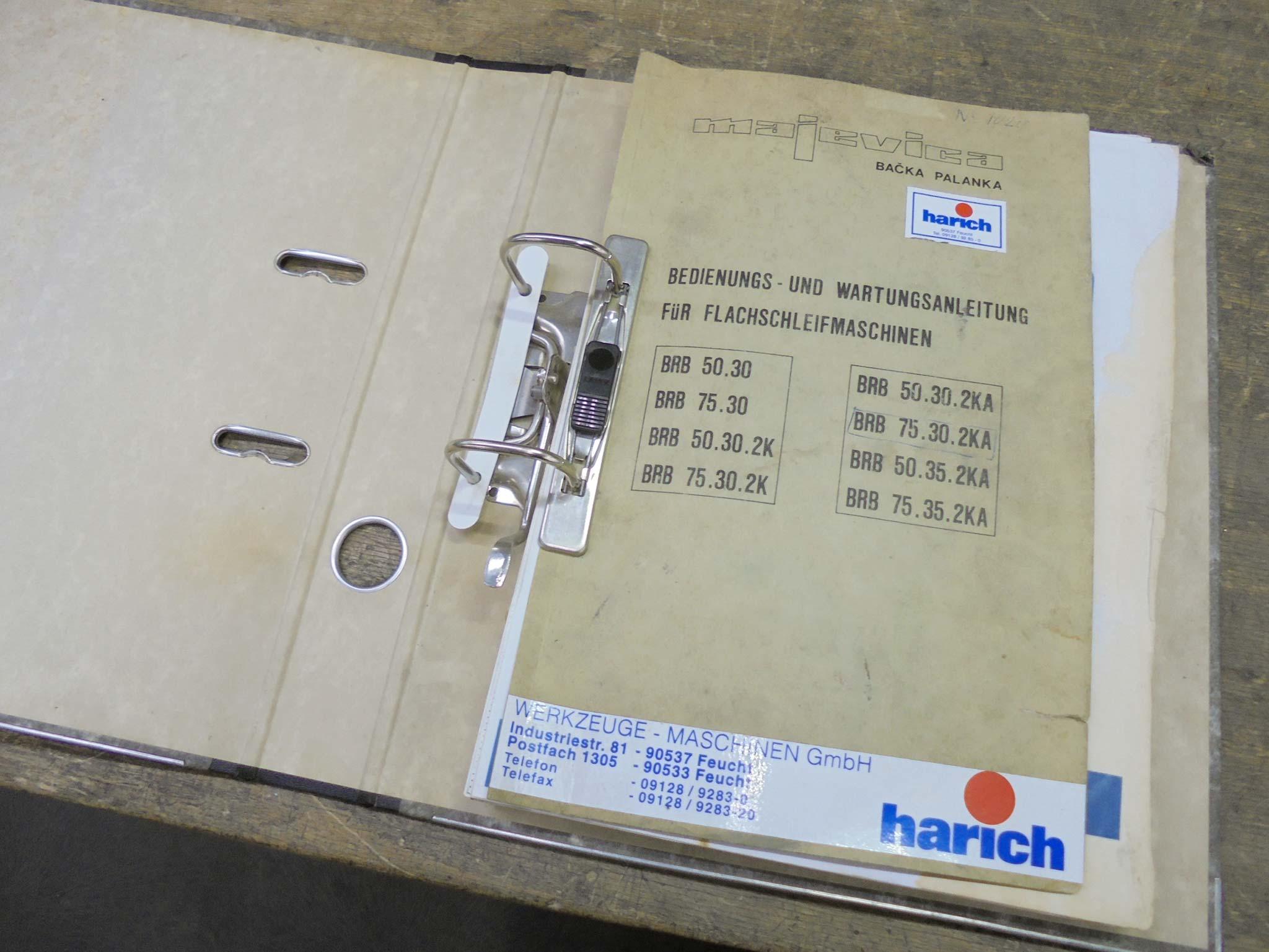

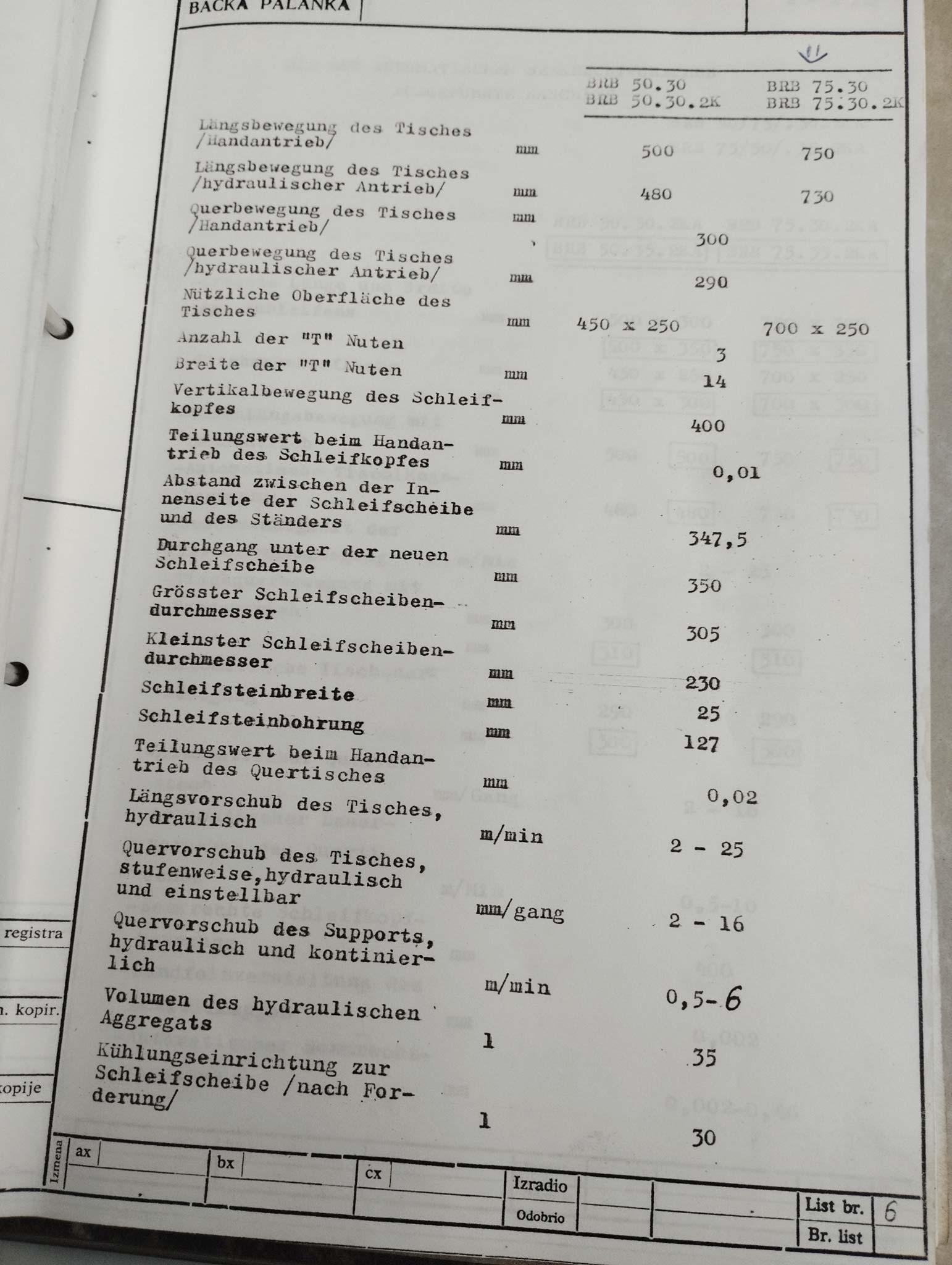

Longitudinal movement of the table manual drive: 750mm, longitudinal movement of the table hydraulic drive: 730mm, transverse movement of the table manual drive: 300mm, transverse movement of the table hydraulic drive: 290mm, usable surface of the table: 700x250mm, number of T-slots: 3, width of T-slots: 14mm, vertical movement of the grinding head: 400mm, division value of the grinding head manual drive: 0.01mm, distance between the inside of the grinding wheel and the column: 347.5mm, clearance under the new grinding wheel: 355mm, maximum grinding wheel diameter: 305mm, minimum grinding wheel diameter: 230mm, grinding wheel width: 25mm, grinding wheel bore: 127mm, division value of the cross table manual drive: 0.02mm, longitudinal feed of the table hydraulically: 2-25m/min, cross feed of the table stepwise, hydraulic and adjustable: 2-16mm/stroke, cross feed of the support hydraulically and continuous: 0.5-6m/min, volume of the hydraulic unit: 35l, cooling device for grinding wheel/on demand: 30l. No defects known, with documentation, an on-site inspection is possible.
