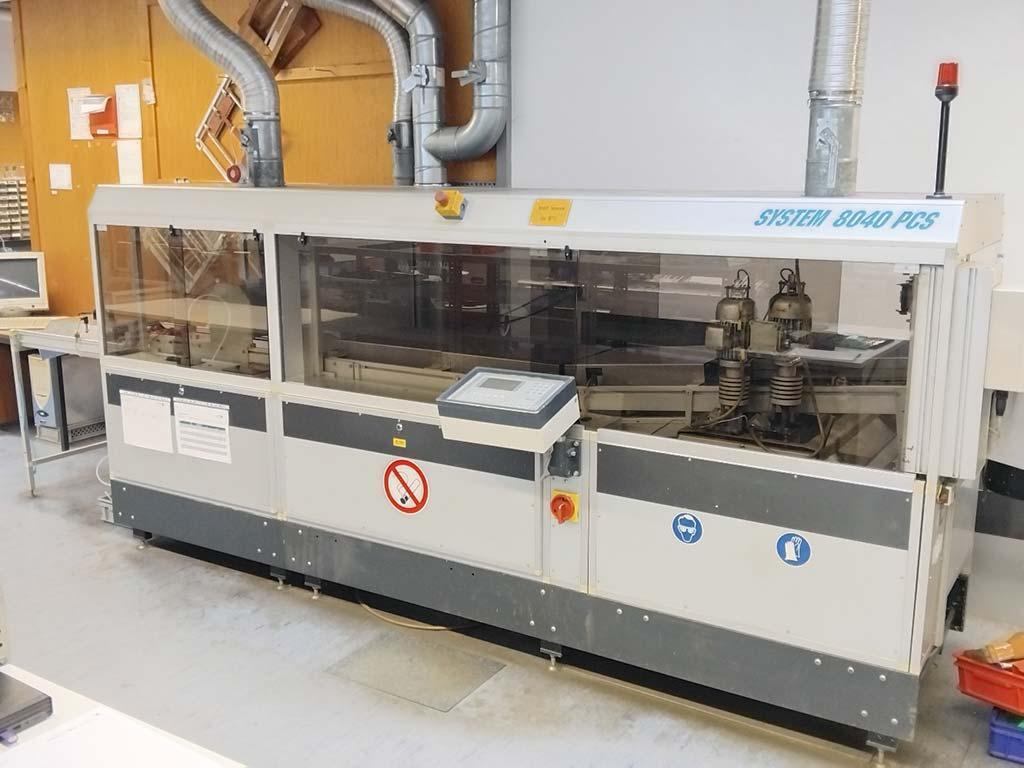

Wave Soldering System Seho 8040 PCS

Germany

Description

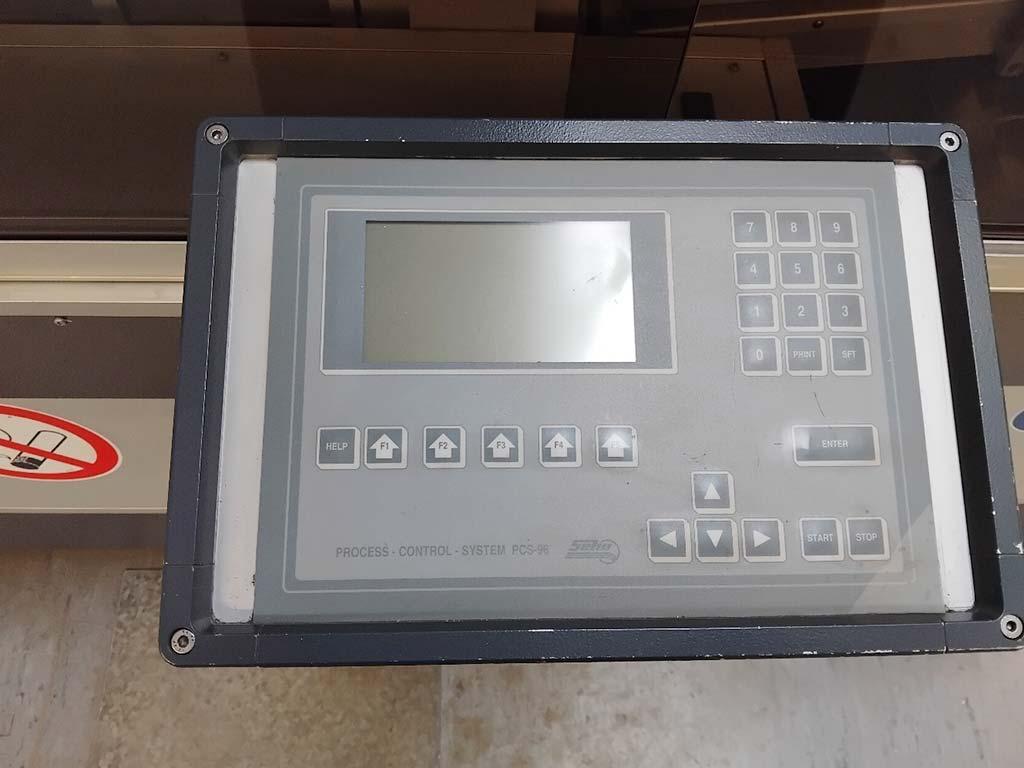

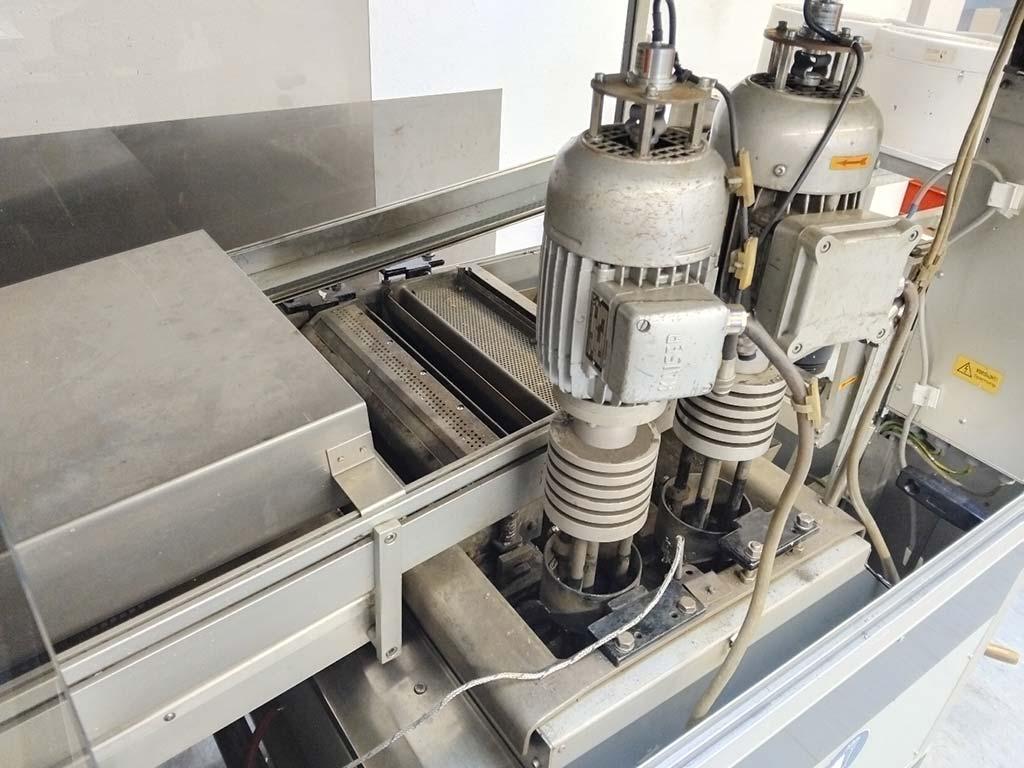

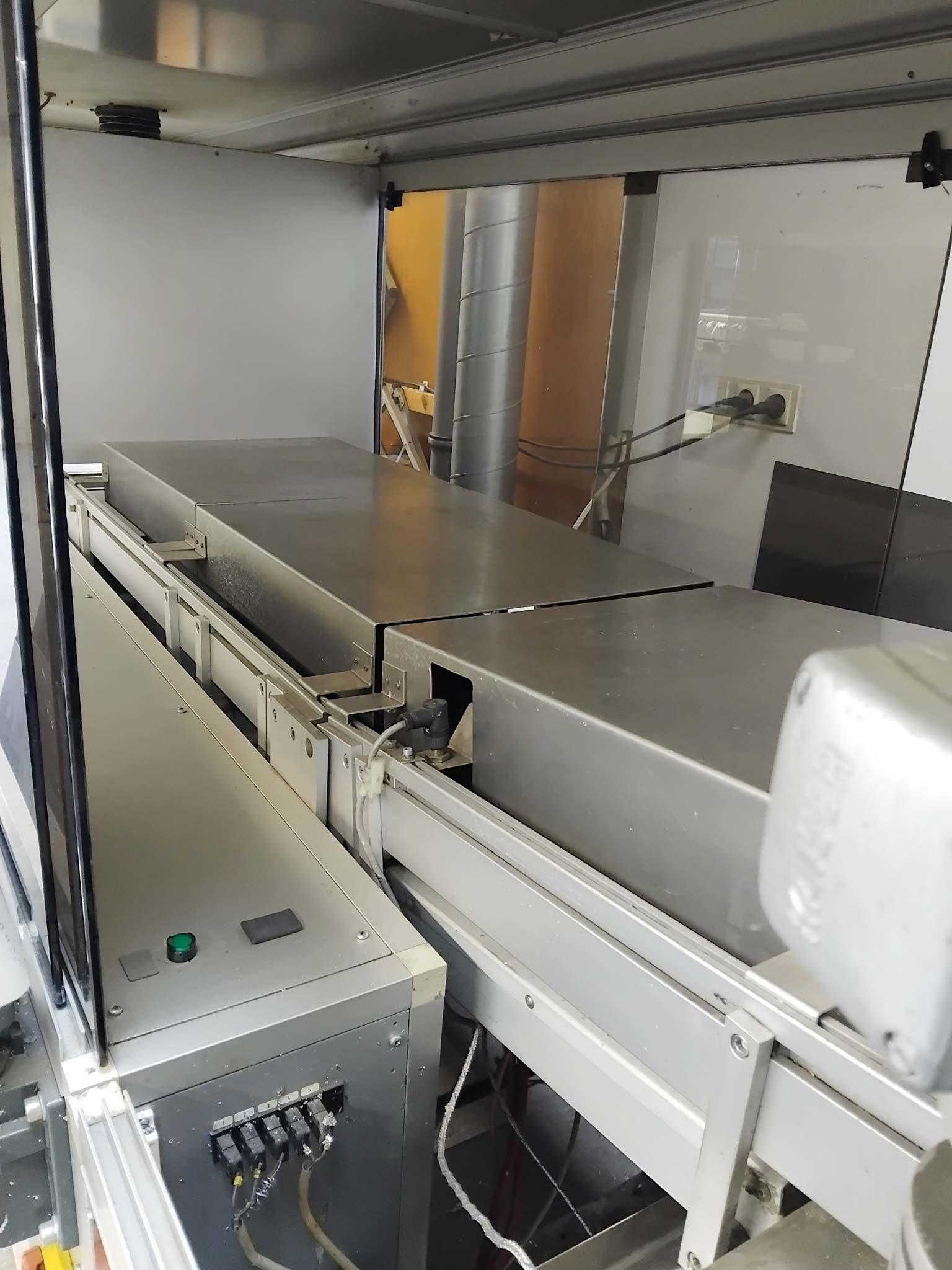

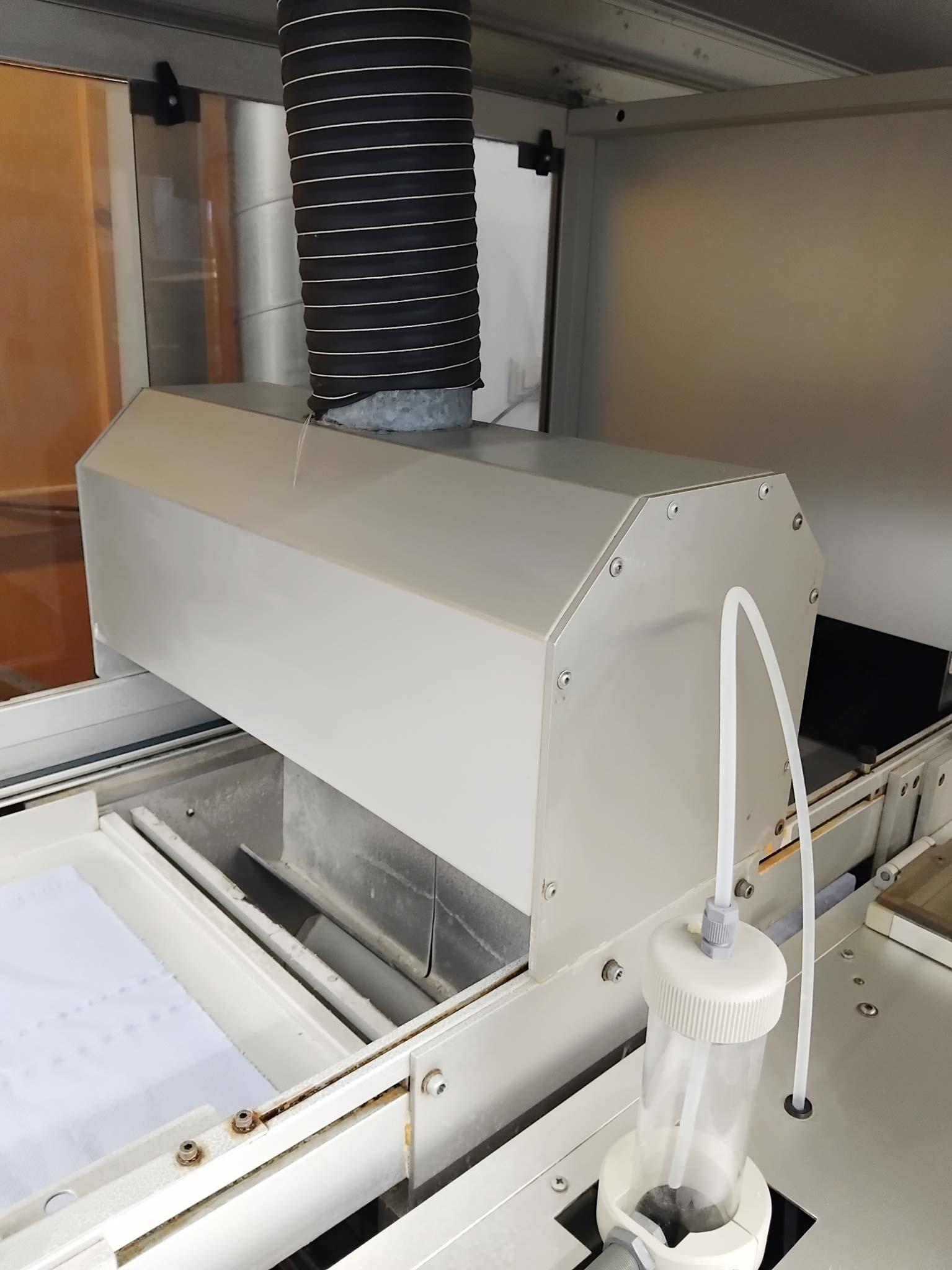

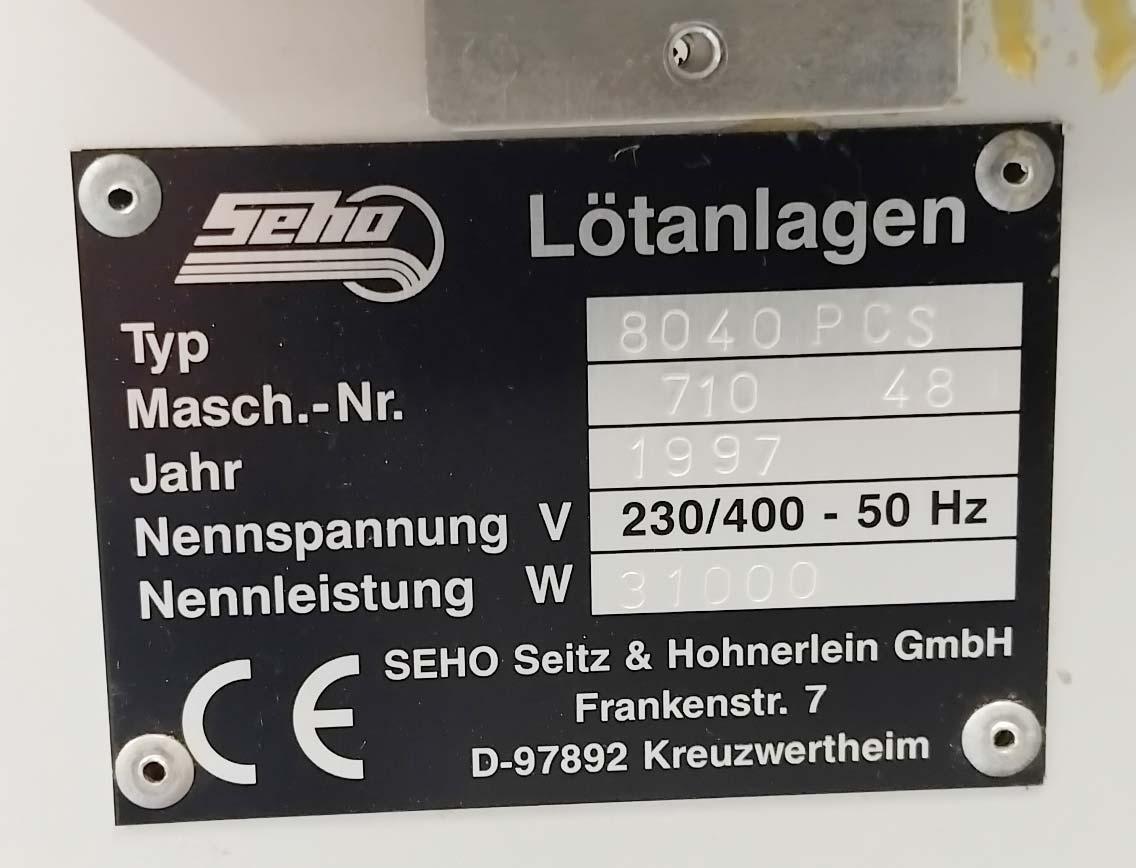

Seho 8040 PCS with laminar and turbulent wave, preheating with heating plates and IR radiator, minimum quantity flux system, component cooler at the outlet, wave width: 400mm, max. usable working width: 390mm, max. component height: 100mm, max. PCB length: 562mm, solder nozzle: Delta B, max. wave height: 8mm, solder volume: 400kg, heating capacity solder pot: 9kW, heating-up time 20-250°C: approx. 150min, heating-up time 190-250°C: approx. 60min, preheating zone length: 700mm, three heating zones: 3x 3kW, max. preheating capacity: 9kW, transport angle: manually adjustable, 6-8°, transport speed: 0.5-2m/min, running direction: from left to right, with loading aid/slide conveyor (1000mm), unloading aid (500mm) and entry stopper for solder frame separation, exhaust connection diameter: 2x 150mm, extraction capacity per connection: 500m³/h, supply voltage (50Hz): 230/400V, rated power: 31,000W, total connected load: 18.5kW, compressed air connection: R 1/4 inch (6 bar), nitrogen connection: R 1/4 inch (6 bar). With microprocessor control PCS 96, alphanumeric display & membrane keypad (16 lines of 40 characters), 100 soldering programs, interface for host computer with visualized machine overview & BDE data backup, interface for BDE data acquisition via serial printer, control loop for transport and heating. Length: 2300mm, width: 825mm, height: 1615mm, weight without solder filling: 400kg.
