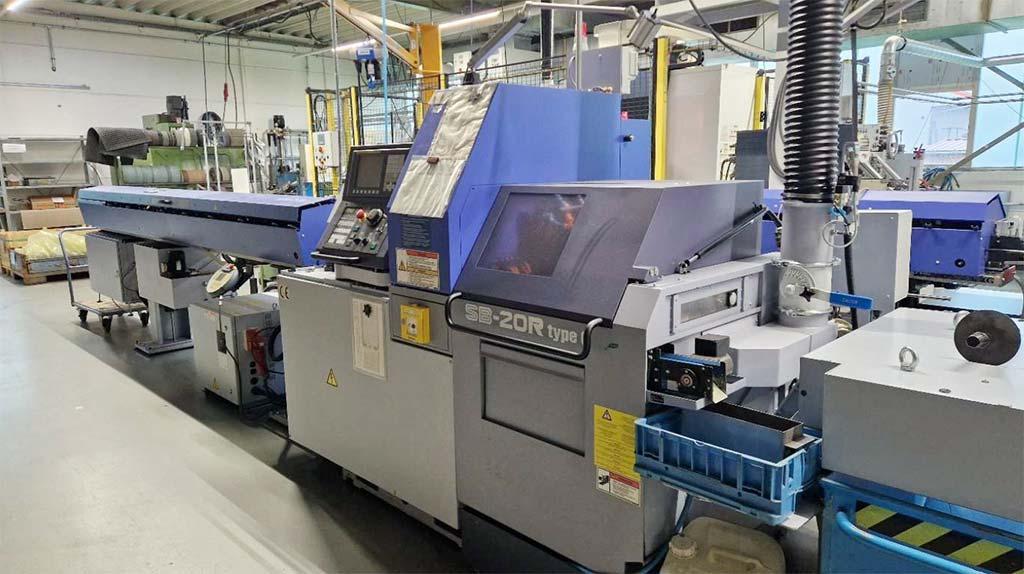

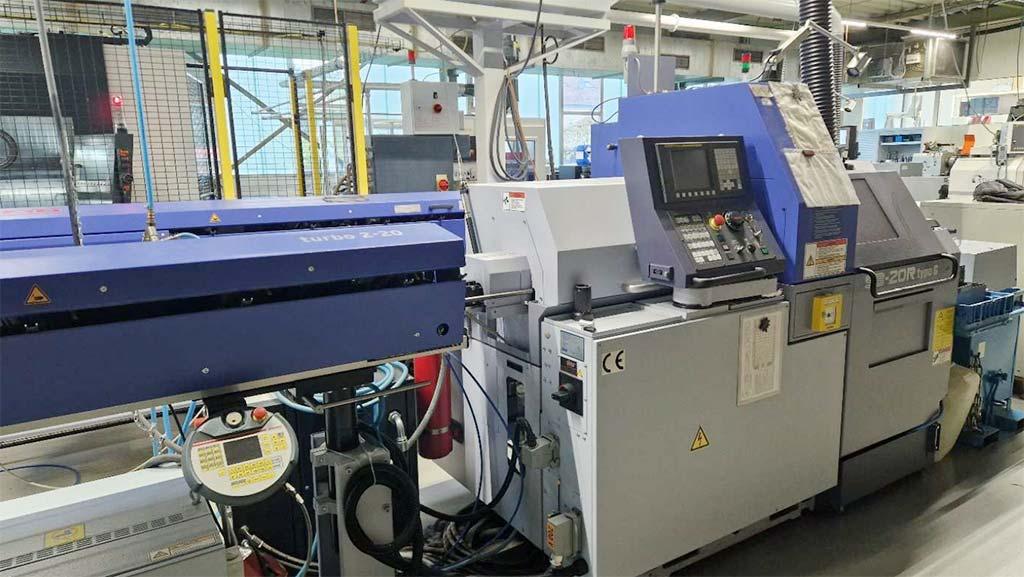

CNC Swiss-Type Lathe Star SB-20R
Specifications
Germany
Description
Max. clamping diameter: 20mm, max. workpiece length: 205mm (GB type), 45mm (NGB type), sub-spindle diameter: 20mm, sub-spindle bore: 21mm, max. sub-spindle speed: 9000/min, main spindle motor power: 2.2kW (continuous)/3.7kW (10min / 25% DC), sub-spindle motor power: 0.55kW (continuous)/1.1kW (15min / 40% DC), driven tool capacity: max. 6000/min, tool motor power: 1kW (continuous)/1.2kW (5min / 30% DC), control: Fanuc 0i-TD, connected load: 3.74kVA, noise level: 74dB(A), length: 2070mm, width: 1177mm, height: 1760mm, weight: 1700kg. With bar feeder for bars max. 3200mm and automatic bar loading magazine for bar diameter: 2-20mm. An on-site inspection is possible.
