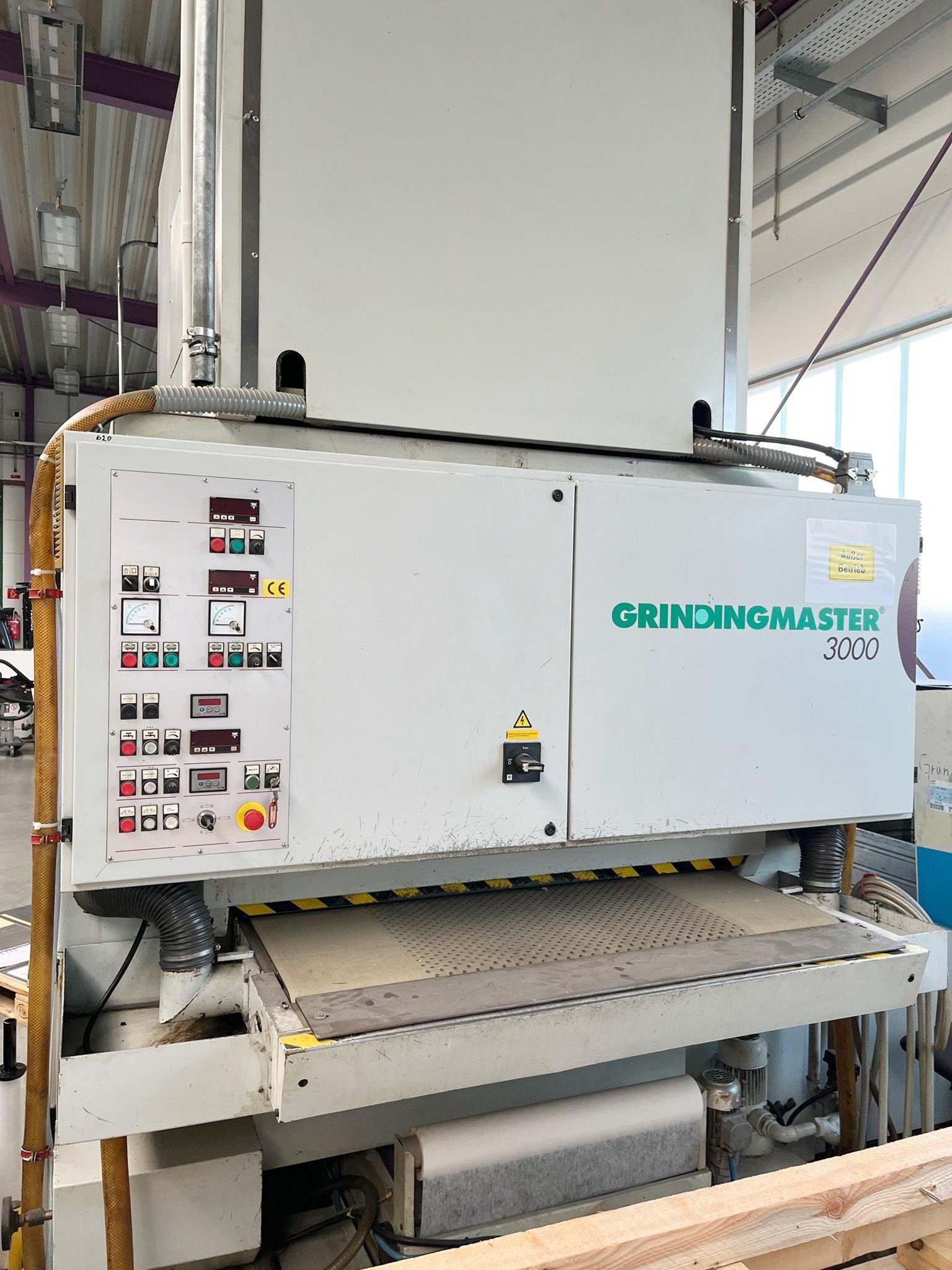

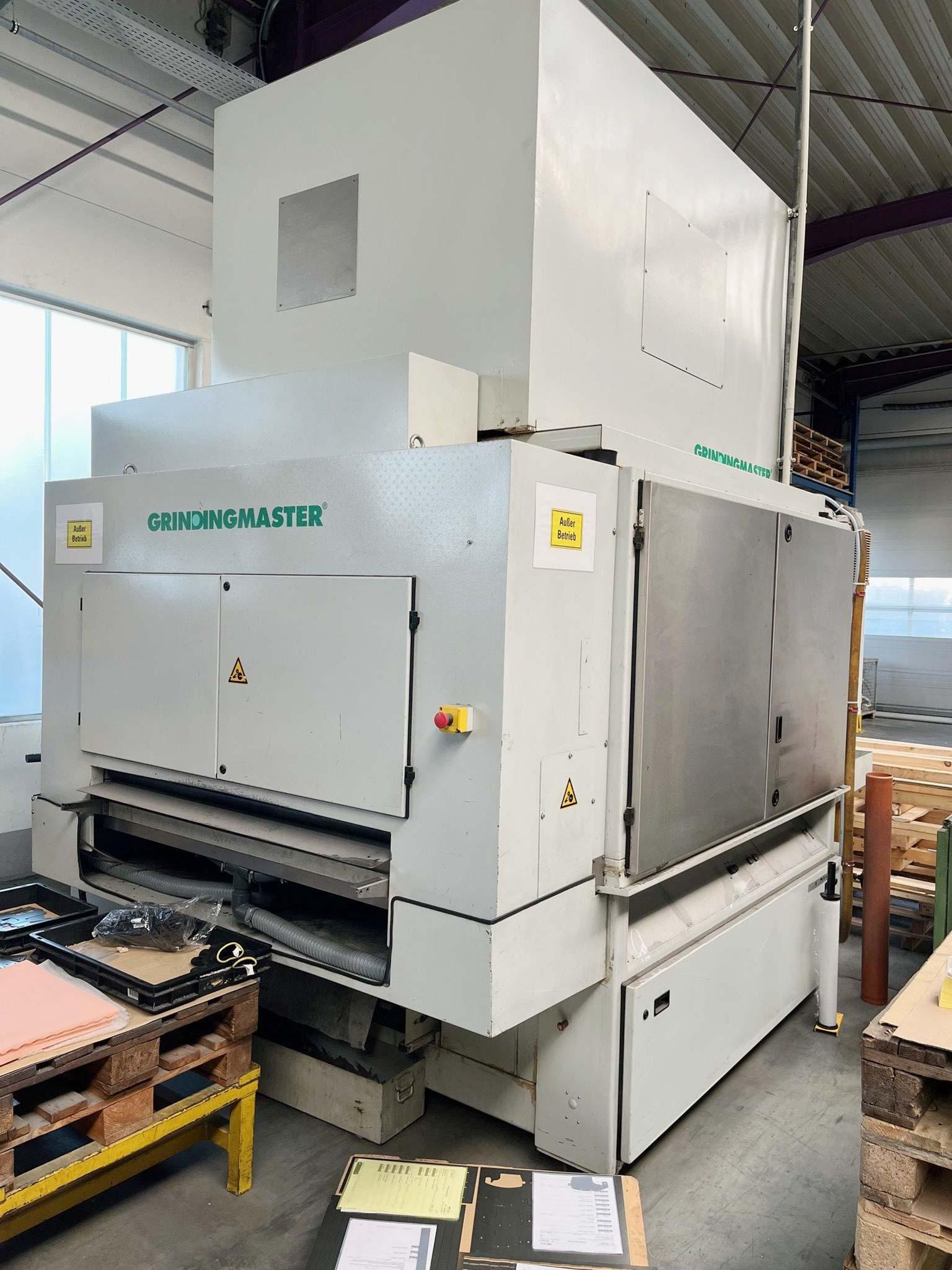

Disc Grinding Machine Timesavers Int. Bv GRINDMASTER 3000

Germany

Description

Continuously adjustable feed speed: 2-10m/min, vacuum table with water separator, filter system with pump, also suitable for small parts up to 80x80mm, also suitable for printed circuit boards and carbide parts, no over-grinding of coated surfaces (e.g. Alclad, foils, galvanized sheets), spray nozzle centrally above the disc, additional water line for coolant, separate valves for coolant and spray nozzles. Total height: 3425mm, working height: 2025mm, working level: 790-940mm (adjustable), length: 2850mm, width: 1800mm, length of the middle segment: 900mm, side distances left/right: 755/900mm. No defects known, completely overhauled in 2017, in operation until 2020. Including centrifuge, documentation and maintenance reports. An on-site inspection is possible.
