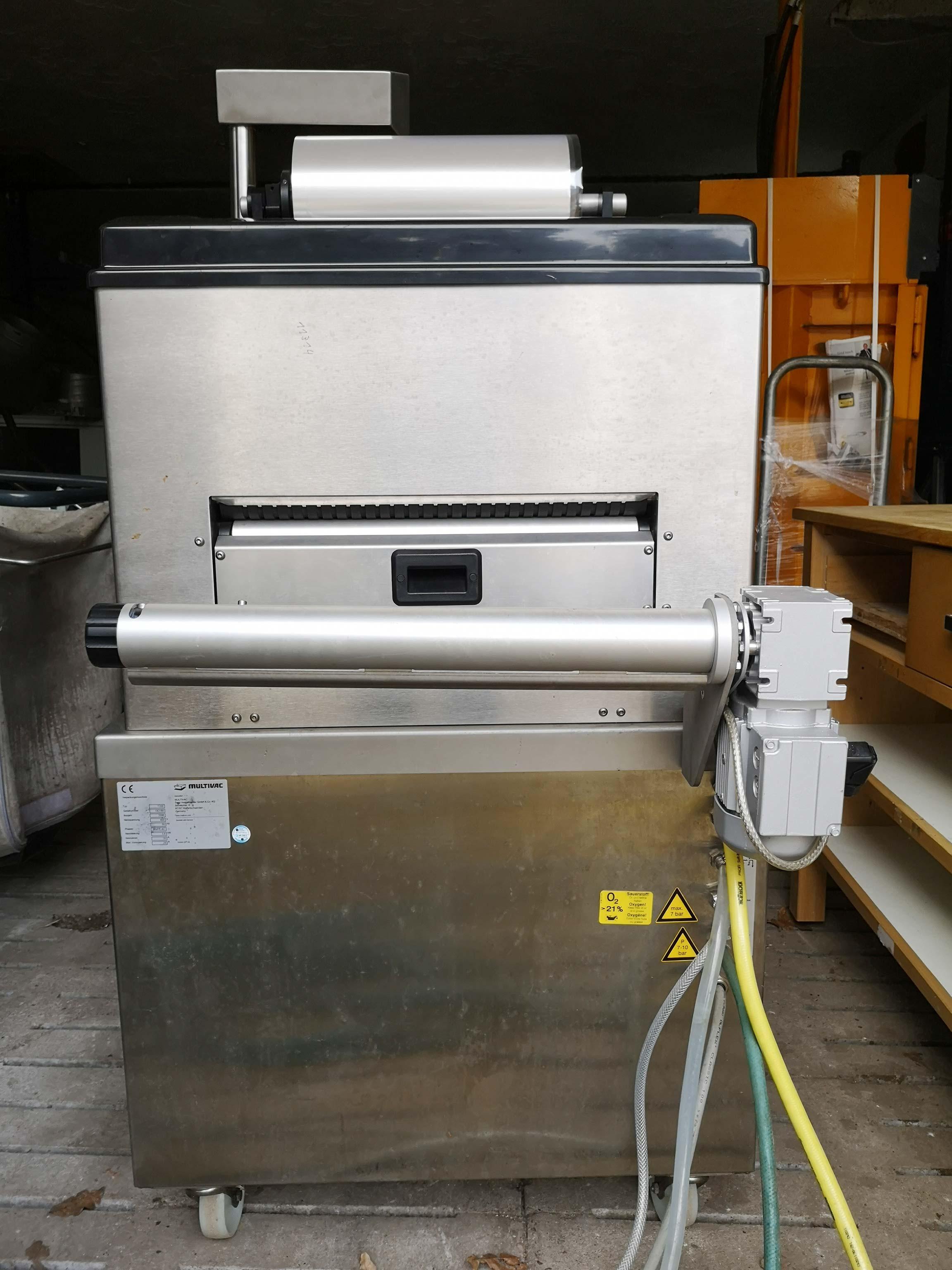

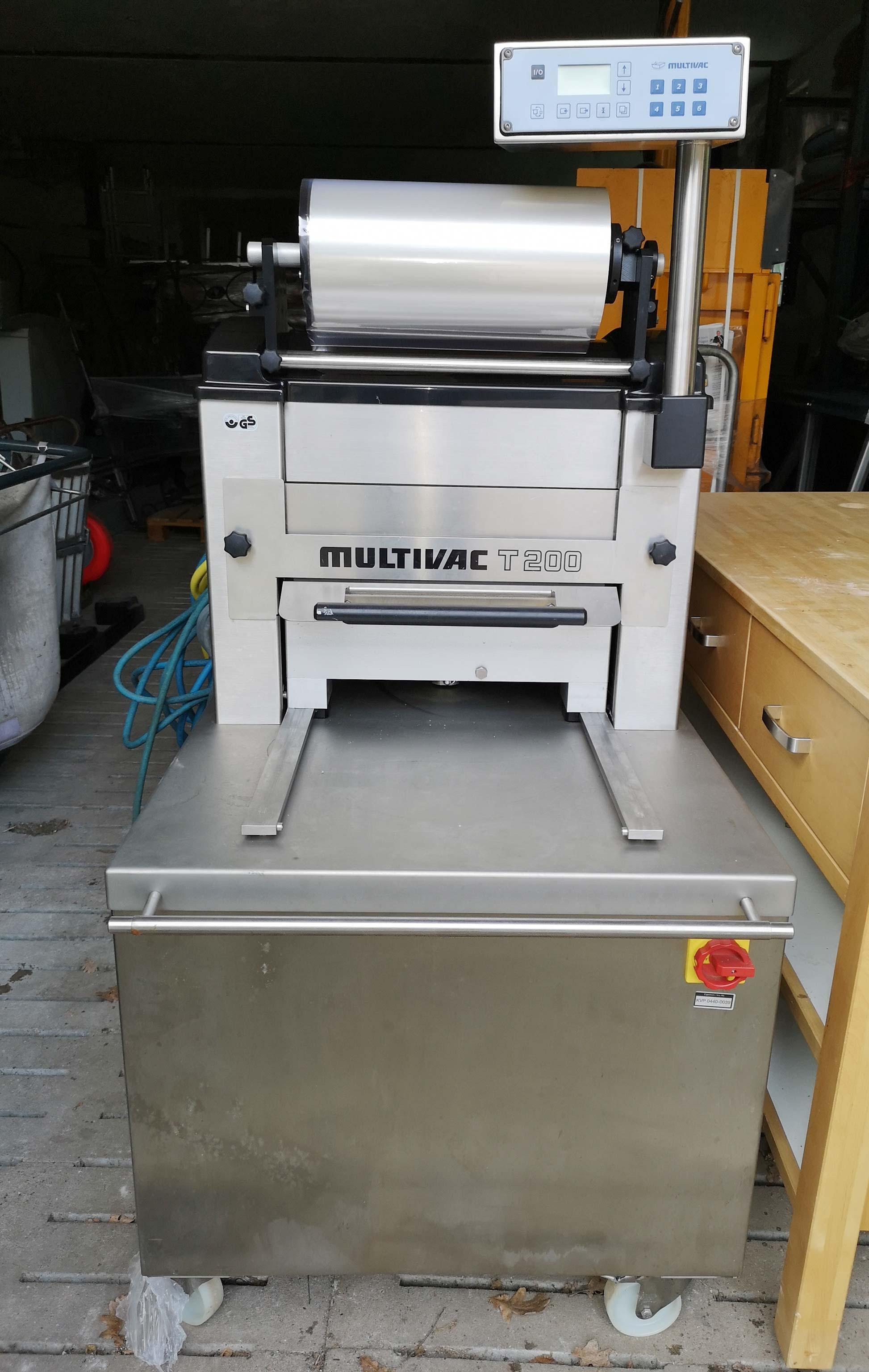

Semi-Automatic Tray Sealer Multivac T200

Germany

Description

Tray dimensions variably divisible: 380x300mm, max. tray height: 110mm, material: preformed sealable trays made of monofilm or multilayer film, foam materials, cardboard and aluminum trays with sealable layer, top film material: heat-sealable film, print: unprinted or with continuous print, max. width: 450mm, max. roll diameter: 250mm, output capacity depending on pack and tray size: 3–12 trays/min, vacuum pump: installed; standard 40m³/h, optional 63m³/h, compressed air connection: 7bar, compressed air consumption: approx. 30 l/cycle, cooling water pressure: 4bar, connected load: 3.8kW, working height: 723mm, length: 1460mm, height: 1629mm, width: 781mm, weight: approx. 300kg. Equipment: gas flushing system for modified atmosphere packaging (MAP), oxygen flushing possible, register control for spot-printed top film, external gas mixer, monitoring packages for validation and calibration. An on-site inspection is possible. Without documentation.
