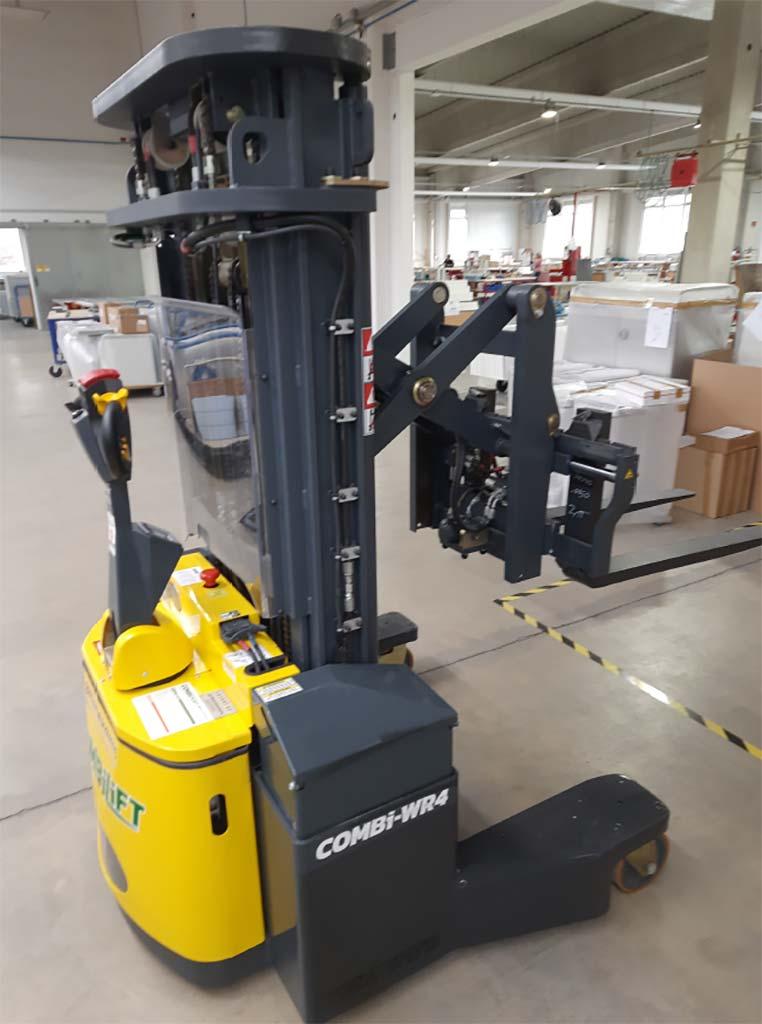

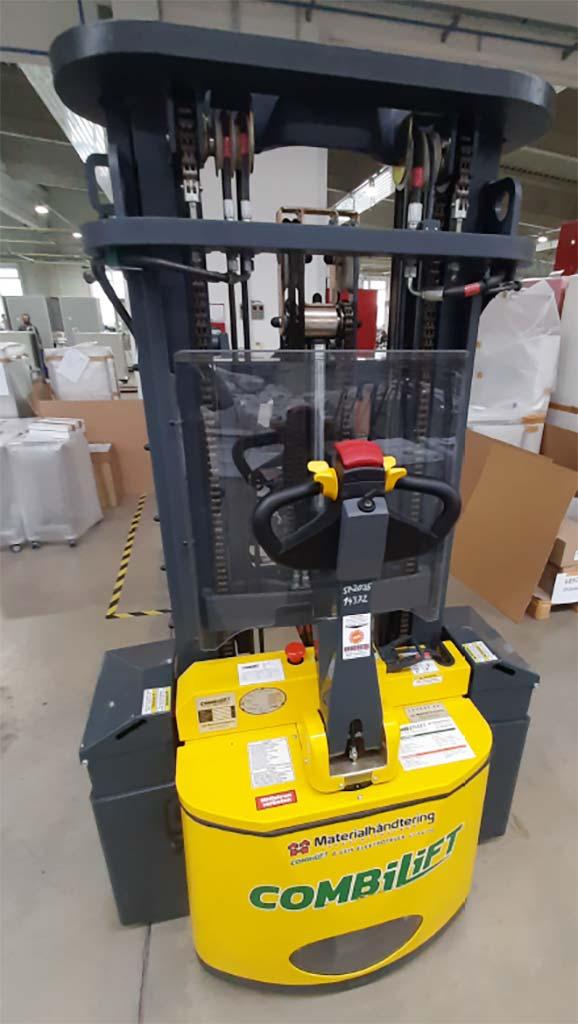

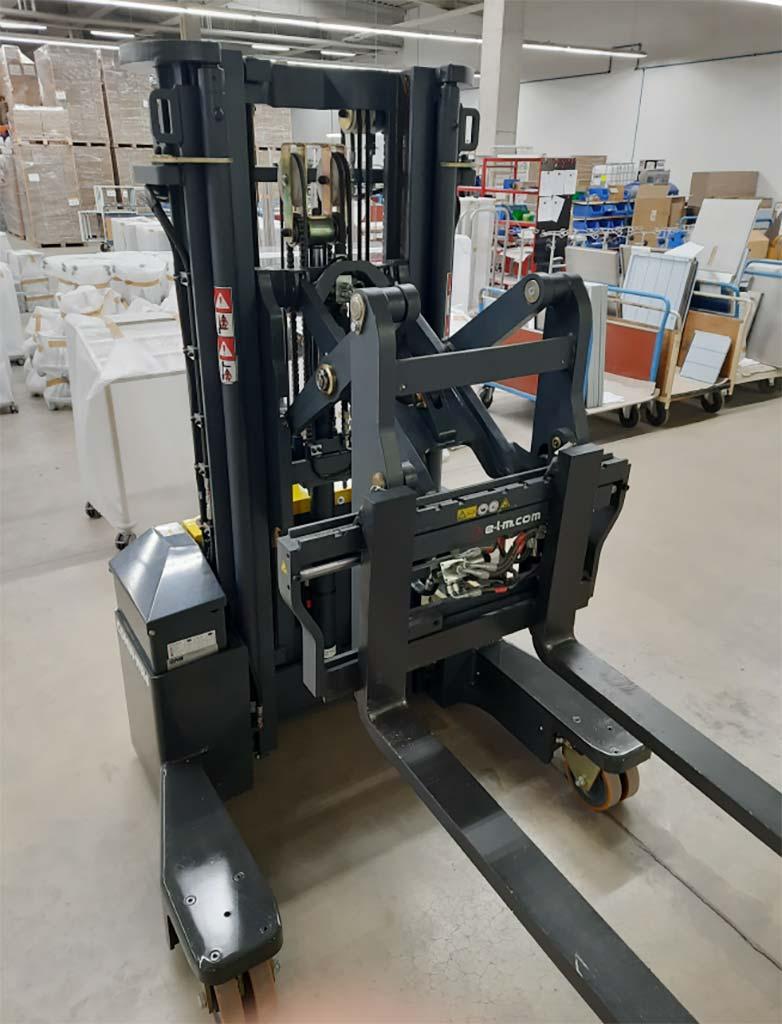

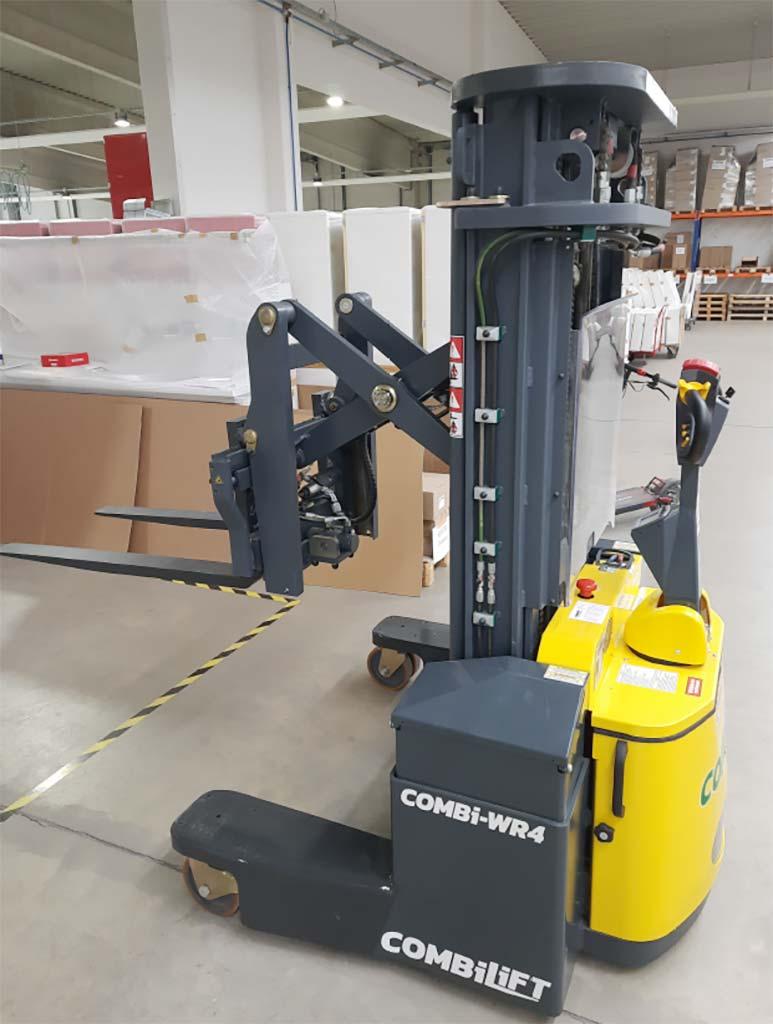

Manual Pedestrian Reach Stacker Combilift COMBI-WR4

Germany

Description

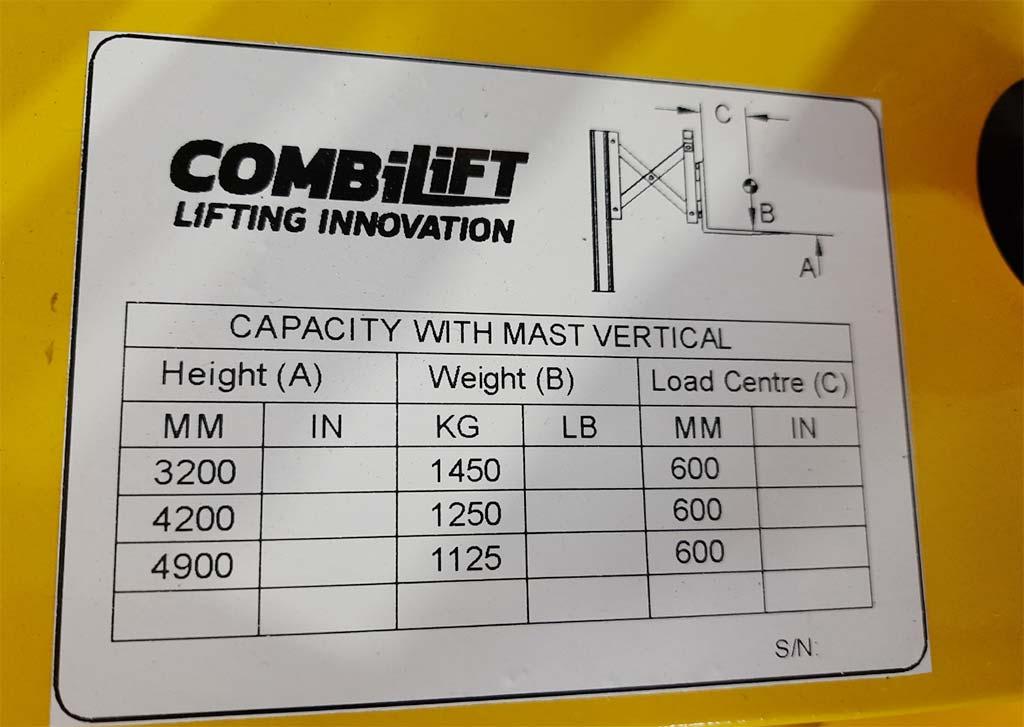

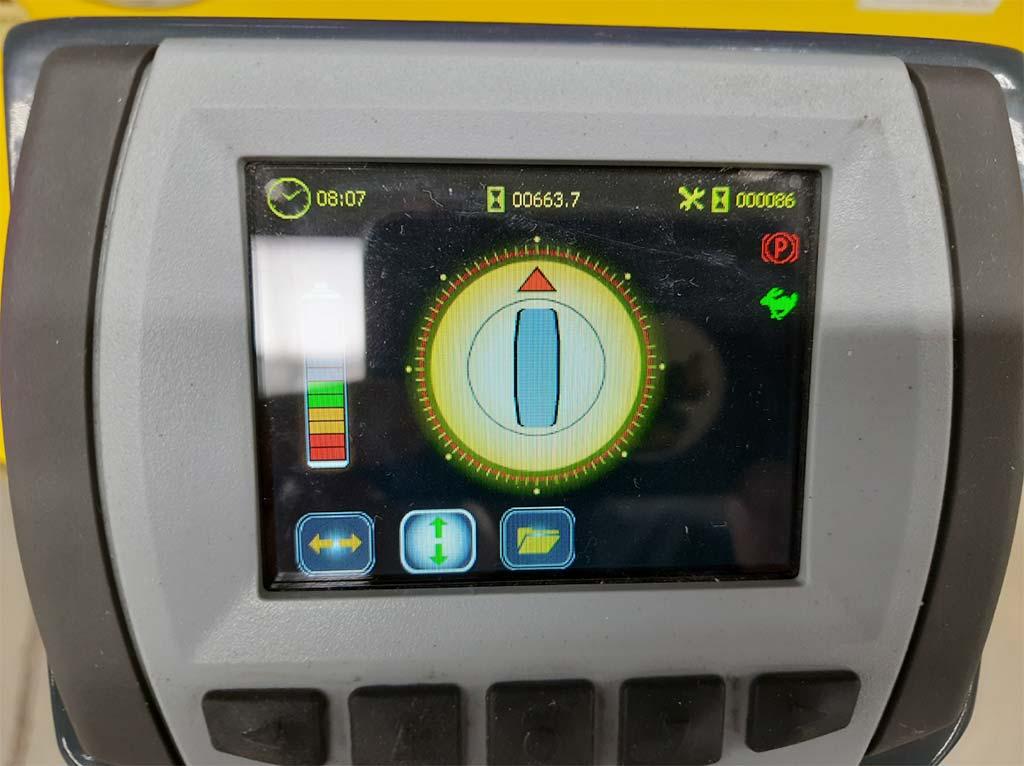

Load capacity: 1450/1125kg, load center: 600mm, lift height: 3200/4900mm, battery weight: 300-350kg, free lift: 900mm, mast height lowered: 2100mm, mast height extended: 4900mm, reach: 590mm, ground clearance under mast: 80mm, ground clearance at axle center: 50mm, track width: 1292mm, frame cross-section: 1058mm, front overhang: 655mm, wheelbase: 1120mm, rear overhang: 175mm, side shift: 80mm left / 80mm right, lost load thickness: 880mm, fork tilt back: 3°, fork tilt forward: 3°, min. turning radius: 1350mm, support arm height: 282mm, support arm length: 530mm, maximum speed: 6km/h, gradeability: 5%, battery capacity: 24V/270Ah, fork dimensions: 35x100x1070mm, front wheels (polyurethane): OD 200mm / width 50mm, rear wheel (solid rubber): outer diameter 250mm / width 75mm, AC drive motor: 24V / 2.5kW, AC pump motor: 24V / 5kW, rated power: 2.5kW, width: 1512mm, length: 1950mm, net weight without / with battery: 2800/3150kg, operating hours: 86h. An on-site inspection is possible.

Additional Details
