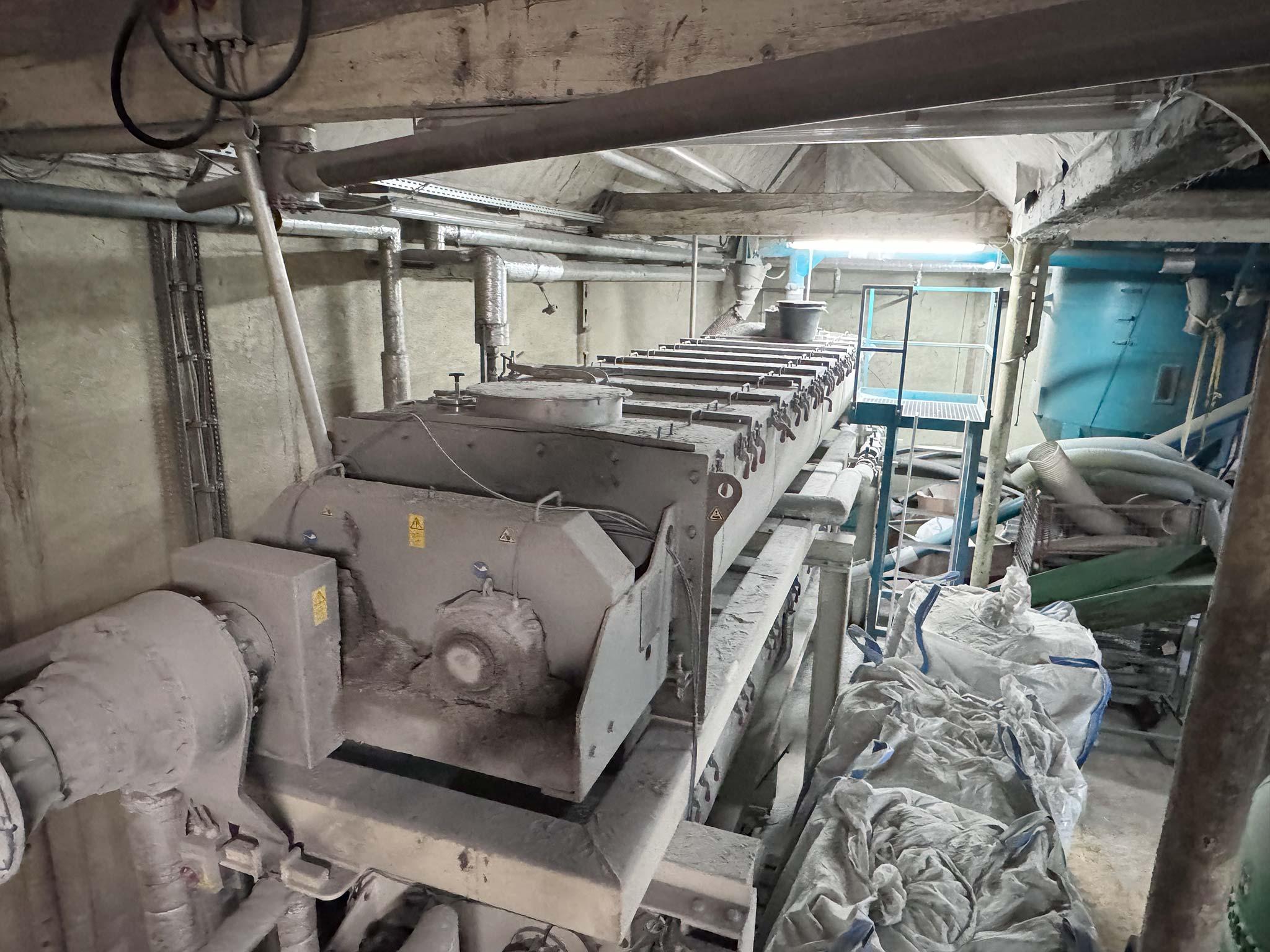

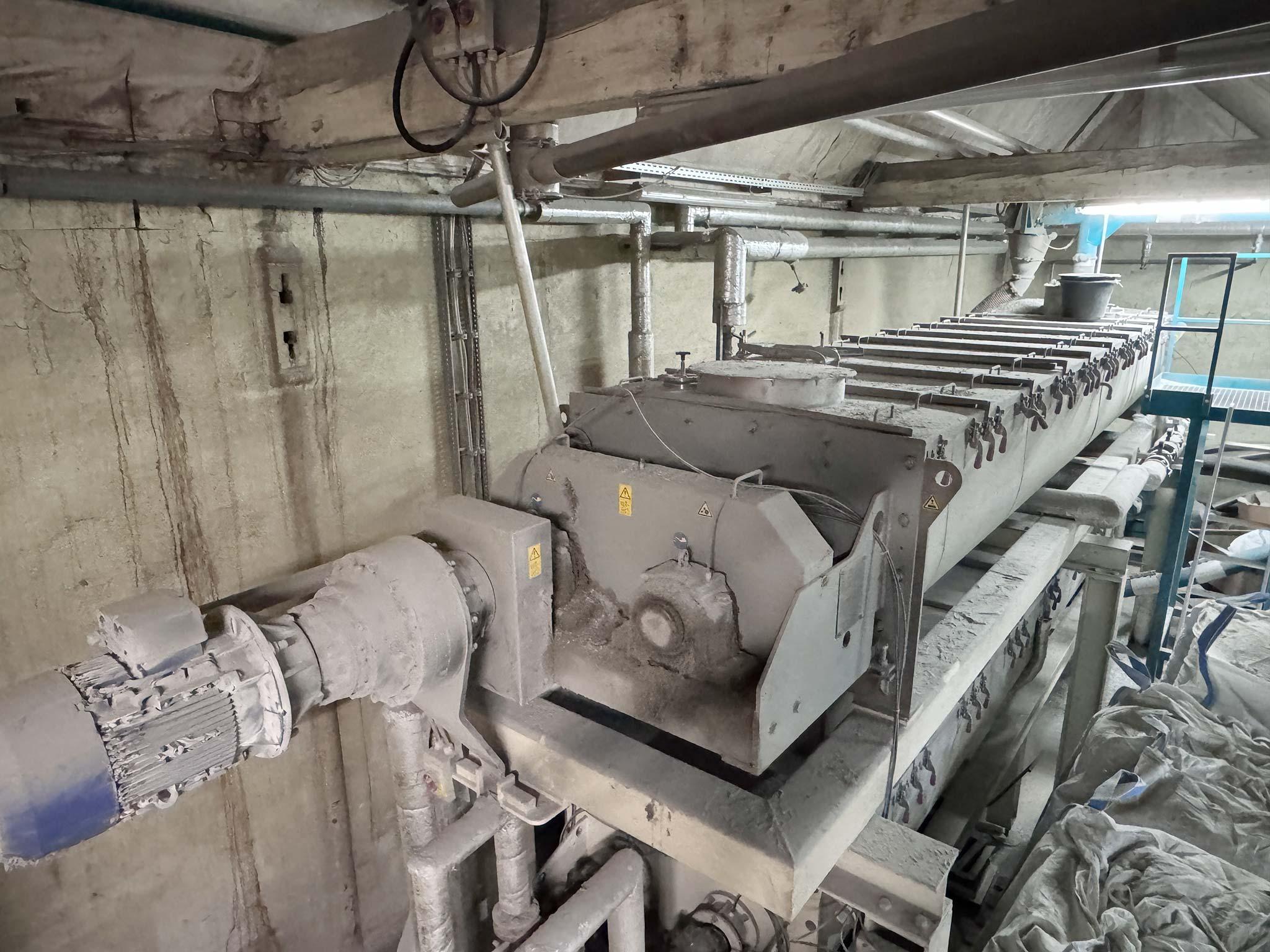

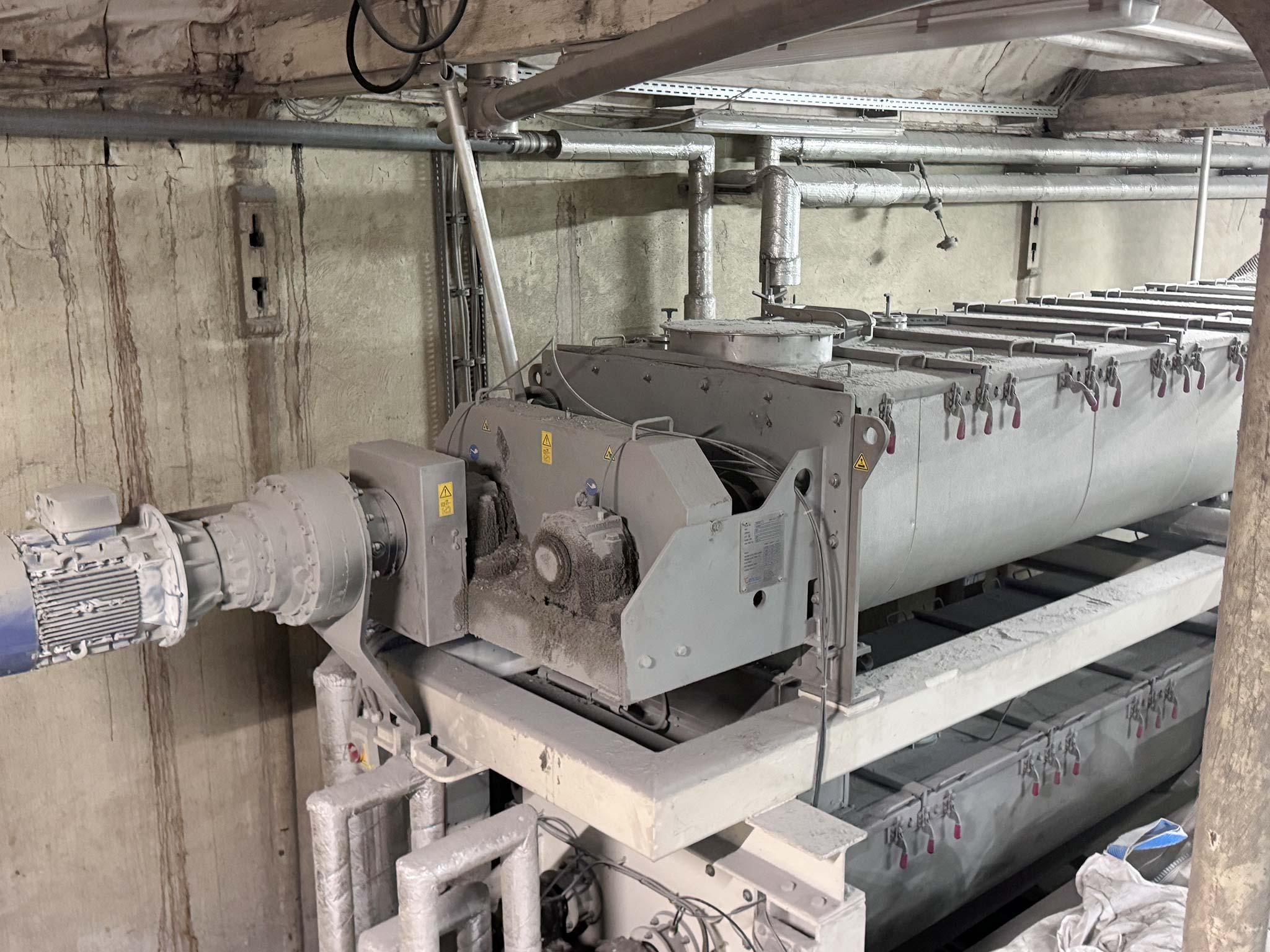

Twin-Screw Heat Exchanger Celsius CWR500

Germany

Description

Two Celsius CWR500 are available. Application: drying, PED class: G, installation: horizontal, ambient temperature: 10-40°C, relative humidity: 50-70%, internal cleaning: dry, external cleaning: dry, capacity: 1500kg/h, inlet temperature: 20°C, outlet temperature: 60°C, operation: continuous without product change, thermal fluid: saturated steam (120°C, 2bar), specific heat capacity: 2114 J/kgK, density: 1120.6 kg/m³, dynamic viscosity: 12.96x10⁻⁶ Pa·s, nominal operating pressure: 1bar, available flow (NWP): 100kg/h, thermal fluid inlet temperature: 120°C, outlet temperature: 120°C, thermal capacity: 55kW, thermal power unit: 70kW, empty weight: 6.21t. Documentation available. An on-site inspection is possible.
