Offset Printing Machine Miller TP104 S//2c+NP

Germany

Description

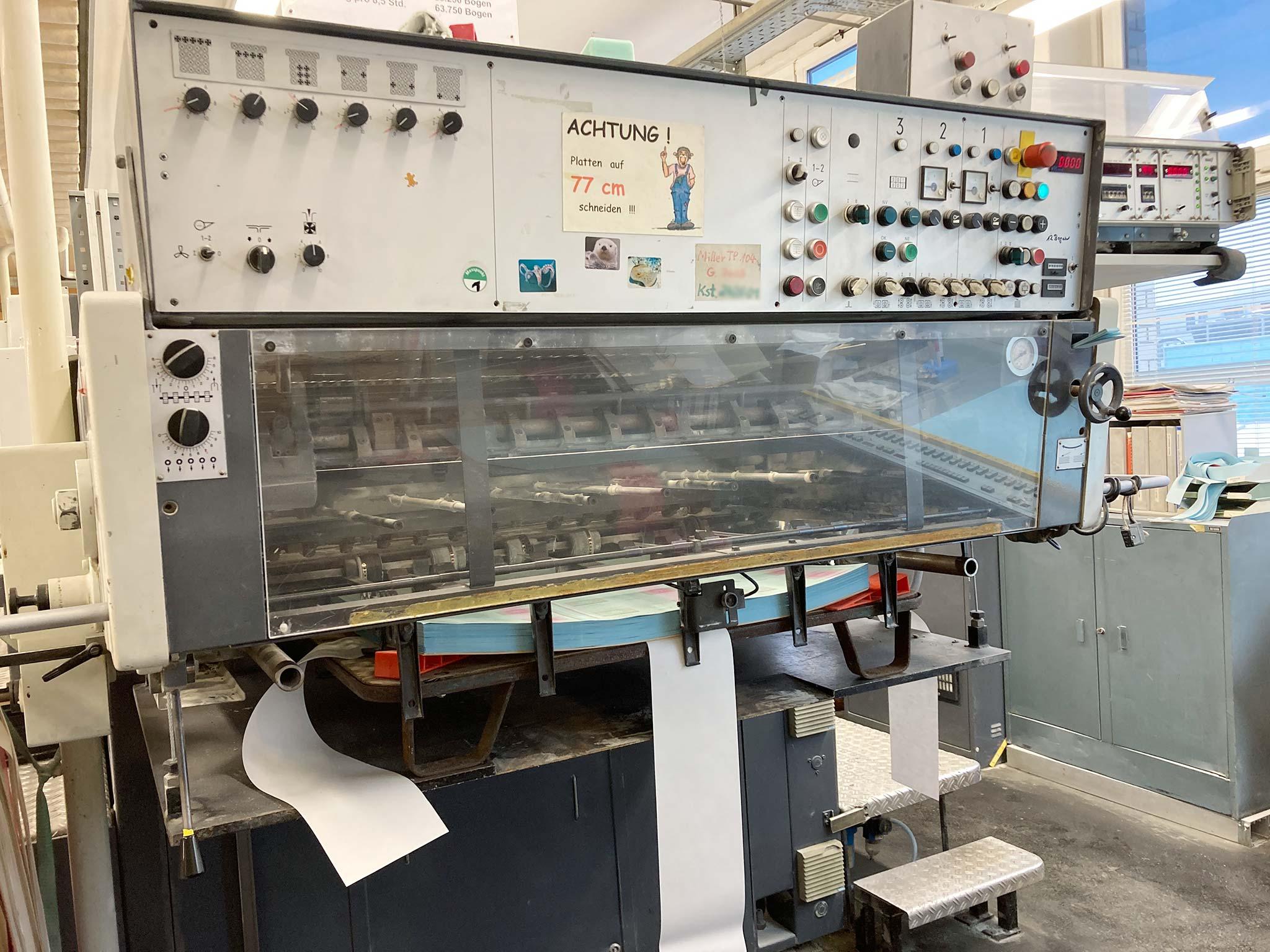

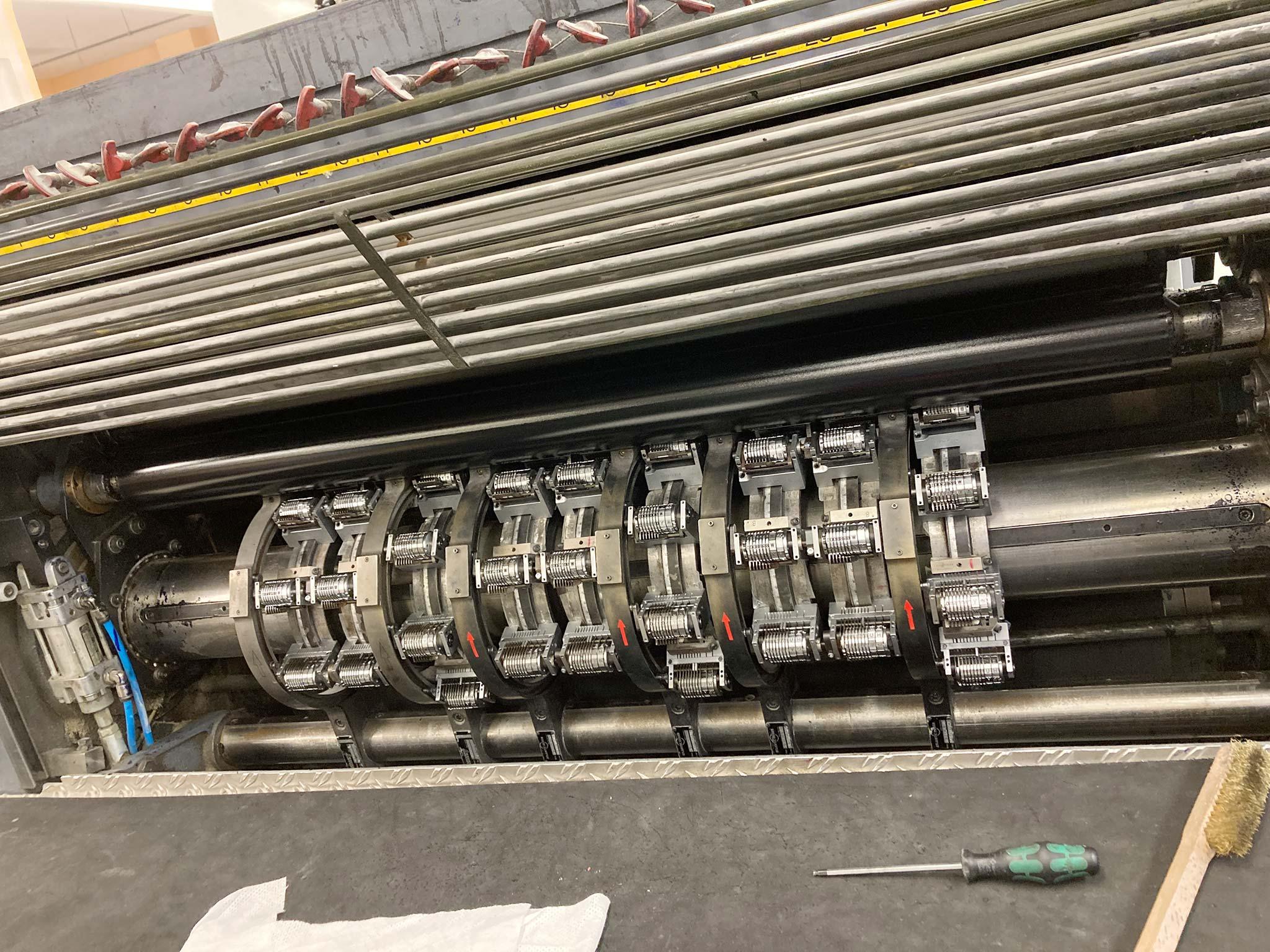

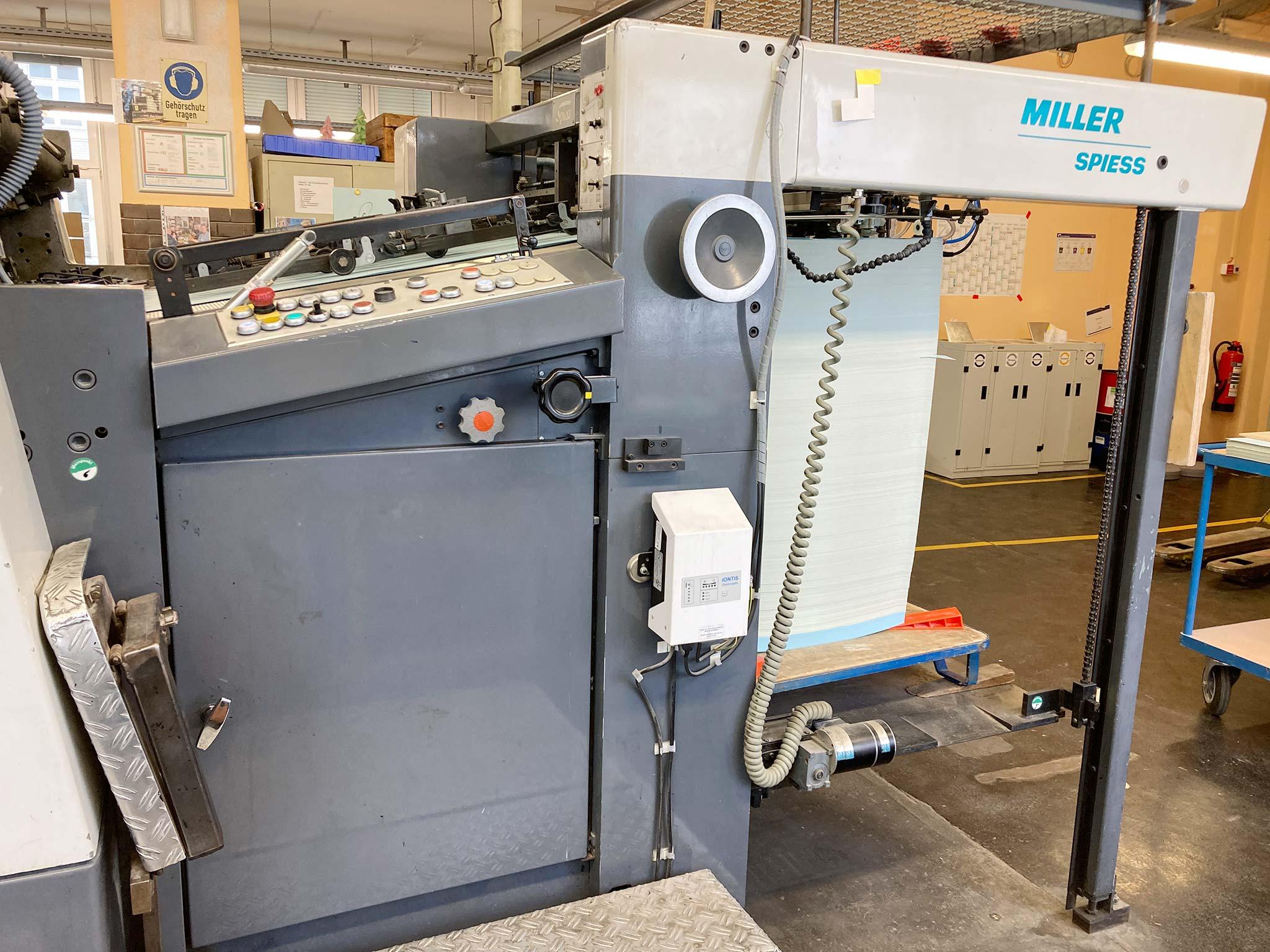

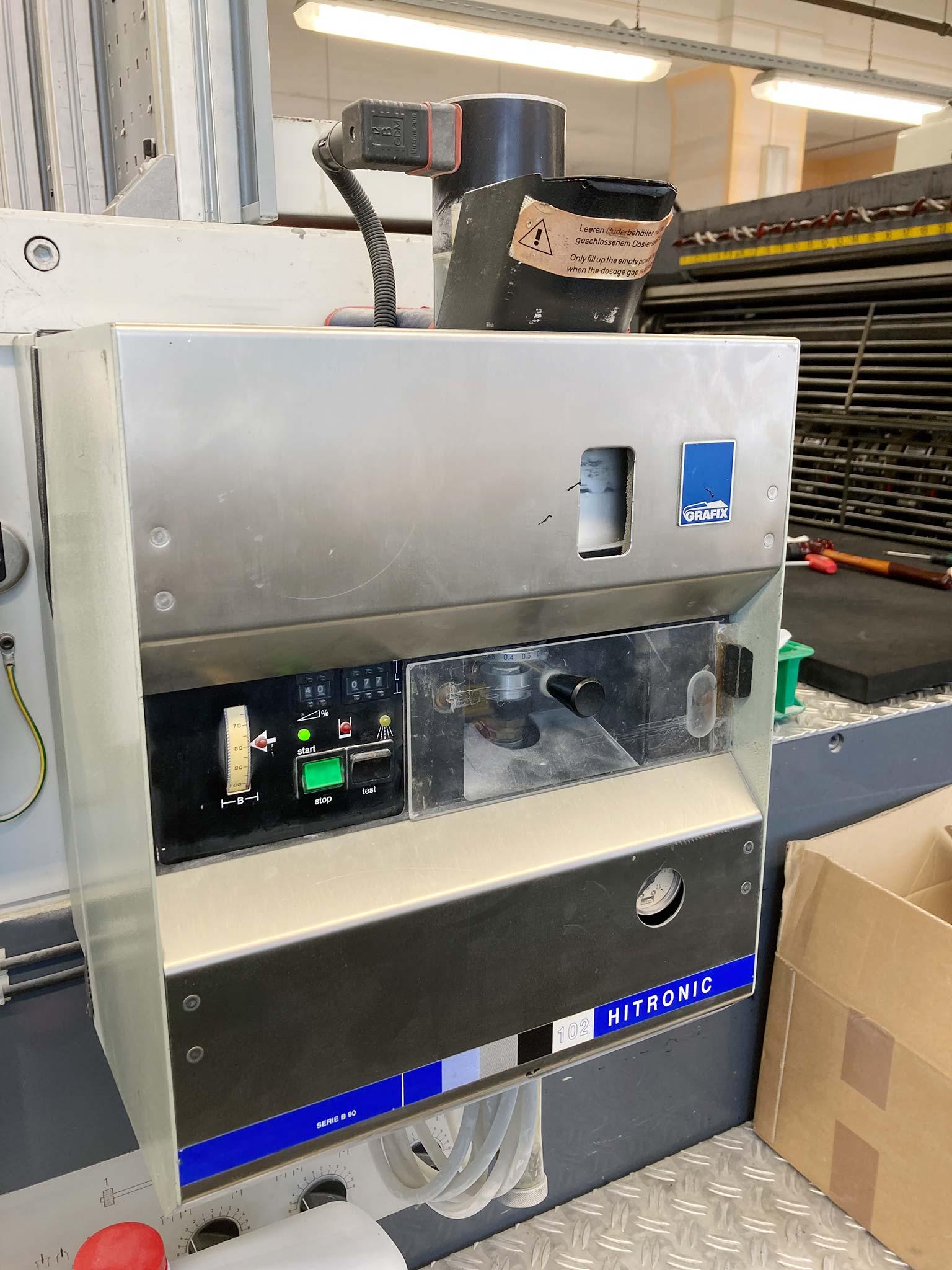

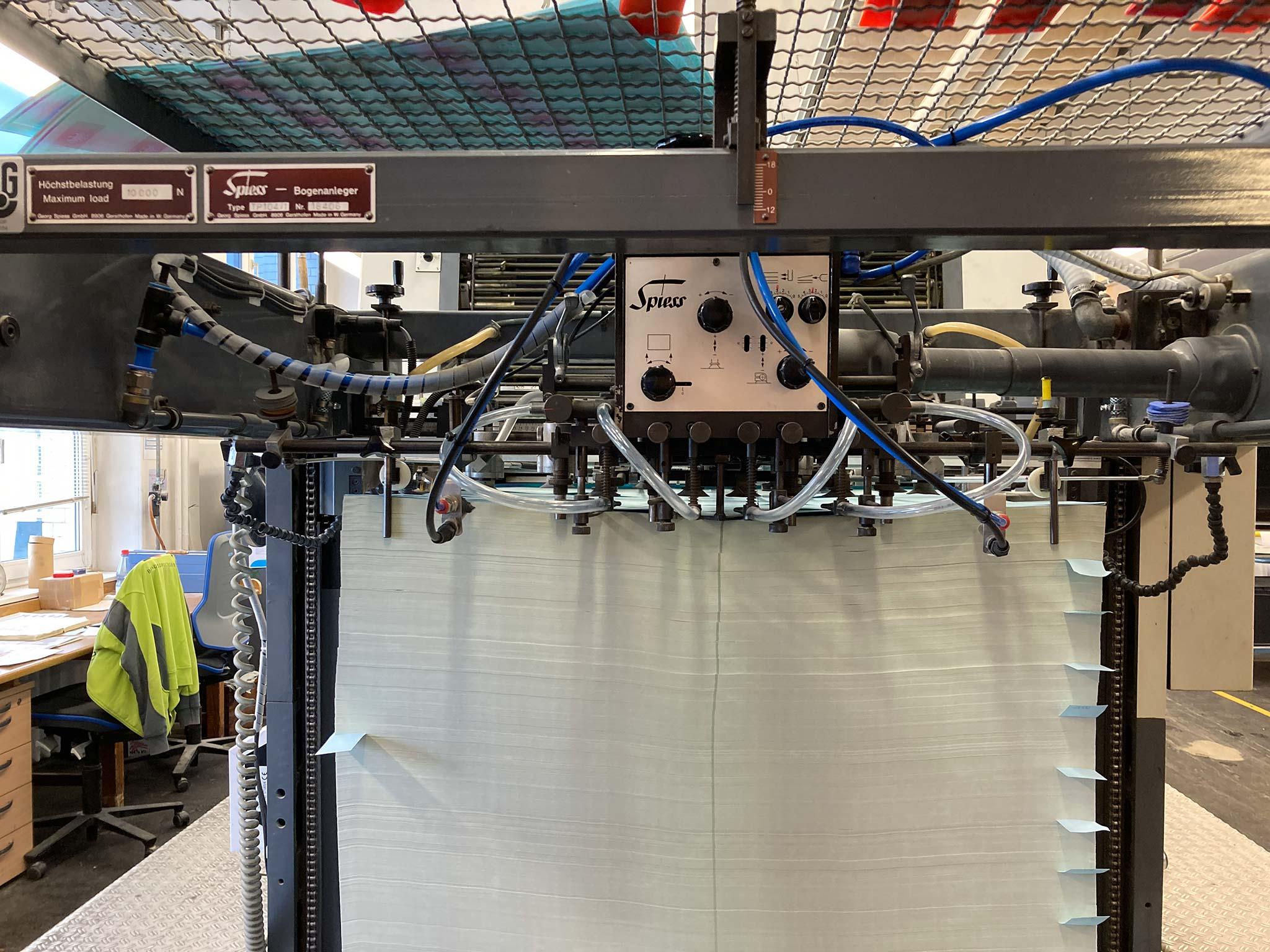

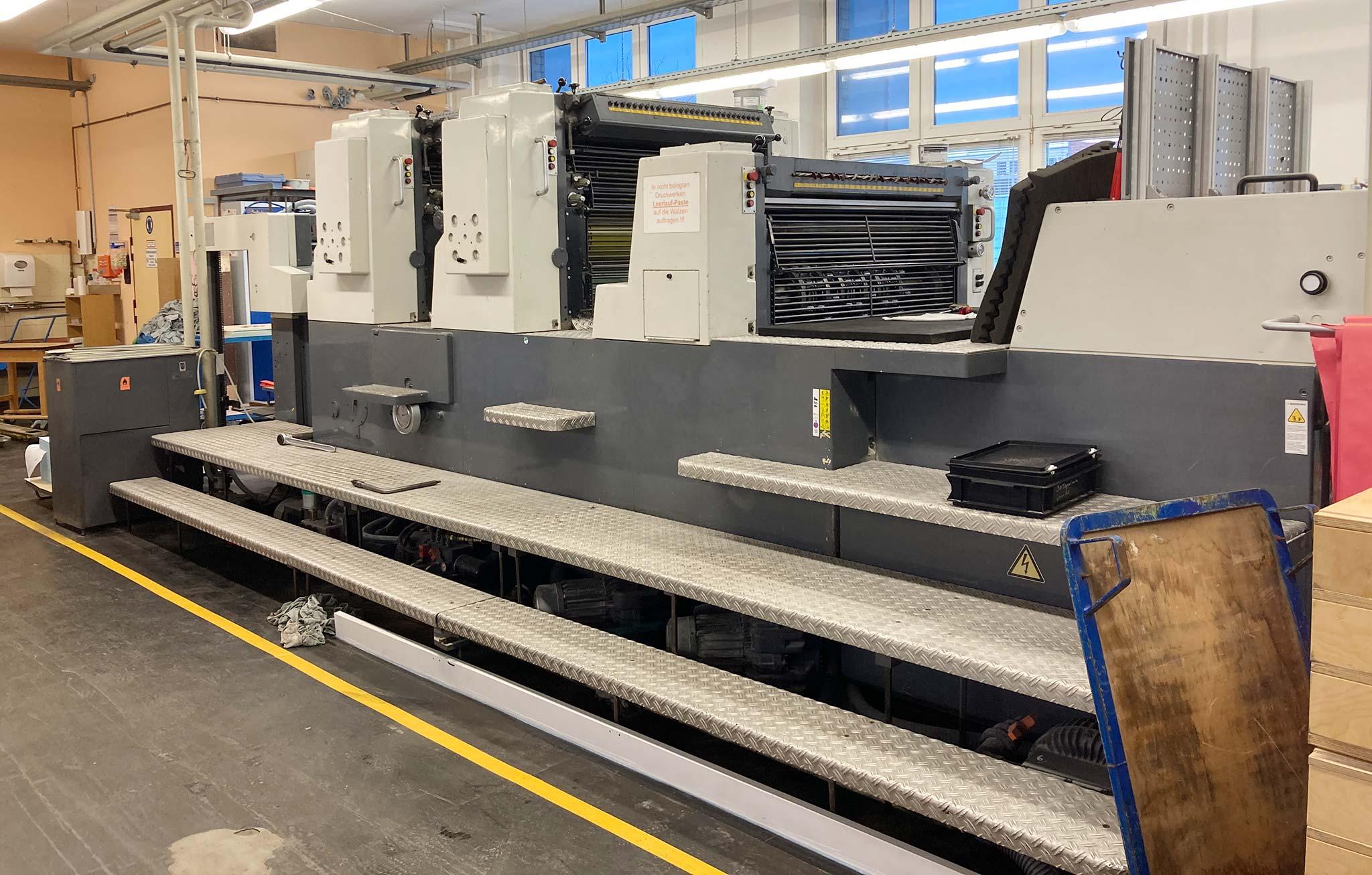

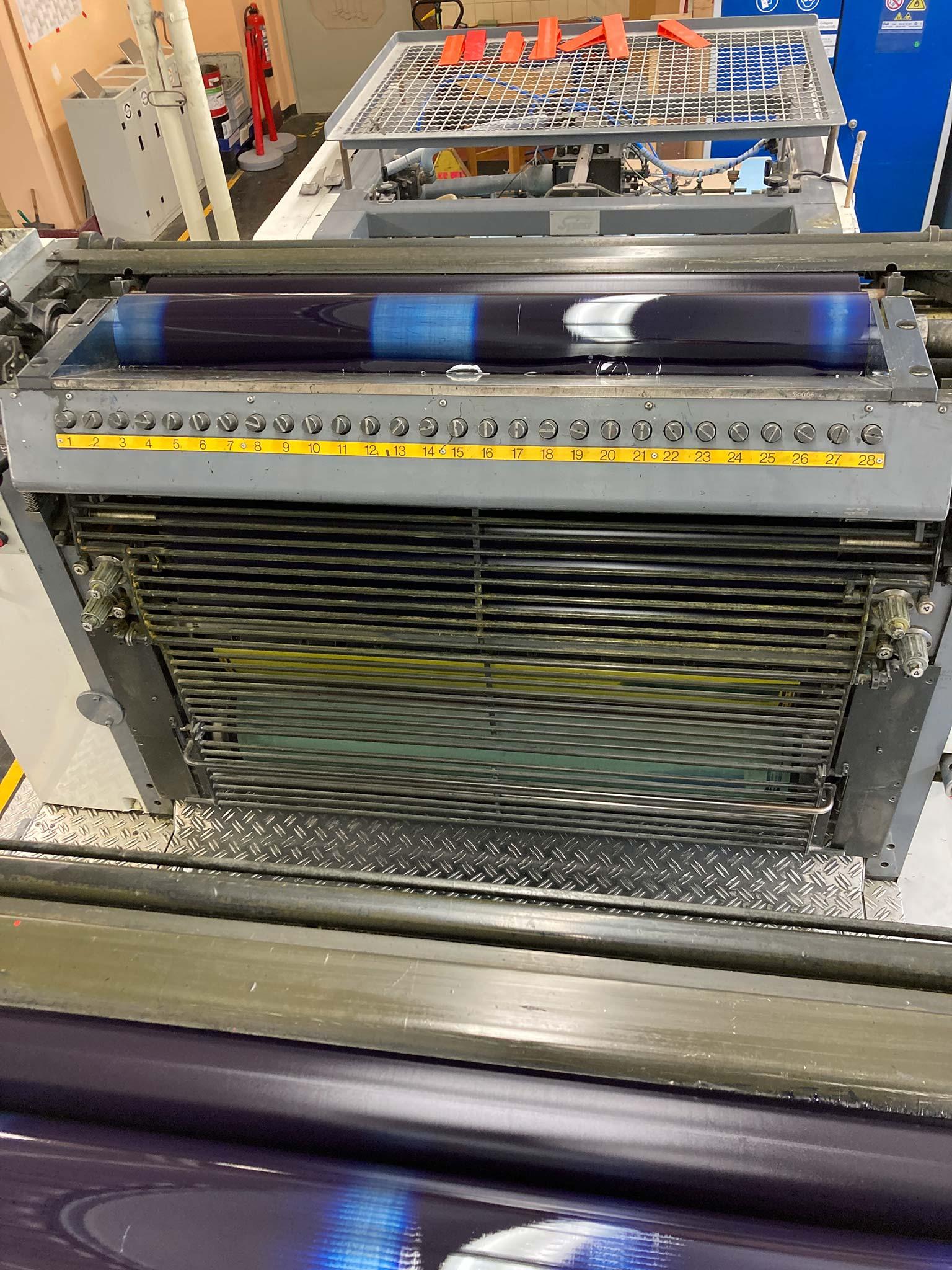

Max. paper size: 720x1040mm, min. paper size straight printing: 360x520mm, straight/reverse printing: 440x520mm, paper thickness: 0.06-0.5mm, max. print size straight printing: 710x1030mm, straight/reverse printing: 700x1030mm, max. throughput straight printing/ straight/reverse printing: 7000/ 5000 sheets/h, printing plate size (recommended): 790x1045mm, print start: 48mm, print-free gripper margin: 10.5mm ±1mm. Equipment: Miller TP 104 basic machine with two printing units, perfecting device between the first and second printing unit, numbering tower with control for Zeiser and Leibinger mechanical numbering units (without numbering units), Spiess TP 104/1 sheet feeder, load: 10,000N. Remote adjustment via control console: colour control 1st and 2nd printing unit, fine adjustment of circumferential and lateral register: ±1.5mm, plate cylinder, 2x plate clamping rails at the front - single - only divided at the rear, blanket cylinder washing device - completely defective, cleaning by hand, powder sprayer without additional control, delivery extension additional area after numbering unit by approx. 1.85m, 10x application ink rollers, 8x ink transfer rollers, 1x blanket roller, 1x wash roller, 1x ink lifting roller, complete documentation.
