Punching Line Raster/alba/cis HR 80/700 NL

Name: Punching Line Raster/alba/cis HR 80/700 NL
Brand: Raster/alba/cis
Availability: InStock

Added 1 day ago

Specifications

Manufacturer:Raster/alba/cis

Model:HR 80/700 NL

Year:1992

Type:Punching Line

Category:metal processing machines

Condition:used

Price: Upon request

Germany

Description

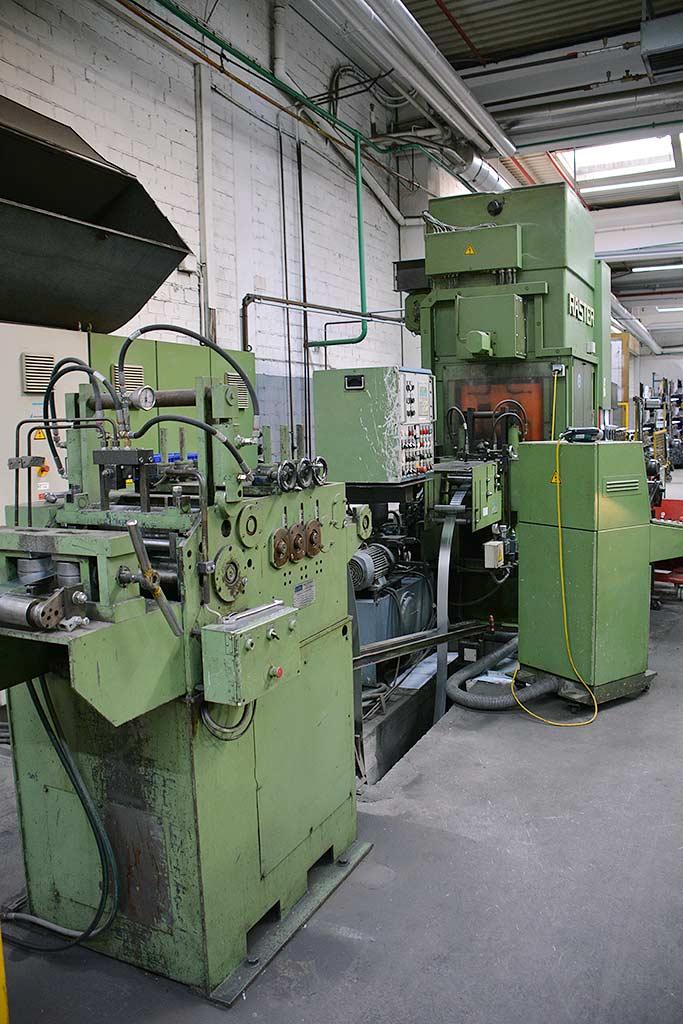

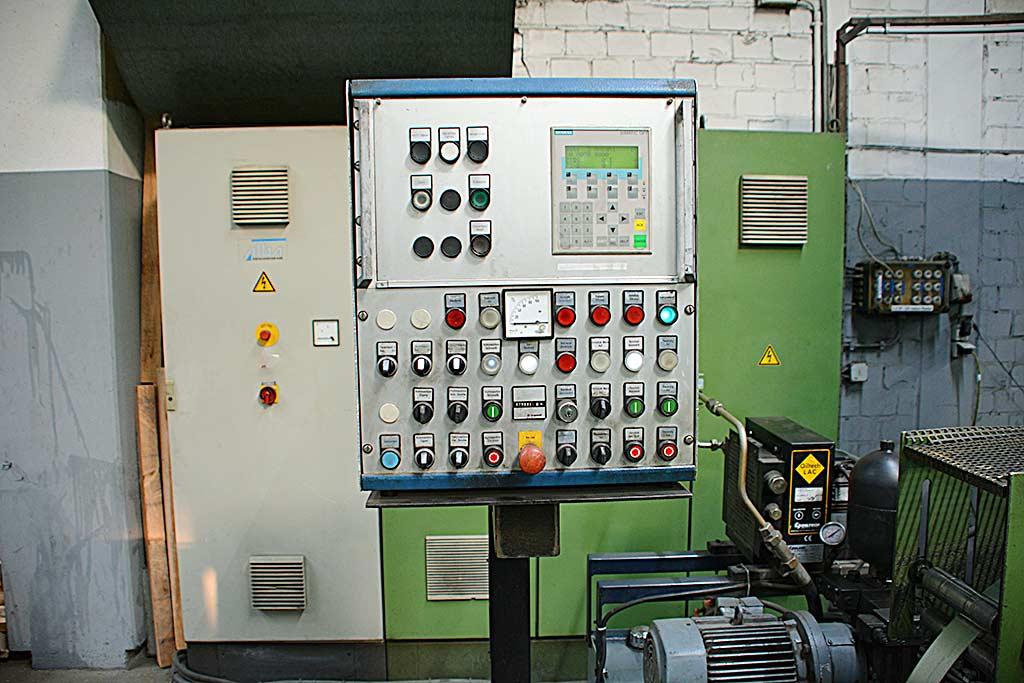

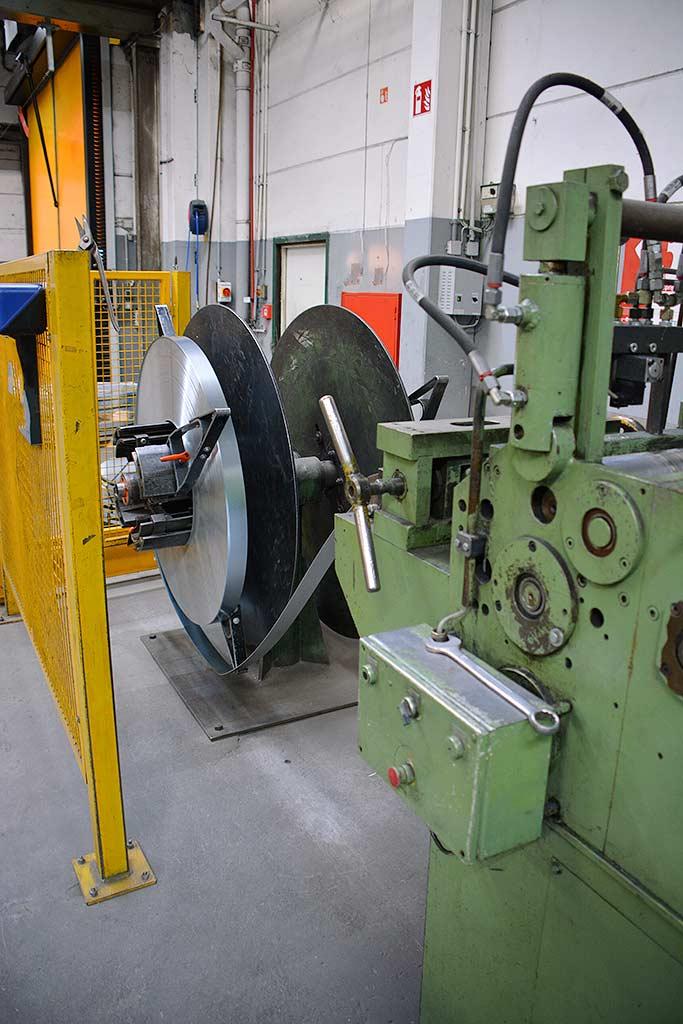

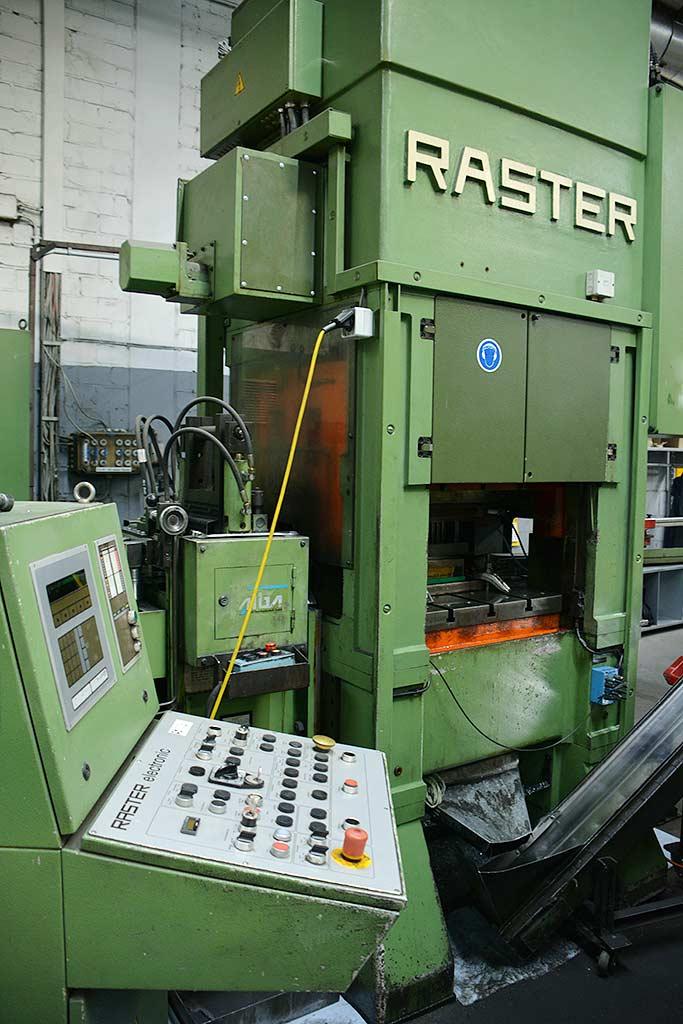

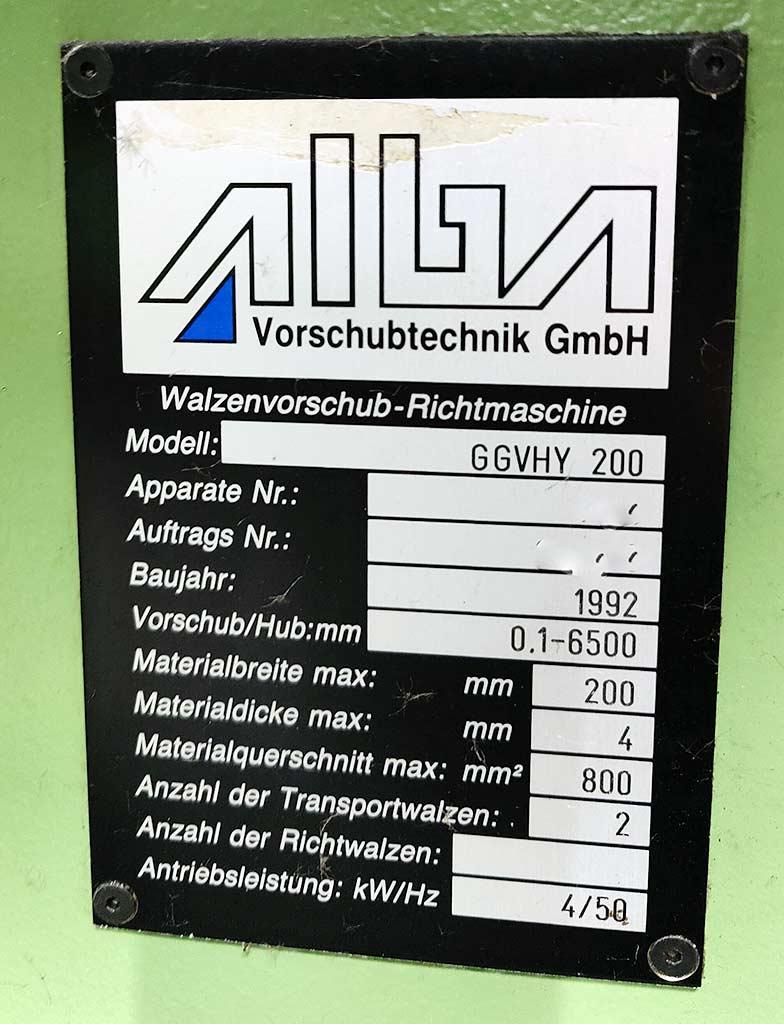

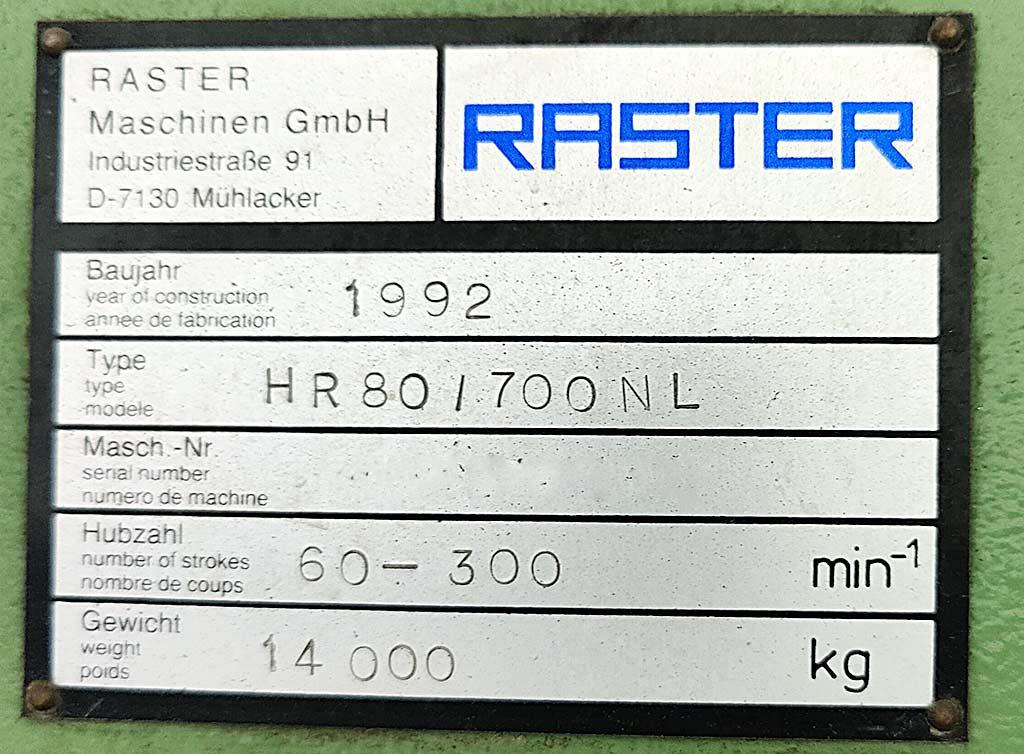

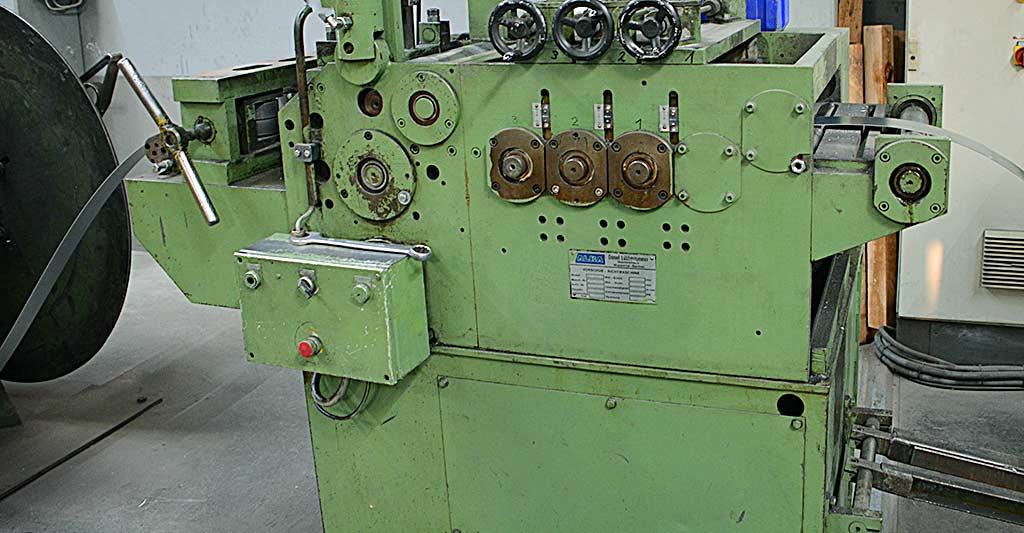

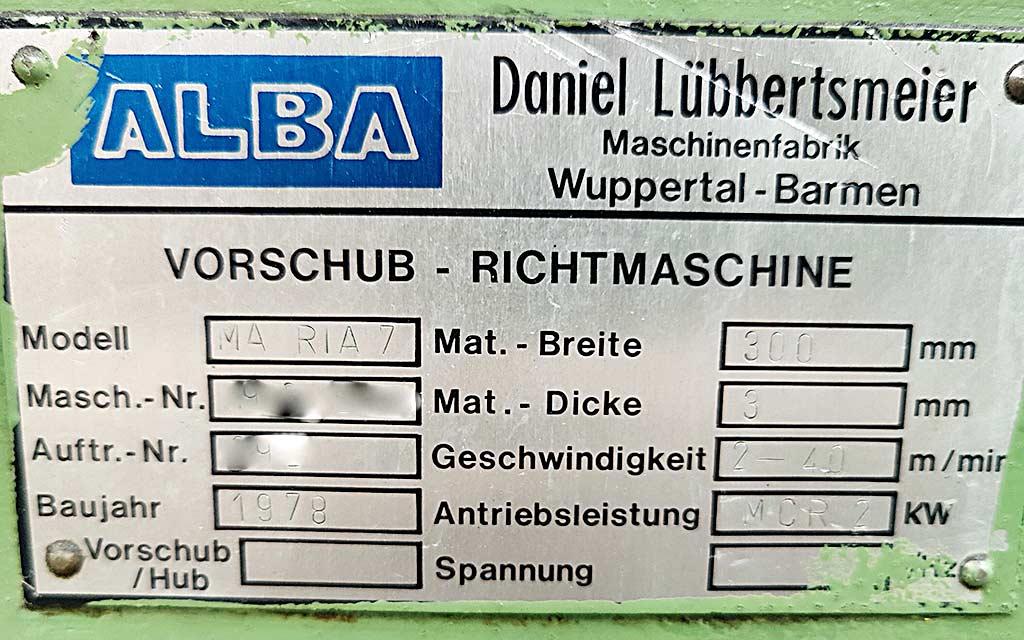

A complete punching system with a grid punch is available. 1) Double reversible decoiler, load capacity: 1000kg. 2) Alba GGVHY 200 straightening machine, year of manufacture: 1992, feed rate: 6.5m/min, max. material width: 200mm, max. material thickness: 4mm, transport rollers: 2. 3) Alba MA RIA 7 feed, year of manufacture: 1978, max. material width: 300mm, max. material thickness: 3mm, feed rate: 40m/min, control: Siemens S7. Material thickness: 3mm, feed speed: 40m/min, control: Siemens S7 with OP7. 4) Punching machine Raster HR 80/700 NL, year of manufacture: 1992, pressing force: 80t, stroke rate: 250/min, table dimensions X/Y: 730mm/750mm, ram dimensions X/Y: 730mm/630mm, ram stroke: 40mm, ram adjustment: 80mm. 5) Profiling machine CIS. Documentation available. On-site inspection is possible.

AI Analysis

Click to generate

Additional Details

dimensions:x/y: 730mm/750mm, ram dime

capacity:1000kg.
