CNC Plasma Cutting System Microstep MG 16500
Specifications
Germany
Description

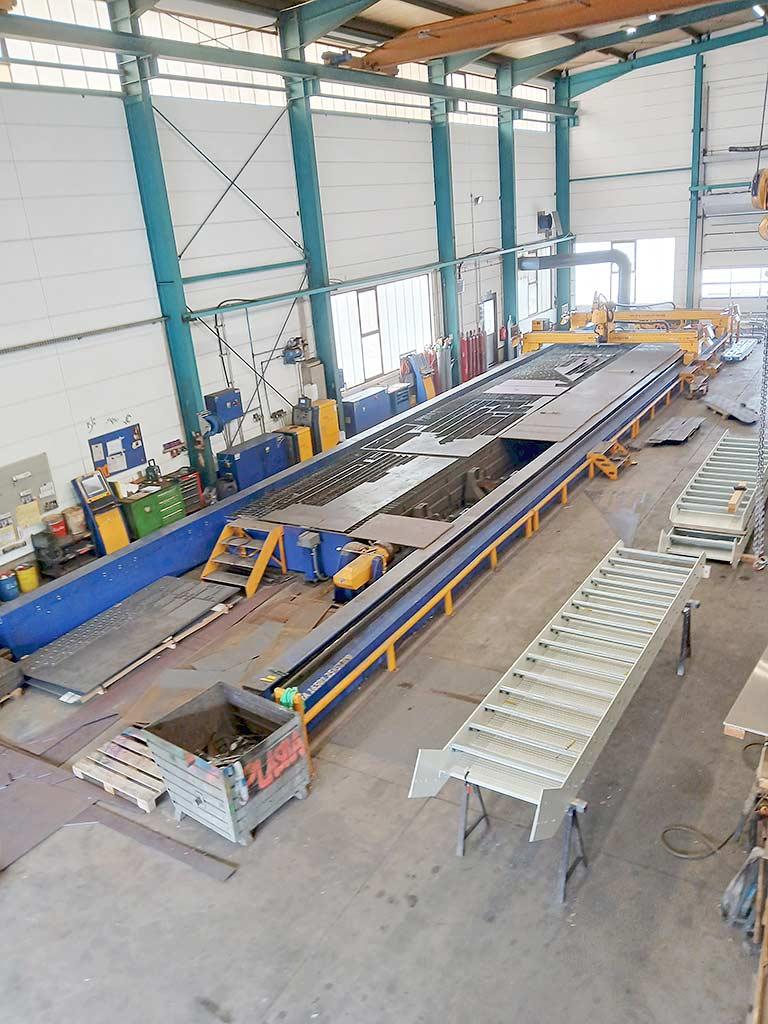

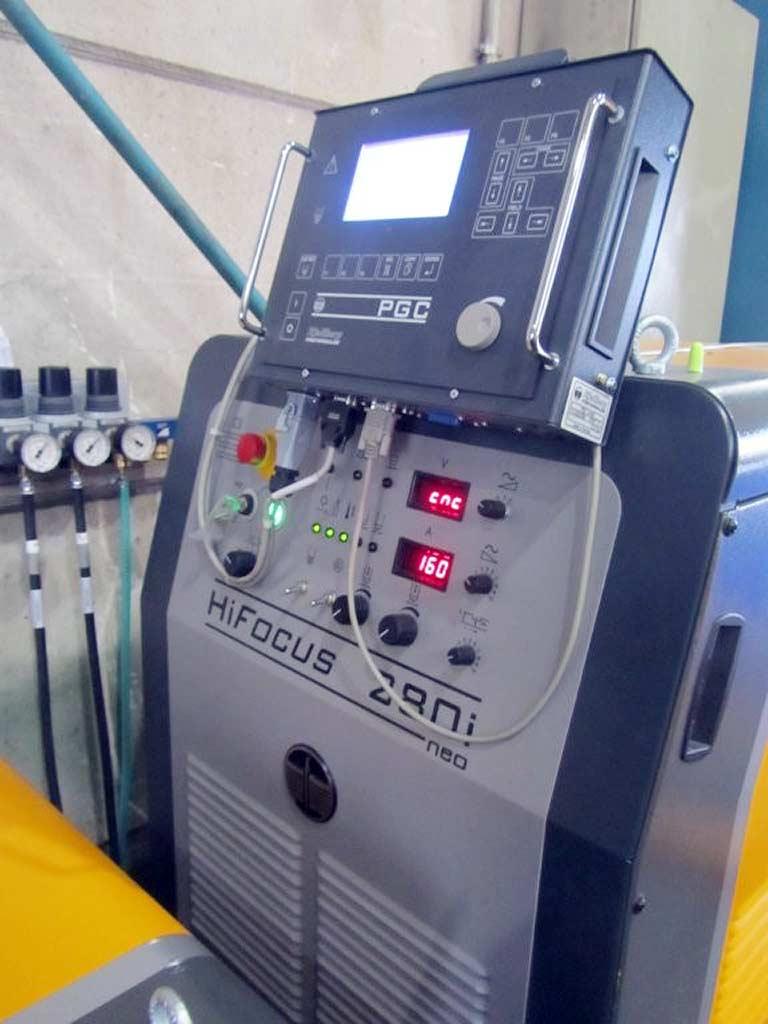

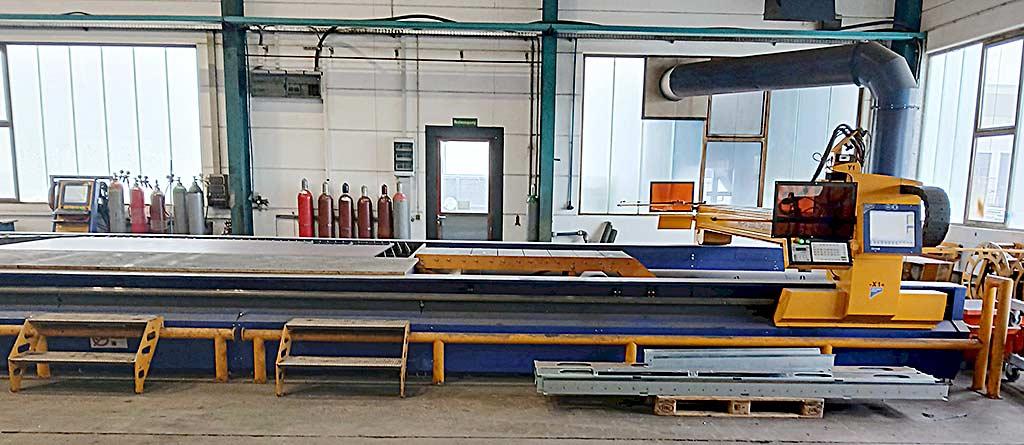

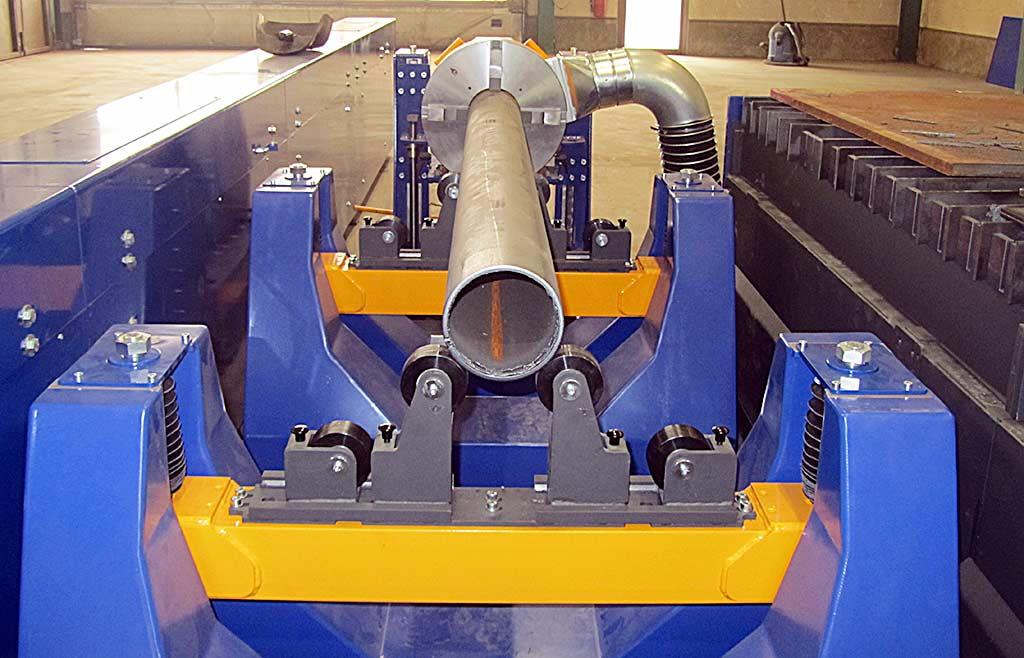

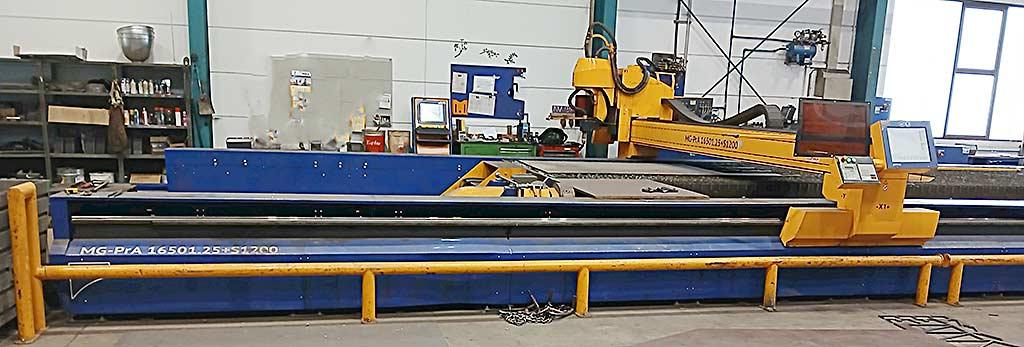

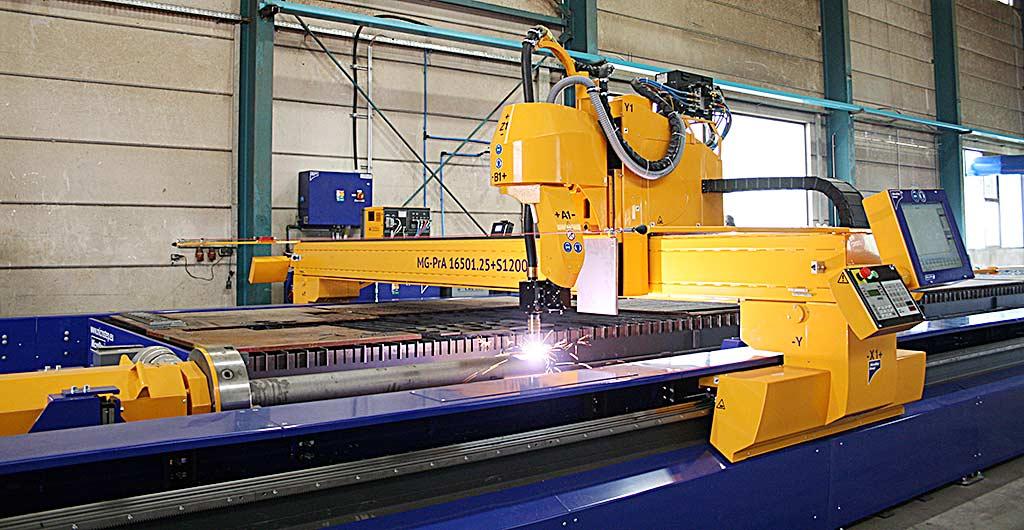

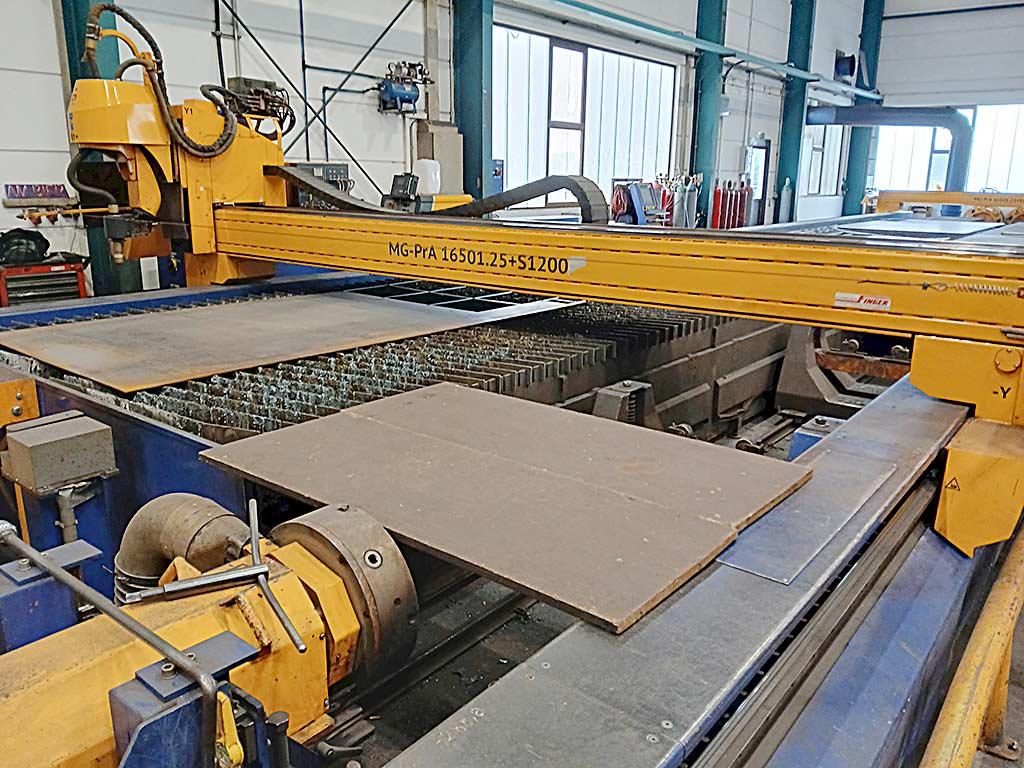

A complete CNC double gantry plasma cutting system Microstep with oxyfuel torch for nesting, bevel cutting and tube processing is available. 1) Plasma cutting system, max. processing length: 16500mm, max. processing width: 2500mm, max. processing width including shaft: 3700mm, max. material thickness VA/structural steel: 20mm/40mm, number of gantries: 2. Gantry 1: with a plasma rotator and a Kjellberg HiFocus 280i neo plasma cutting source. Gantry 2: fully automatic oxy-acetylene torch for possible equipment of a second torch carriage. Pipe cutting device: pipe diameter range: 30mm-700mm, max. pipe length: 16500mm, operating hours: approx. 15000h. 2) Filter system Donaldson Cyclopeel DFPRO 16, volume flow: 16000m³/h, filter elements: 16. Documentation available. On-site inspection is possible. Expected to be available from the end of 2025/beginning of 2026. Pictures are from commissioning in 2014.
