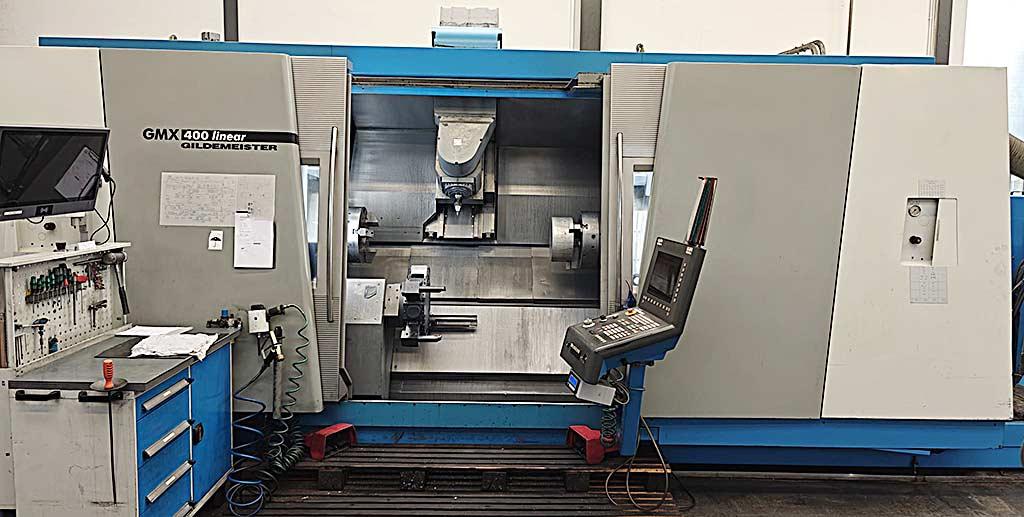

CNC Turning- and Milling Center Gildemeister GMX 400

Germany

Description

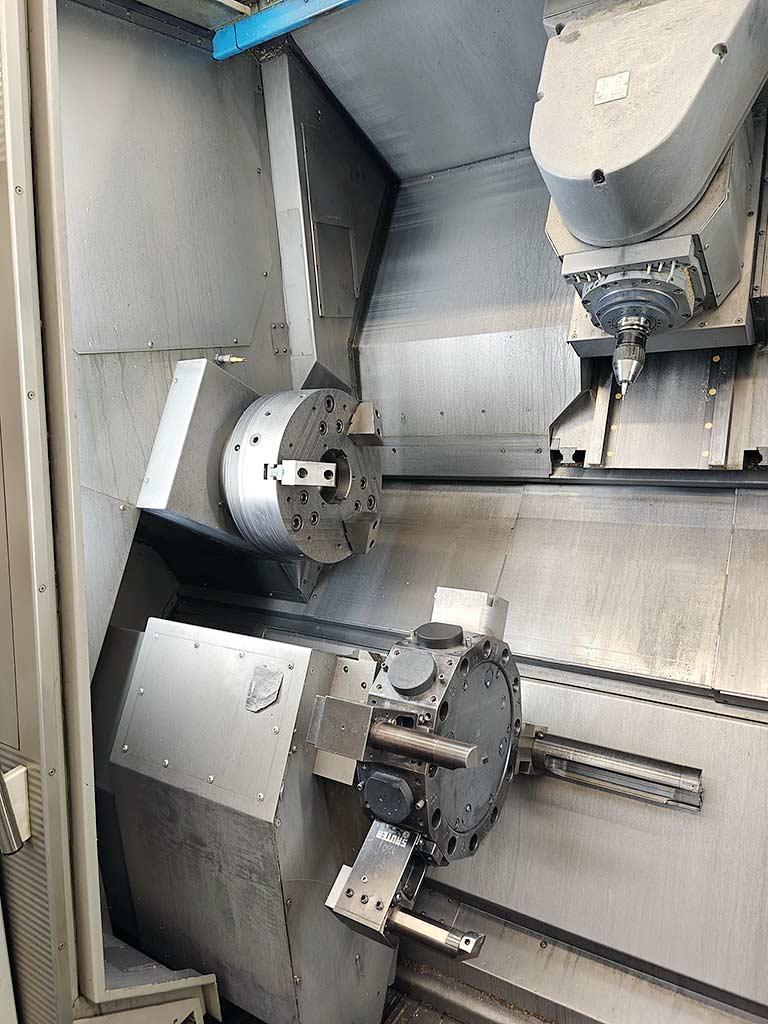

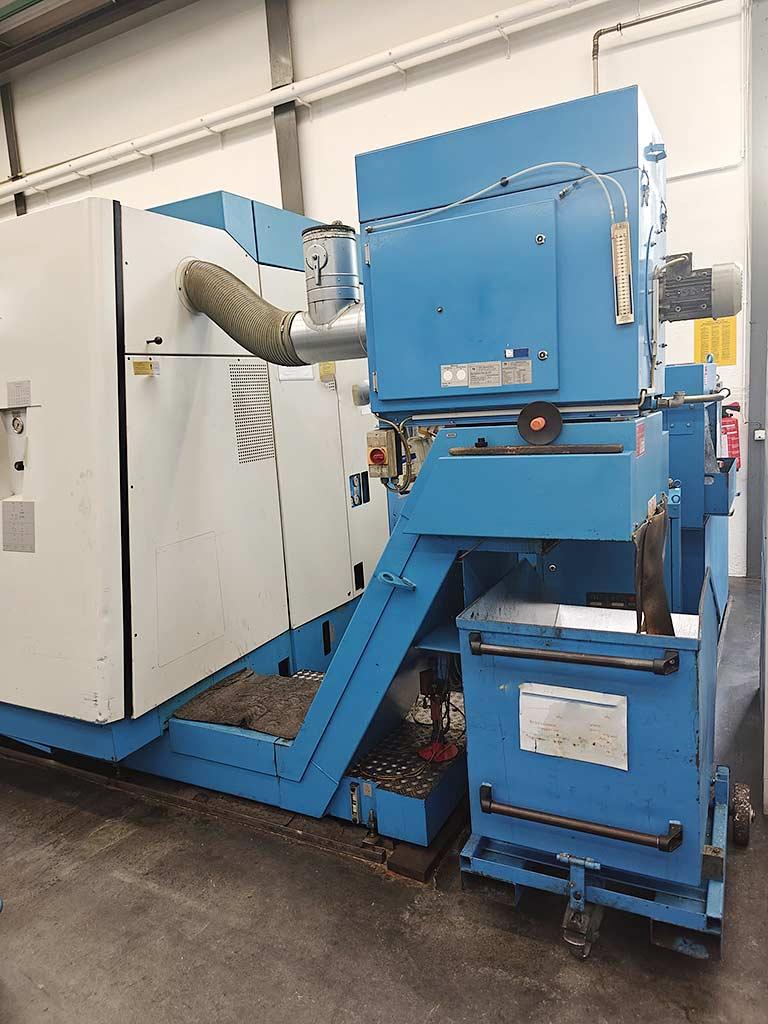

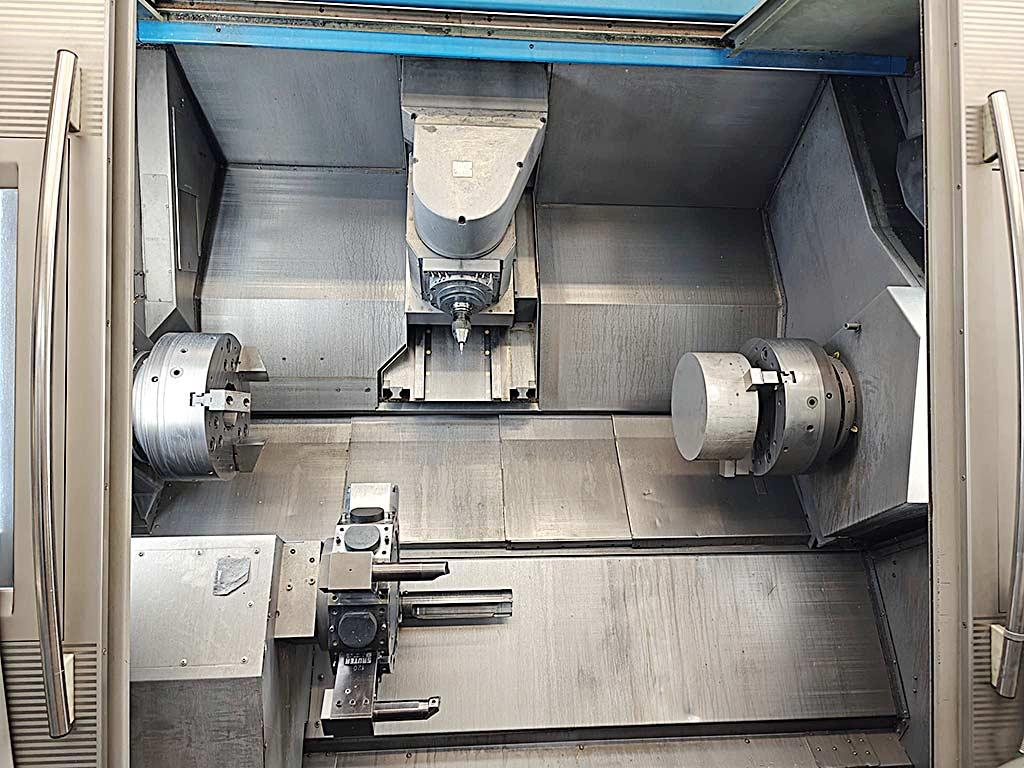

A Gildemeister CNC double-spindle turning and milling center including coolant system and chip conveyor is available. Turning diameter over bed: 640mm, machining diameter: 400mm, center distance: 1930mm, travel X/Z: 550mm/1585mm, travel Y: +/-110mm, B-axis: +/-120° (interpolating), C-axis: 360°. Main spindle: power: 36kW/45kW, speed: 4000rpm, torque: 600Nm-730Nm, bore: 107mm. Milling spindle: Speed: 12000rpm, power: 13.2kW/22kW, torque: 100Nm. Tool places: 60, carrier: turret 12-fold star SW 380, machine dimensions X/Y/Z: approx. 9300mm/4600mm/3100mm, weight: approx. 20000kg, control: Siemens Sinumerik 840D powerline. Documentation available. On-site inspection is possible.
