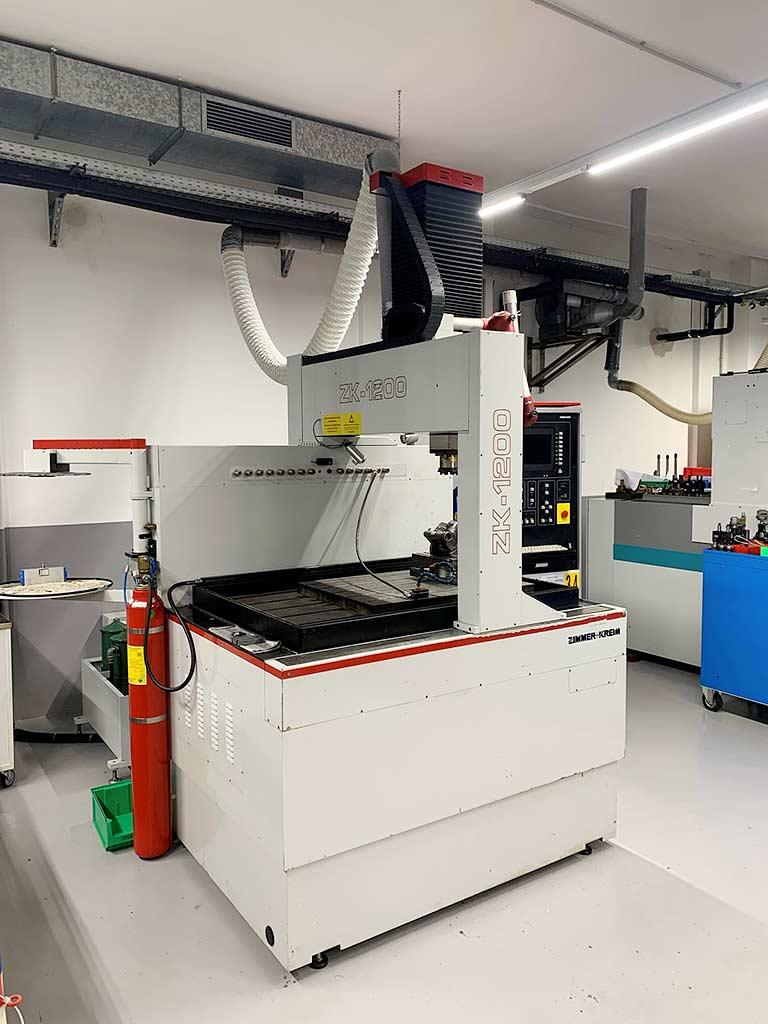

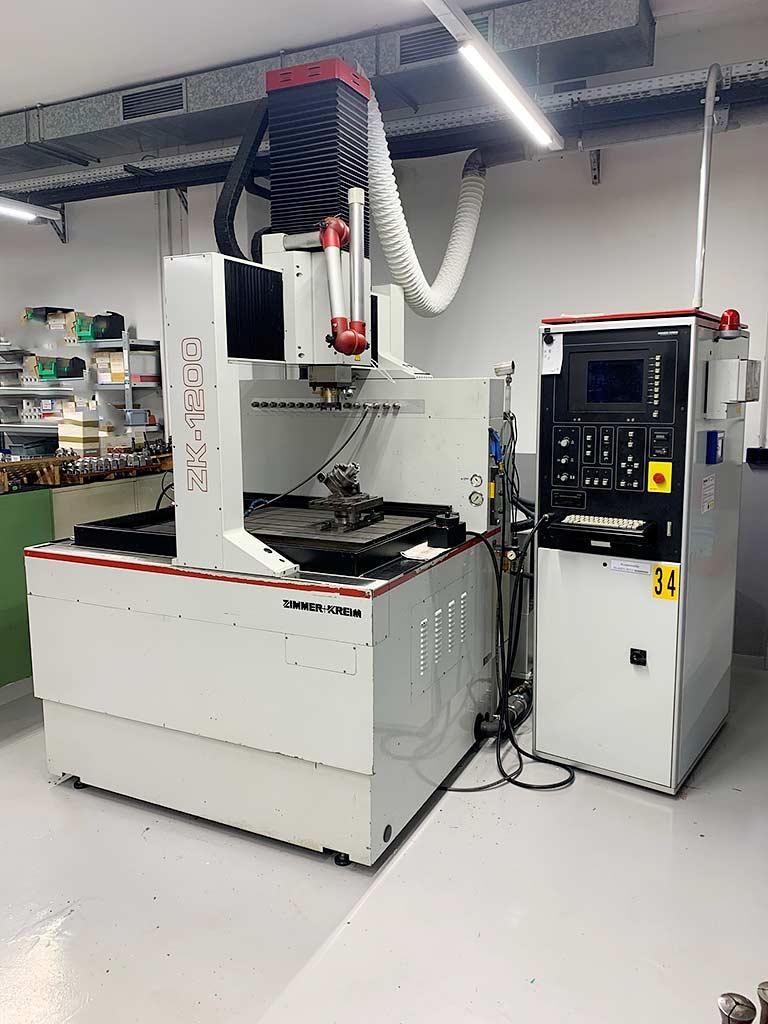

CNC Die Sinking Machine Zimmer & Kreim ZK-1200

Germany

Description

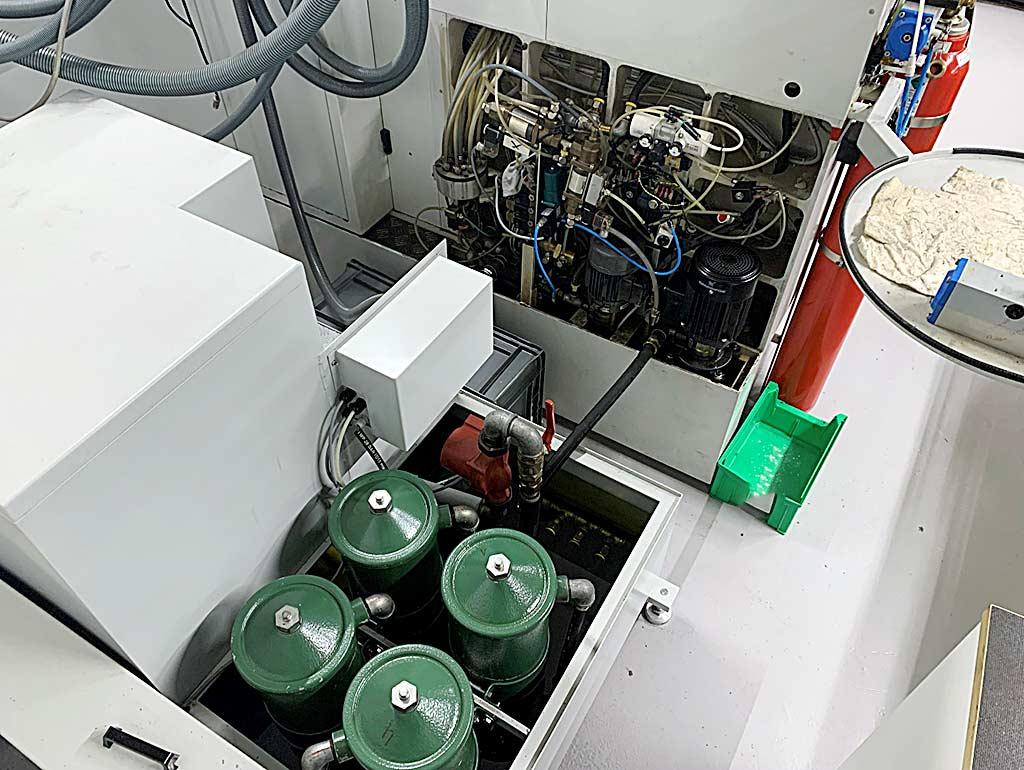

Travel X/Y/Z: 925mm/682mm/396mm, table dimensions X/Y: 1220mm/850mm, quill table distance: 650mm, dielectrum filling volume: 800l, filter cartridges: 4, electrode change: 16-fold, rinsing distributor positions: 12, rapid traverse: 2m/min, machine dimensions X/Y/Z: approx. 2200mm/2000mm/2750mm, weight: approx. 3700kg, operating hours: 50950h. The Z-axis must be adjusted, the machine control does not start up, the oil seals of the tank are leaking and the circulation pump is defective. Documentation available. On-site inspection is possible.
