K. Ley/weisstaler/vehterus/gea unknown

Germany

Description

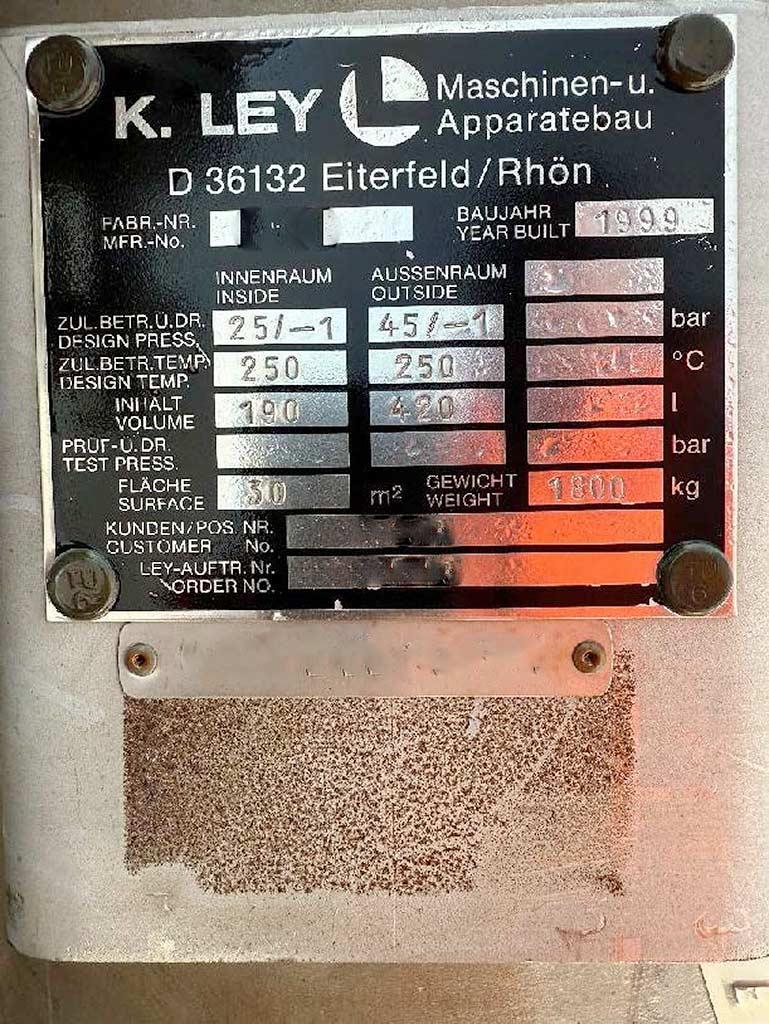

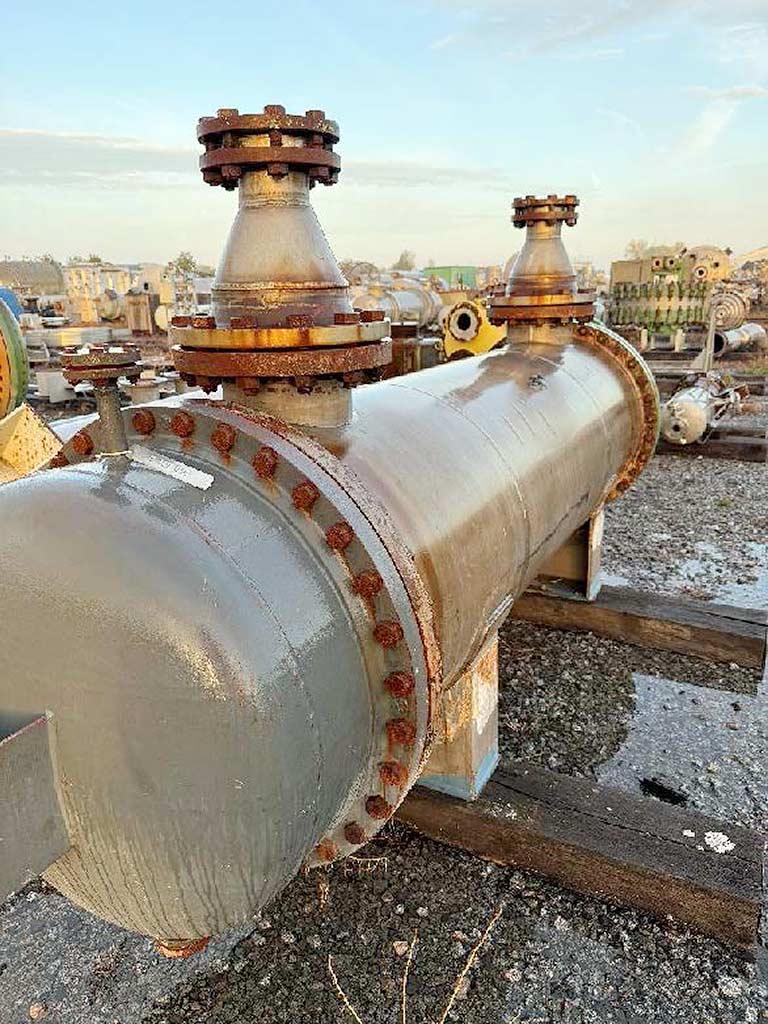

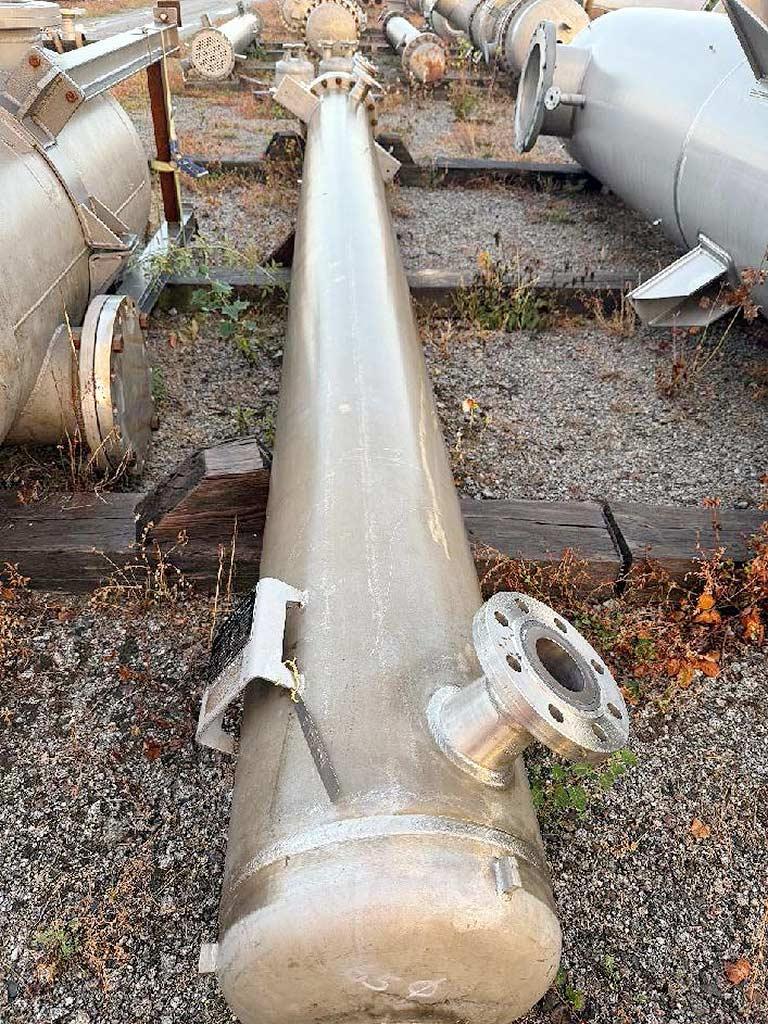

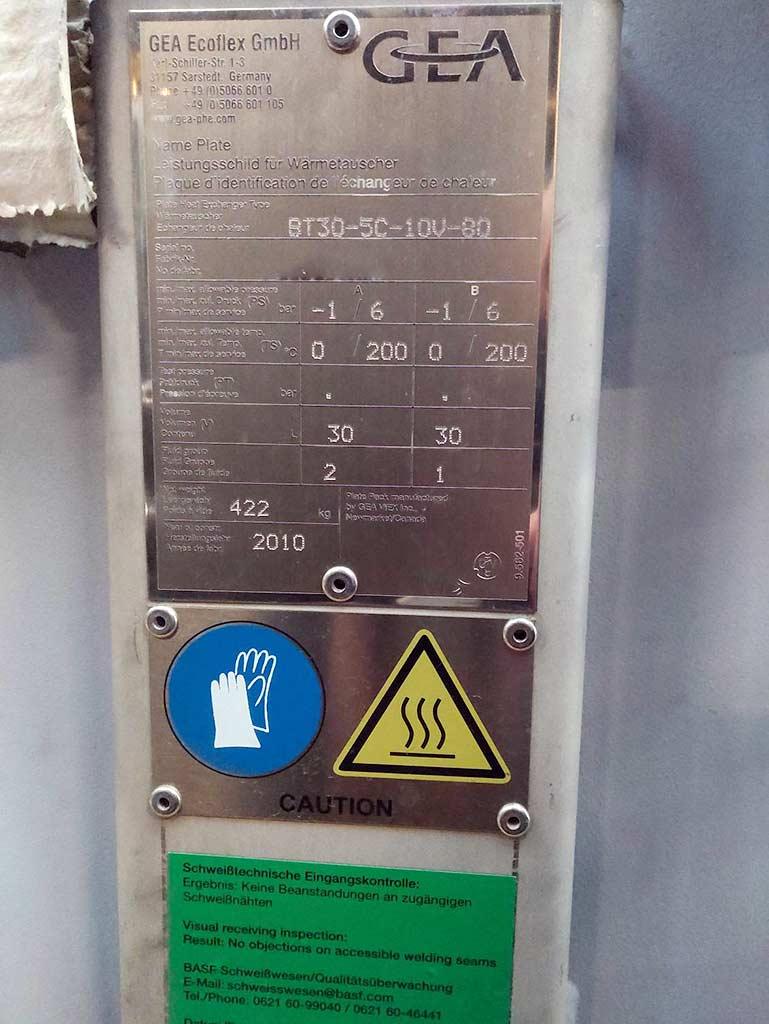

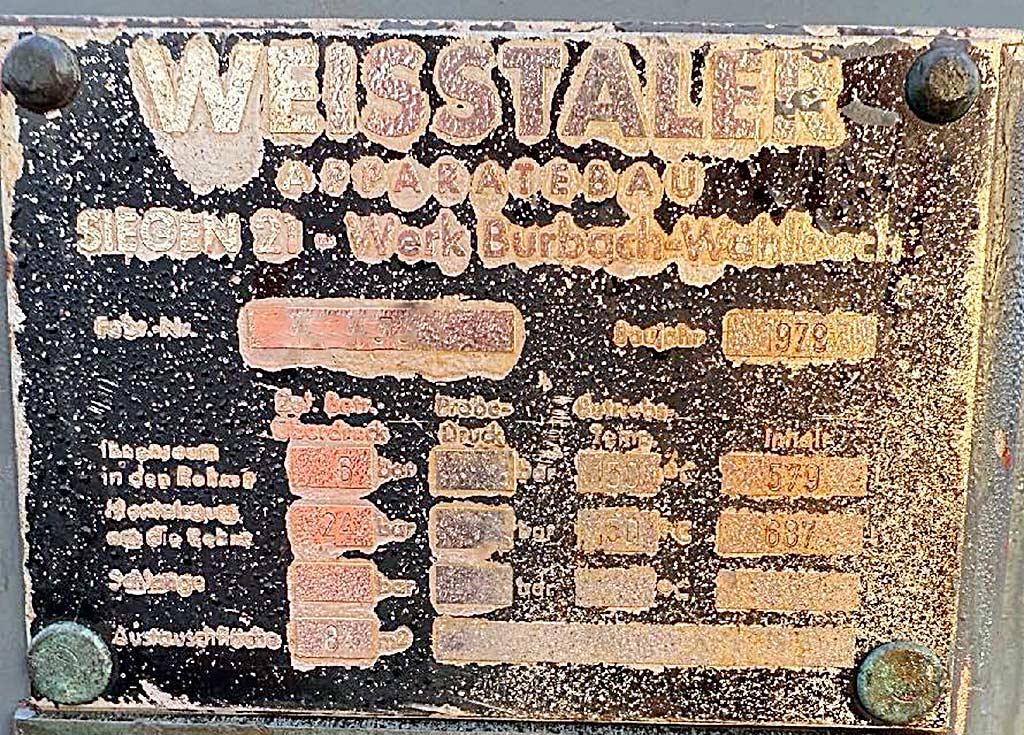

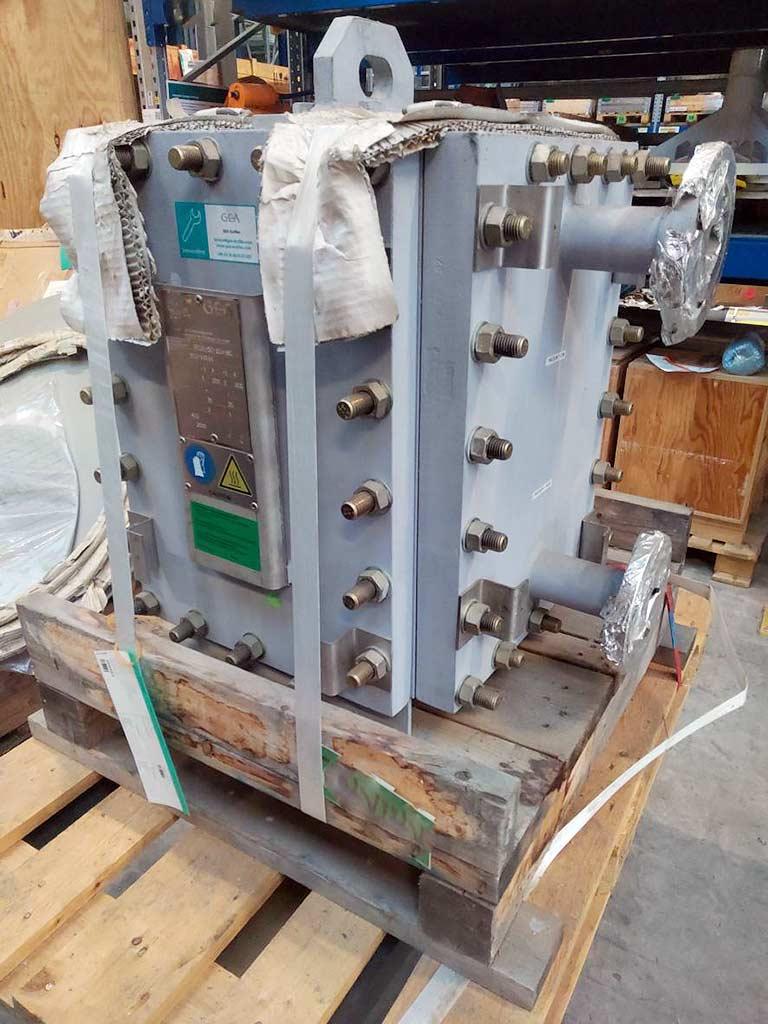

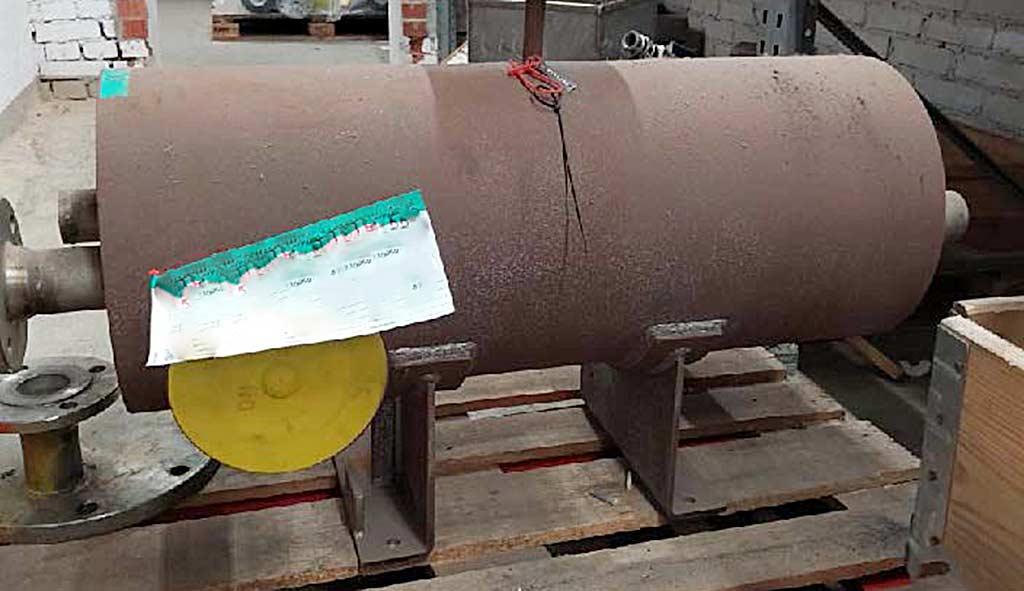

Four heat exchangers from various manufacturers are available. 1) Shell and tube heat exchanger K. Ley Maschinen- und Apparatebau, year of manufacture: 1999, material: stainless steel/cast iron, heat transfer surface: 30m²-40m², operating pressure inside/outside: 25bar/45bar, max. operating temperature: 250°C, internal/external volume: 290l/200l, machine dimensions X/Y: approx. 6400mm/400mm, weight: approx. 1800kg. 2) Shell and tube heat exchanger Wisstaler Hüttental, year of manufacture: 1979, heat transfer surface: 80m²-120m², max. operating temperature: 150°C, internal/external volume: 579l/1387l, machine dimensions X/Y: 2500mm/800mm, weight: approx. 2800kg. 3) Shell and tube heat exchanger Vehterus PSHE 3LL-270/5/5, year of manufacture: 2012, heat transfer surface: 19.9m², capacity: 245kW, operating pressure: 16bar, test pressure: 33bar, max. operating temperature: 110°C, internal/external volume: 21.4l/33.2l, machine dimensions X/Y: approx. 850mm/400mm, weight: approx. 300kg. 4) Plate heat exchanger GEA BT30-5C-10V-80, year of manufacture: 2010, heat transfer surface: 5m²-10m², max. operating temperature: 200°C, machine dimensions X/Y/Z: approx. 500mm/350mm/750mm, weight: approx. 520kg. Documentation available. An on-site inspection is possible. A package sale is preferred.

Additional Details
