Peddinghaus 1100 DG/PCD 1100

Germany

Description

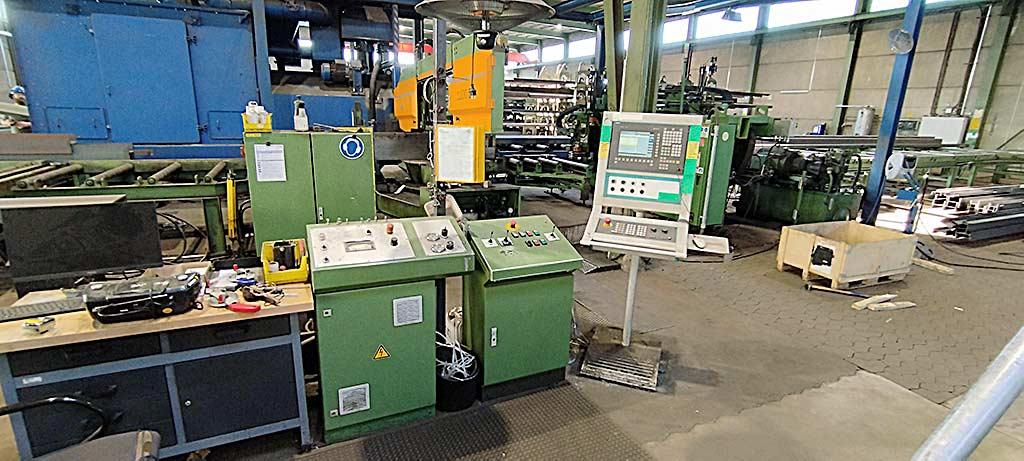

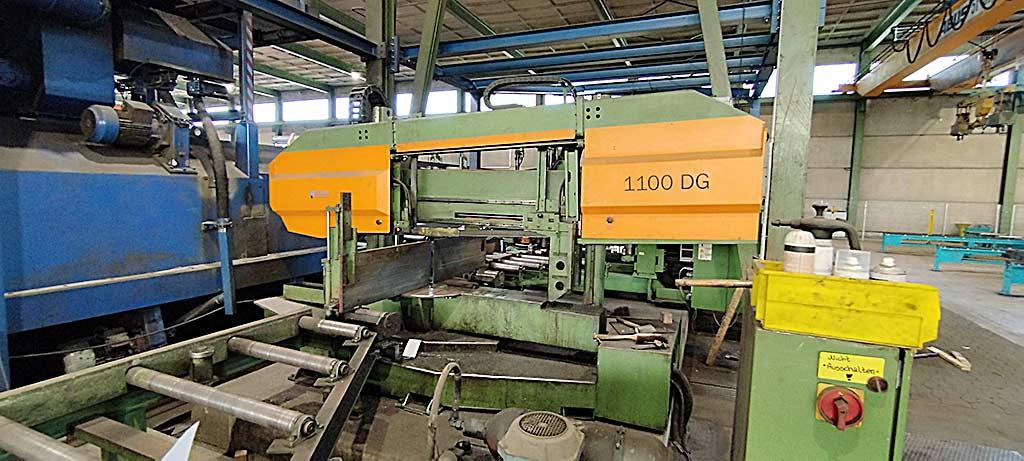

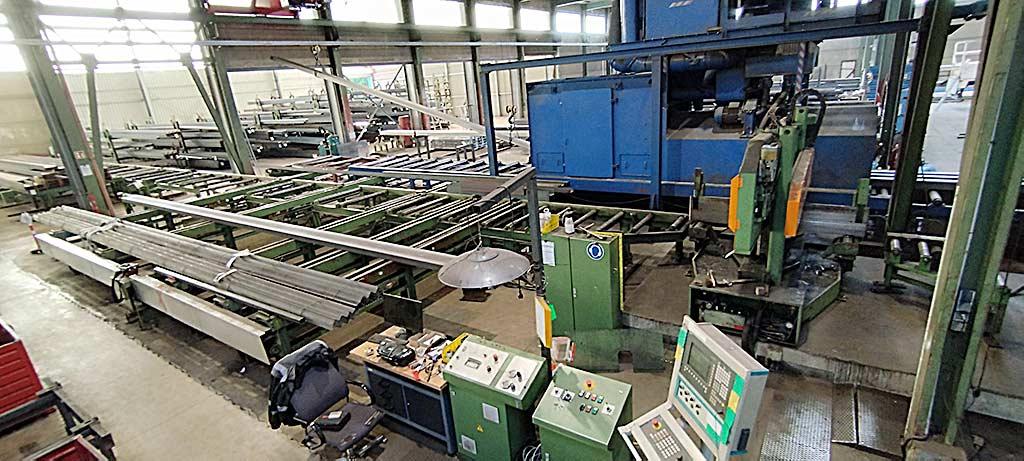

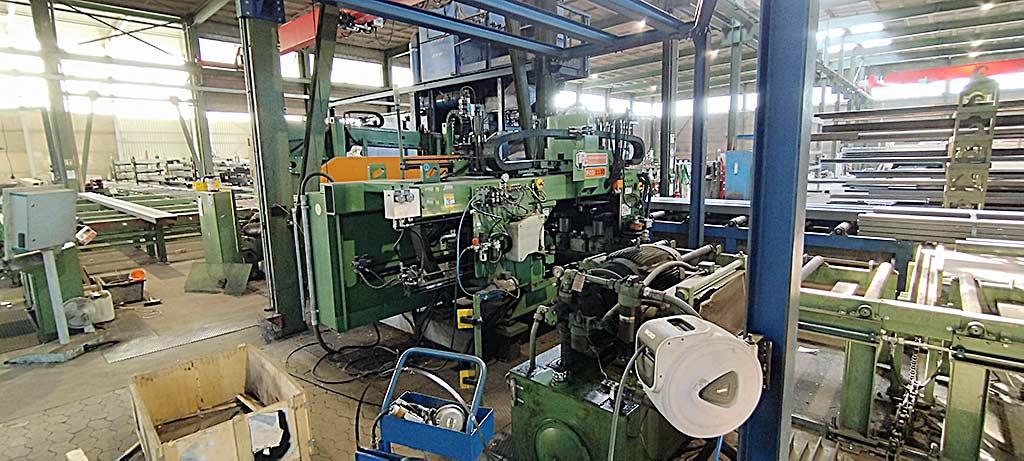

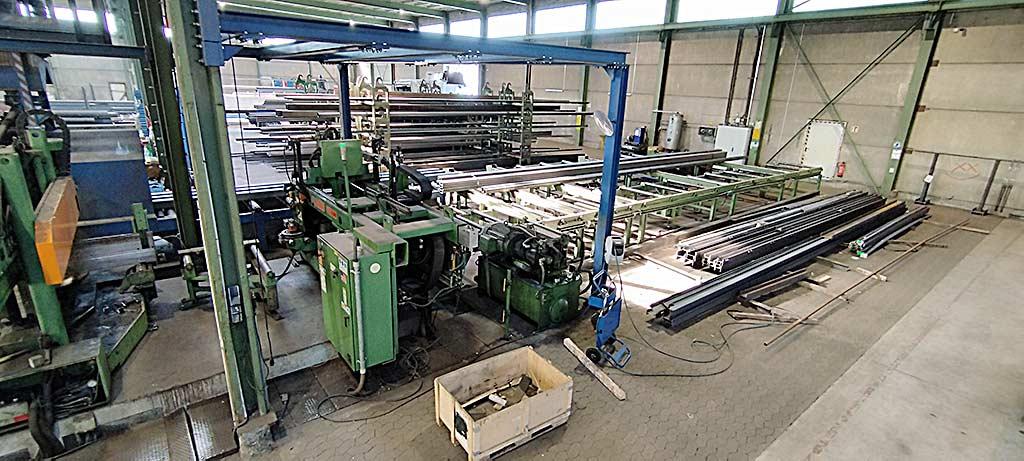

A Peddinghaus saw and drilling combination system is available. 1) Saw unit Peddinghaus 1100 DG, max. product diameter: 510mm, max. product dimensions X/Y: 1100mm/500mm, cutting speed: 150m/min, saw blade dimensions X/Y/Z: 9300mm/54mm/1.6mm, max. product weight: 500kg, working height: 630mm, system dimensions X/Y/Z: approx. 2000mm/4500mm/2300mm, weight: approx. 5500kg. 2) Drilling unit Peddinghaus PCD 1100, drilling spindles: 3, tool holder: MK4, spindle power: 10kW, spindle speed: 900rpm, spindle stroke: 330mm, travel path Y/Z: 470mm/1100mm, rapid traverse: 5m/min, feed rate: 300mm/min, max. hole diameter: 40mm, product thickness range: 6.3mm–460mm, product width range: 76mm–1100mm, min. product length: 1575mm, max. product weight: 8165kg, clamping pressure vertical/horizontal: 800kg/2200kg, machine dimensions X/Y/Z: approx. 2400mm/1900mm/4500mm, weight: approx. 6000kg, control system: Siemens 840D i. Without roller conveyor for saw. Including cross conveyor. The saw shows a hydraulic leak, the chip brush motor is defective, and the spindle may require repair. Documentation available. On-site inspection possible.
