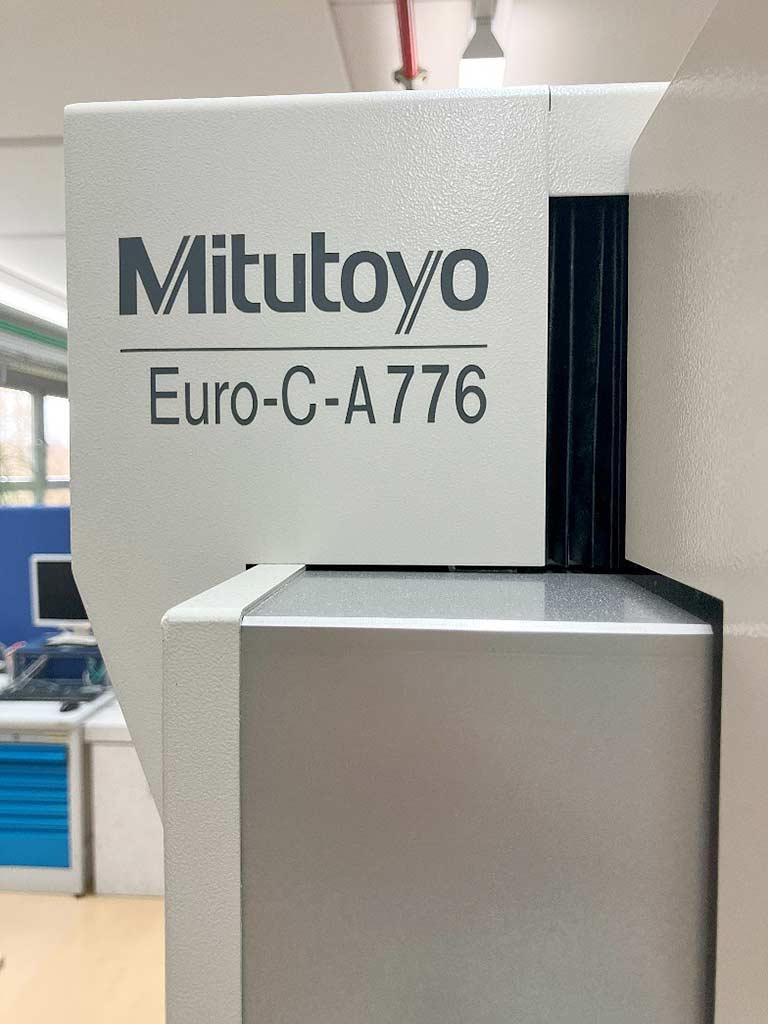

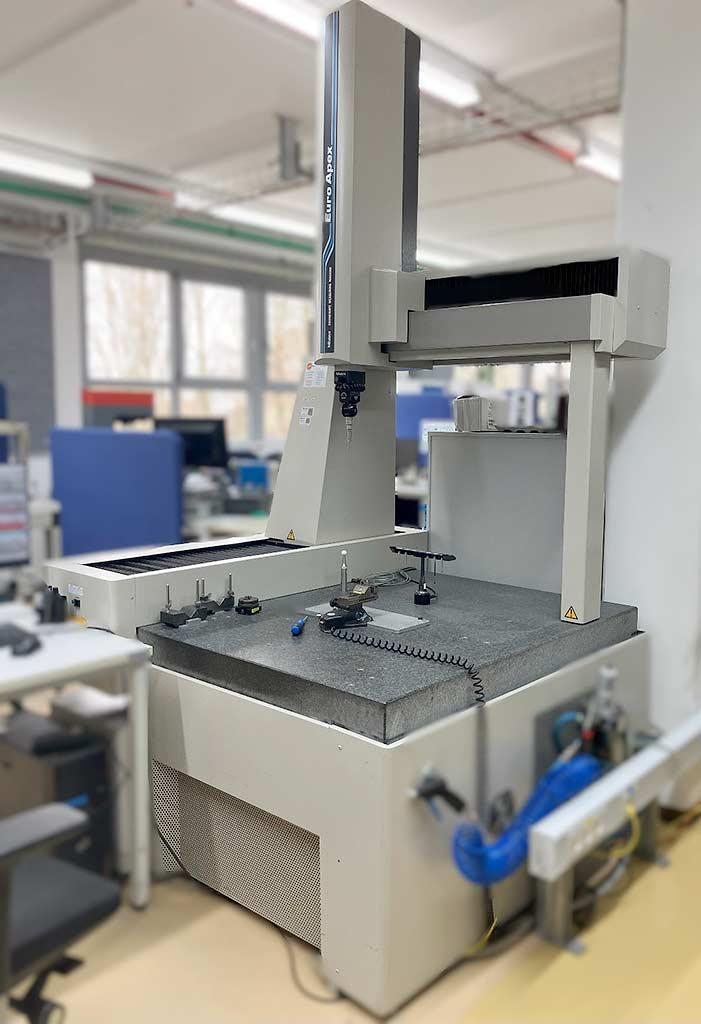

CNC Coordinate Measuring Machine Mitutoyo Euro-C Apex 776
Specifications
Germany
Description

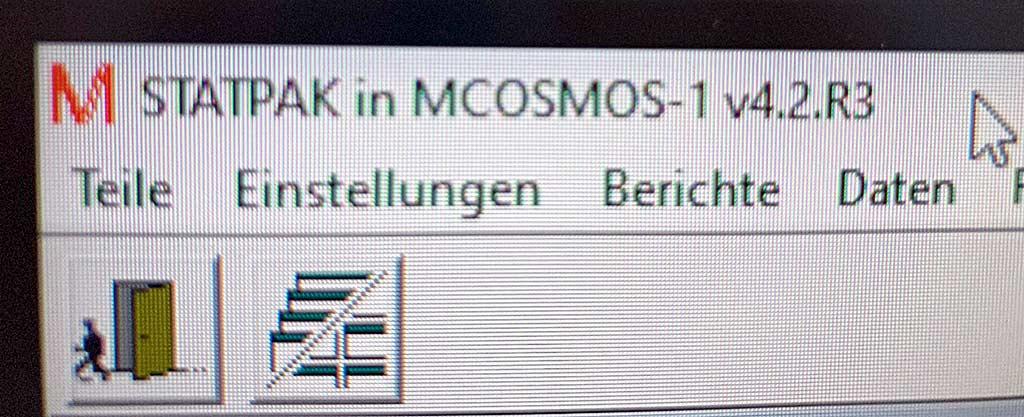

A Mitutoyo CNC coordinate measuring machine calibrated at the end of 2024 is available. Measuring dimensions X/Y/Z: 705mm/705mm/60mm, traversing speed: 250mm/s, measuring speed: 1-3mm/s, acceleration: 980mm/s², resolution: 0.0005mm, table dimensions X/Y: 870mm/1320mm, max. workpiece height: 740mm, max. workpiece weight: 500kg. Machine dimensions X/Y/Z: approx. 1500mm/1550mm/2700mm, weight: approx. 1300kg, control: STATPAK in MCOSMOS-1 v4.2.R3. Documentation available. On-site inspection is possible. Expected to be available from the end of June 2025.
Additional Details
