Edge Banding Machine Homag Optimat KL 78/A3/S2

Germany

Description

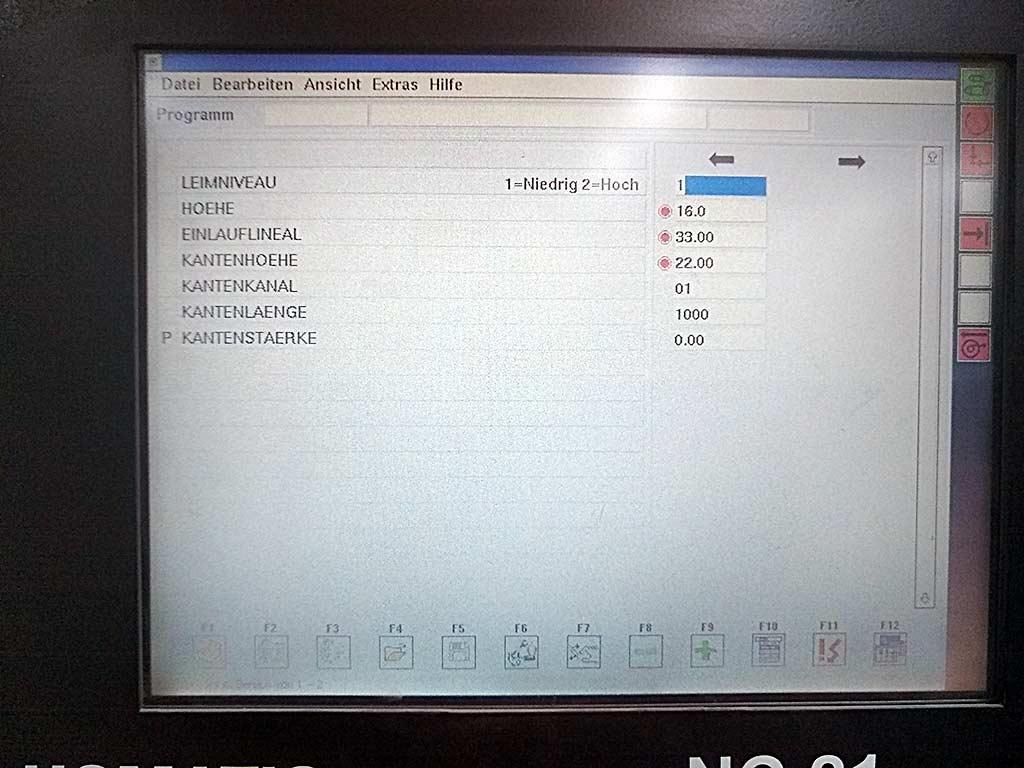

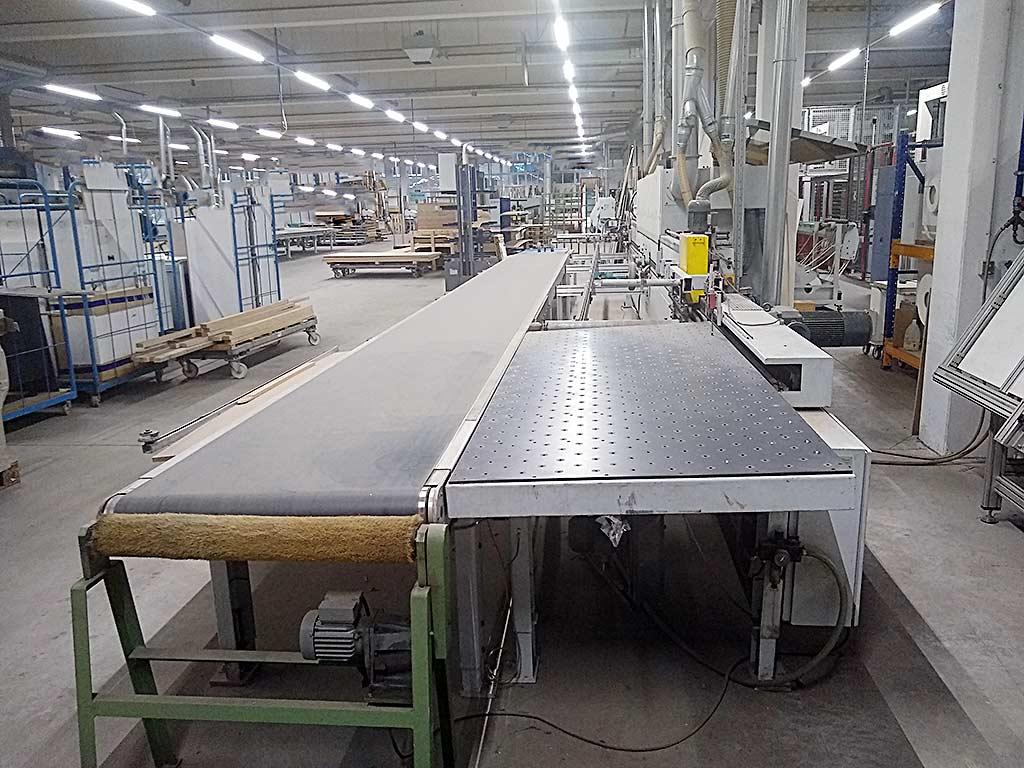

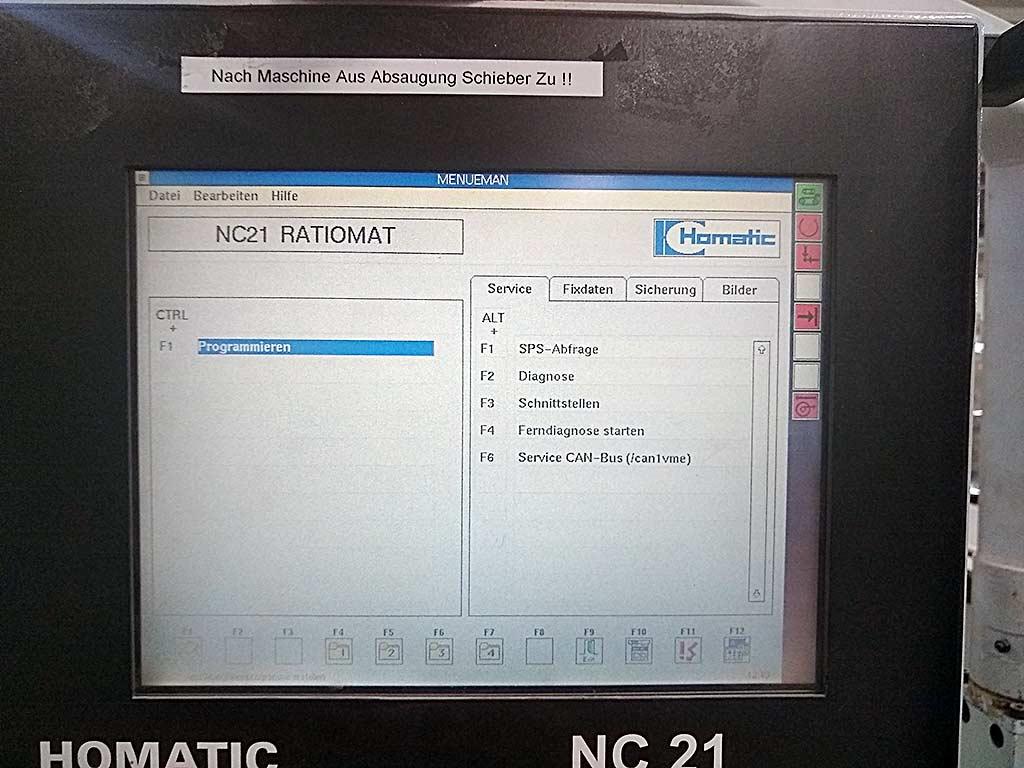

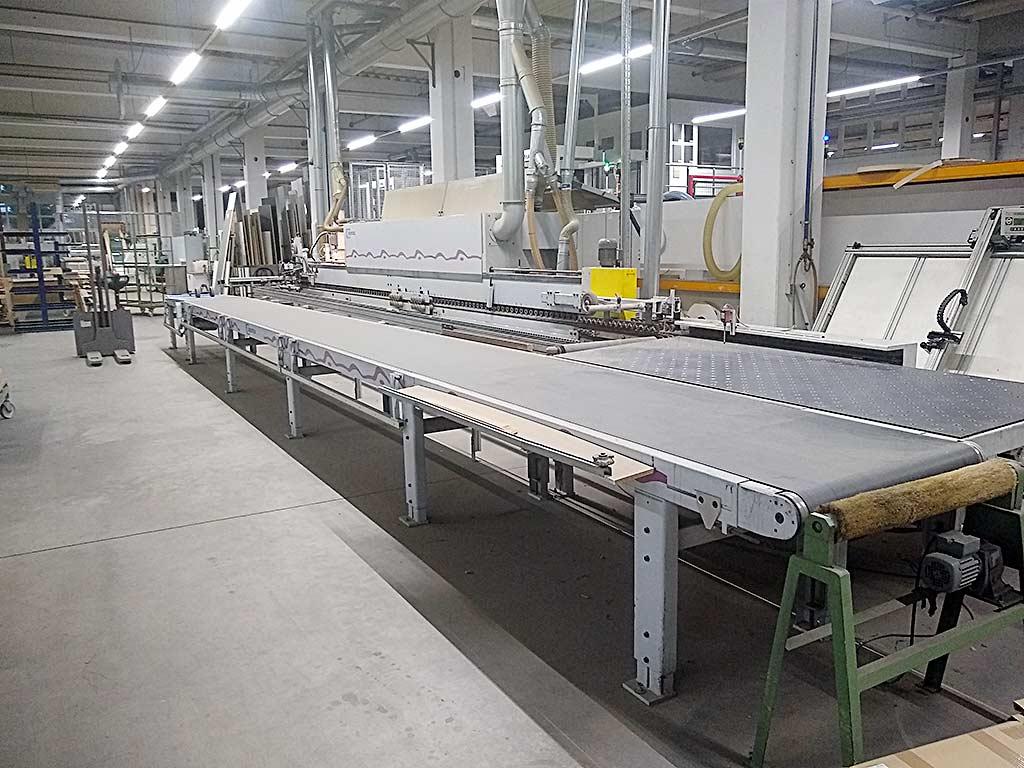

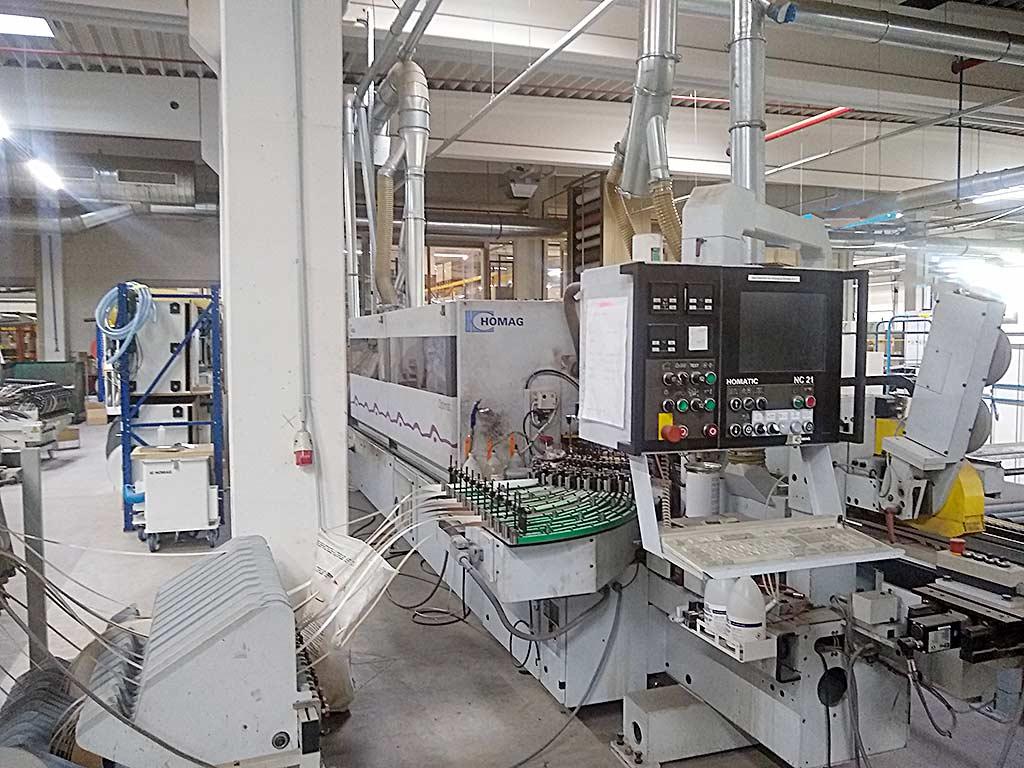

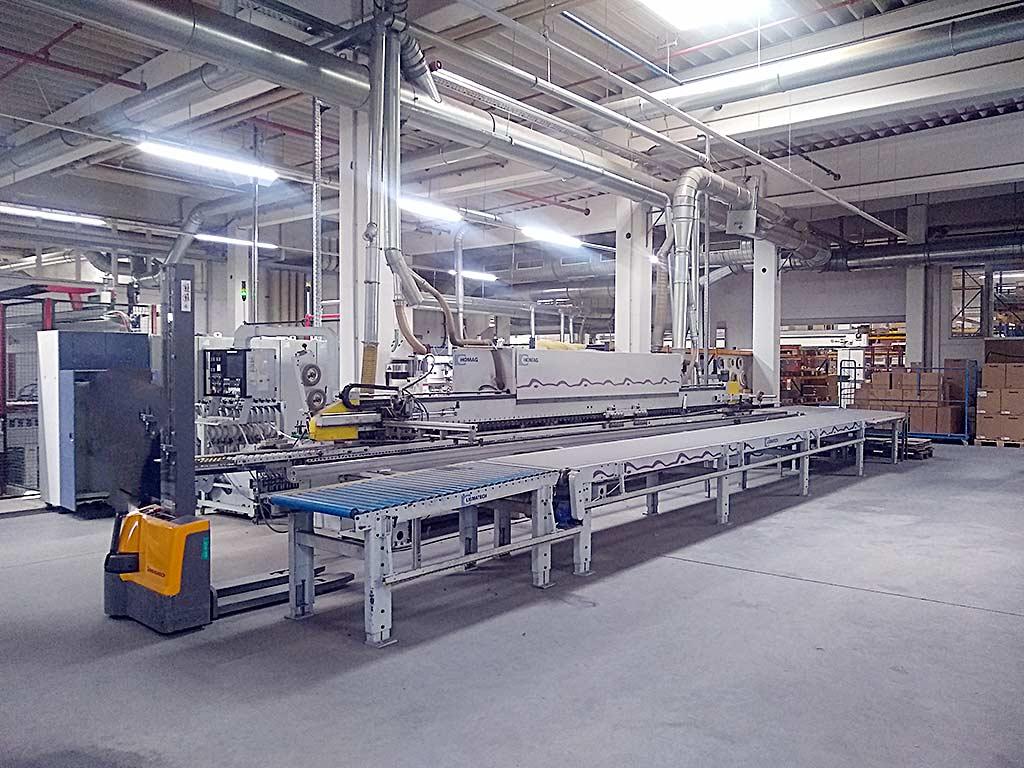

A Homag edge banding machine with a Ligmatech return is available. Workpiece thickness range: 12mm-60mm, min. workpiece width at 22mm thickness: 55mm, min. workpiece width at 60mm thickness: 100mm, max. workpiece protrusion: 30mm, edge material (strip): 0.4mm-20mm, edge material (roll): 0.3mm-3mm, max. roll diameter: 830mm, transport chain width: 80mm, feed speed: 18m-24m/min, control: Homatic NC 21. Components: Jointing cutter, gluing part, cross-cut saw, pre-milling cutter, contour cutter, grooving saw, radius scraper, glue joint scraper, buffing disk, edge magazine and return. Documentation available. On-site inspection is possible.
