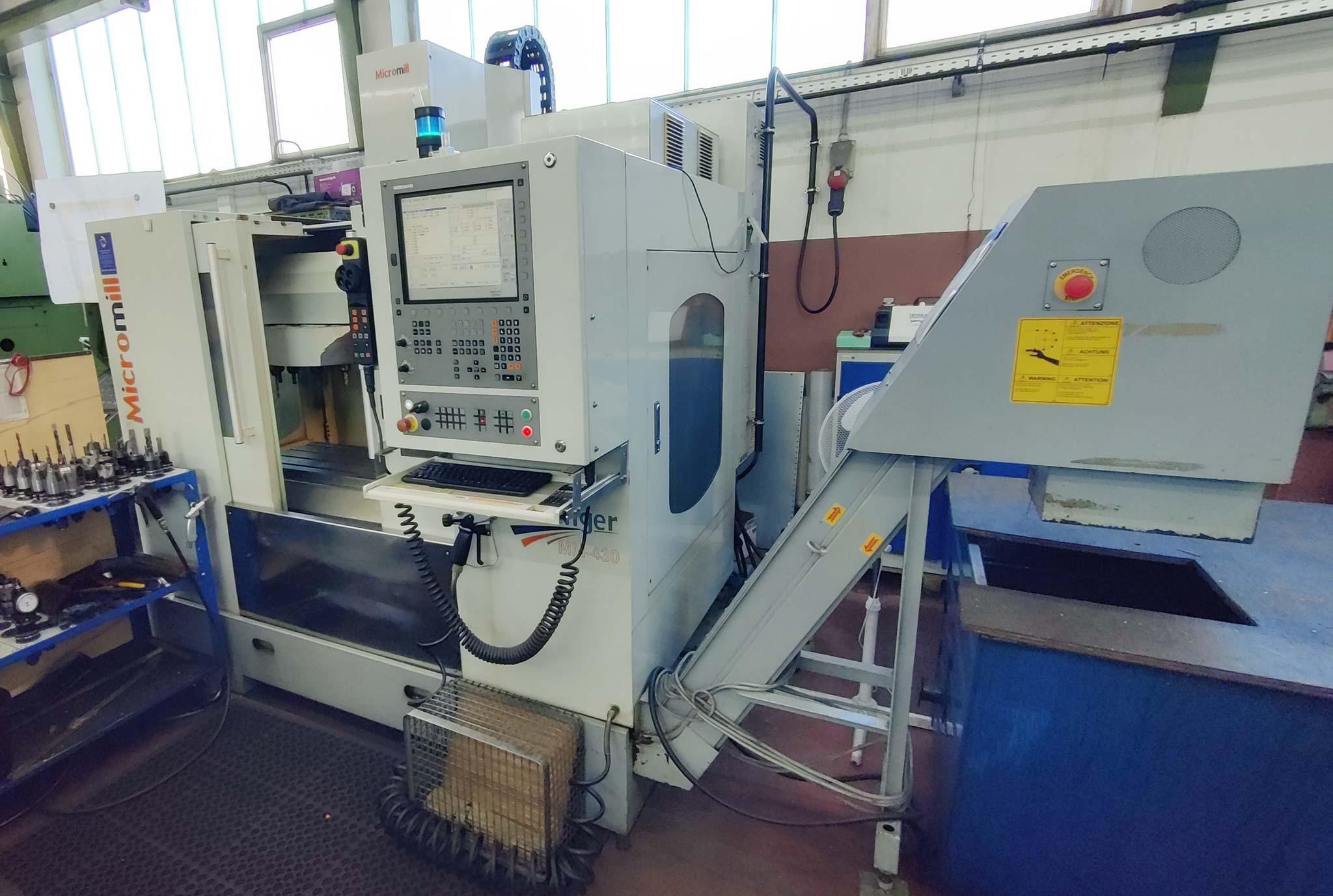

Vertical Machining Center Buffalo Machinery Micromill Challenger MM-430

Germany

Description

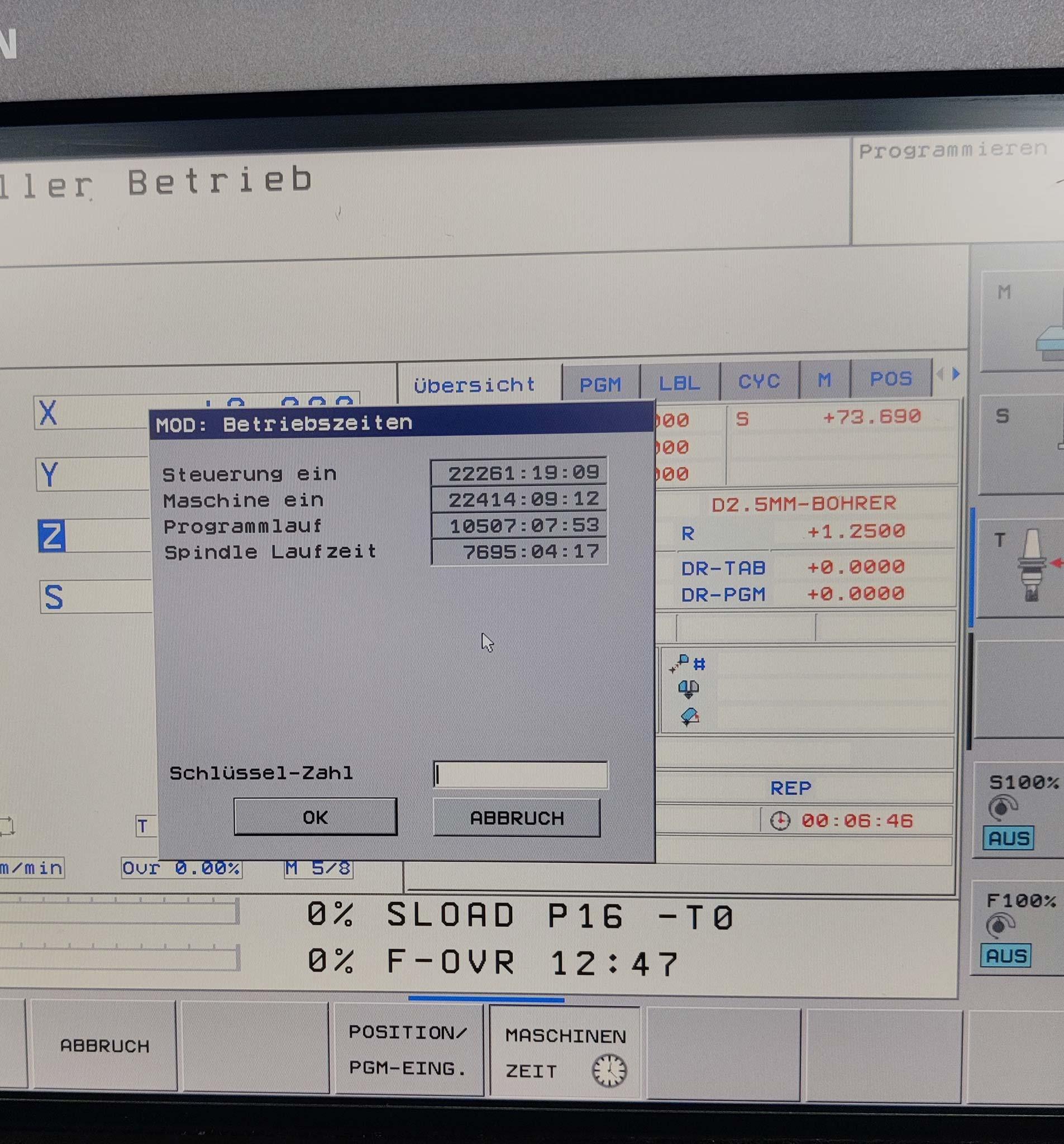

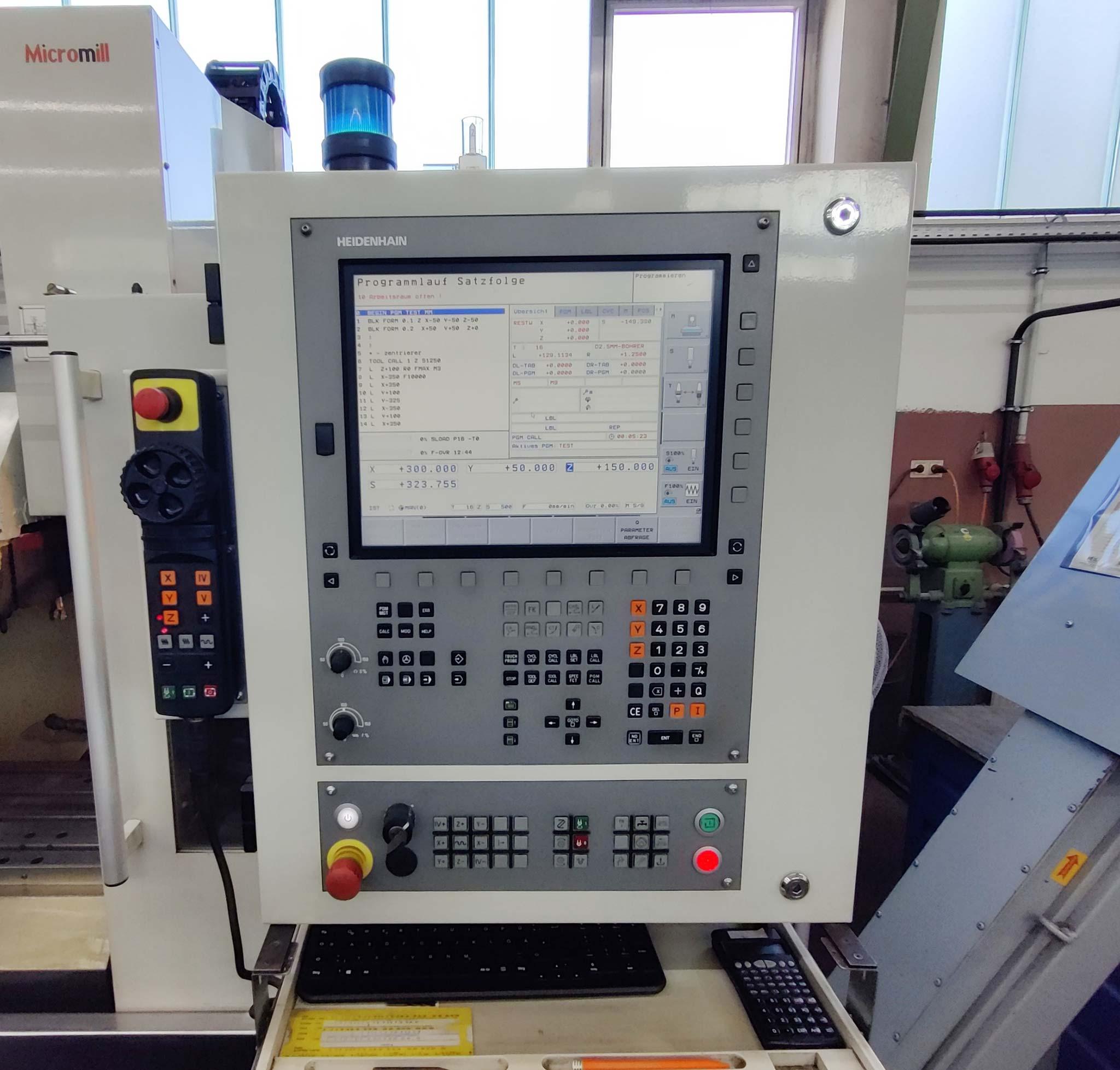

X-axis: 300mm, y-axis: 620mm, z-axis: 400mm, positioning accuracy: ±0.005 inch, repetition accuracy: 0.005 inch, rapid traverse: 25m/min, feed rate: 10m/min, air pressure: 6kg/cm², air consumption: 400l, pump motor: 30W, delivery rate: 2.2cm³/s, pump pressure: 8kg/cm², tank capacity: 2l, pump electrics: 220V/ 3PH/ 1.2A, max. delivery rate: 130l/min, control: Heidenhain TNC 620, connected load: 15kVA, length: 3000mm, width: 2050mm, height: 3020mm, weight: 3020kg. max. flow rate: 130l/min, control: Heidenhain TNC 620, connected load: 15kVA, length: 2984mm, width: 2050mm, height: 2420mm, weight: 3020kg. Operating hours control: 22,261h, machine: 22,414h, programme: 10,507h, spindle: 7695h. Fully functional, spindle was recently replaced, the built-in oil skimmer in the cooling water tank is not functional. With documentation. On-site inspection is possible.
