Robot Welding Cell Igm RTE 497-S

Germany

Description

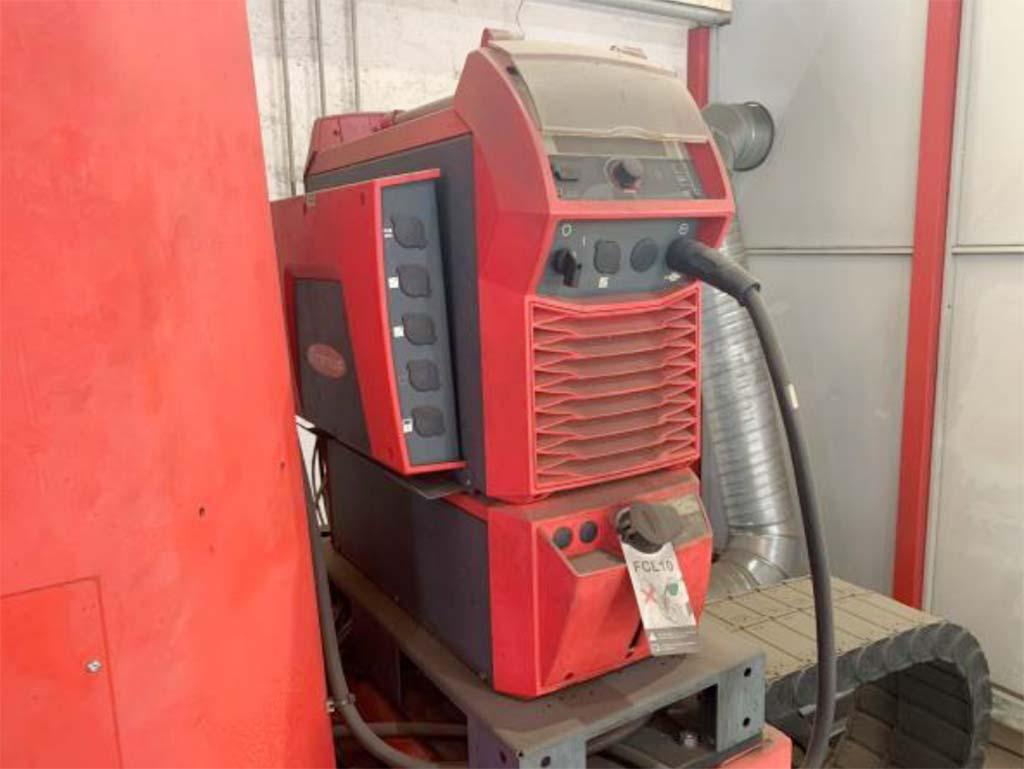

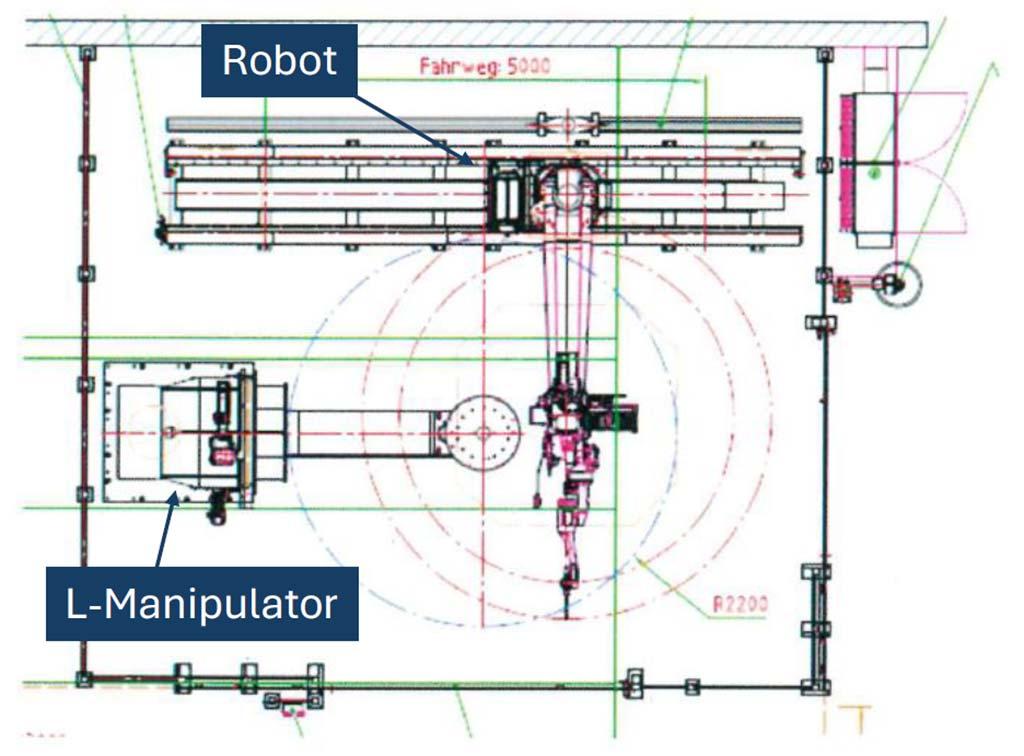

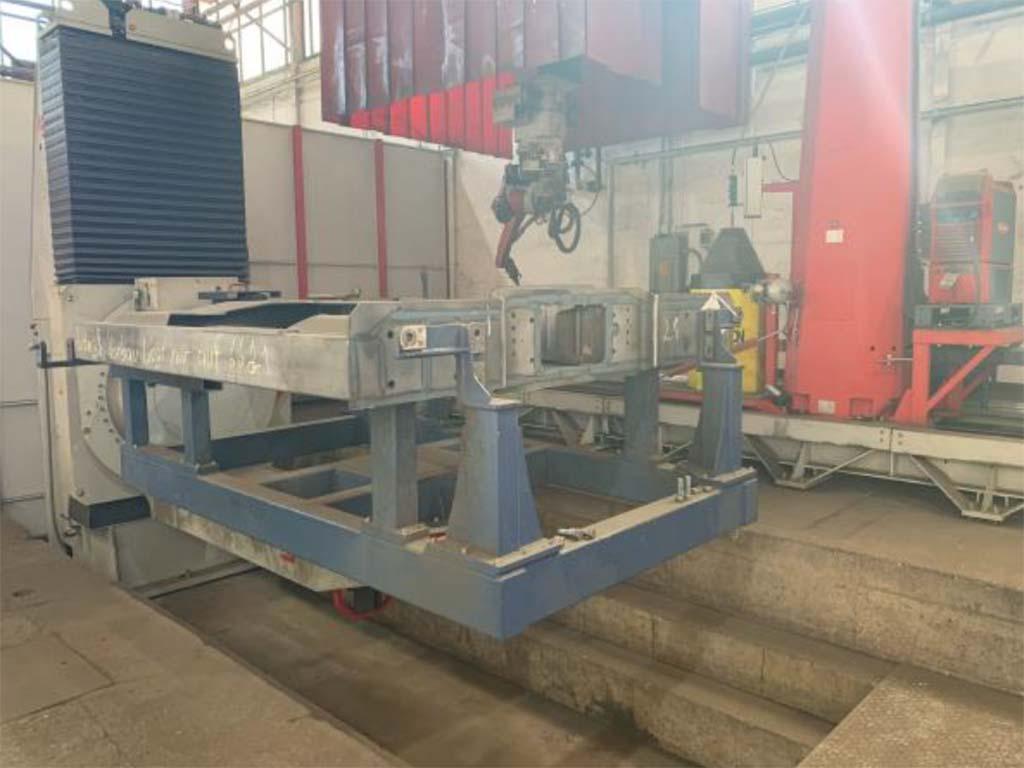

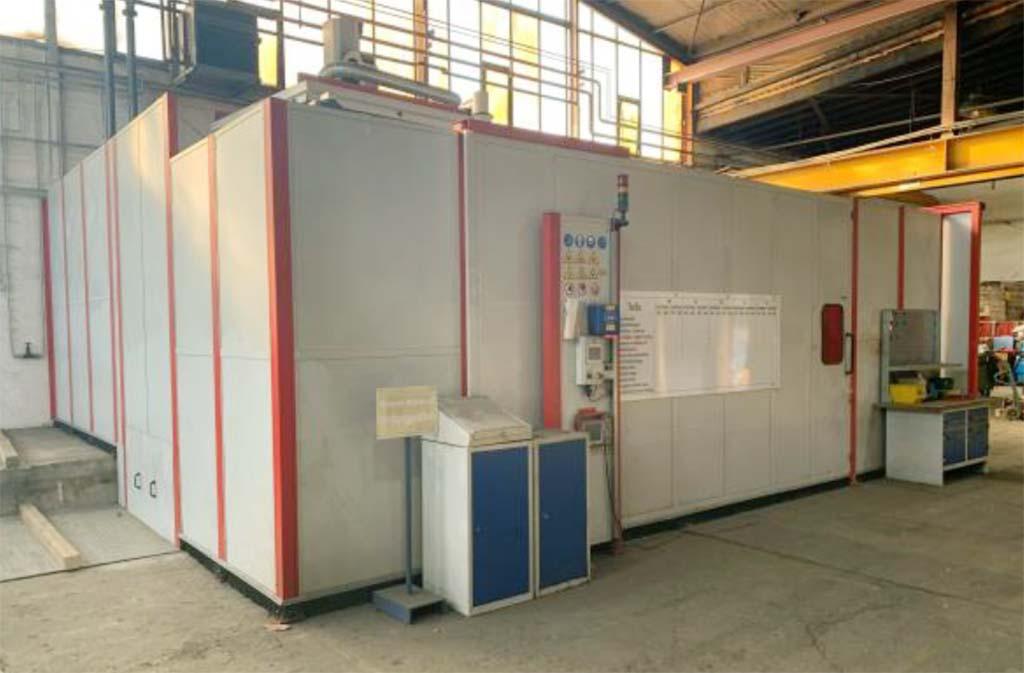

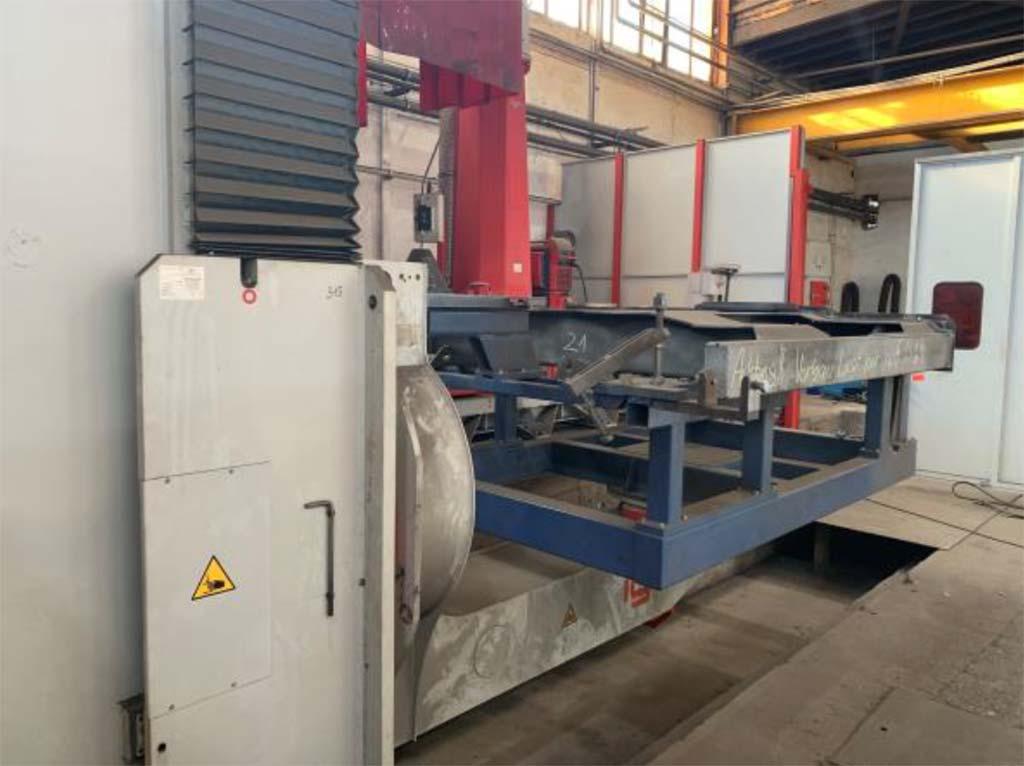

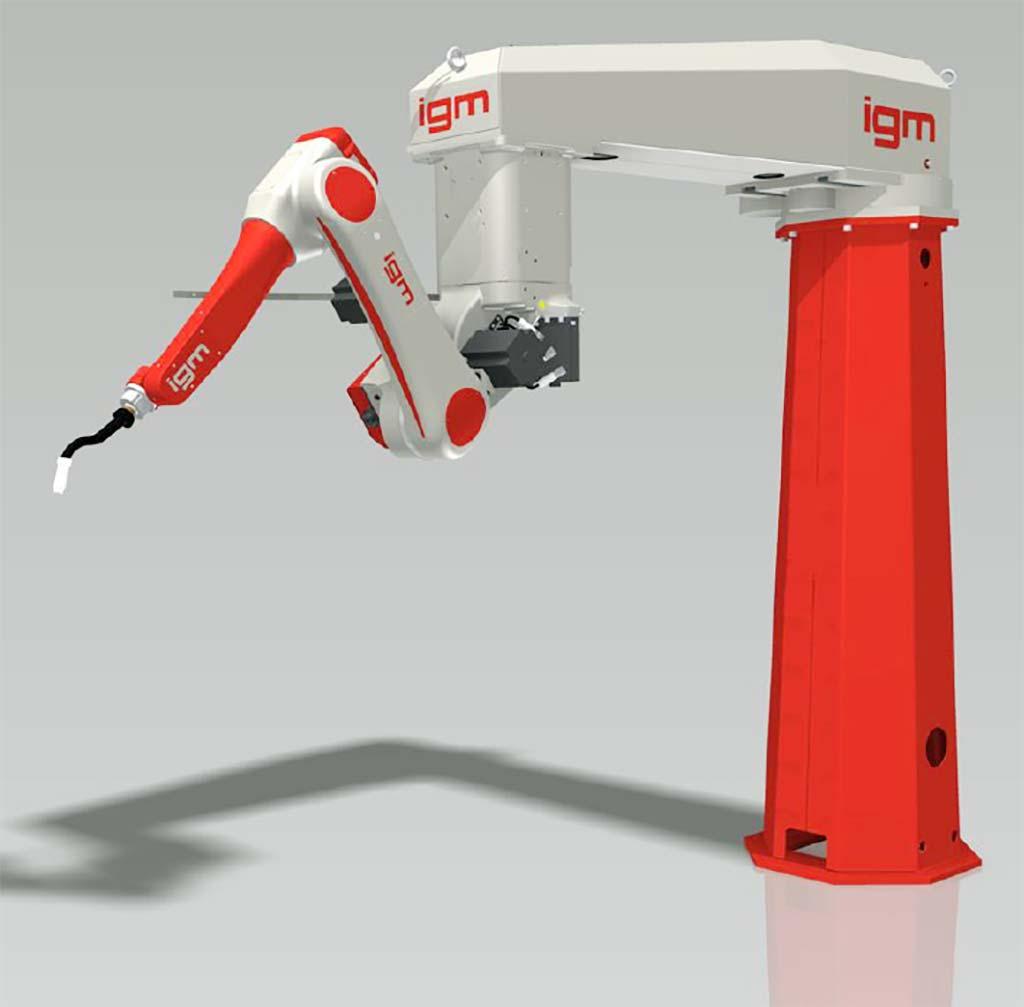

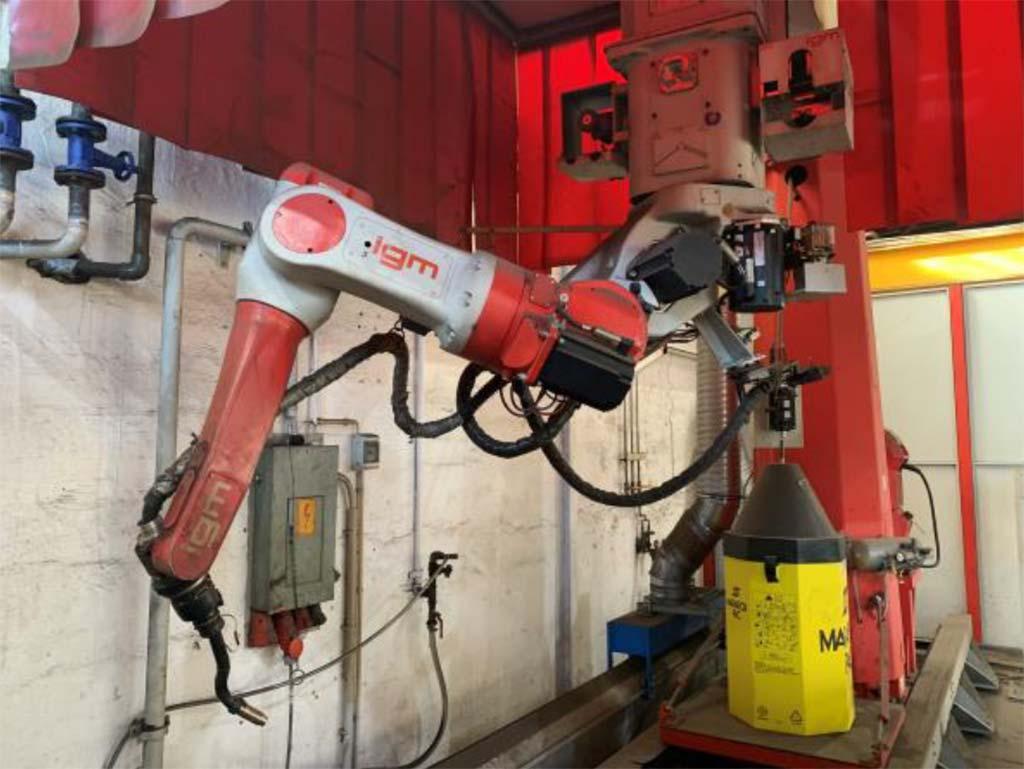

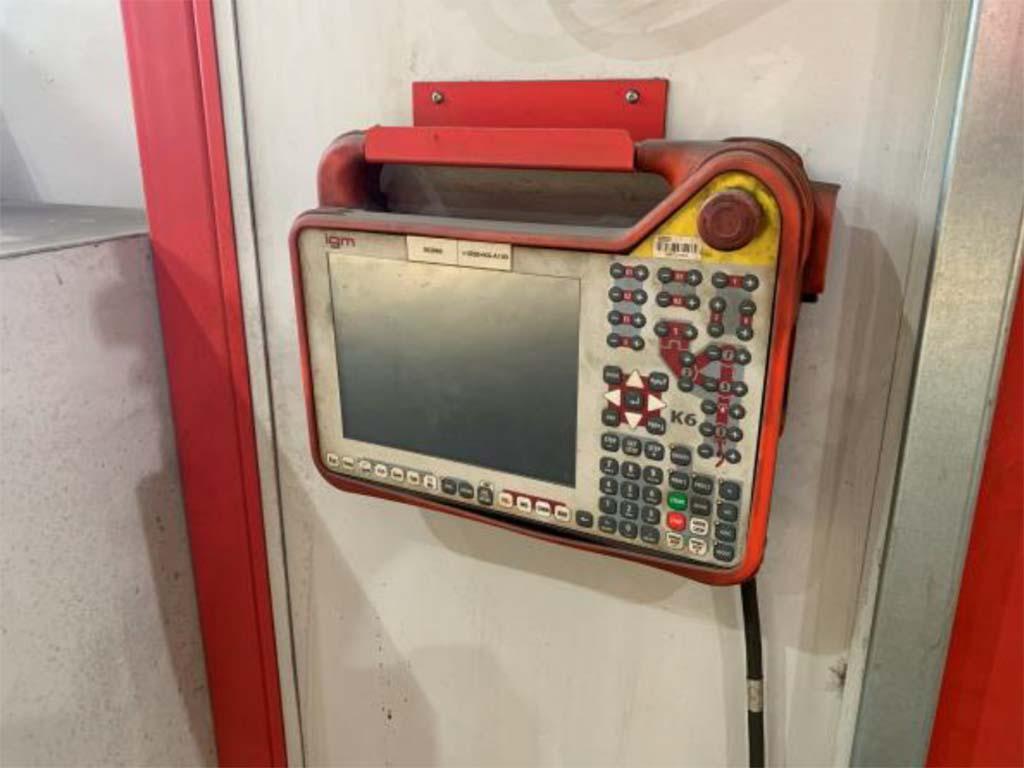

Robot travel path: 5000mm, arm length: 2500mm, lift: 1000mm, spin radius: 2200mm, L-manipulator load capacity: 2000kg, lift velocity: 0,85m/min, swing speed: 1,7/min, turn speed: 6/min. Roboter type: IGM RTE 497-S in hanging position, control: full digital PC-Robotcontrol, Type RCE, software: WIN 10 & Linux based System + igm Robotsoftware K6, welding process: 135 (GMAW), single-wire, Ø1,2mm, welding power source: digital Invert Welding Power Source TPS 500i (500A at 40% duty cycle), robot periphery: rotating boom for floor installation with 2,5m boom length, number of working stations: 1, working station: 3-axis L-Manipulator with lifting device with 2t nominal load capacity, security Technology: Pistol-Security-Shut-down in wrist axis, emergency Stop on Handtablet, on Manipulators and Control Panel, three-coloured warning light for the operating Status partition, security Door. machine is complete, no defects known, documentation complete, was maintained regularly. An on-site inspection is possible.
