CNC Circular Saw Mep Tiger 372 CNC LR 4.0

Germany

Description

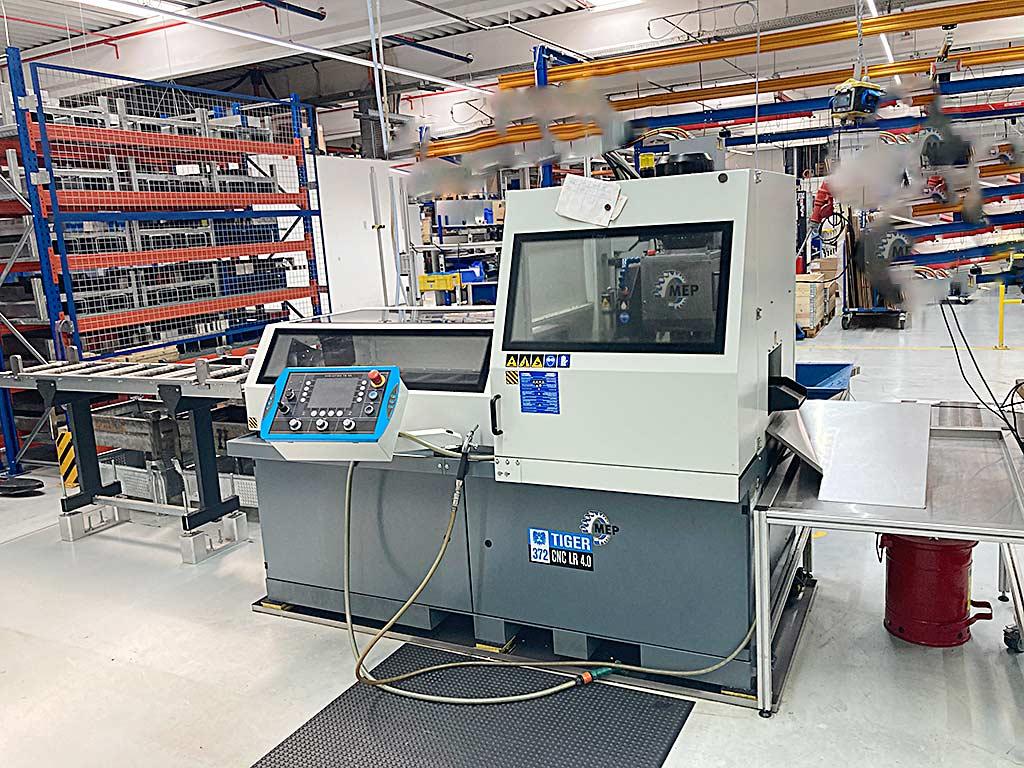

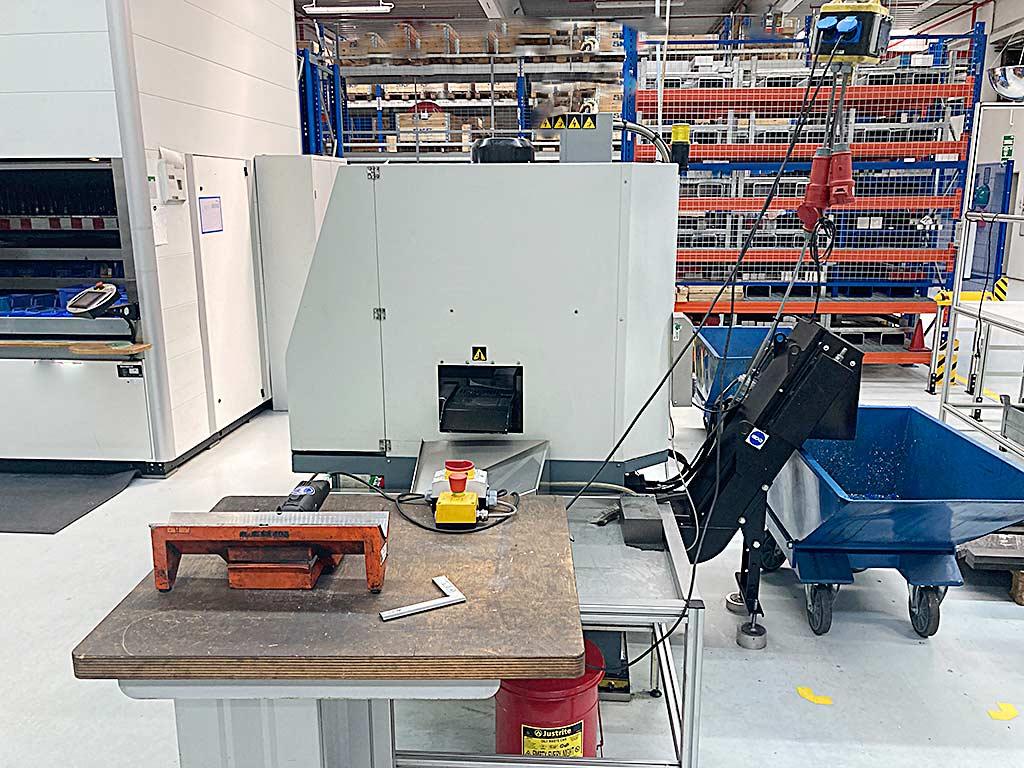

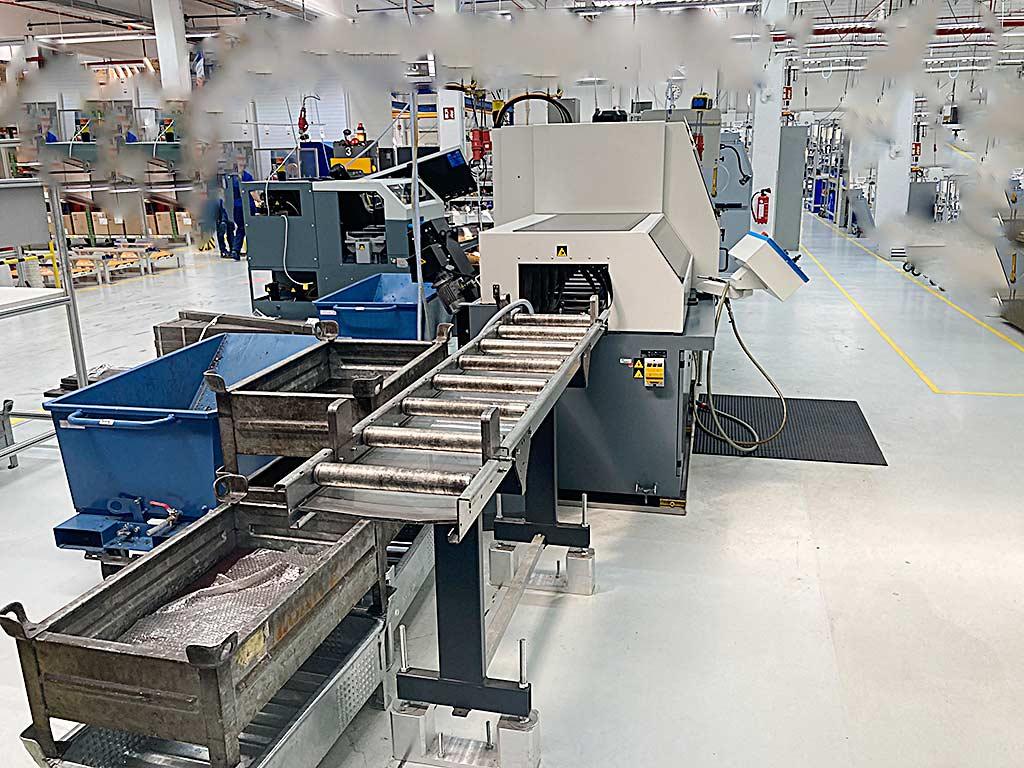

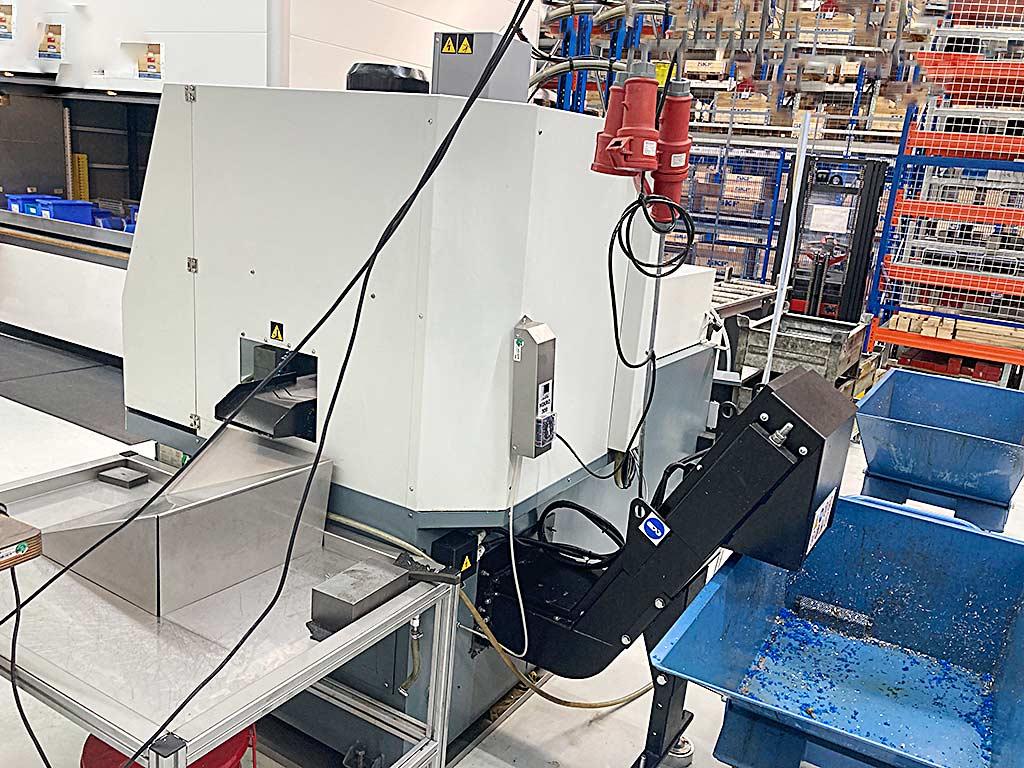

An automatic electromechanical MEP vertical circular saw is available. Cutting range at 0°: round material: 120mm, square material: 110mm, flat material: 180mm/100mm. Cutting range at 45° left: Round material: 115mm, square material: 100mm, flat material: 120mm/100mm. Cutting range at 45° right: round material: 115mm, square material: 100mm, flat material: 120mm/100mm. Cutting range at 60° left: Round material: 115mm, square material: 90mm, flat material: 90mm/90mm. Mitre range: -45°/+60°, saw blade diameter: 370mm, saw blade holder: 32mm, cutting speed: 150rpm, bar insertion: 3000mm, stroke: 1000mm. Machine dimensions X/Y/Z: approx. 2500mm/1850mm/1900mm, weight: approx. 1060kg, control: MEP 40 CNC. Including chip conveyor and cooling lubricant system. Documentation available. On-site inspection is possible.

Additional Details
