Stencil Printer Dek Horizon 03l
Specifications
Germany
Description

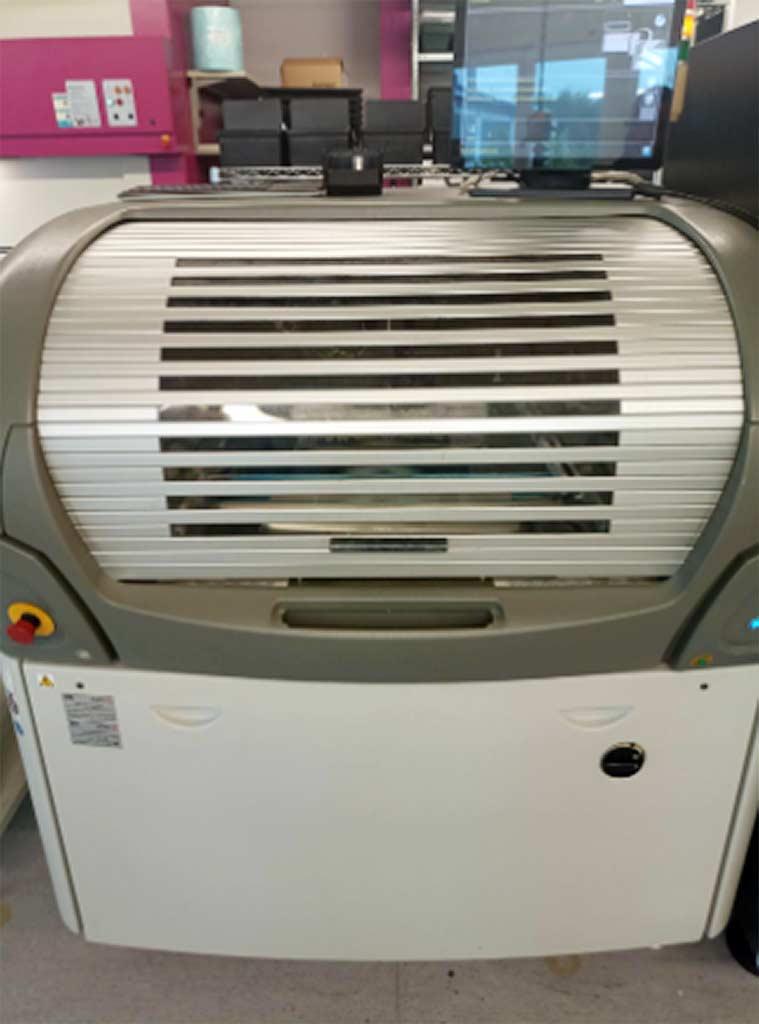

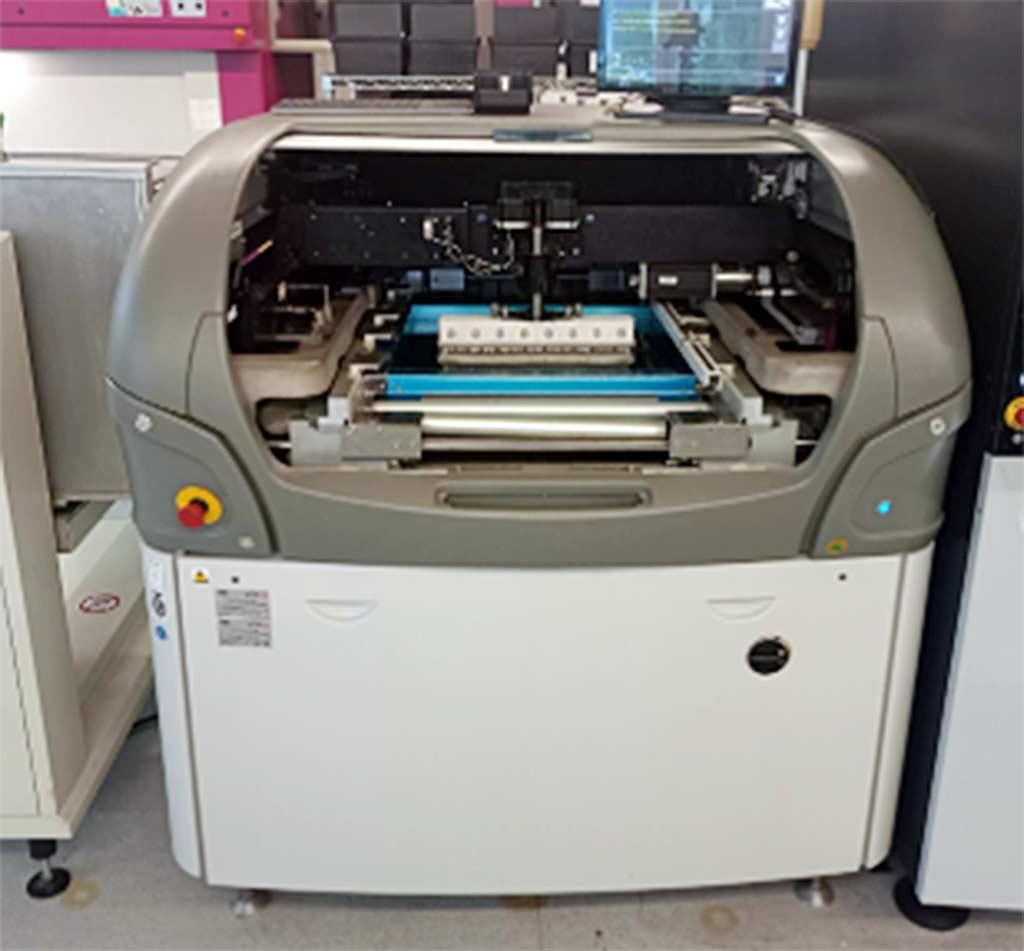

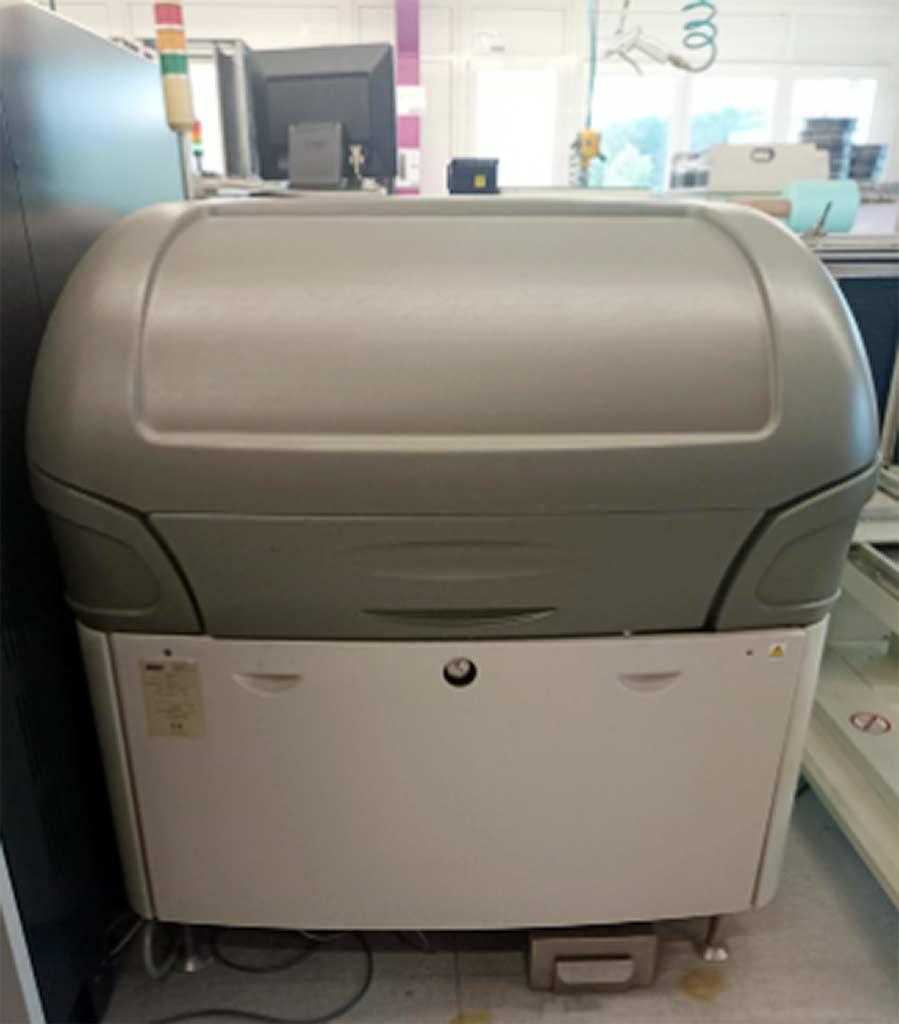

A DEK inline stencil printer is available for SMT production. Print accuracy at 1.33 Cpk: +/-25µm, max. PCB dimensions X/Y: 508mm/508mm, print speed: 150mm/s, print force: 20kg, print gap: 0mm-6mm, stencil separation: 0mm-3mm, PCB thickness range: 0.2mm-6mm, max. PCB weight: 1kg, max. warpage including PCB thickness: 8mm, component ground clearance: 3mm-42mm, transfer height range: 840mm-980mm, stencil loading height range: 925mm-1065mm, machine dimensions X/Y/Z: approx. 2100mm/1500mm/1600mm, weight: approx. 800kg. Documentation available. On-site inspection is possible. Expected to be available from August 2025.
Additional Details
