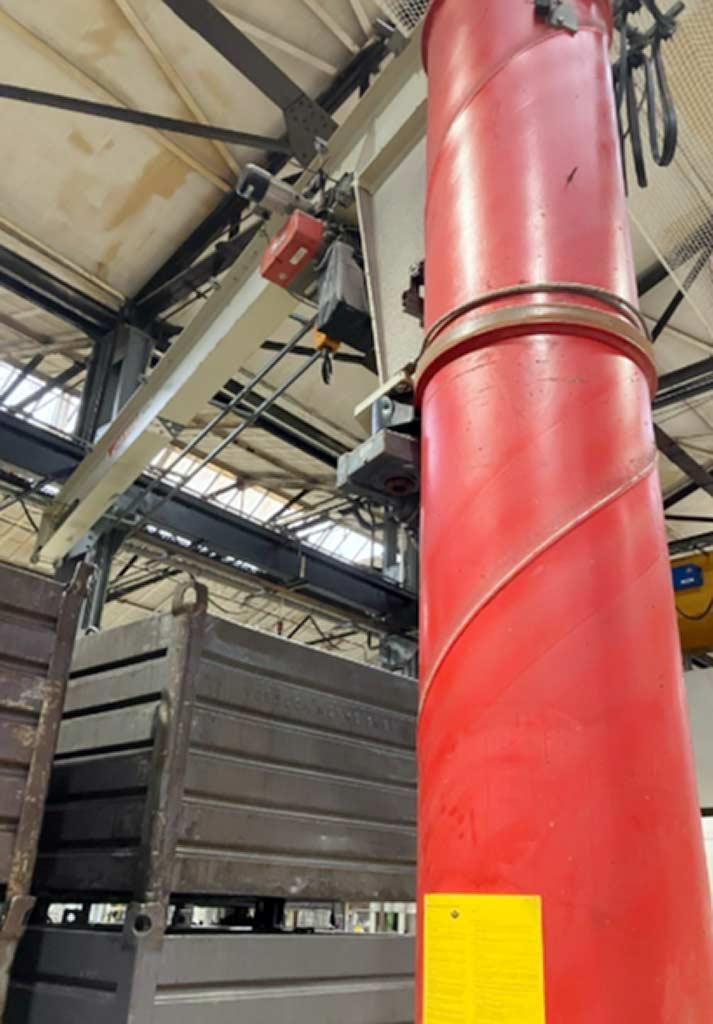

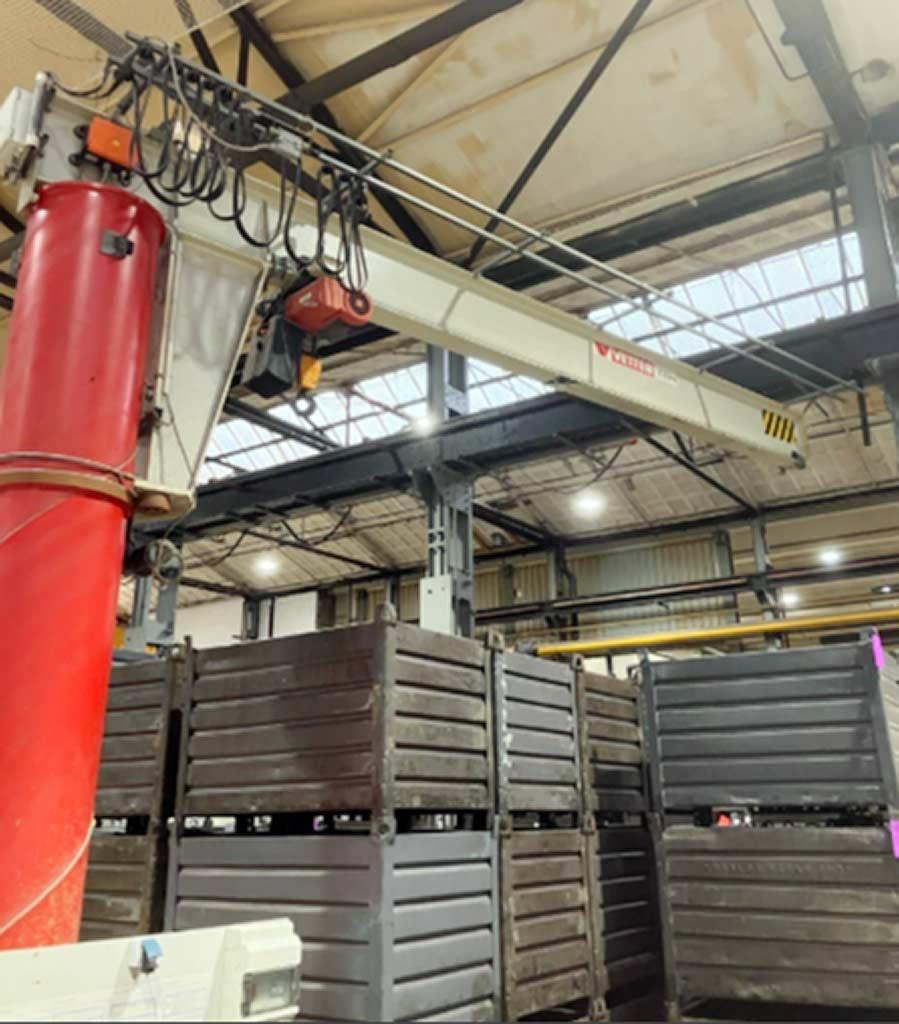

Column-Mounted Slewing Crane Vetter Meister M25-6,0

Germany

Description

Swivel range: 304°, load capacity: 2500kg, max. hoist weight: 225kg, max. lifting speed: 16m/min, outreach: 6000mm, lifting height: 4000mm, lower edge jib: 4680mm, overall height: 5250mm, beam flange width: 200mm, jack length: 1540mm, diameter flange/hole circle: 810mm/730mm, foundation edge length: 2750mm, electric chain hoist Liftket, overall height: 659mm, main lift: 5000mm/min, fine lift: 1250mm/min, main and fine speed: 20m/5m/min, weight: approx. 2000kg. Documentation available. On-site inspection is possible.
