Cut-to-Length Line Fröhling 30/600 B

Germany

Description

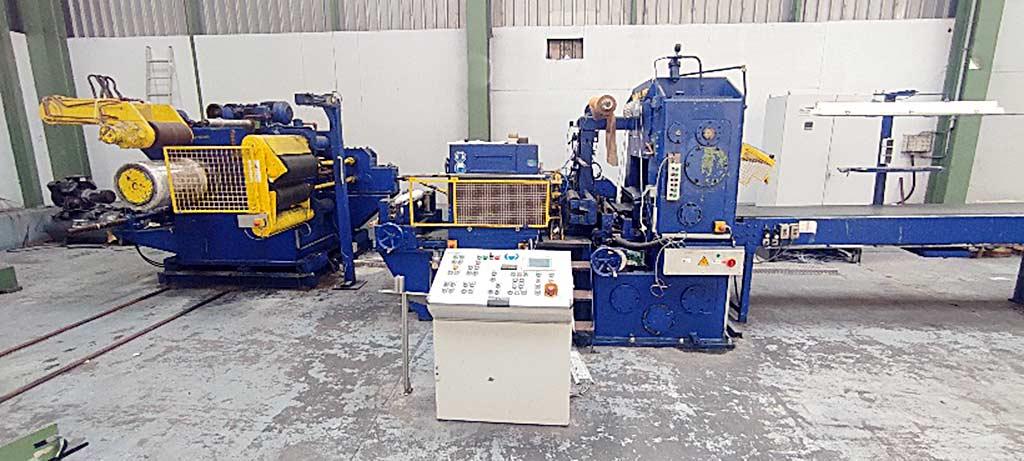

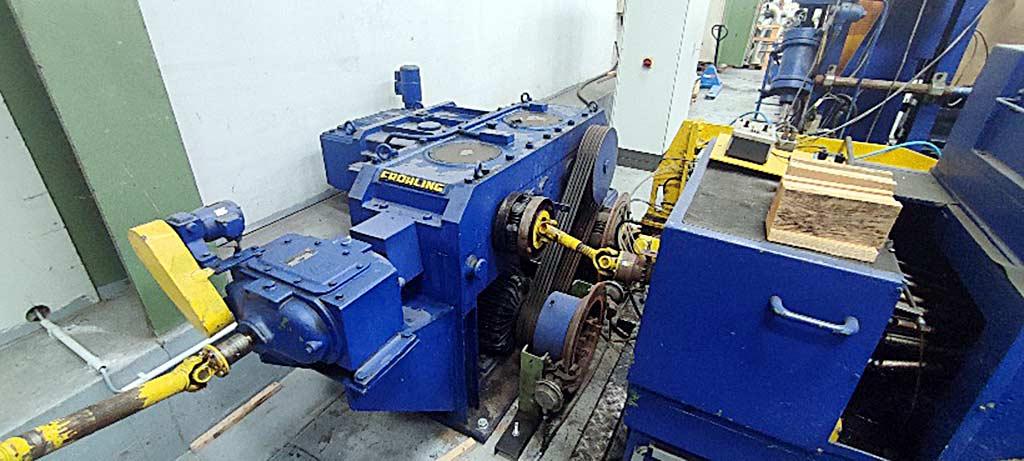

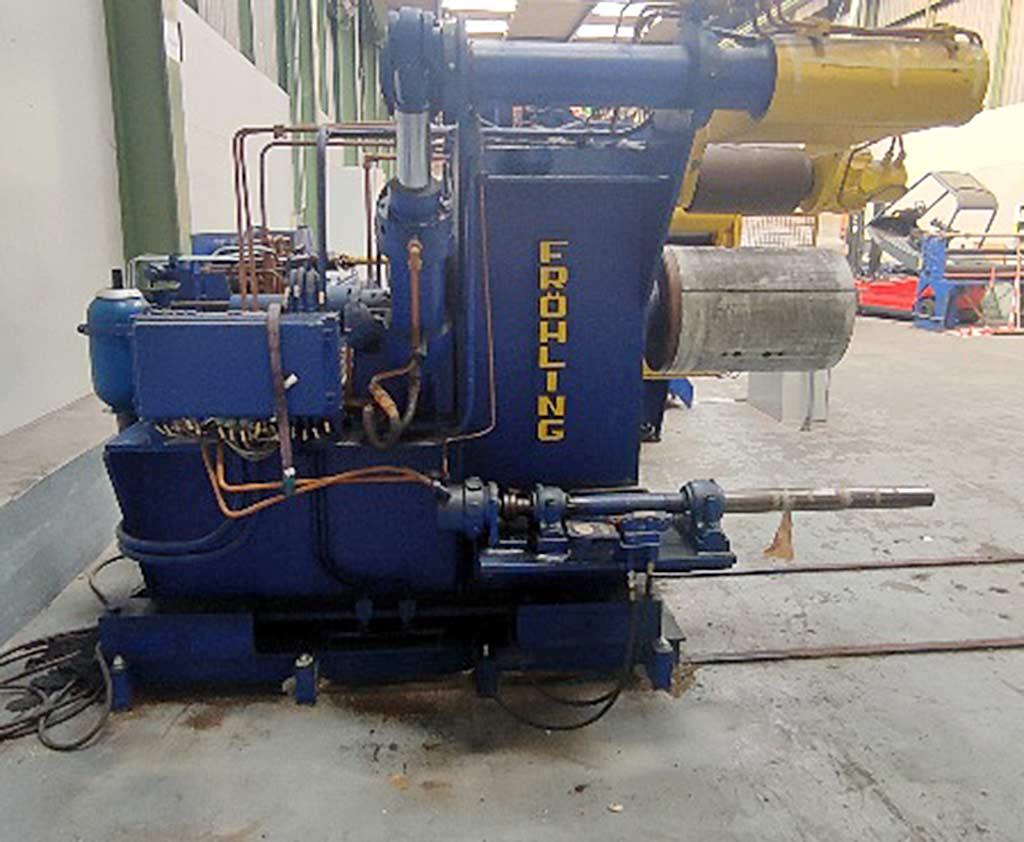

A complete cut-to-length line (coil line) for sheet metal processing, specifically for coils, is available. Product information: Material: stainless steel strip, max. strength at 2mm thickness: approx. 70kp/mm², max. elongation at 70kp/mm²: 50%, strip width range: 100mm-500mm, strip thickness range: 0.3mm-2.5mm, sheet lengths: 250mm/1000mm/4000mm/10000mm, strip speed range: 7.5m-30m/min, hydraulic operating pressure: approx. 80bar, pneumatic operating pressure: approx. 4bar, clarification sheet length: over 250mm: Feed and shear adjustment, over 1000mm: with mechanical intermittent operation, over 4000mm: with electrical on/off operation. 1) Decoiler, max. outer coil diameter: 1400mm, inner coil diameter: 400mm/500mm/600mm, decoiler drum spreading range: 370mm-620mm, spreading cylinder diameter: 125mm, spreading cylinder stroke: 40mm, spreading segment useful width: 600mm, max. strip weight: approx. 3000kp, max. strip tension: approx. 400kp, decoiler displacement: +/-100mm. 2) Kohler straightening machine, straightening roller diameter: 30mm, bale length: approx. 600mm, number of straightening rollers: 21, feed rate: 7.5m-30m/min, strip width range: 100mm-500mm, strip thickness range: 0.3mm-2.5mm. 3) Flying hydraulic shears, material/strip thickness/speed: to suit the system, number of cuts: 30 cuts/min, sheet length range: 250mm-1000mm, blade width: 600mm. 4) Conveyor belt, belt width: 600mm, center distance: 3500mm. Documentation available. On-site inspection is possible.
