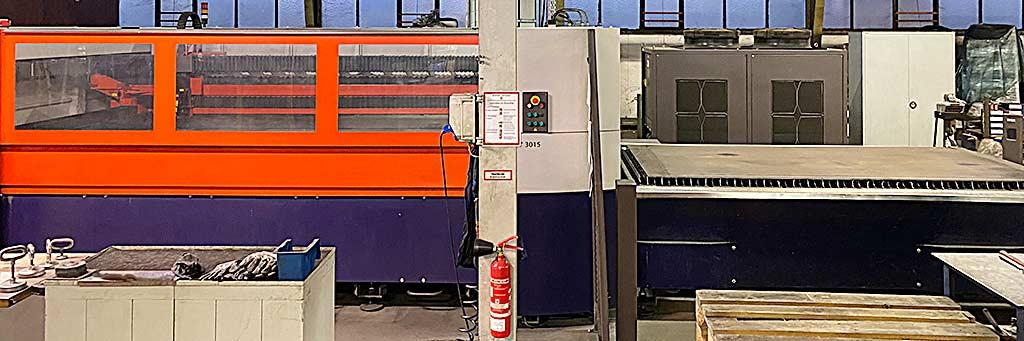

CNC Laser Cutting Machine Bystronic ByStar 3015/ByLaser 4400

Germany

Description

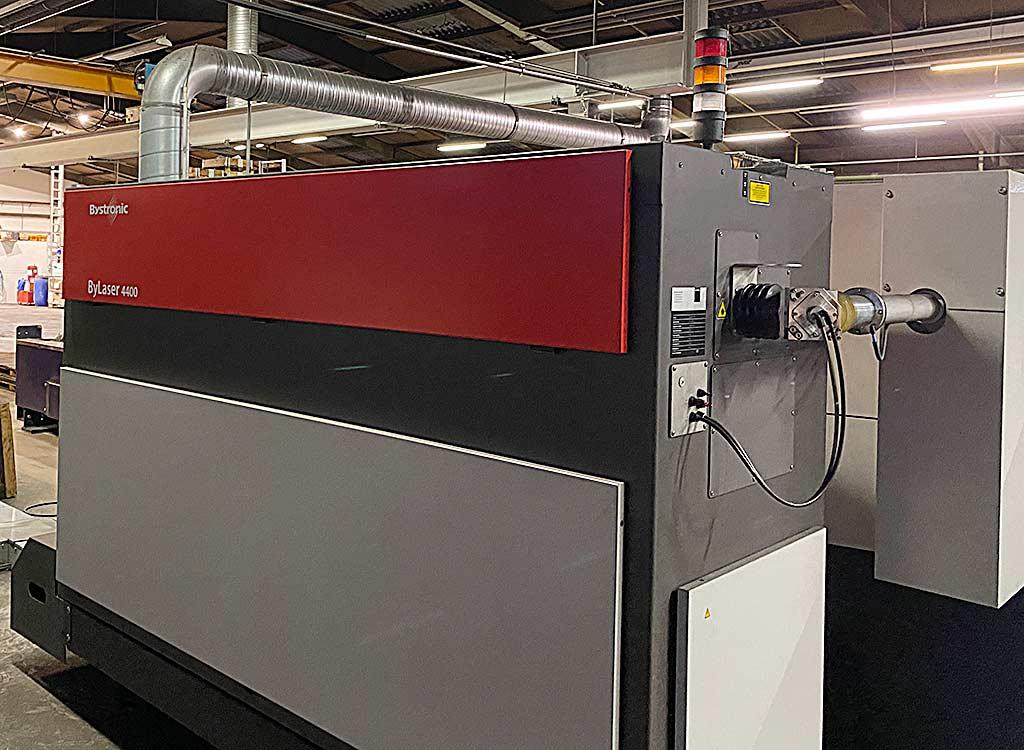

Cutting dimensions X/Y: 3048mm/1524mm, max. sheet dimensions X/Y: 3000mm/1500mm, max. workpiece weight: 890kg, positioning speed X/Y: 80m/min, simultaneous positioning speed: 113m/min, max. axis acceleration: 4.5m/s², max. Cutting speed: 50m/min, position deviation Pa: +/-0.1mm, position spread Ps: +/-0.05mm, edge detection accuracy: +/-0.5mm, laser source: ByLaser 4400, wavelength: 10.6µm, laser power: 4400W (4.4kW), pulse frequency range: 1Hz-2500Hz, max. Sheet thickness steel/stainless steel/aluminum: 25mm/20mm/12mm, system dimensions X/Y/Z: approx. 11500mm/6500mm/2350mm, machine weight: approx. 13000kg, laser source dimensions X/Y/Z: approx. 2900mm/950mm/1600mm, laser source weight: approx. 1600kg, operating hours: approx. 27729h. Documentation available. On-site inspection is possible.
