Placement System I-pulse (yamaha) M20
Specifications
Germany
Description

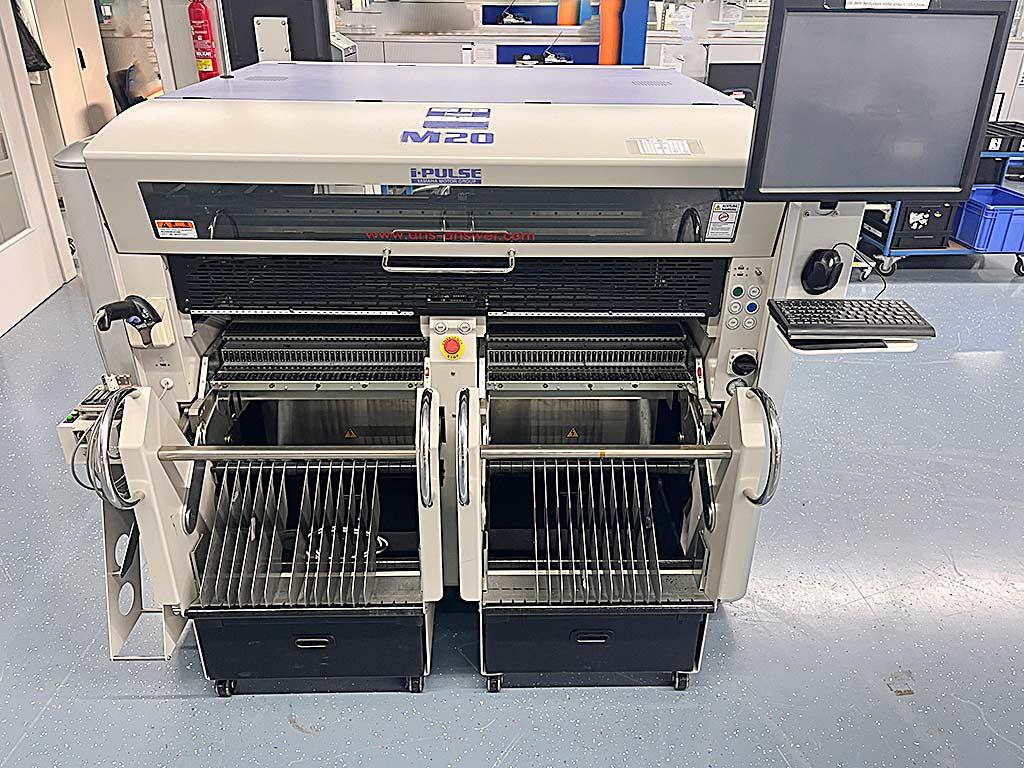

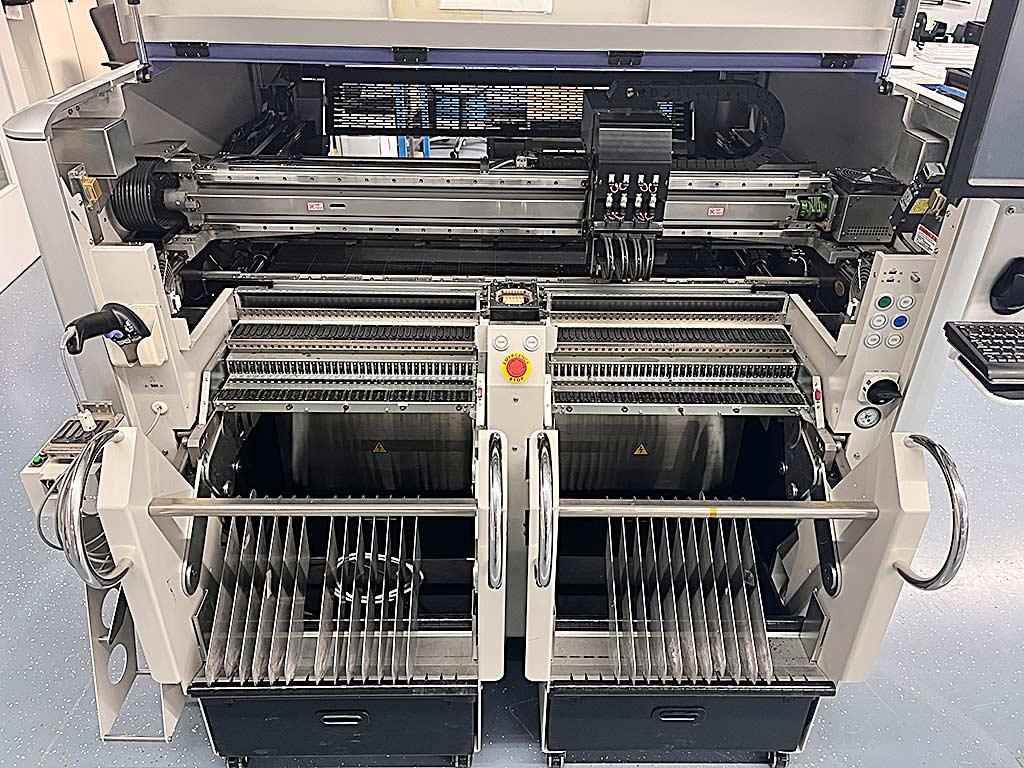

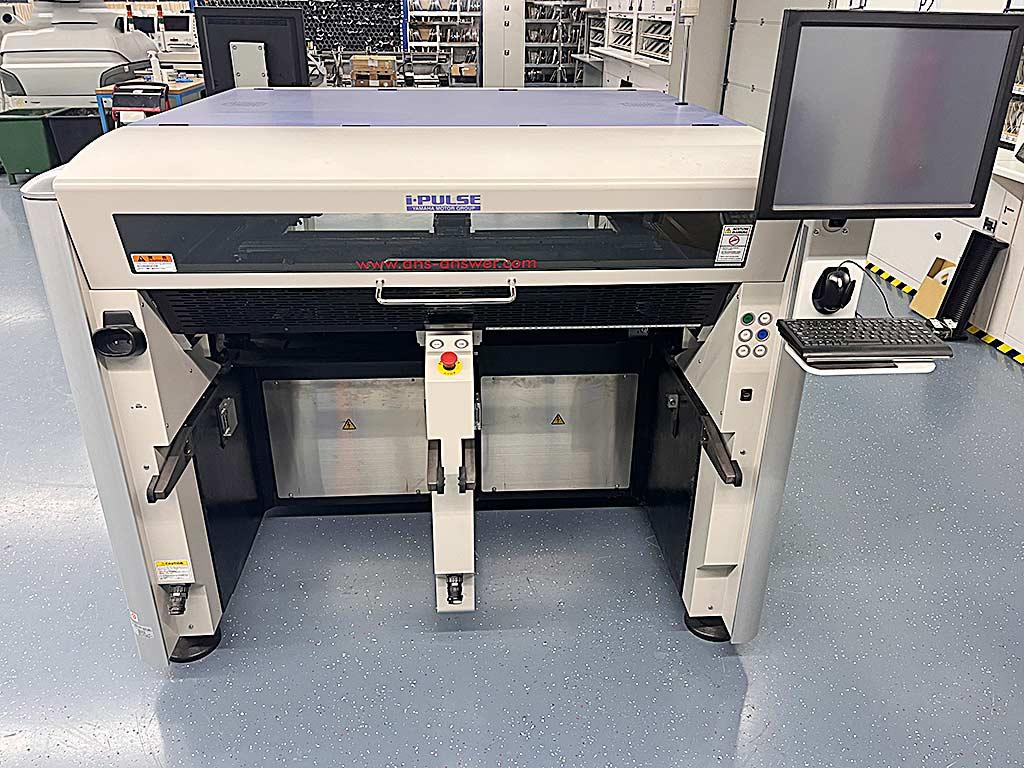

An i-Pulse SMD placement machine with IQ Vision, a subsidiary of Yamaha, is available. PCB thickness range: 0.4mm-4.8mm, min. PCB dimensions X/Y: 50mm/30mm, max. PCB dimensions X/Y: 1480mm/510mm, transport speed: 900mm/s, number of heads: 4, production output: 24000CPH. Placement accuracy CHIP: +/-0.04mm, placement accuracy IC: +/-0.025mm, placement angle: +/-180°, max. component size range: 0402-120mm/90mm, max. component height: 30mm. Machine dimensions X/Y/Z: approx. 1750mm/1750mm/1450mm, weight: approx. 1500kg. Including 3x feeder carriages and 2x tray feeders for installation in the machine. Documentation available. On-site inspection is possible.
Additional Details
