Pipe Bending Machine Wafios/kuka RB20/KR 16-2 KRC 2

Germany

Description

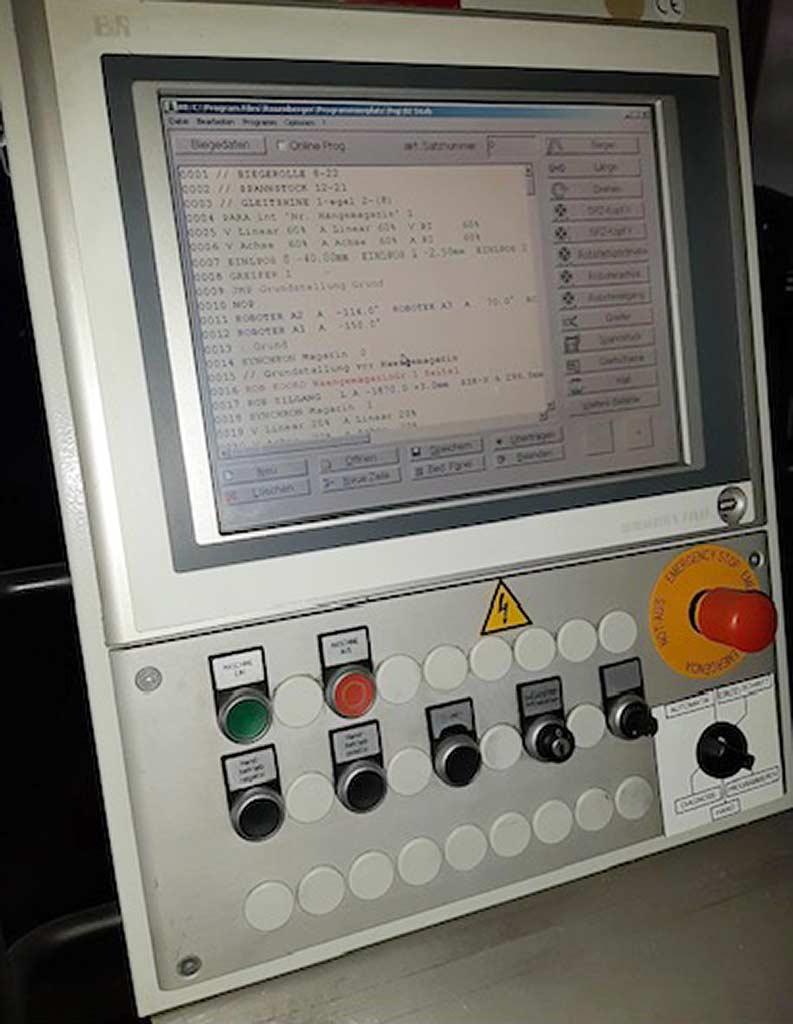

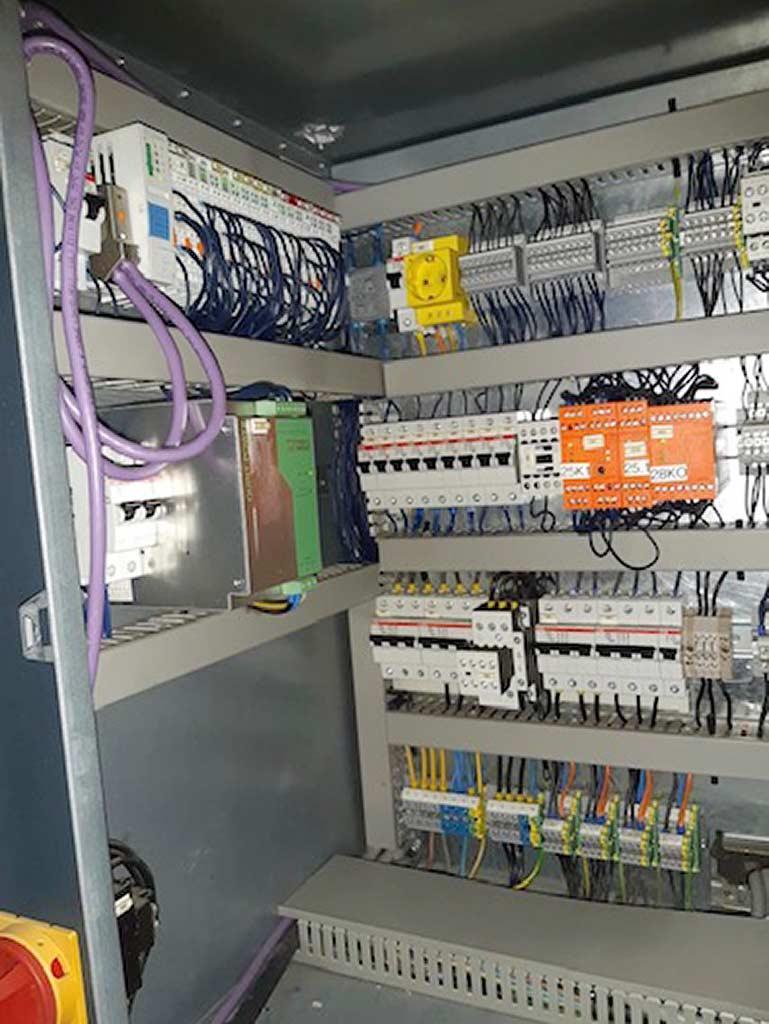

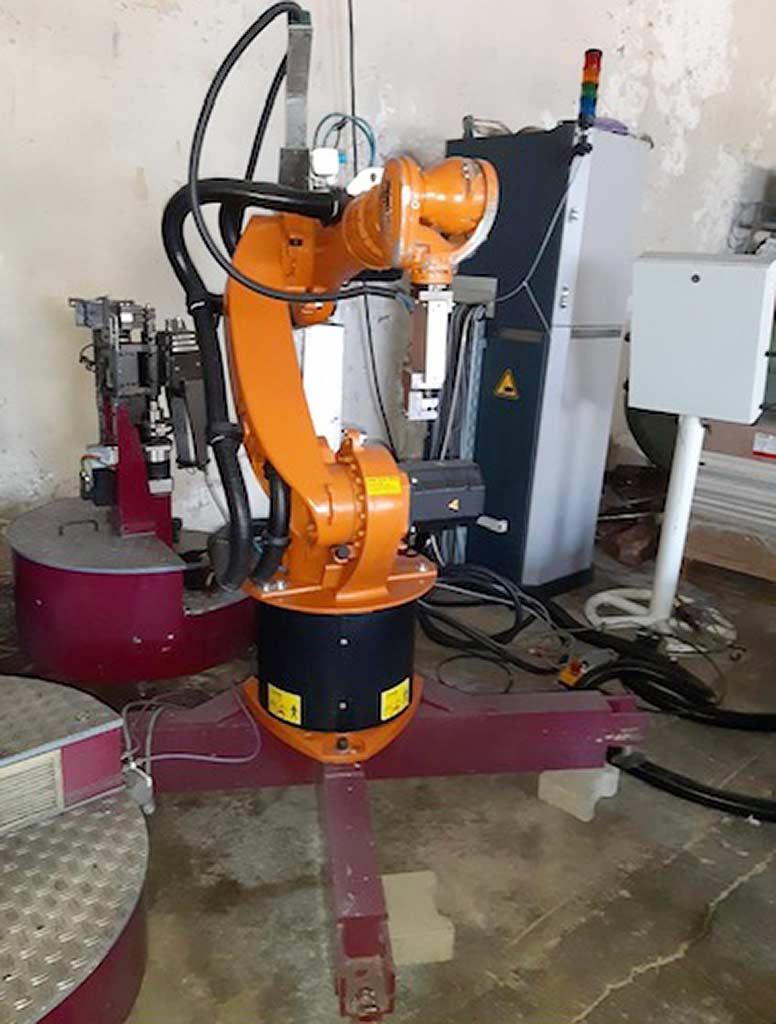

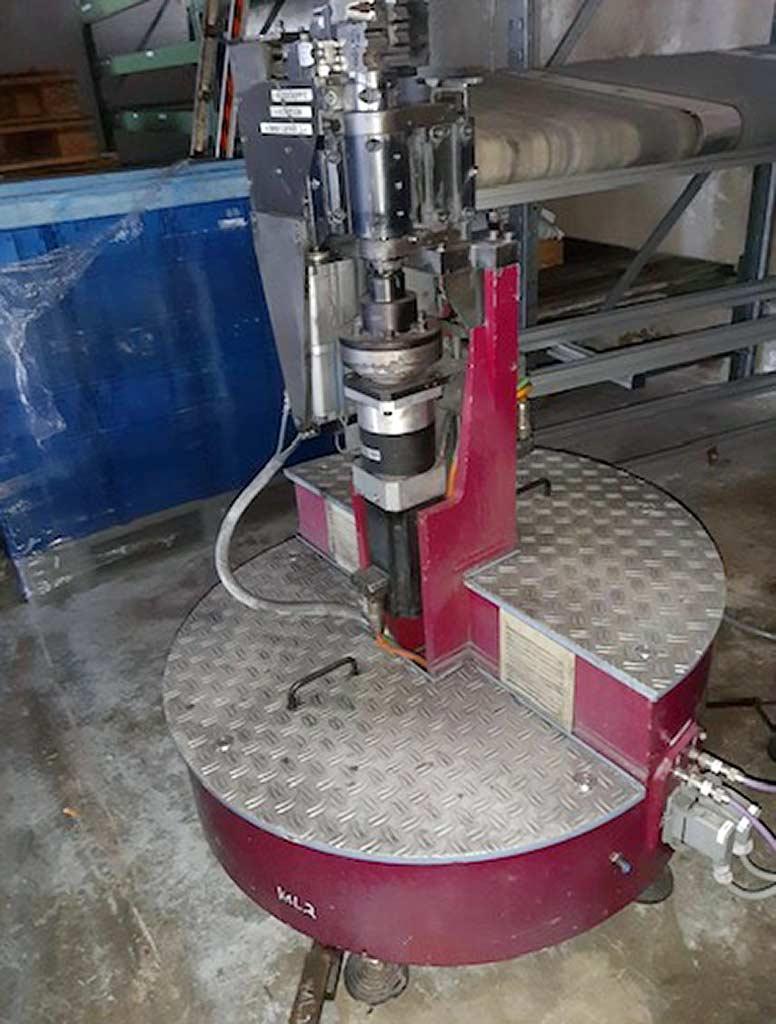

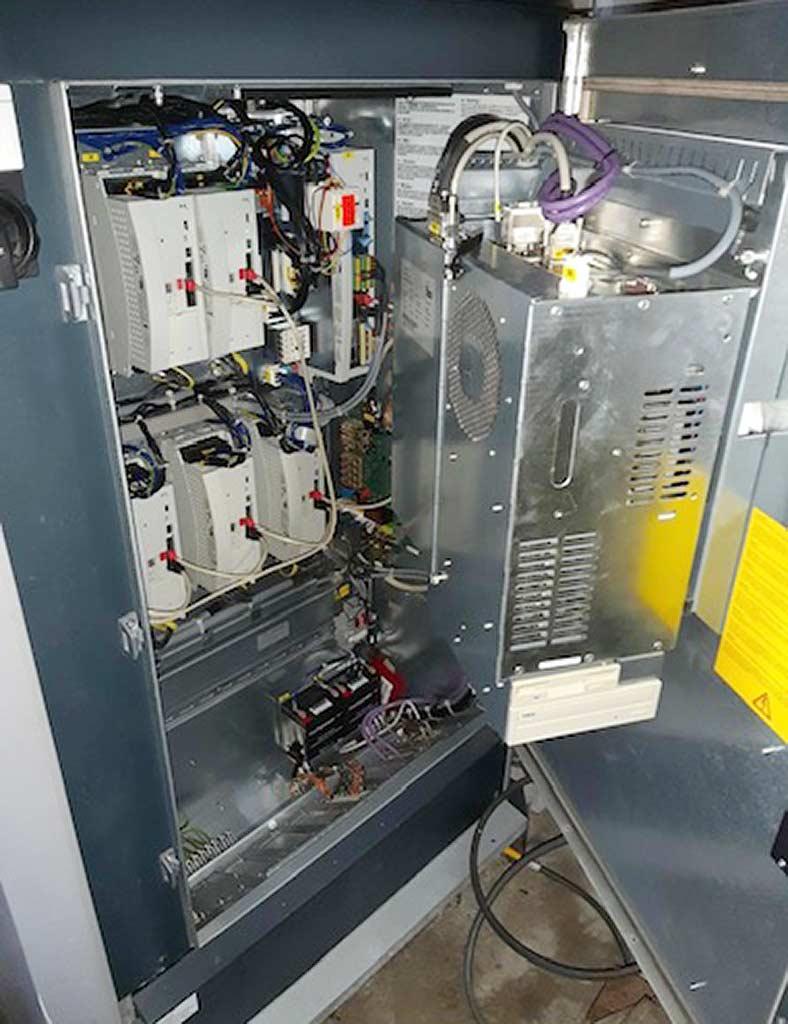

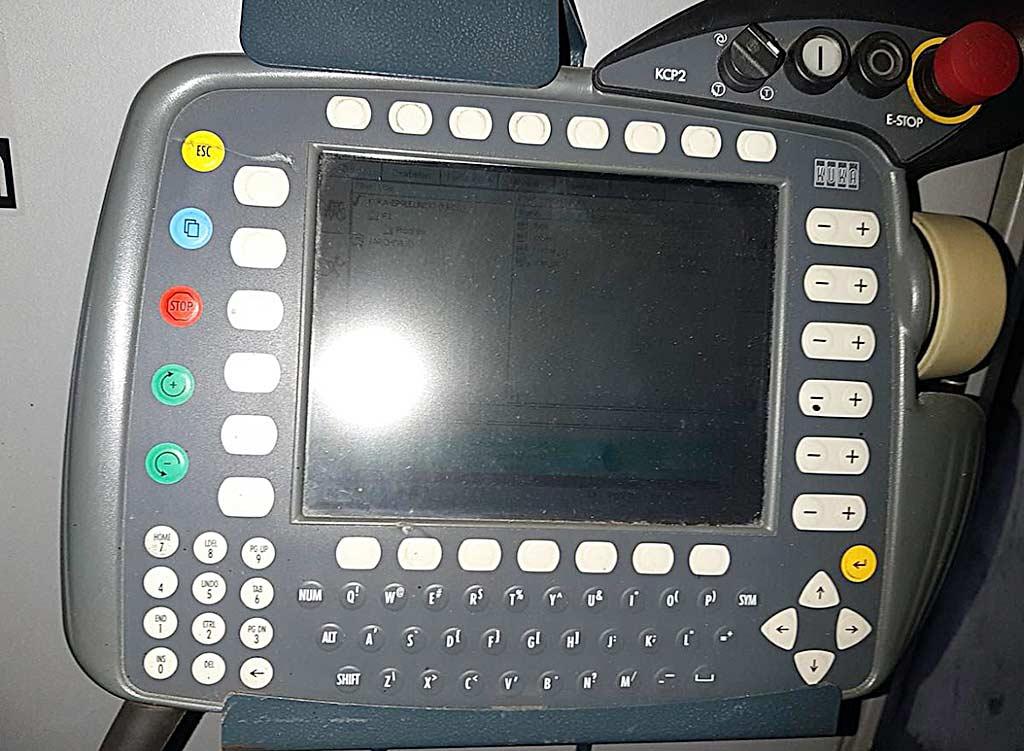

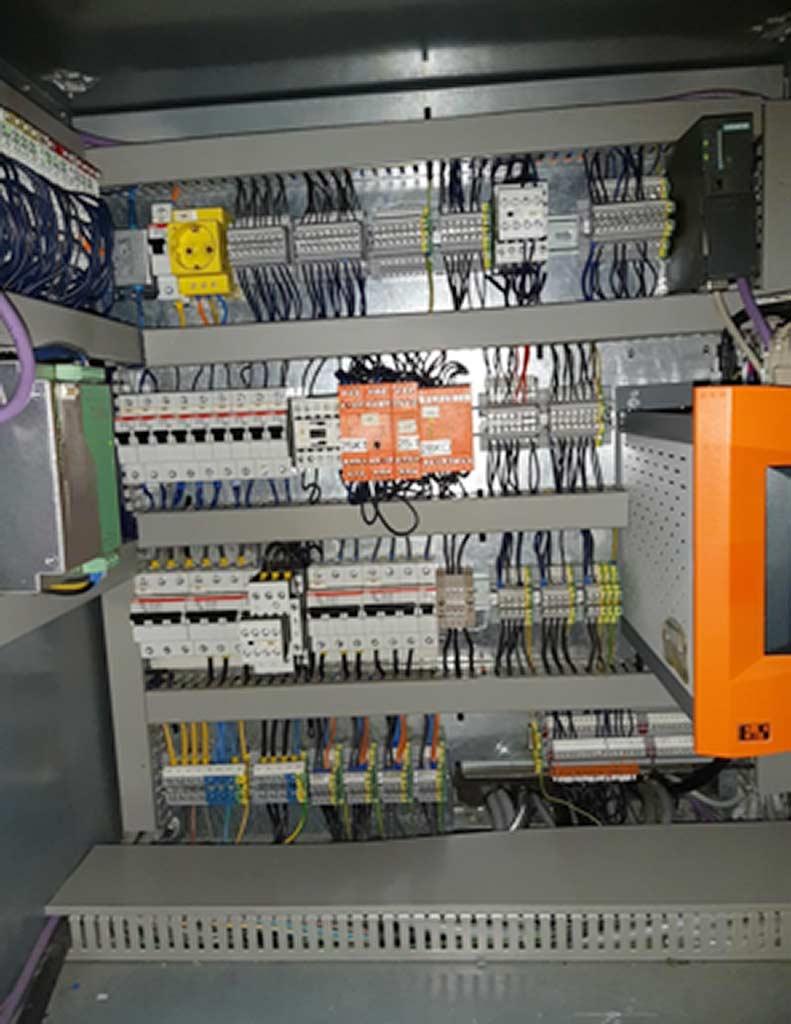

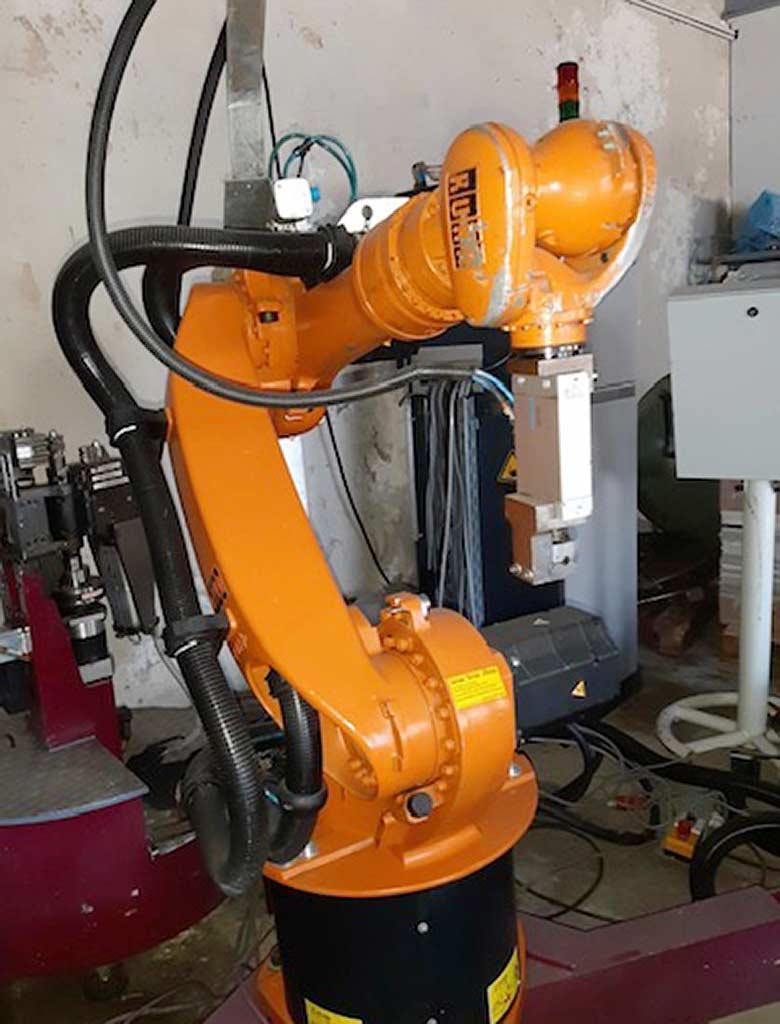

An automated tube bending system with two Wafios bending heads and a Kuka twister robot is available. 1) Bending head Wafios RB20, bending direction: left and right, max. total tool height: 78mm, bending capacity: 360Nm, bending speed: 560°/s, bending radius: 57mm, repeat accuracy bending, turning and feed: +/-0.05mm. 2) Robot Kuka KR 16-2 KRC 2, axes: 6, payload: 16kg, max. reach: 1611mm, repeat accuracy: +/-0.05mm, weight: approx. 235kg. Including suspended magazine, Kuka control cabinet, outfeed conveyor, safety fence, movable control panel, docking station and work table. Documentation available. On-site inspection is possible.
