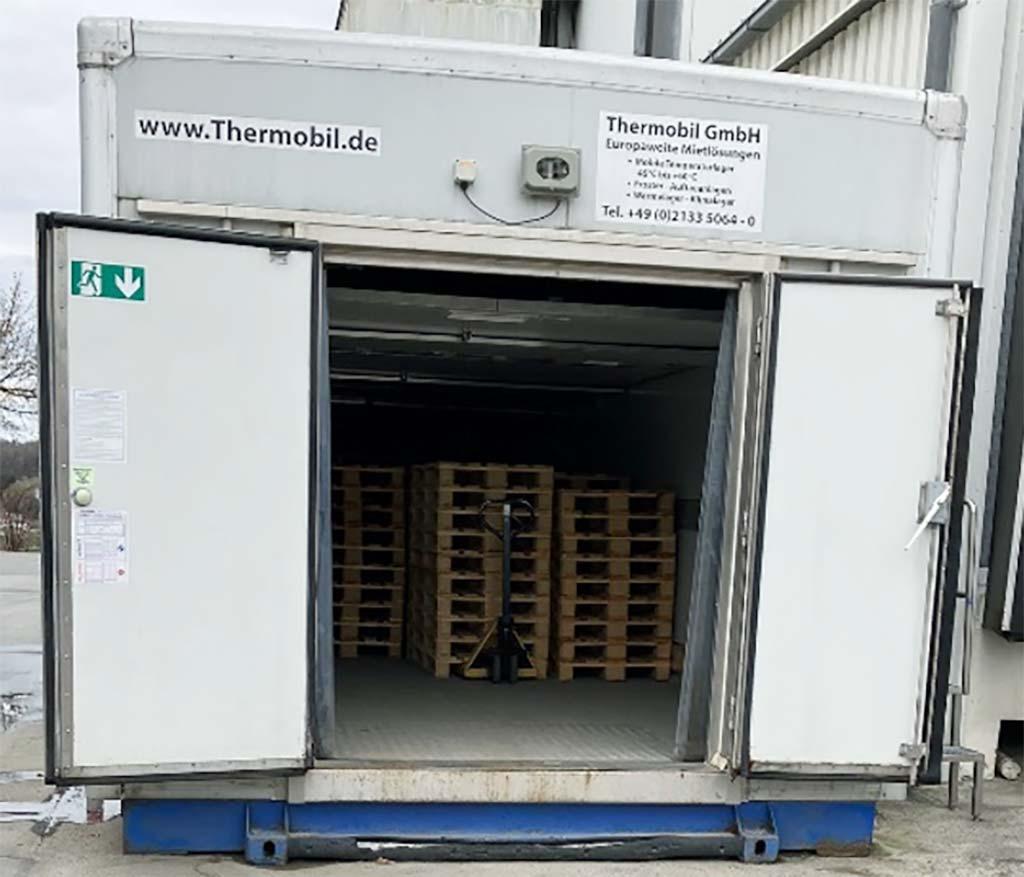

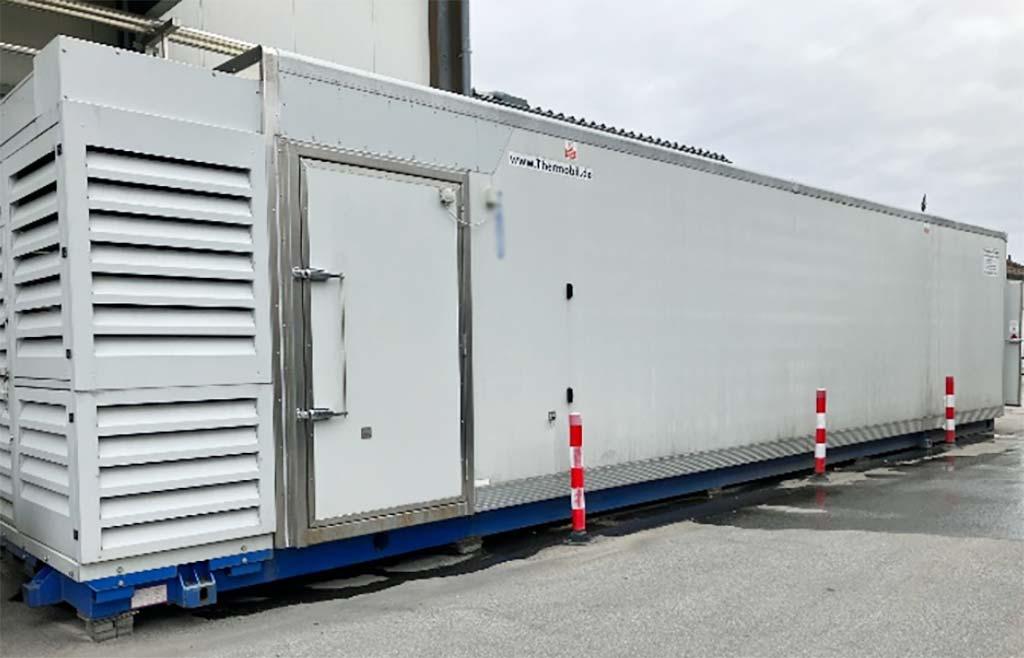

Shock Freezer Refrigerated Container Thermobil/ Dawson MEGABLAST

Germany

Description

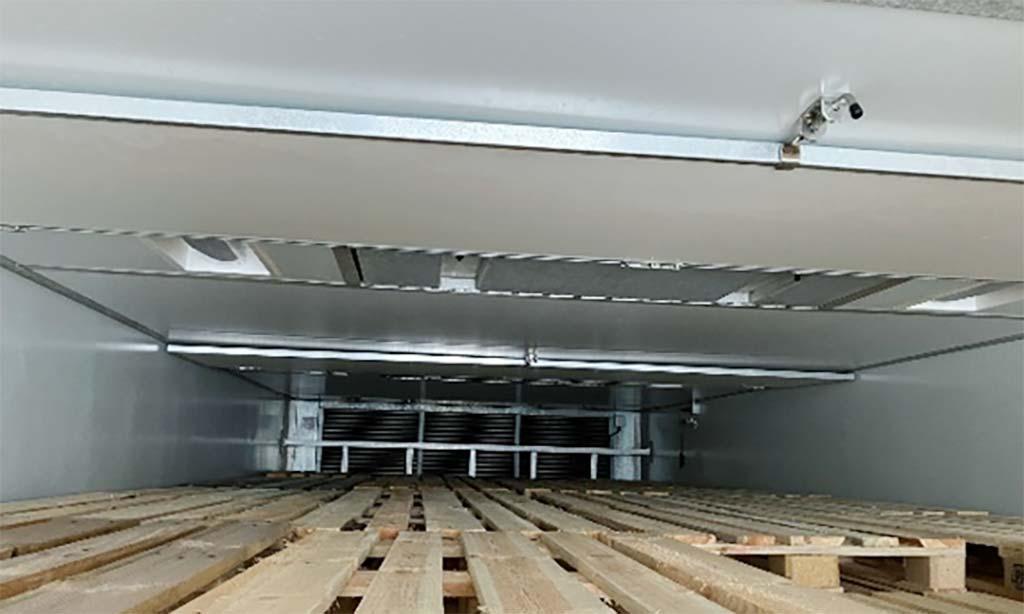

The system consists of two Bitzer compressors, a dual-circuit evaporator and a dual-circuit condenser, there are two completely separate systems. Compressor type: Semi-thermetic reciprocating compressor, model: 6F-50.2Y: Noise level of the compressor: 55-64dB(A) at 10 m (under free field conditions). Depending on operating conditions, refrigerant: R404A, charge weight: 32kg per system, standard oil type: ICI Emkerate RL32H: standard electrical power supply: 160A TPN+E, condenser: integrated dual-circuit condenser with three 3-phase EC fans, condenser airflow: 11.1m³/s, compressor sound pressure level: 63dB(A) at 10m (under free field conditions), evaporator: integrated dual circuit evaporator with 4 axial high pressure fans, evaporator airflow: 14m³/s at 200Pa resistance, defrosting method: electric, drain pan defrosting method: electric. On-site inspection is possible.
