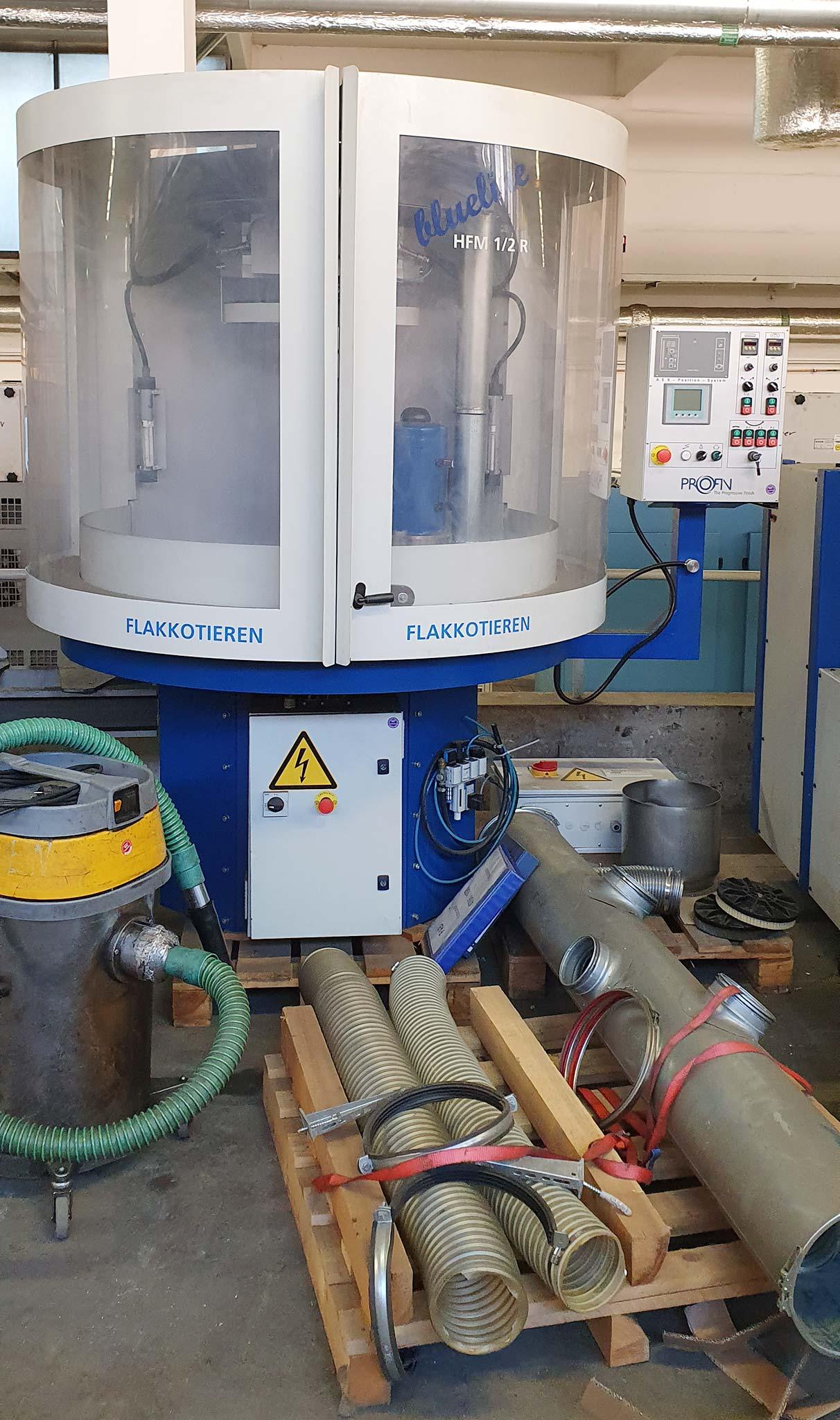

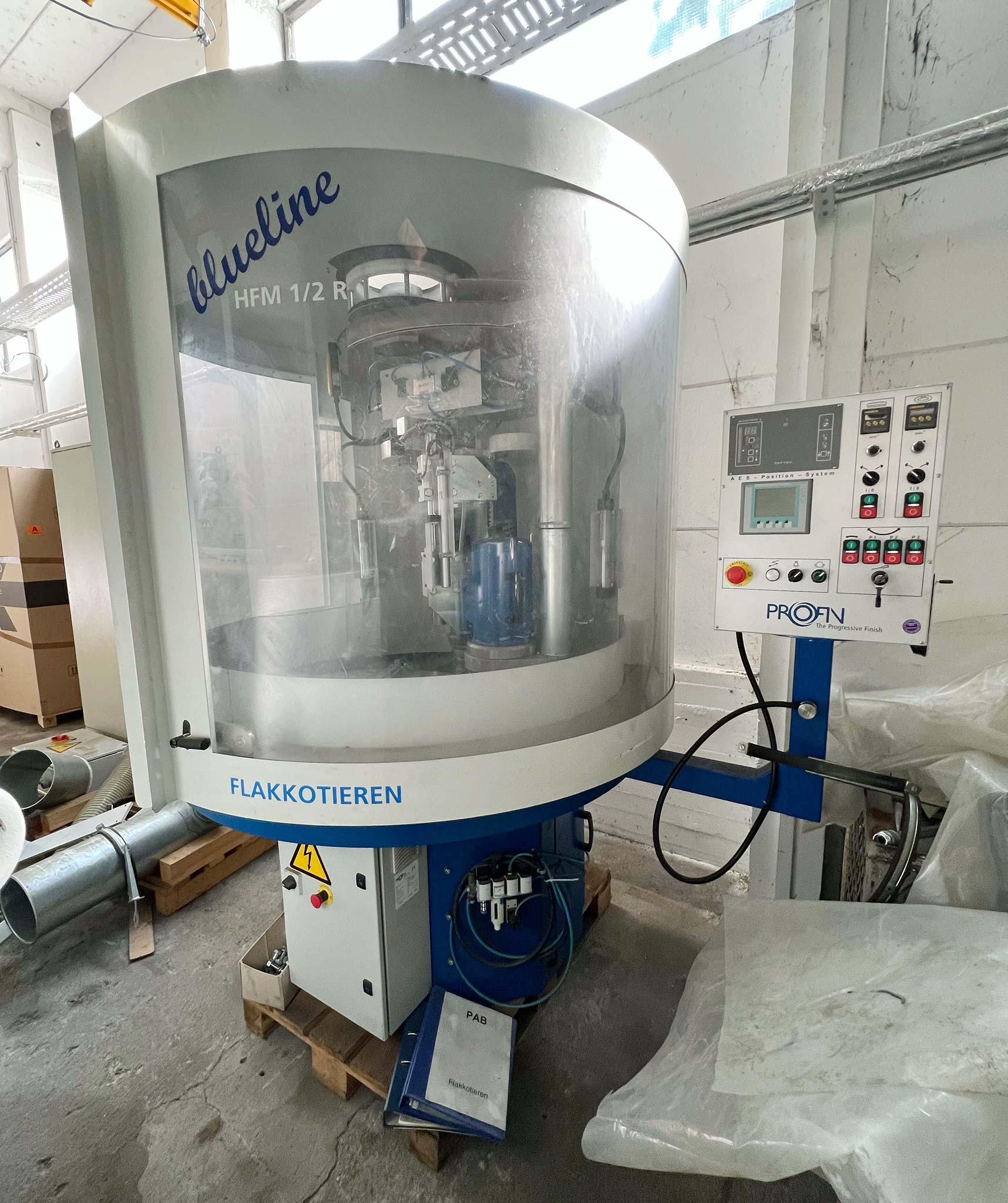

Flakkoting Machine Profin BLUELINE HFM 1/2-R

Germany

Description

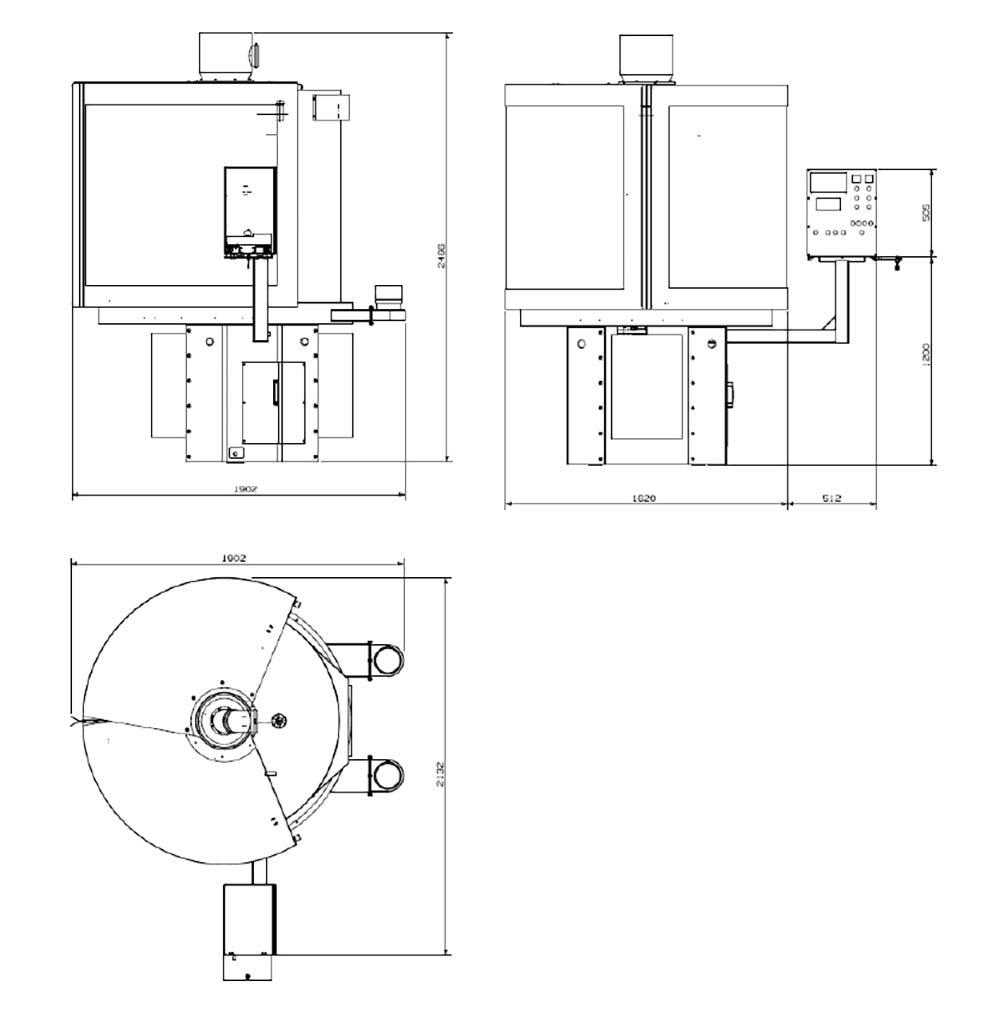

Suitable for edge preparation of all types of cutting tools with the corresponding holders and turning devices, e.g. roll cutters turning devices, e.g. cylindrical milling cutters, saw blades up to 380mm diameter, shank tools, indexable inserts and saw band coils up to 750mm diameter. Number of units: 1, table pitch circle: 600mm, table outer diameter: 800mm, machining width/height: 180/ 250mm, feed rate: 0.5-6m/min, flakkotier power: 4kW, connected load: 6.4kW, length: 2500mm, width: 1950mm, height: 2500mm, weight: 3t, operational hours counter: approx. 100h. Including documentation, without accessories or spare parts. On-site inspection is possible.

Additional Details
